Specifications
- Brand name
- No
- Origin
- China
- Type
- Actuator
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1
- Product Name

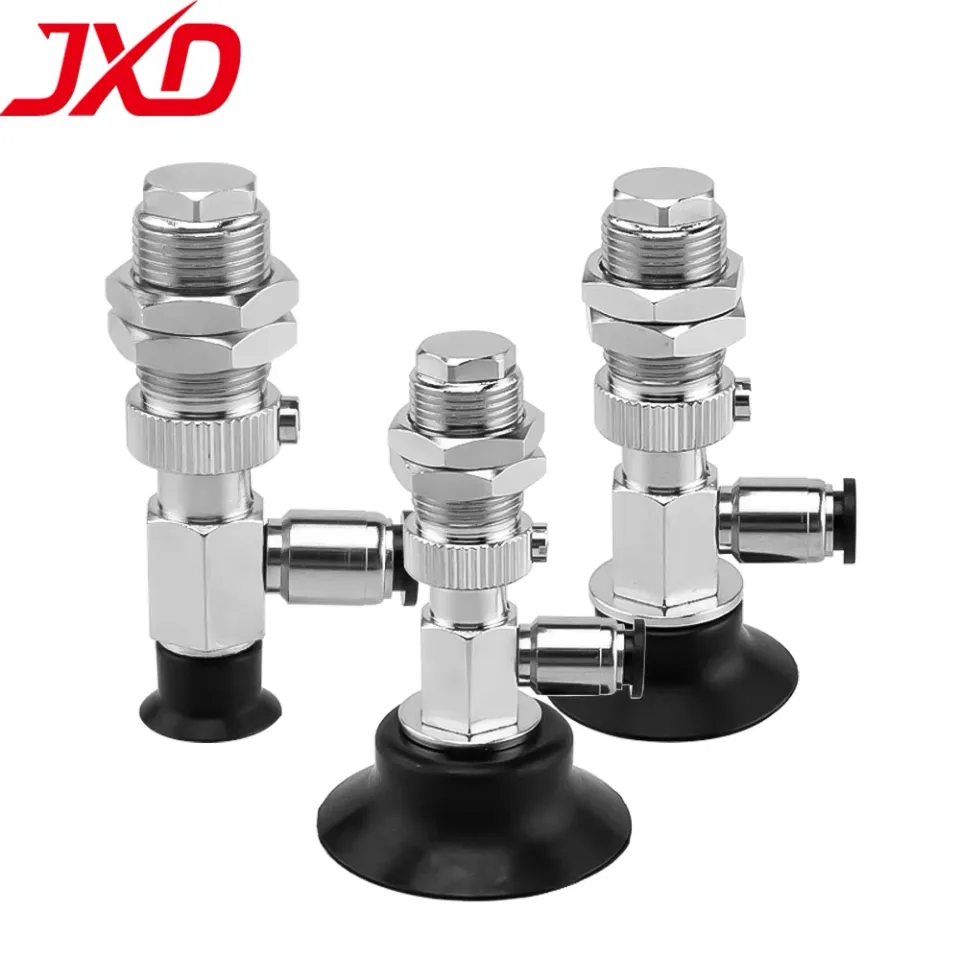

- VPD Vacuum Suction Cup Bracket
- Suction Cup Compatibility
- Single-layer or double-layer
- Suction Cup Material
- Nitrile Rubber / Silicone
- Suction Cup Diameter
- 6/8/10/15/20/25/30/40/50
- Mounting Thread
- M12*1.0, M14*1.0
- Air Inlet Size
- 4/6mm
- Customization Availability
- Supports non-standard customization
Description

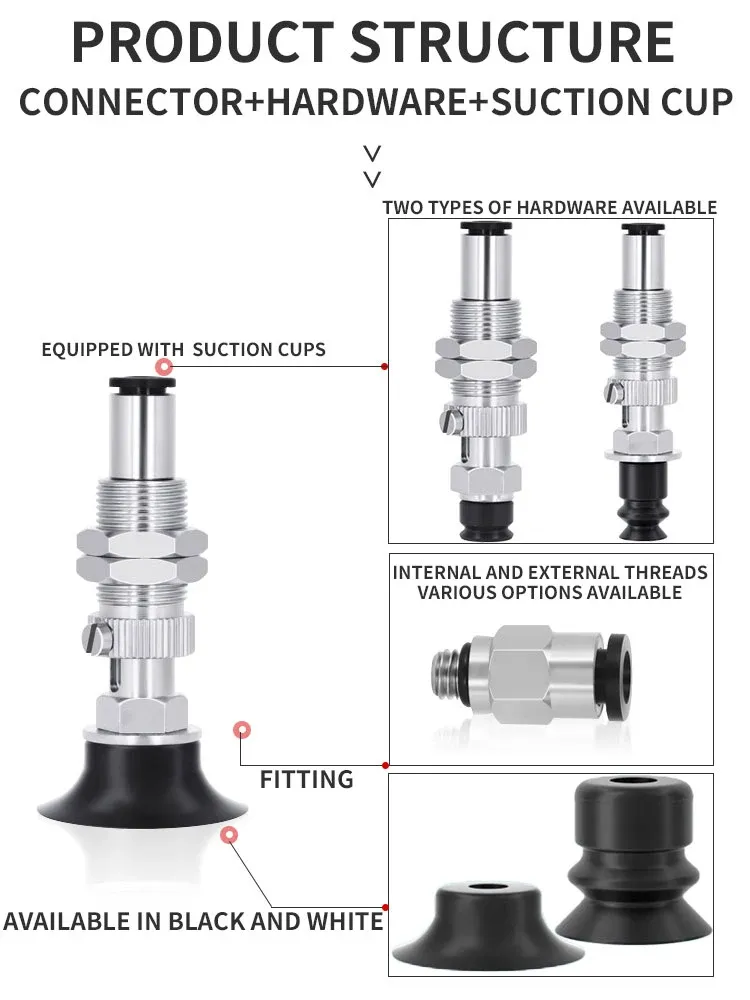

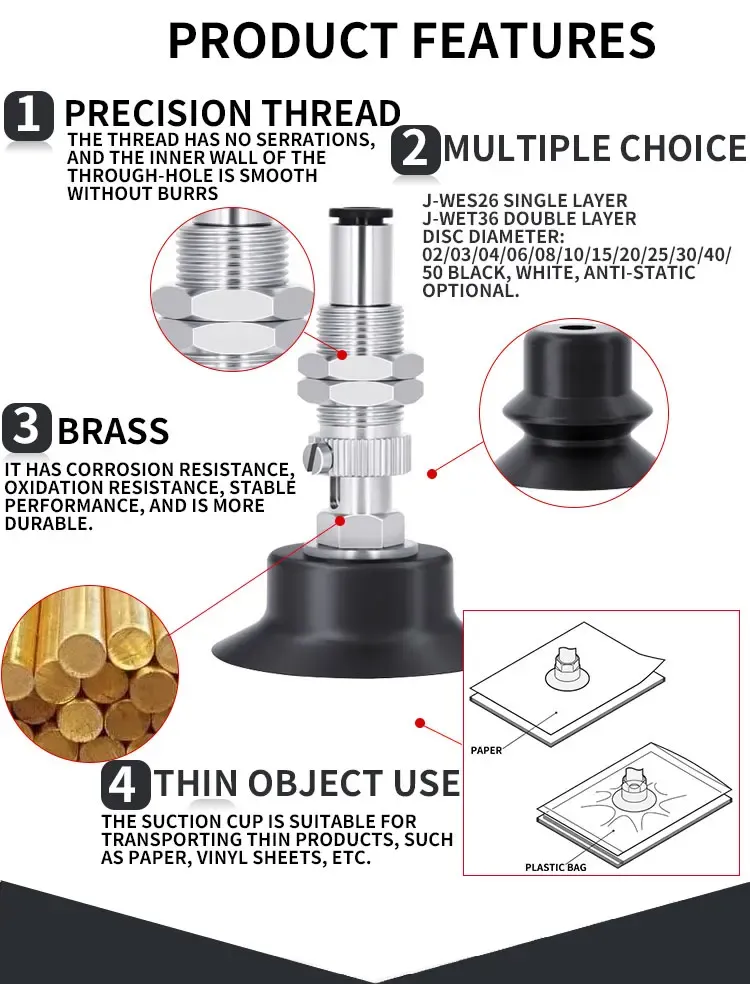

1. Premium nickel-plated copper bracket: the bracket body is made of nickel-plated copper, which significantly increases its hardness, provides excellent corrosion and wear resistance, and effectively prevents oxidation and vulcanization, extending service life in harsh industrial conditions. 2. Reliable and airtight connection design: the built-in fixed connection between the connector and the suction cup interface has a well-thought-out design that ensures tight assembly, preventing air leakage or connection loosening, guaranteeing stable vacuum adsorption performance. 3. Universal suction cup configuration: a choice between single-layer and double-layer suction cups in nitrile rubber or silicone is offered, with a diameter of 2 to 50 mm, meeting various adhesion requirements for handling different parts. 4. Standard compatibility and easy installation: equipped with M12*1.0 and M14*1.0 metric thread mounts, as well as 4/6 mm air intake holes, ensuring smooth integration with most industrial robots and mechanized automated equipment. 5. Low-friction automation adaptability: specially designed for automation equipment requiring low friction, such as industrial robots and mechanized systems, optimizing the efficiency of automated handling processes. 6. Custom solutions: non-standard customization is supported to adapt bracket specifications, suction cup parameters and connection details to unique operational requirements.
