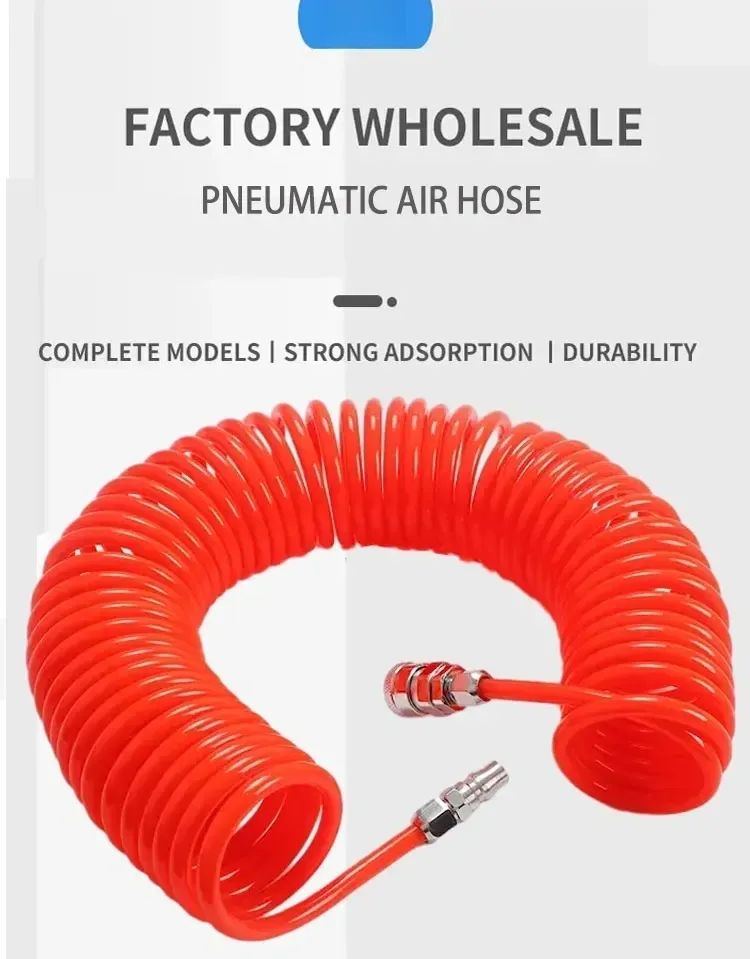

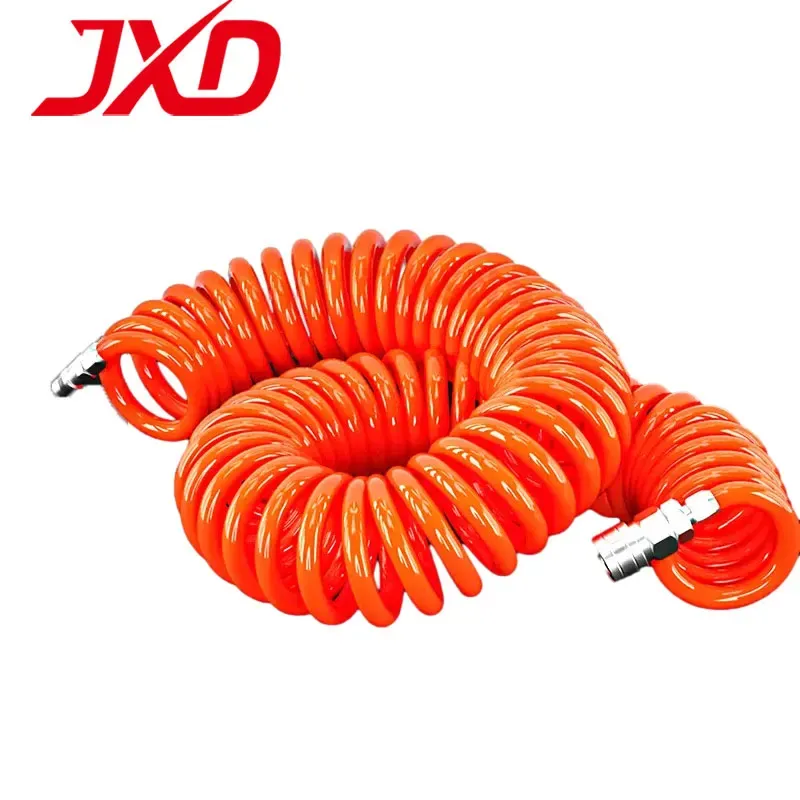

8x5 mm 10-30 ft pneumatic hose

Specifications

Brand name

No

Origin

China

Type

Pipe

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

PU Pneumatic Hose

Material

TPU (Thermoplastic Polyurethane)

Hardness

85A Hardness

Working Pressure

1.3 MPa

Tensile Strength

13.5 MPa

Applicable Temperature

-20~60°C

Pressure Resistance

12 kg (1.2 MPa)

Abrasion Resistance

35 mg

Instant Burst Pressure

36 kg (3.6 MPa)

Tear Strength

110 kg/cm²

Applicable Medium

Non-corrosive gas/water/oil

Customization Available

Non-standard customization is supported

Description

1. Exceptional durability and wear resistance Made of high-quality thermoplastic polyurethane (TPU) with a hardness of 98A, the hose passed 365 hours of simulated real-ground friction testing without cracks or potential safety risks. With an ultra-low wear level of only 35 mg, this material ensures long-term reliable operation in demanding environments. 2. High pressure-bearing capacity With a working pressure of 1.3 MPa, a pressure resistance of 1.2 MPa (12 kg) and an instant burst pressure of up to 3.6 MPa (36 kg), the hose ensures stable operation under high pressure, eliminating leaks and burst risks. 3. Outstanding mechanical strength Offers superior tensile strength (13.5 MPa) and tear strength (110 kg/cm²), allowing it to withstand stretching and impact in daily use without deformation or damage. 4. Wide adaptability and versatility Suitable for temperatures from -20 to 60 °C, compatible with non-corrosive gases, water and oil. The smooth surface increases the friction coefficient, ensuring reliable transmission of fluids and gases in various industrial environments. 5. Customization flexibility Supports non-standard customization to meet specific size, length or performance requirements, adapted to your unique application needs.
