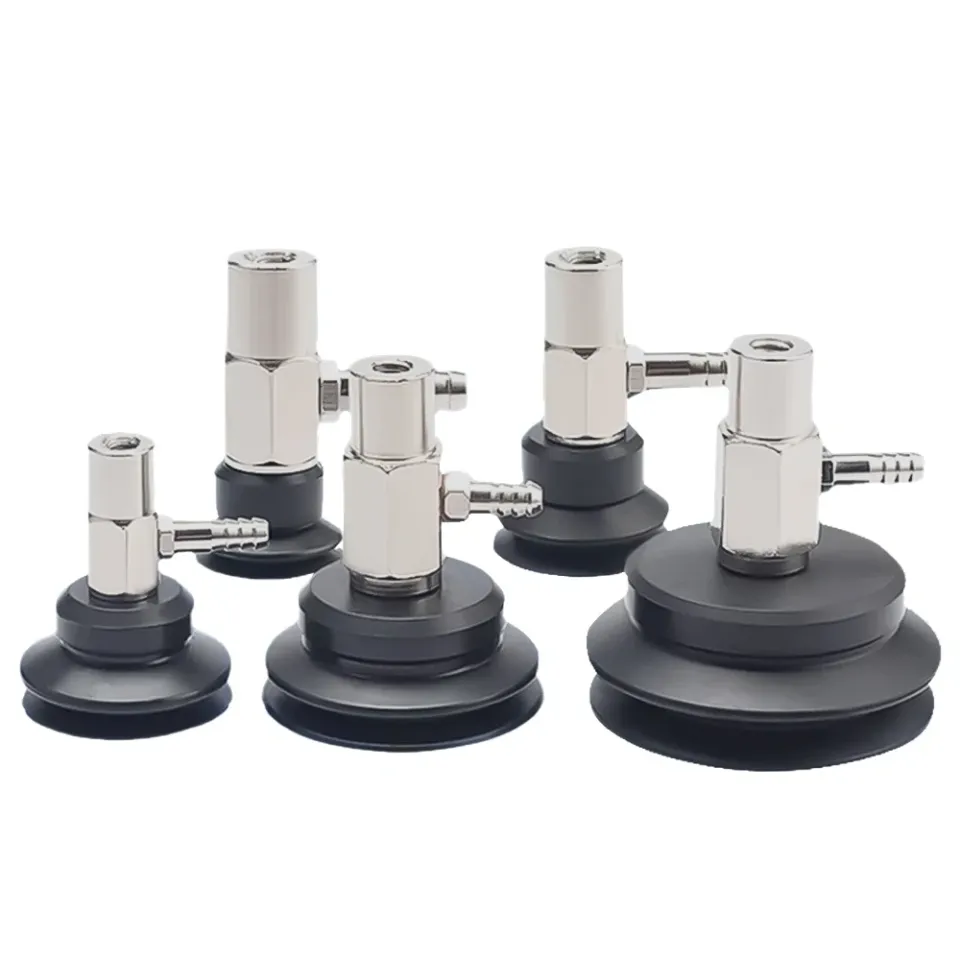

PBT double-layer vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product name

PBT Vacuum Suction Cup

Material

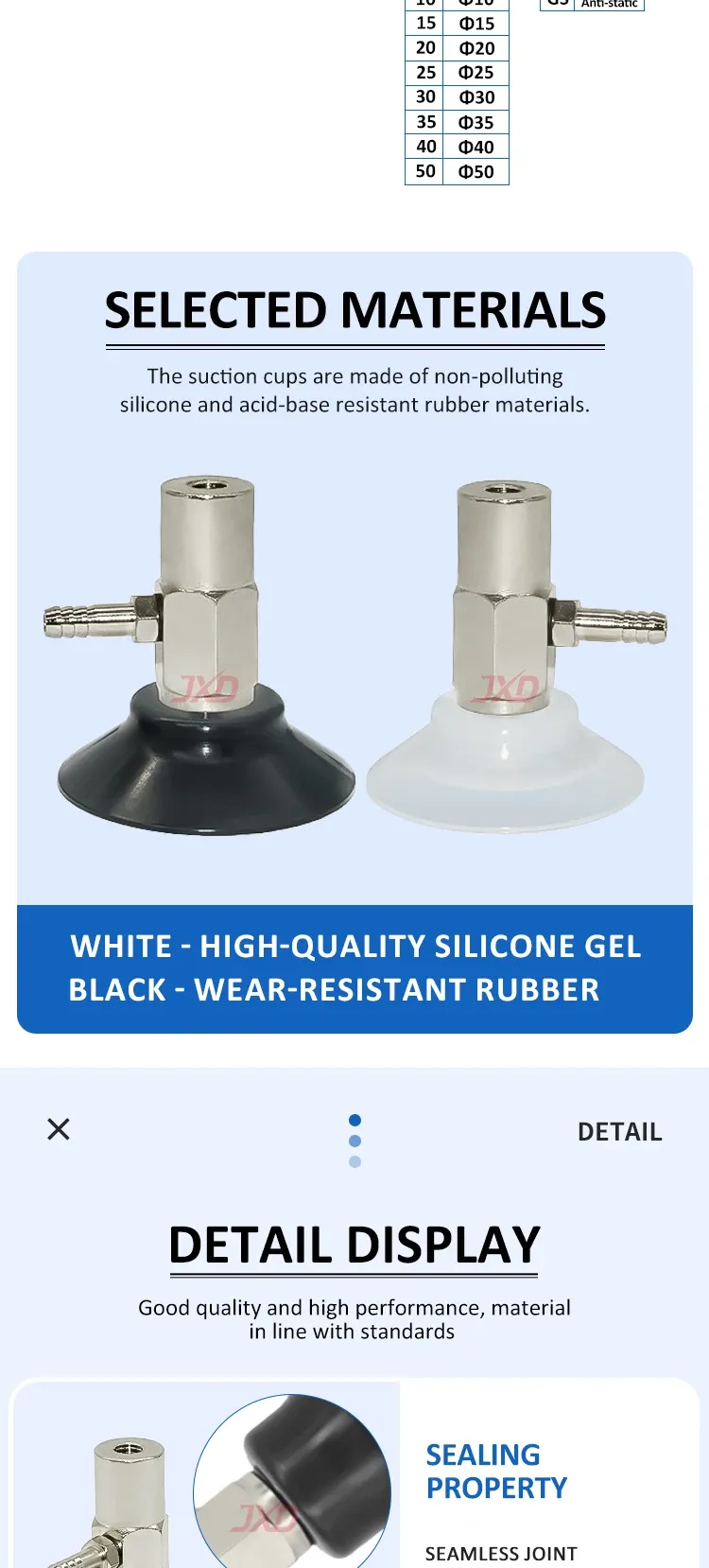

White Silicone; Black Anti-Static Material

Suction Cup Bracket Body

Side Piping

Air Inlet Type

Side Air Inlet

Suction Cup Layers

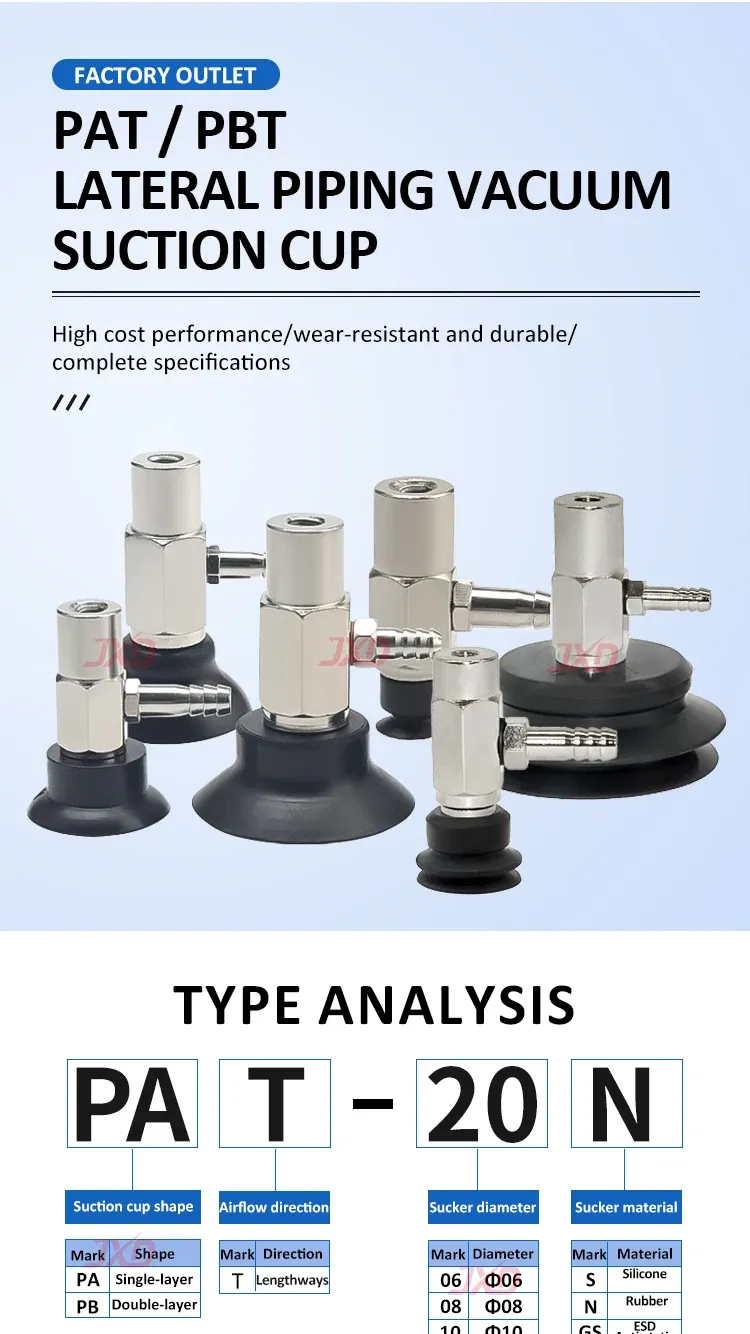

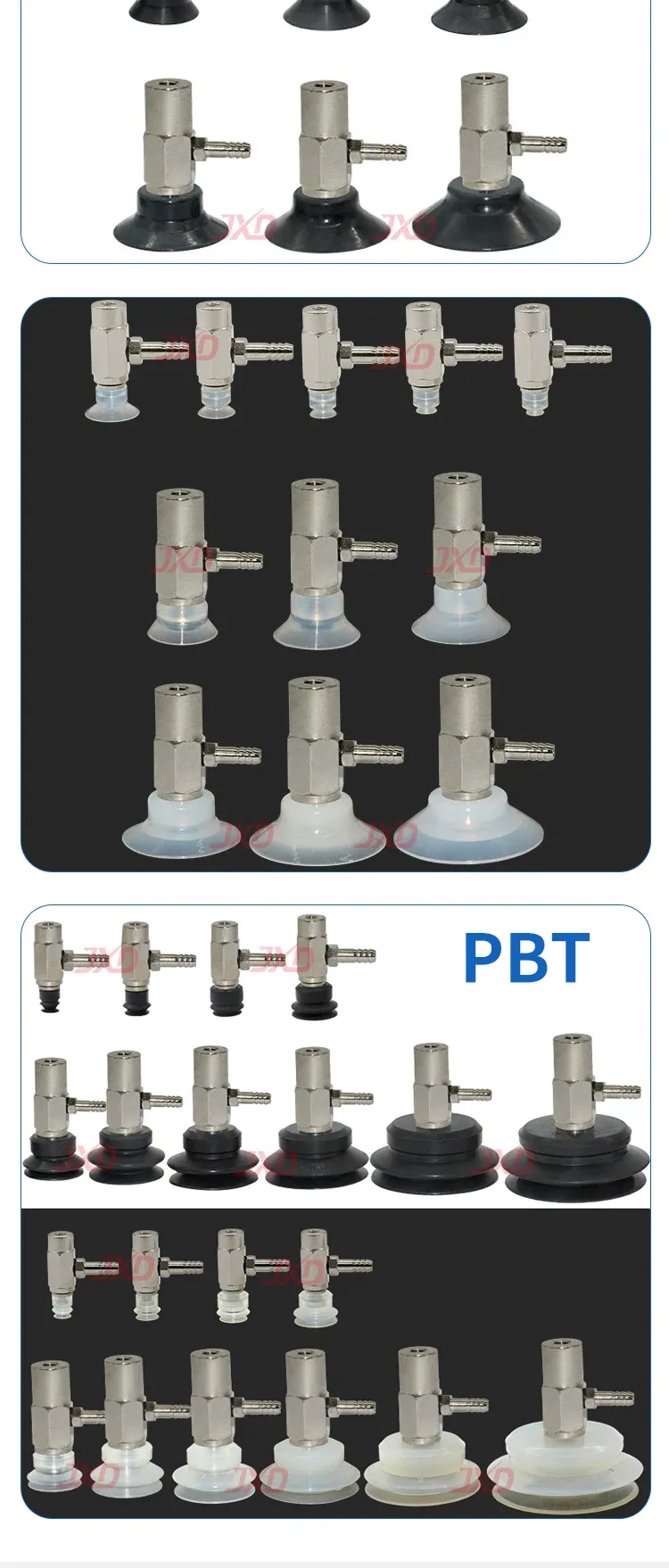

PAT (Single-Layer); PBT (Double-Layer)

PAT Cup Diameter

PAT-06 / 08 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 50 / 60 / 80 / 95

PBT Cup Diameter

PBT-5 / 6 / 8 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 50

Compatible Suction Cups

PJG / PFG

Compatible Piping

6mm

Customization Option

Non-standard customization is supported.

Description

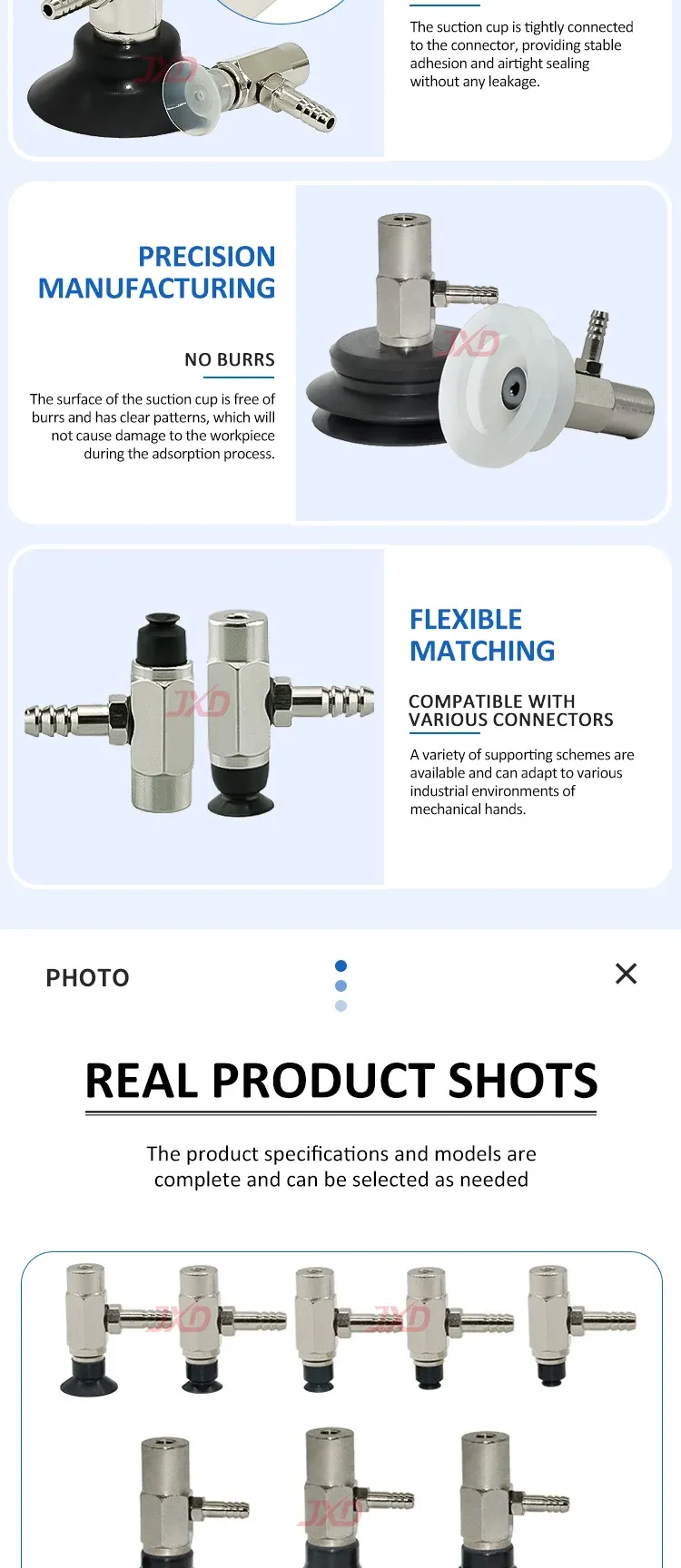

PAT/PBT vacuum suction cup: designed for curved surfaces and specialized industrial tasks 1. Custom design**: the side bracket with a side air intake ensures efficient airflow and compact installation, ideal for working in confined spaces or for directed use. 2. Double-layer flexibility**: PAT (single-layer) and PBT (double-layer) options meet various adsorption needs, with a wide diameter range (PAT: 6-95 mm; PBT: 5-50 mm) to suit handling workpieces of different sizes. 3. **Premium material choice**: white silicone and black anti-static material ensure reliable performance, suitable for sensitive or charge-accumulating parts in industries such as glass and electronics. 4. Wide compatibility**: works seamlessly with PJG/PFG suction cups and 6 mm tubes, simplifying integration into existing industrial systems. 5. Industry application: professionally handles curved/spherical surfaces, making it the best choice for the sheet metal, glass and woodworking industries, where precision and surface protection matter. 6. Superior performance characteristics**: the burr-free surface with uniform texture ensures stable adsorption; high tear strength prevents slipping; the surface-friendly design protects fragile materials (e.g. glass, polished wood). 7. Custom solutions available**: non-standard customization is supported to meet unique industrial requirements, from special sizes to application-oriented modifications.
