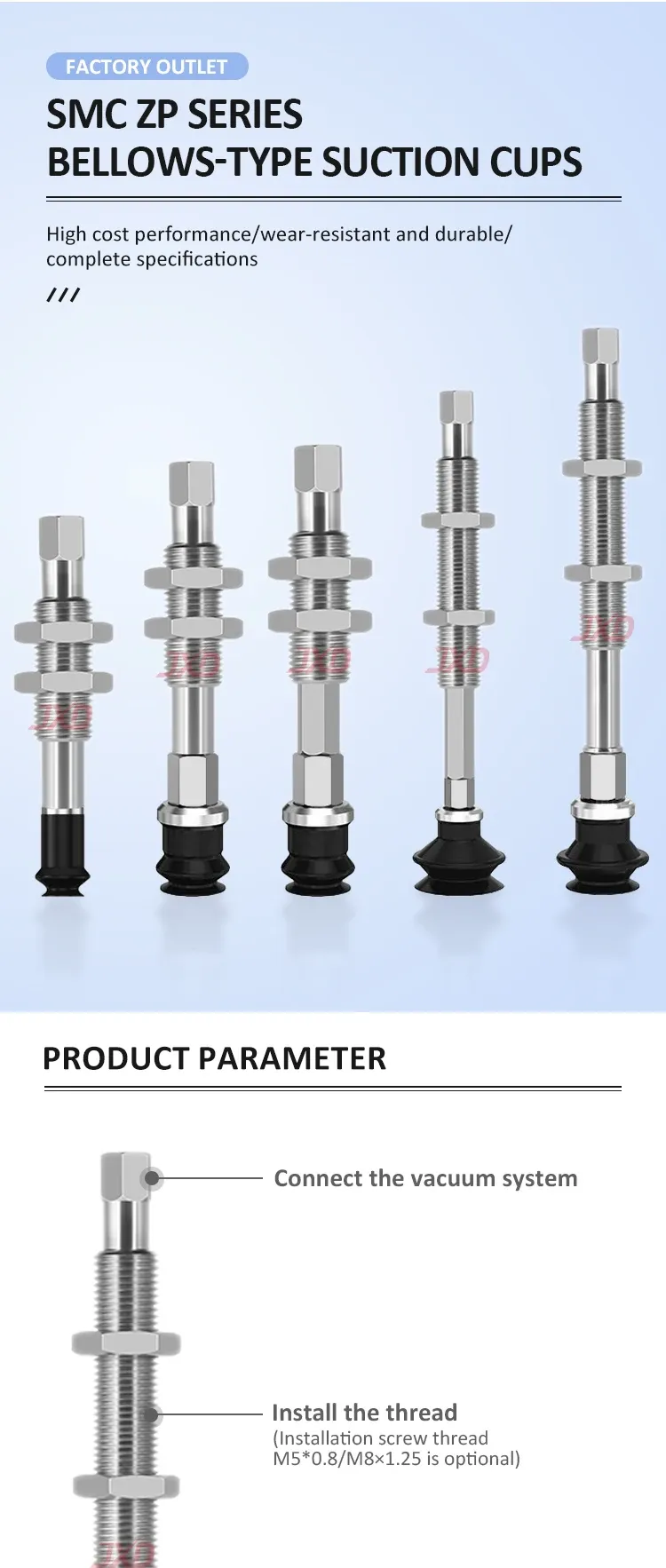

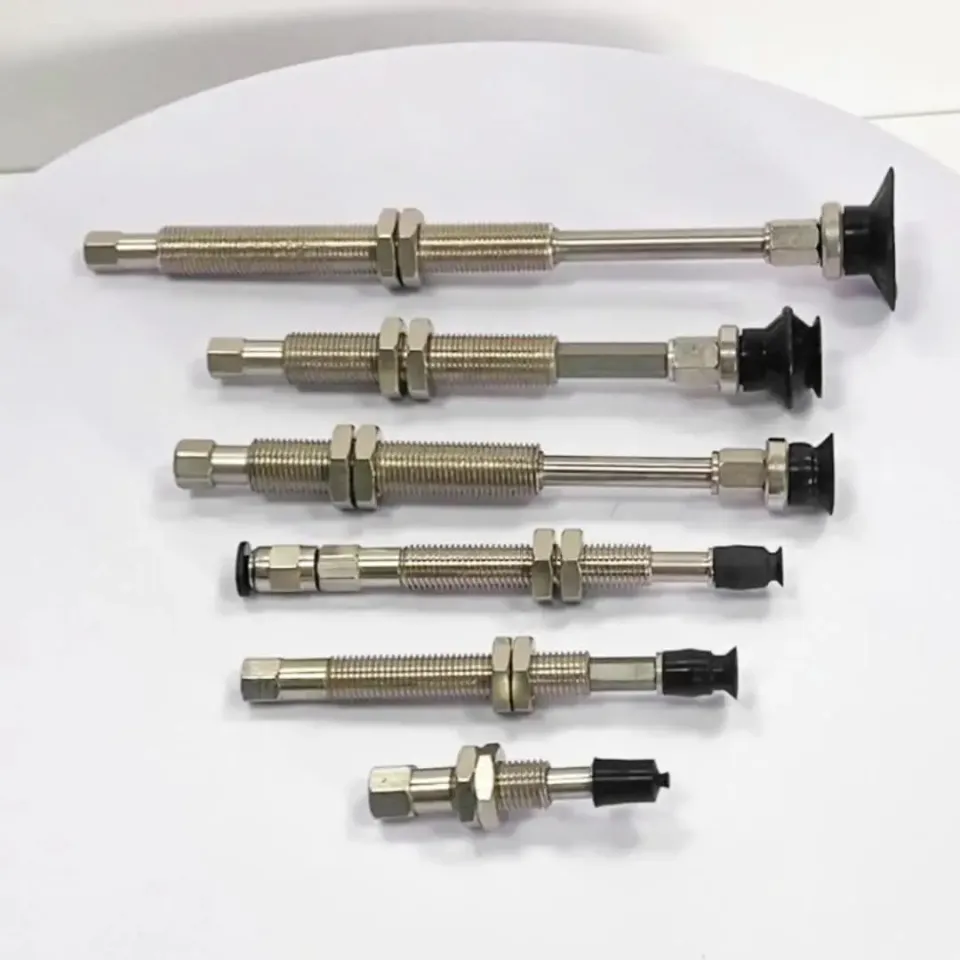

ZPT series ZPT40/50BN-J/K10/20/30/40/50-B5-A10 pneumatic vacuum gripper

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

ZPT Series Buffer Suction Cup Bracket

Material

Nickel-Plated Copper

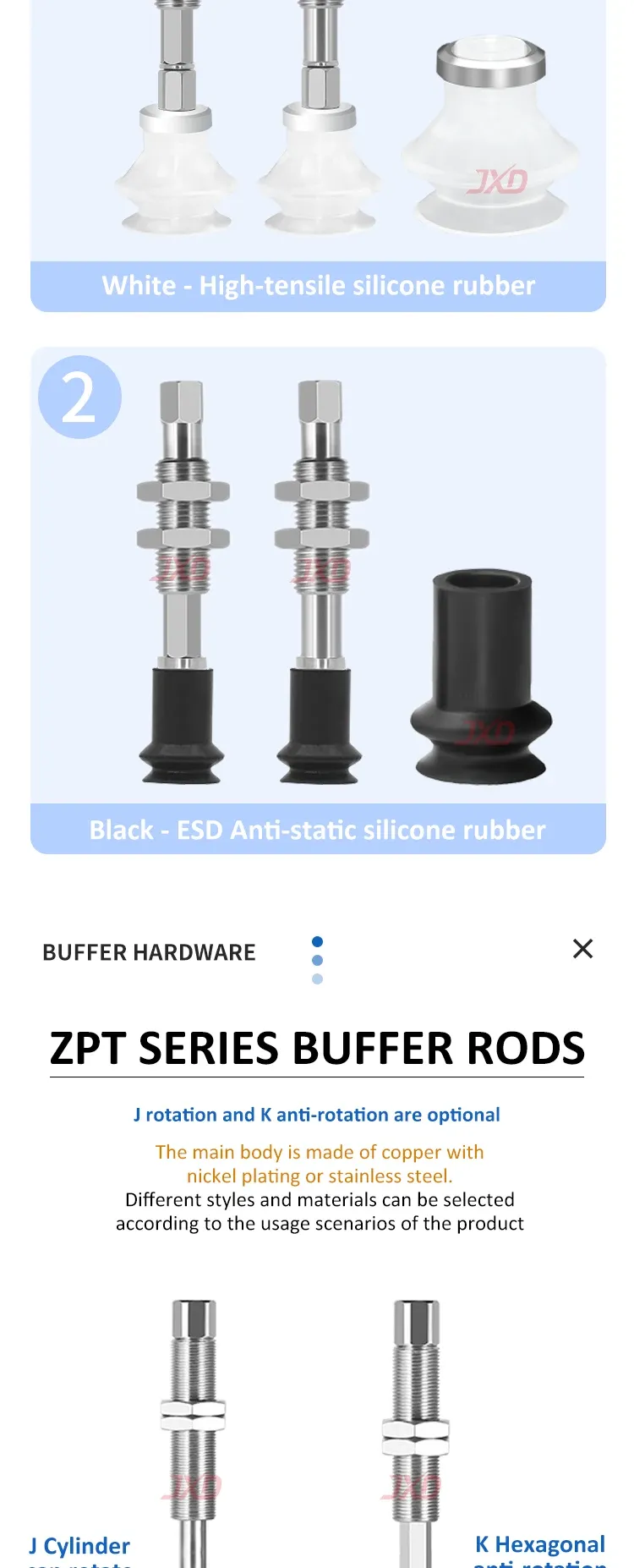

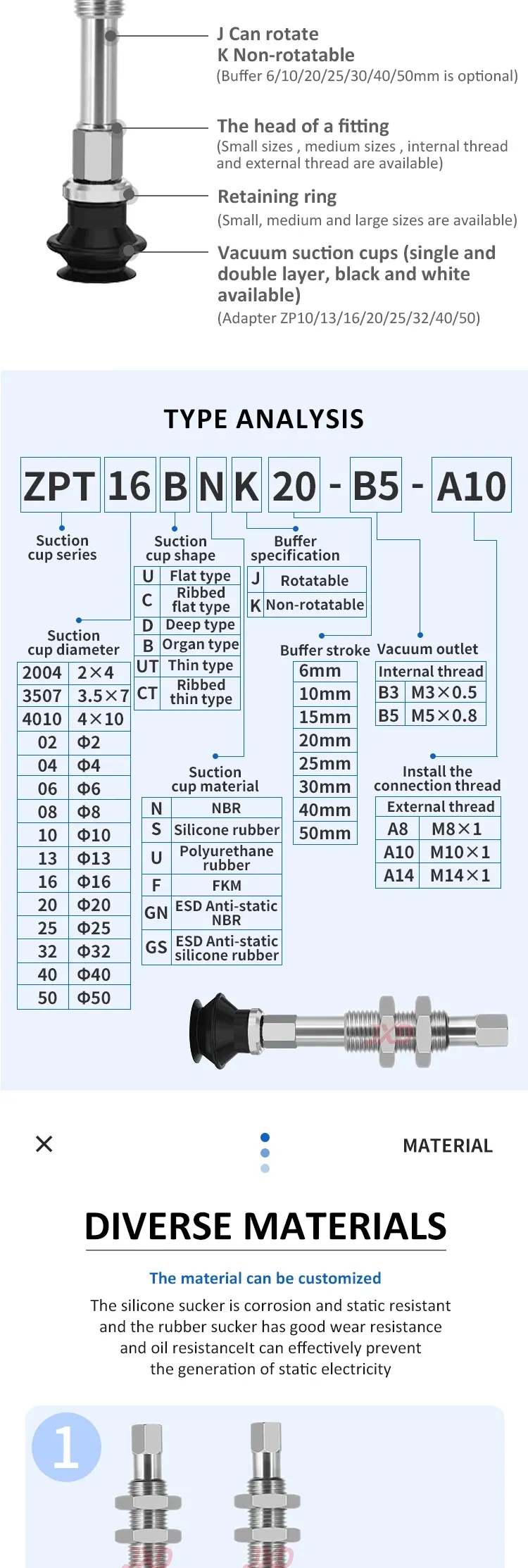

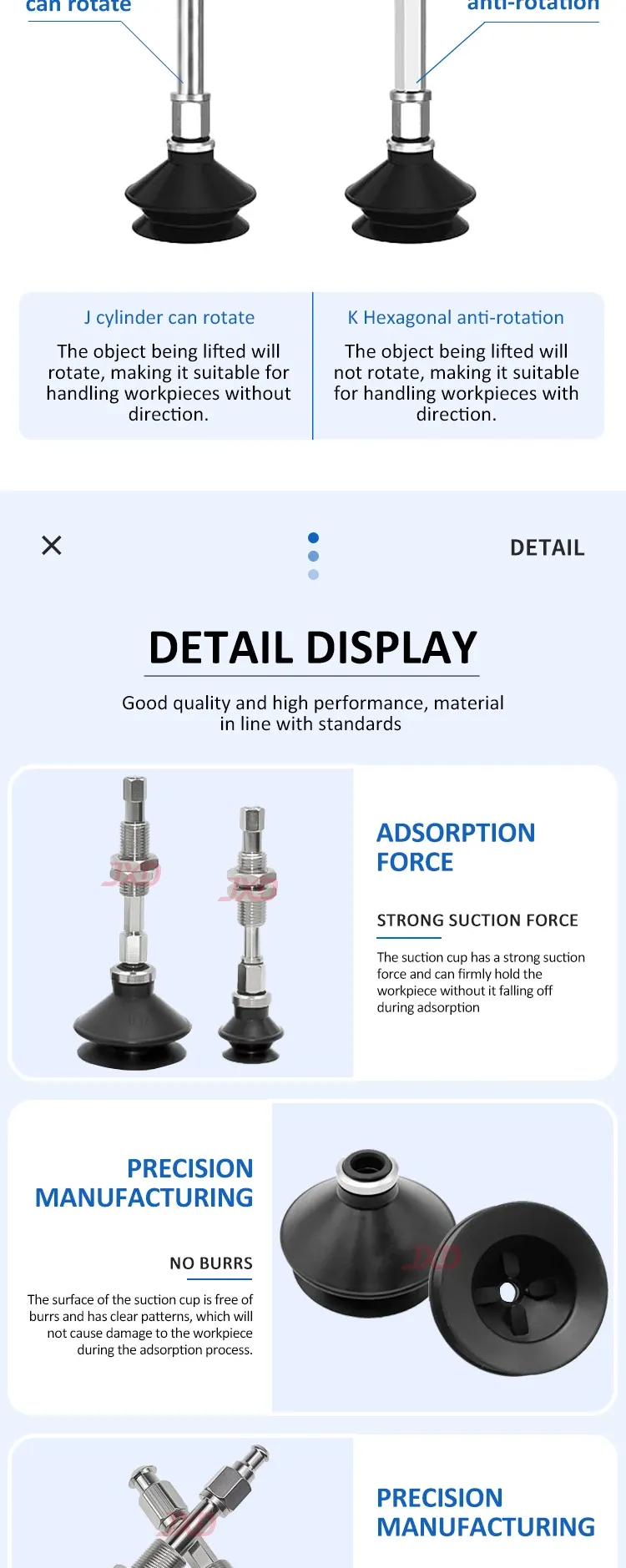

Rotation Mode

K (Non-Rotatable), J (Rotatable)

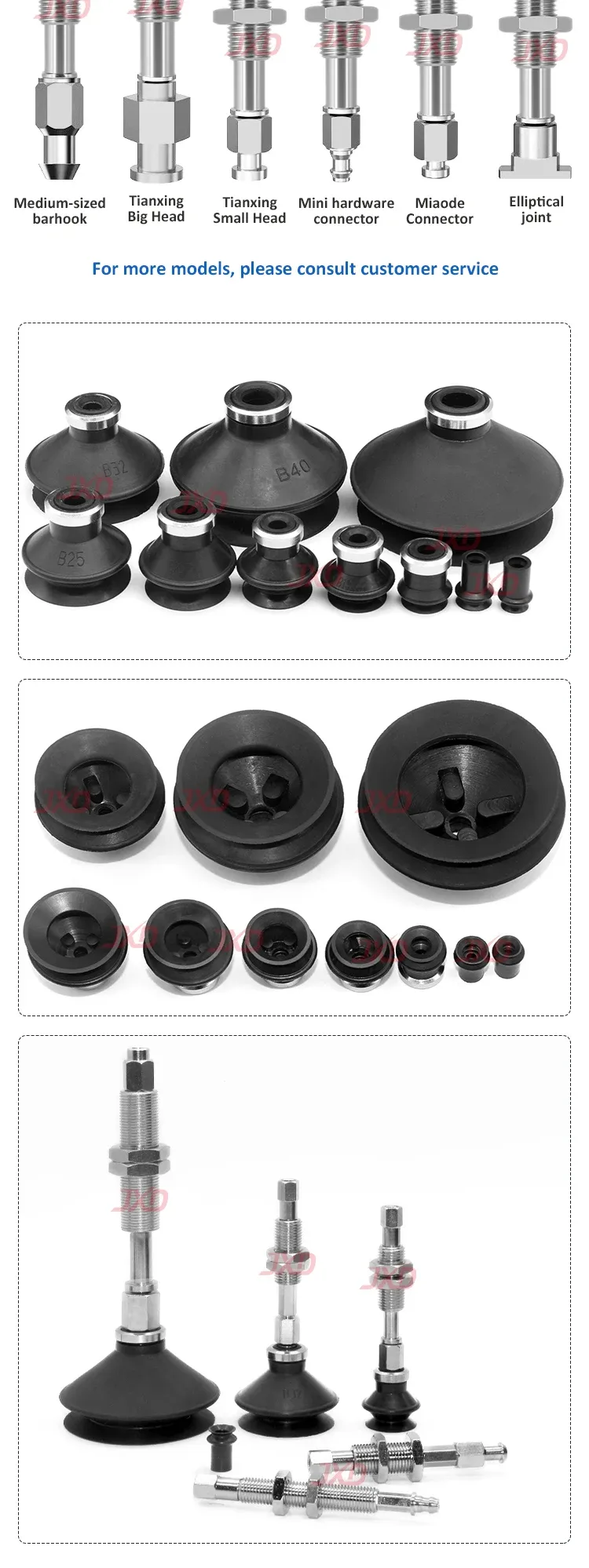

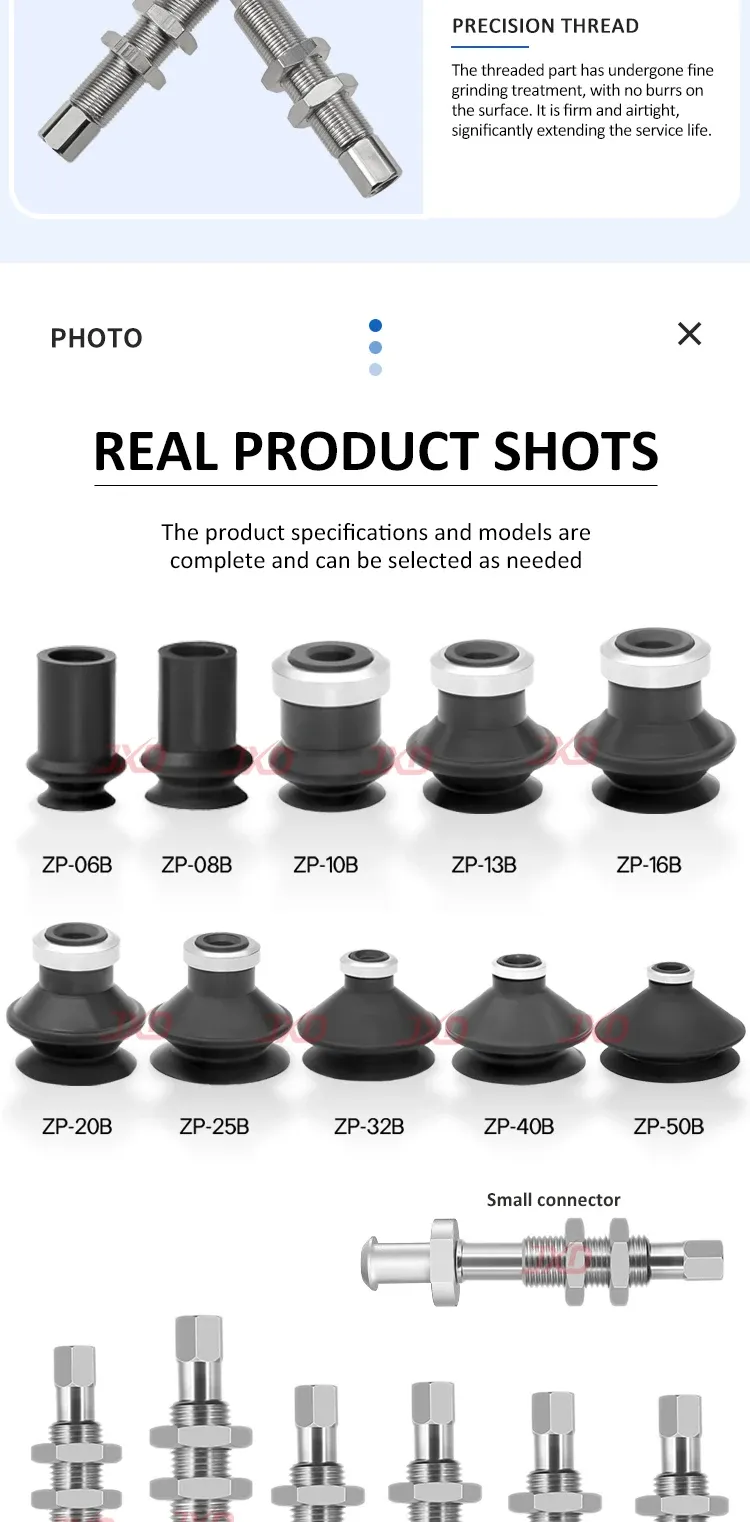

Compatible Suction Cups

ZP-B, ZP-C, ZP-U, ZP-D series; Tianxing large-head and small-head suction cups

Compatible Diameter

2 / 4 / 6 / 8 / 10 / 13 / 16 / 20 / 25 / 32 / 40 / 50 mm

Buffer Stroke

6 / 10 / 15 / 20 / 25 / 30 / 40 / 50 mm

Mounting Thread

M10 / M8,External Threads M8*1, M10*1, M14*1

Customization Available

Non-standard customization supported

Description

1. Premium materials and sturdy construction Nickel-plated copper with a 0.2 um thick nickel layer: excellent corrosion resistance, smooth surface and durability, ensuring stable performance in various conditions. Carefully made: nick-free threads, a burr-free hole inner wall and a smooth surface prevent suction cup damage, increasing the overall service life of the product. 2. Superior fit and tightness Tight fit with compatible suction cups, providing reliable tightness - critically important for efficient vacuum gripping operation. The safe design prevents suction cup damage, reducing replacement costs and equipment downtime. 3. Universal compatibility and flexible configuration Wide compatibility: works with ZP-B/ZP-C/ZP-U/ZP-D series and Tianxing large/small head suction cups (diameter 2-50 mm), covering a wide range of application scenarios. Two rotation modes (K: non-rotating / J: rotating) and multiple mounting thread options (M8/M10/M14*1) for easy integration with various automation systems. 8 optional buffer strokes (6-50 mm) to adapt to different damping requirements during gripping. 4. Custom solutions Non-standard customization is supported: diameter, buffer stroke, mounting specifications or coating can be adapted to meet unique operational requirements.
