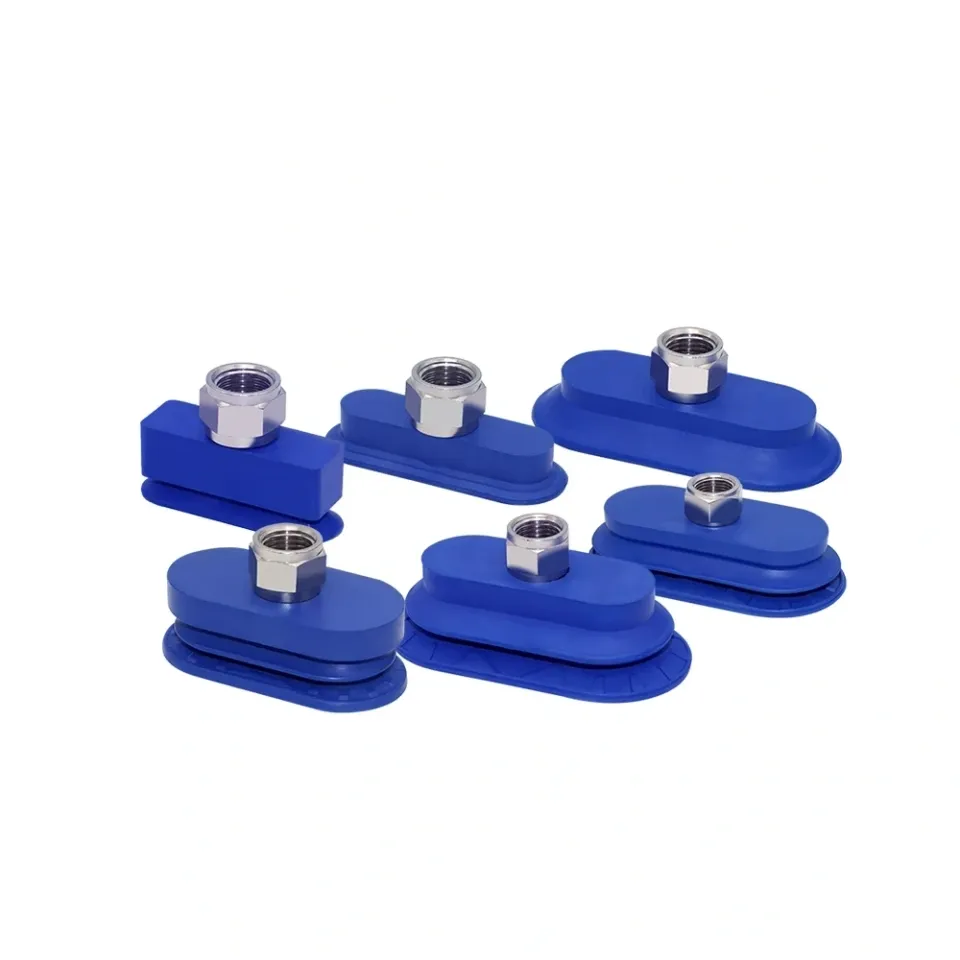

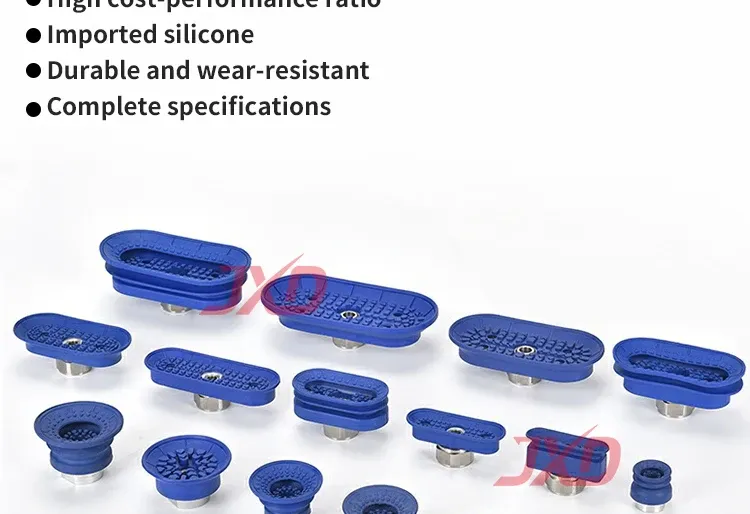

AFSB/AFSF 30-70 mm industrial vacuum suction cup with G1/4 or G3/8 thread

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product name

AFSF/AFSB Vacuum Suction Cup

Material

Composite NBR (Nitrile Butadiene Rubber)

Shape

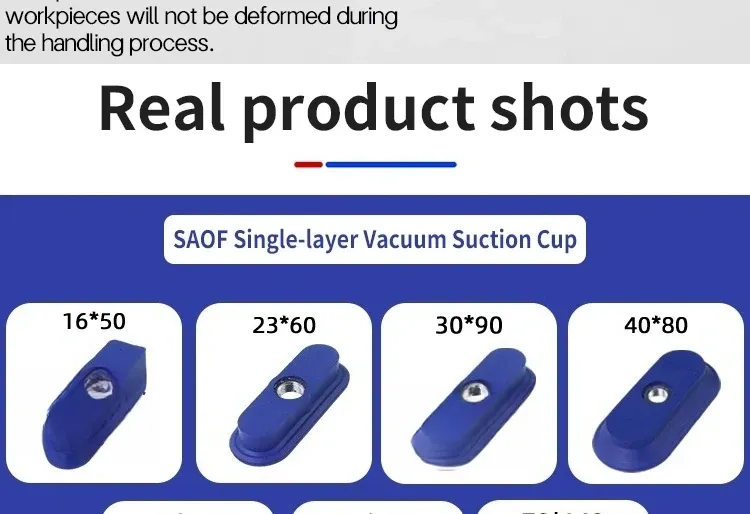

Oval Corrugated Type (AFSF: Single-layer / AFSB: Double-layer, optional)

Suction Cup Diameter

16-140mm

Compatible Fitting Heads

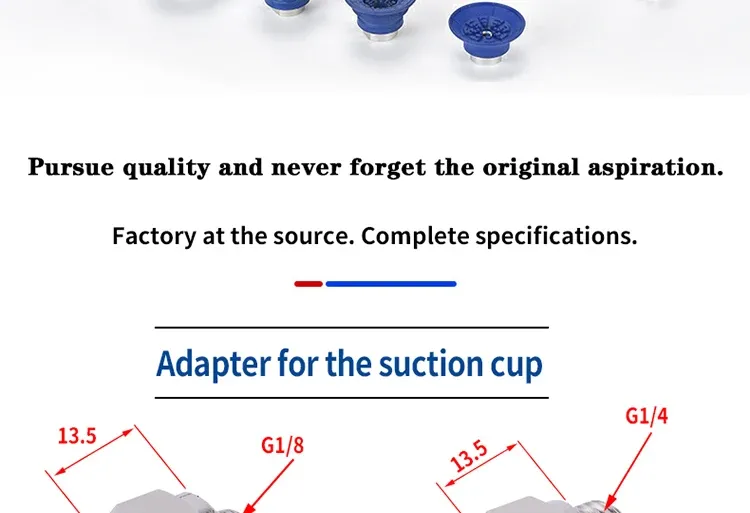

IG3/8; IG1/4

Application Scope

Suitable for handling oil-based thin metal sheets, automotive parts, and other similar items.

Customization Availability

Non-standard customization is supported

Description

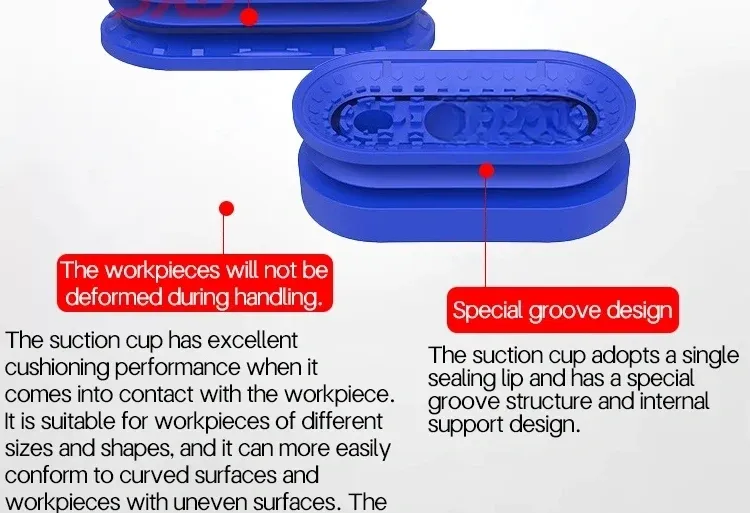

1. High-performance composite NBR material Made of composite nitrile butadiene rubber (NBR), the suction cup offers exceptional oil resistance, making it ideal for handling oil-based thin metal sheets and automotive parts in industrial environments. In addition, it features exceptional strength and wear resistance, guaranteeing reliable performance over a long period, even under frequent use. 2. Optimized design Oval bellows shape: the oval bellows design increases contact area with workpieces, improving adsorption stability, especially for irregularly shaped or thin materials. Structure options: single-layer (AFSF) and double-layer (AFSB) versions are available. The double-layer design provides better damping properties and increased load capacity, while the single-layer design is lightweight and flexible. Reliable vulcanized joint: the suction cup and connecting part are bonded by vulcanization, forming a strong, airtight joint that prevents separation and ensures tightness during vacuum generation. Single sealing lip and special design: equipped with a single sealing lip to ensure reliable sealing. The special ribbed structure and internal support system further improve adsorption stability and structural rigidity, preventing deformation during operation. 3. Comprehensive superior characteristics Provides superior performance in various areas: waterproofing, sealing, sound insulation, damping and thermal insulation. Thanks to these multifunctional characteristics, the device can adapt to various challenging operating conditions and protect the handled parts from damage. 4. Wide compatibility and size variety Mounting head compatibility: compatible with IG3/8 and IG1/4 connection heads, ensuring easy and reliable connection with various automated equipment, such as manipulators, and improving assembly efficiency. Diameter range: provides a wide diameter range from 16 to 140 mm, meeting various workpiece size requirements in industrial handling. 5. Target application scenarios Specially designed for handling oil-based thin metal sheets, automotive parts and similar items, meeting the specialized needs of related industries such as automotive manufacturing and metal processing. 6. Customization support Non-standard customization services are available, allowing characteristics such as size, structure and performance to be adapted to specific customer requirements, increasing product adaptability in special application scenarios.
