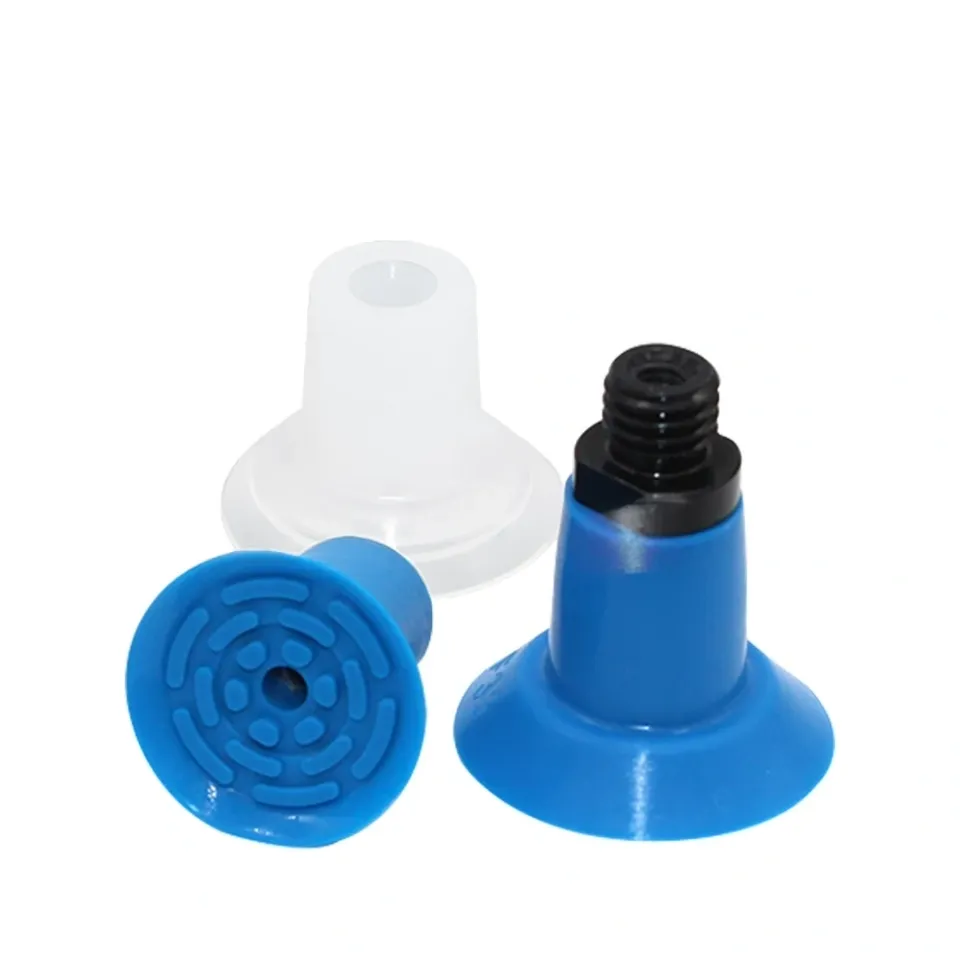

PIAB F18/F22/F26/F33 pneumatic vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

F-Series Open-Bag Vacuum Suction Cups

Material

Food-Grade Silicone

Suction Cup Diameter

18/22/26/33mm

Application Scenarios

Suitable for absorbing small bags, plastic bags, flexible boards, thin metal sheets, and paper.

Customization Availability

Non-standard customization is supported.

Description

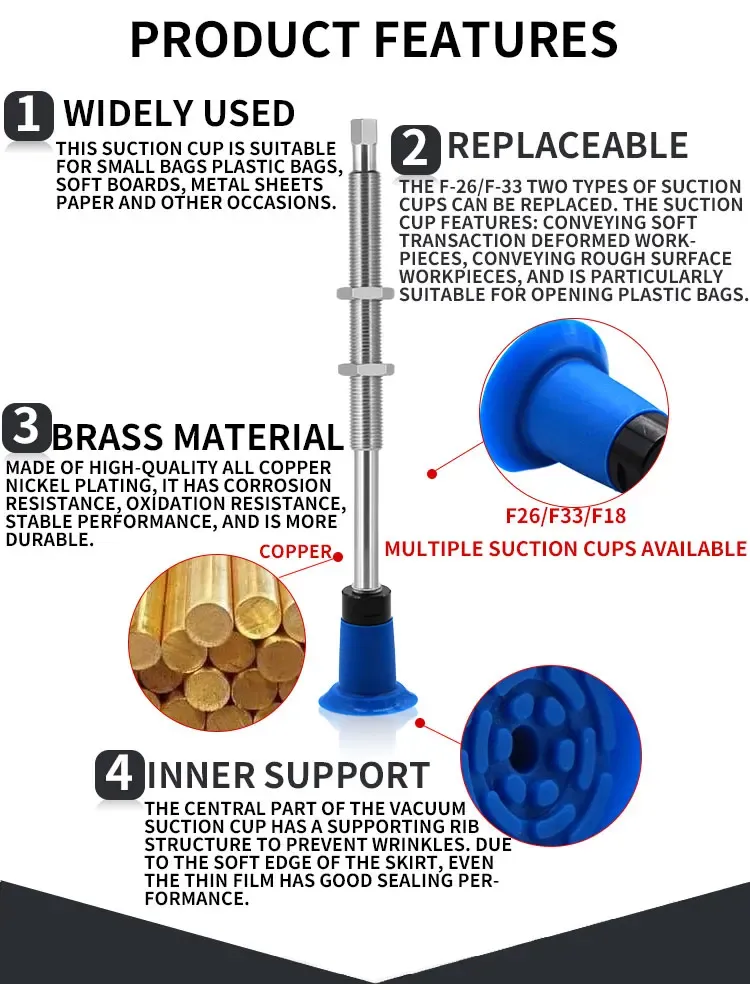

1. Premium food-grade silicone: offers exceptional resistance to extreme temperatures (-50 to 300 °C), anti-static properties, superior flexibility and high deformation resistance, ensuring reliability in use and a long service life. 2. Corrosion-resistant aluminum alloy connector: has superior oxide film forming properties, effectively resisting chemical corrosion and oxidation. Thanks to excellent processing properties, the material features a smooth, burr-free surface, ensuring assembly reliability and product durability. 3. Multiple size options: available in 18/22/26/33 mm diameters to meet various adsorption needs for small and thin parts. 4. Anti-wrinkle design: equipped with a central rib support structure that prevents wrinkles and reduces them when handling thin materials such as films, vinyl plastics and paper - ideal for preserving workpiece integrity. 5. Universal application: ideal for picking up small bags, plastic bags, flexible sheets, thin metal plates and paper, making it suitable for various industrial and packaging tasks. 6. Customization support: non-standard customization is available to adapt the suction cups to your specific operational requirements.
