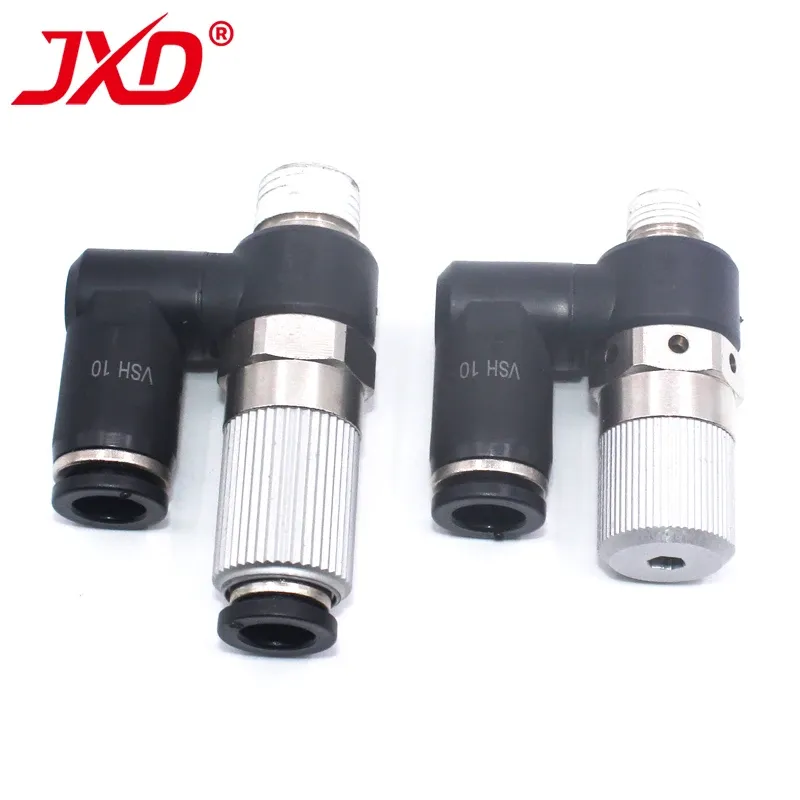

VSH VSE pneumatic vacuum generator

Specifications

Brand name

No

Origin

China

Type

Fittings

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

VSH Series Tubular Vacuum Ejector

Material

PVF (Polyvinyl Formal)

Fluid Used

Air

Operating Pressure Range

0.15 ~ 0.7 MPa

Supply Pressure

H and L types: 0.5 MPa E type: 0.35 MPa

Operating Temperature Range

0 ~ 60 °C

Applicable Air Tube Materials

Nylon, Soft Nylon, Polyurethane

Application Scenarios

Suitable for various air pipelines, pneumatic tools, and automated equipment

Customization Available

Non-standard customization is supported

Description

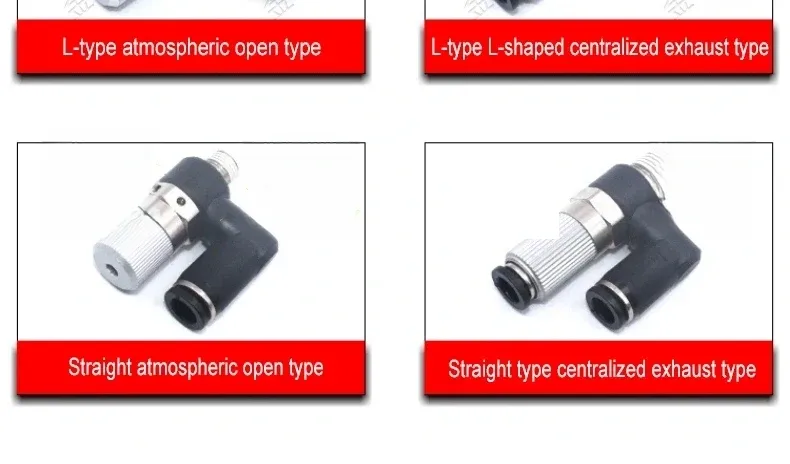

1. Universal performance options for precise tasks Three performance options (H/L/E) meet various vacuum and flow requirements: high vacuum (H/E) for reliable adsorption, large flow (L) for efficient material transfer and medium flow (H) for balanced operational performance. Individually designed nozzle configurations are matched to the corresponding supply pressure (0.35 MPa / 0.5 MPa), optimizing energy efficiency and adaptability to different tasks. 2. Sturdy and reliable PVF construction Made of PVF (polyvinyl fluoride), the ejector offers superior resistance to air-induced corrosion, wear and temperature fluctuations (0~60 °C). The durable material ensures a long service life even under continuous operation in industrial environments. 3. Flexible installation and wide compatibility Various design types (H-shaped elbow, U-shaped pipe, small UM pipe) allow adaptation to different piping layouts and space constraints, increasing mounting flexibility. Compatible with nylon, soft nylon and polyurethane air tubes, enabling seamless integration into existing pneumatic systems without additional modifications. 4. Wide industrial applicability Ideal for air pipelines, pneumatic tools and automated equipment in production, assembly and material handling sectors. Easily paired with vacuum suction cups for efficient material handling, making it ideal for simple vacuum systems. 5. Custom solutions for unique requirements Non-standard customization is supported to meet specific size, specification or application requirements. Highly adaptable to specialized industrial scenarios where standard models require individual refinement. 6. Stable and efficient operation A wide working pressure range (0.15~0.7 MPa) ensures stable operation under various conditions, reducing operational interruptions. The compressed-air-driven vacuum system delivers instant and reliable suction, eliminating the need for complex power supply systems.
