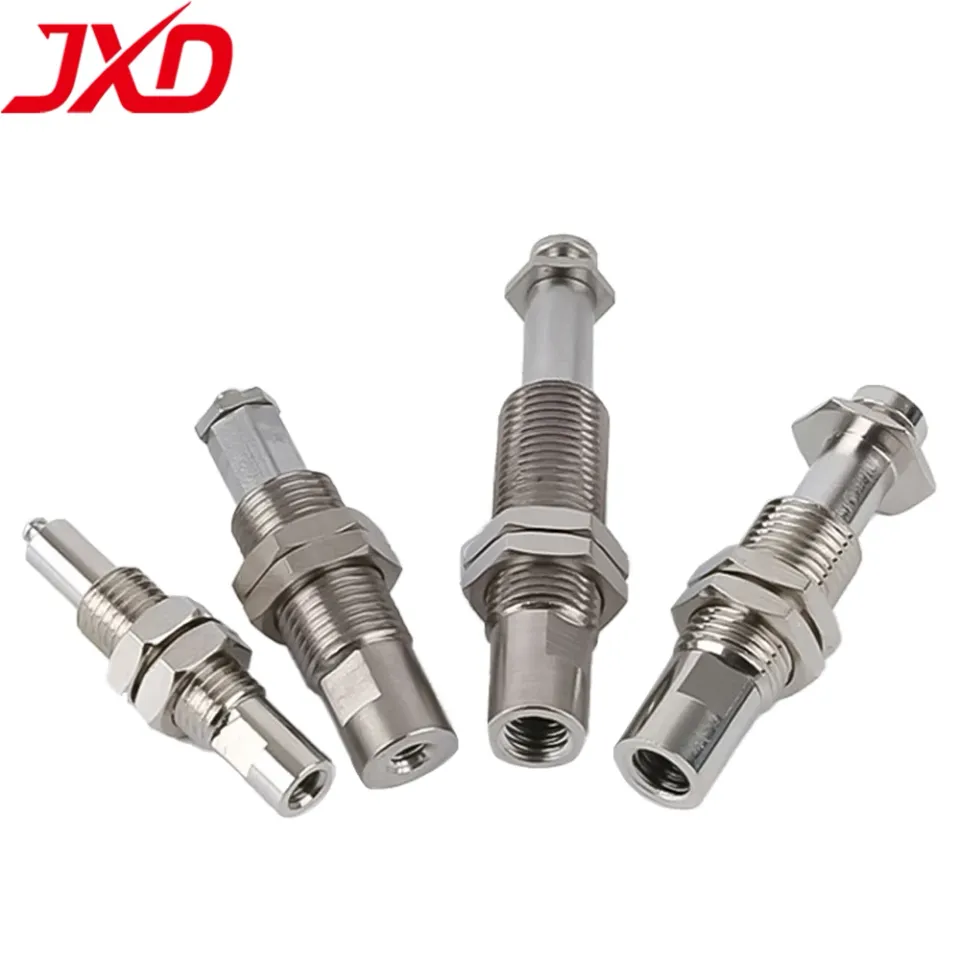

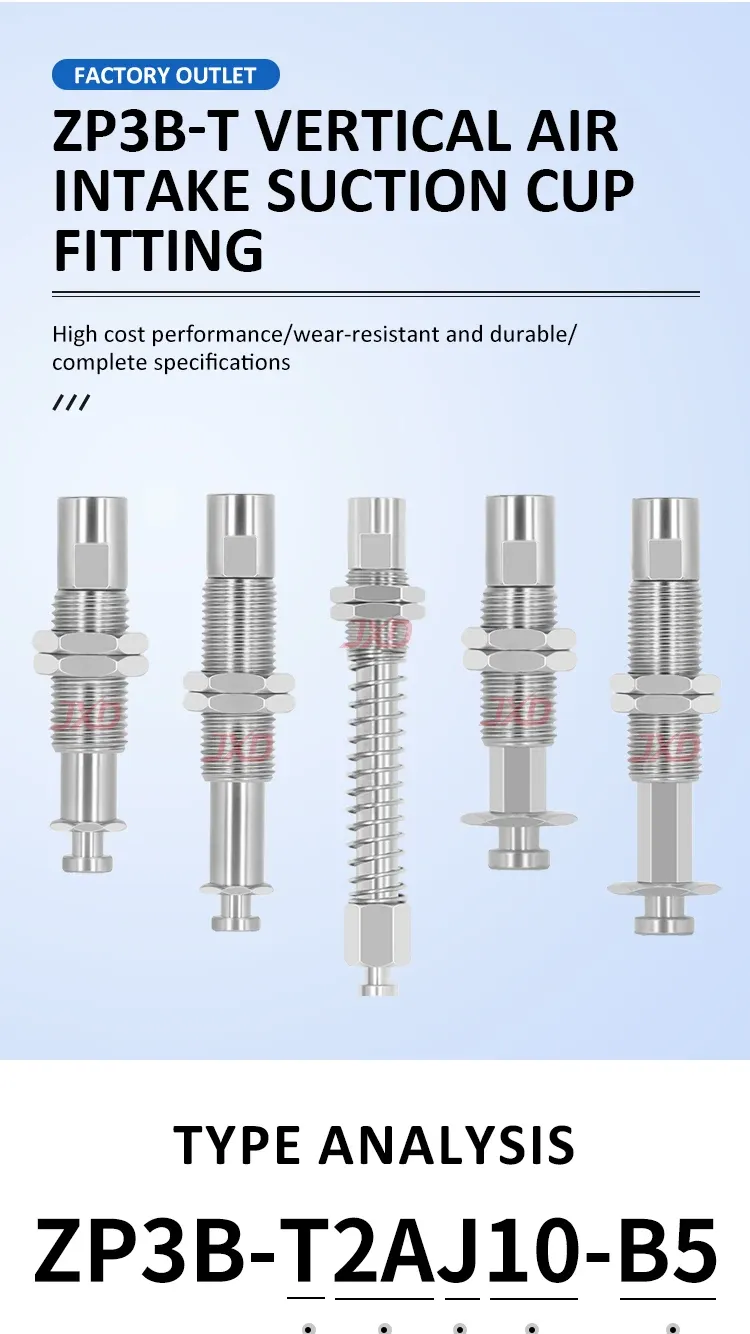

ZP3B pneumatic metal buffer

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

ZP3 Series Suction Cup Bracket

Material

Copper with Nickel Plating

Suction Cup Shape

UM (Grooved Flat Type), B (Bellows Type)

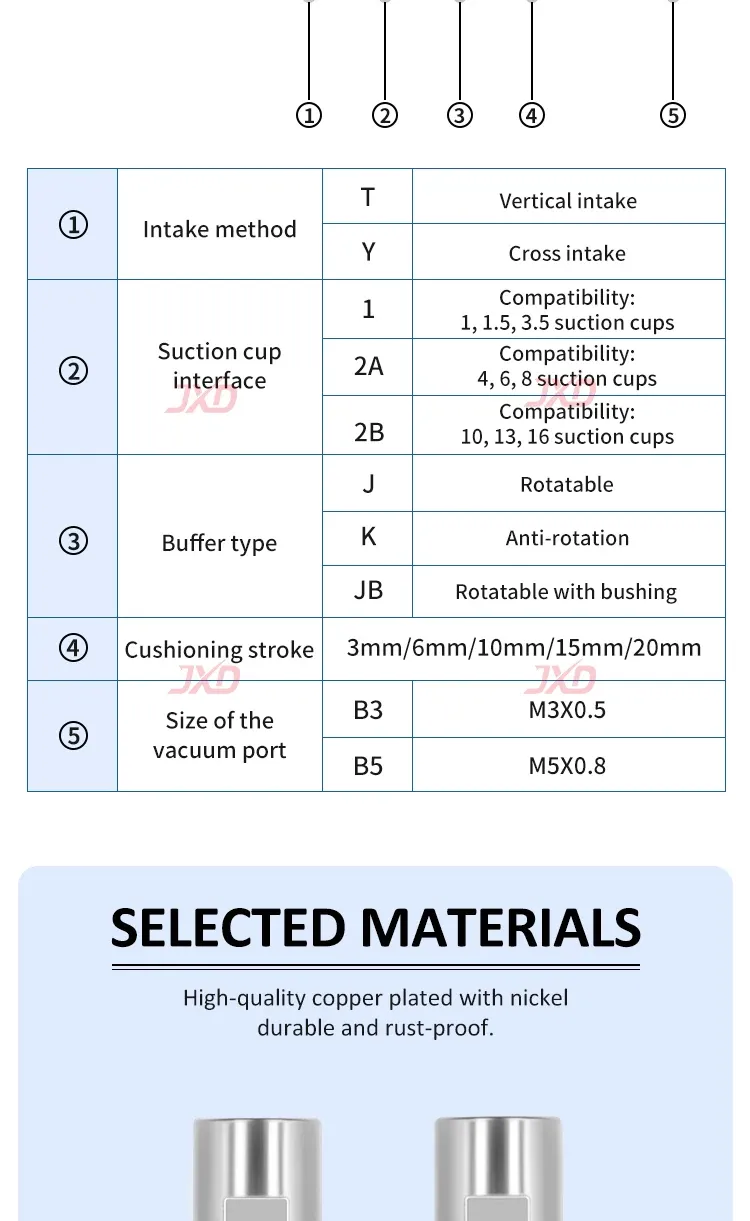

Damping Method

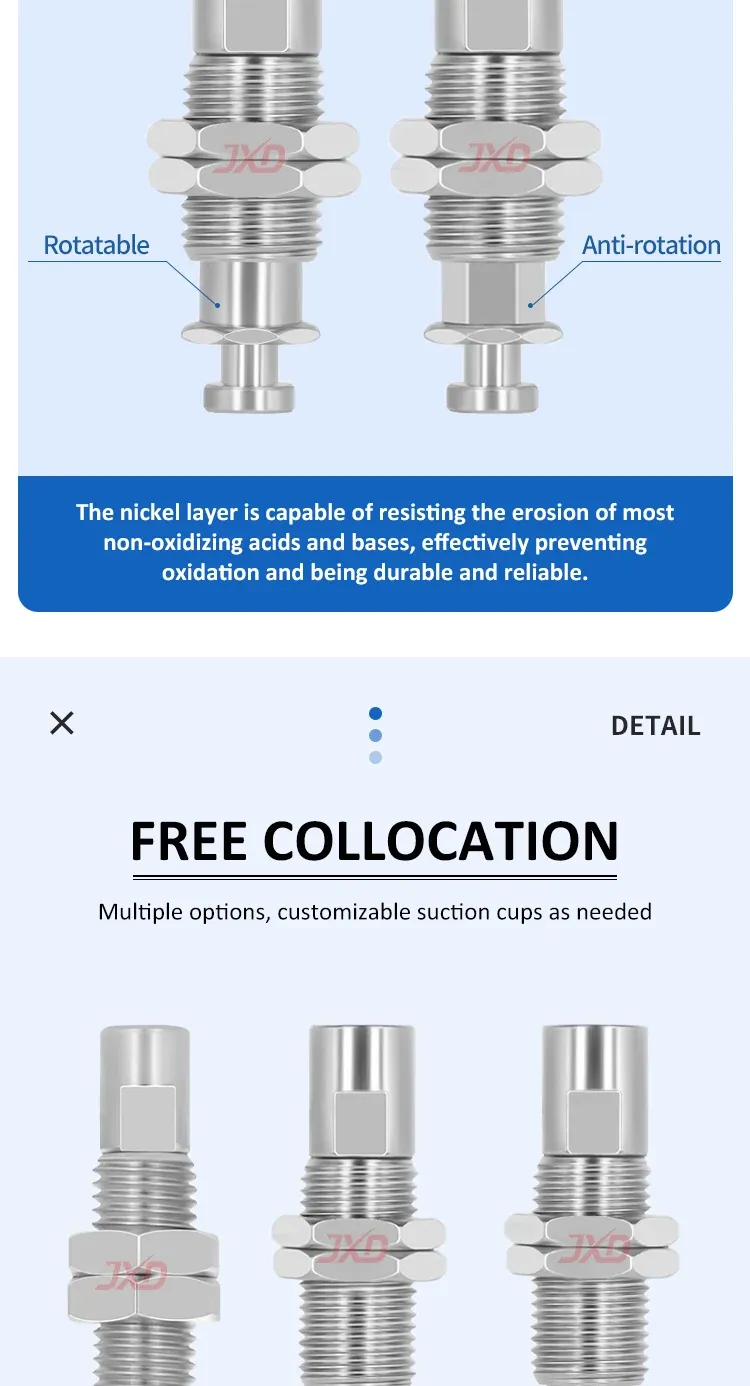

J (Rotatable), K (Anti-rotation)

J (Cylindrical Rotatable)

The adsorbed object can rotate, suitable for handling workpieces with no directional requirements.

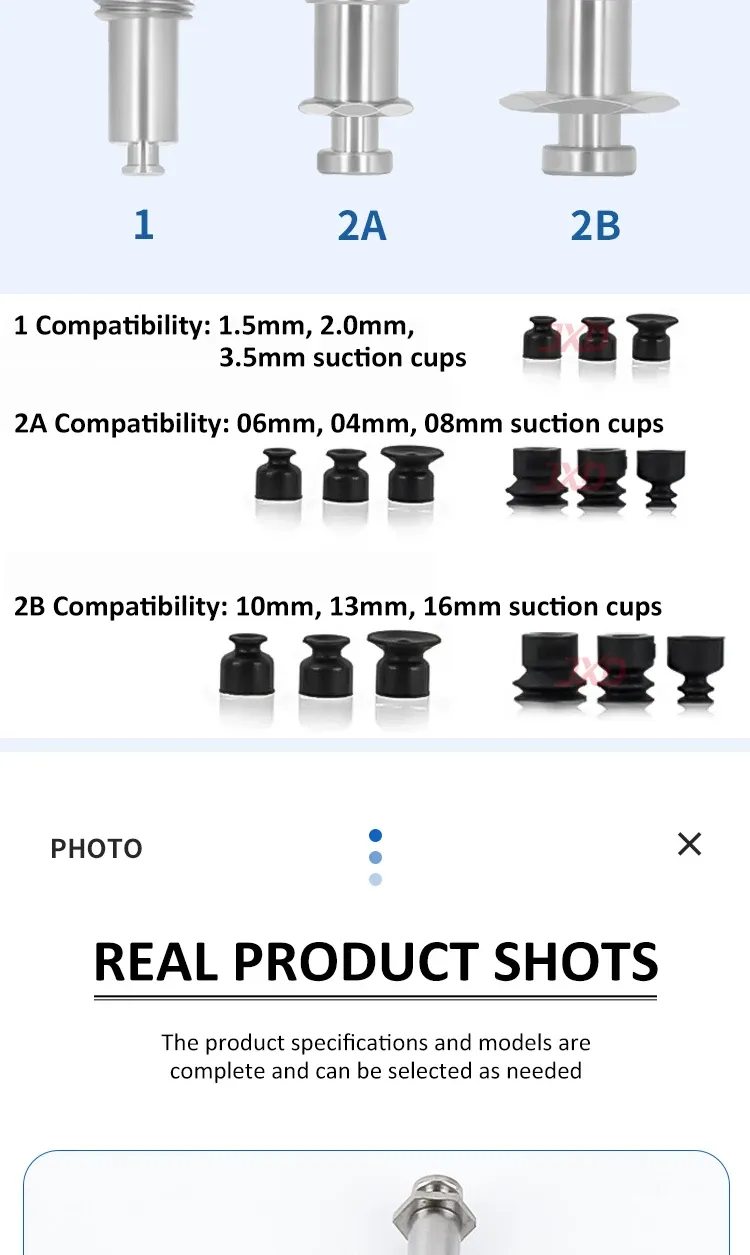

Compatible Suction Cups

ZP3-U, ZP3-UM, ZP3-B Series

Damping Stroke

3/6/10/15/20mm

Suction Cup Diameter

4/6/8/10/13/16mm

Mounting Thread

Internal Thread M5*0.8

Customization Available

Non-standard customization is supported

Description

1. Premium materials and durability Made of high-quality fully nickel-plated copper, providing exceptional resistance to corrosion and oxidation and long-term structural stability for a long service life in harsh industrial environments. 2. Universal damping and alignment options Dual damping methods to meet various control needs: K (hexagonal anti-rotation): fixes guided parts without rotation, ensuring precise positioning of oriented components (e.g. IC chips, optical elements). J (cylindrical, rotating): allows free rotation for unoriented workpieces, increasing flexibility in general handling scenarios. 3. Wide compatibility and customization options Compatible with ZP3-U, ZP3-UM, ZP3-B series suction cups, supports several shape options (grooved flat / bellows body) for versatile use. Non-standard customization is available to meet the requirements of unique equipment or parts being handled. 4. Flexible specifications for precise handling Damping stroke options: 3/6/10/15/20 mm (suitable for various workpiece heights and damping requirements). Suction cup diameter range: 4/6/8/10/13/16 mm (ideal for small and medium components such as capacitors, resistors and IC chips). 5. Easy installation and industrial adaptability Standard M5*0.8 internal thread for quick and reliable attachment to industrial robots, manipulators and automated equipment. Widely used in electronics manufacturing (capacitors, resistors, integrated circuits, chips), optical component handling and automated production lines. 6. Reliable performance for automation Stable adsorption support and consistent performance ensure smooth, efficient operation in high-speed, repetitive automated workflows, reducing downtime and maintenance costs.
