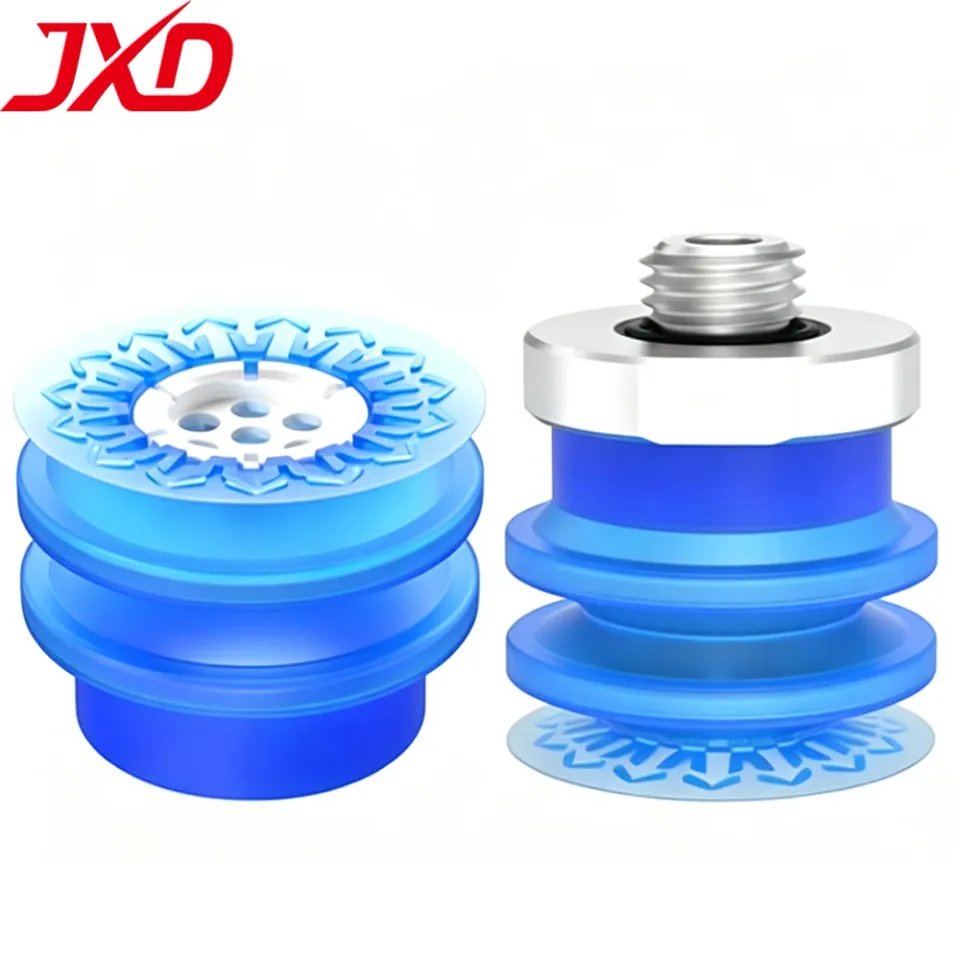

ZP3P-T40/50JT2SF pneumatic suction cup
SKU: 1005013217757174
In stock
Specifications
- Brand name
- No
- Origin
- China
- Type
- Actuator
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1
- Product Name
- ZP3P Series Vacuum Suction Cups for Bag Opening
- Material
- Food-Grade Silicone
- Cup Diameter
- 20/25/35/50mm
- Customization
- Non-standard customization is supported.
Description

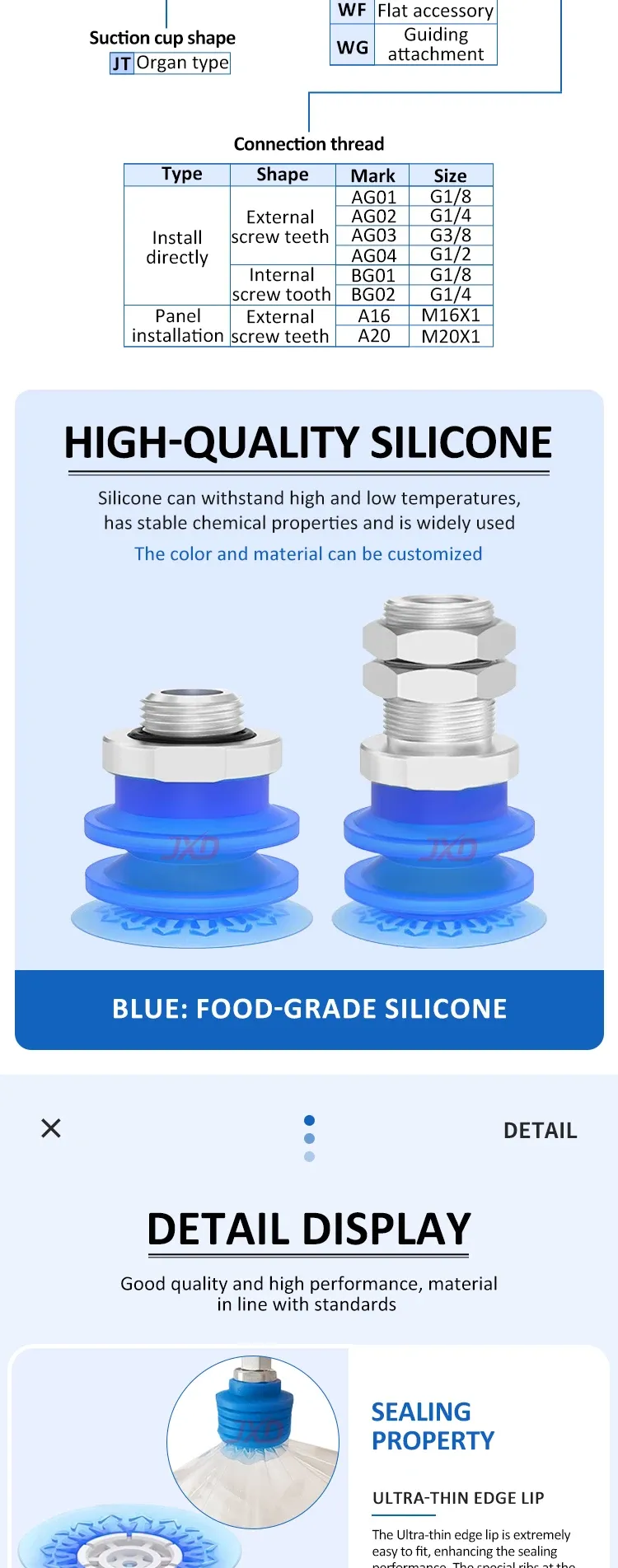

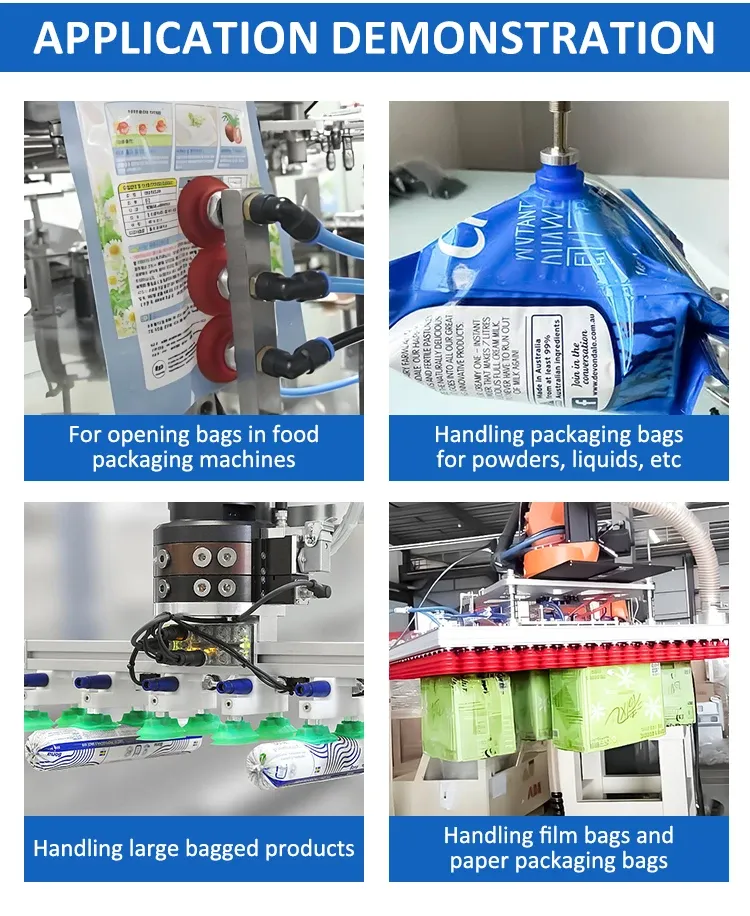

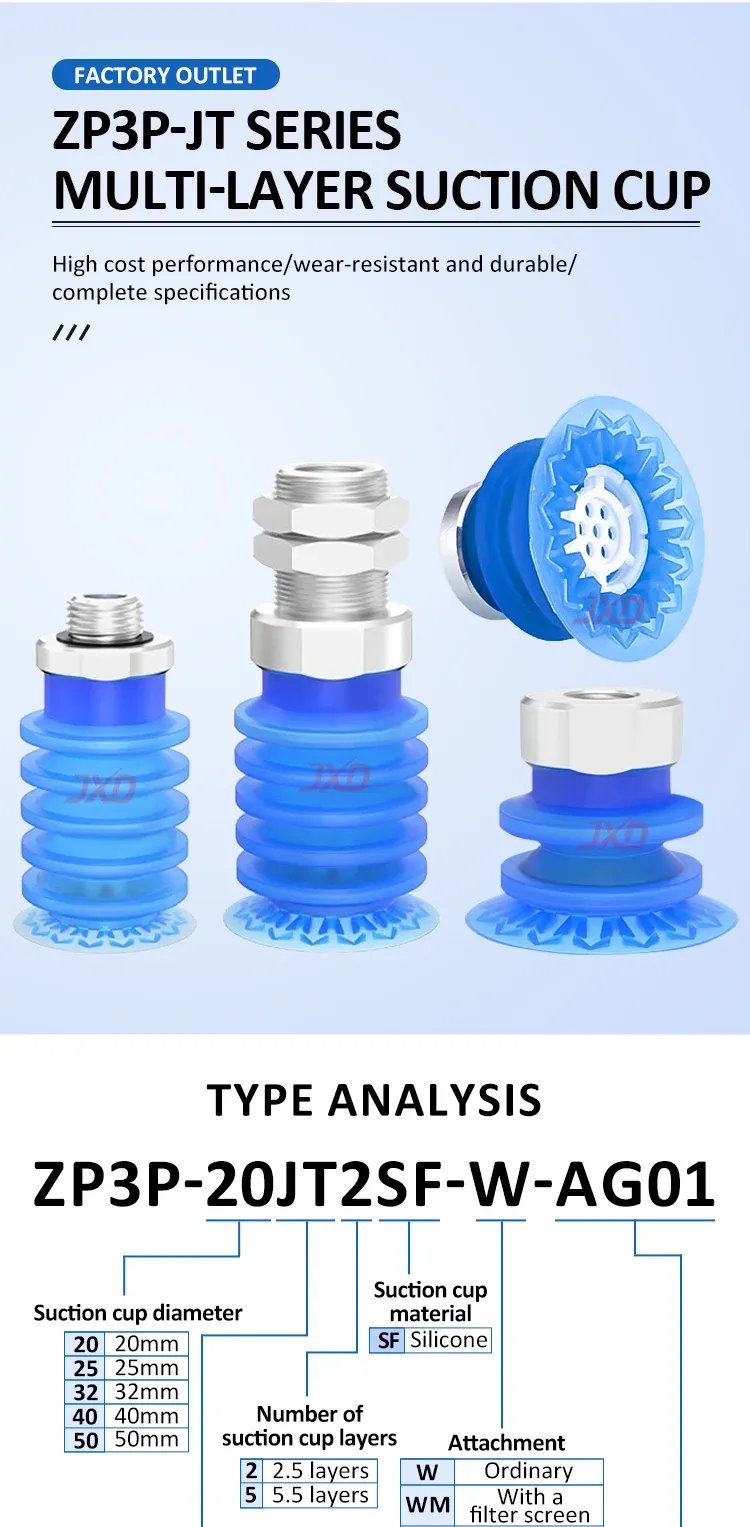

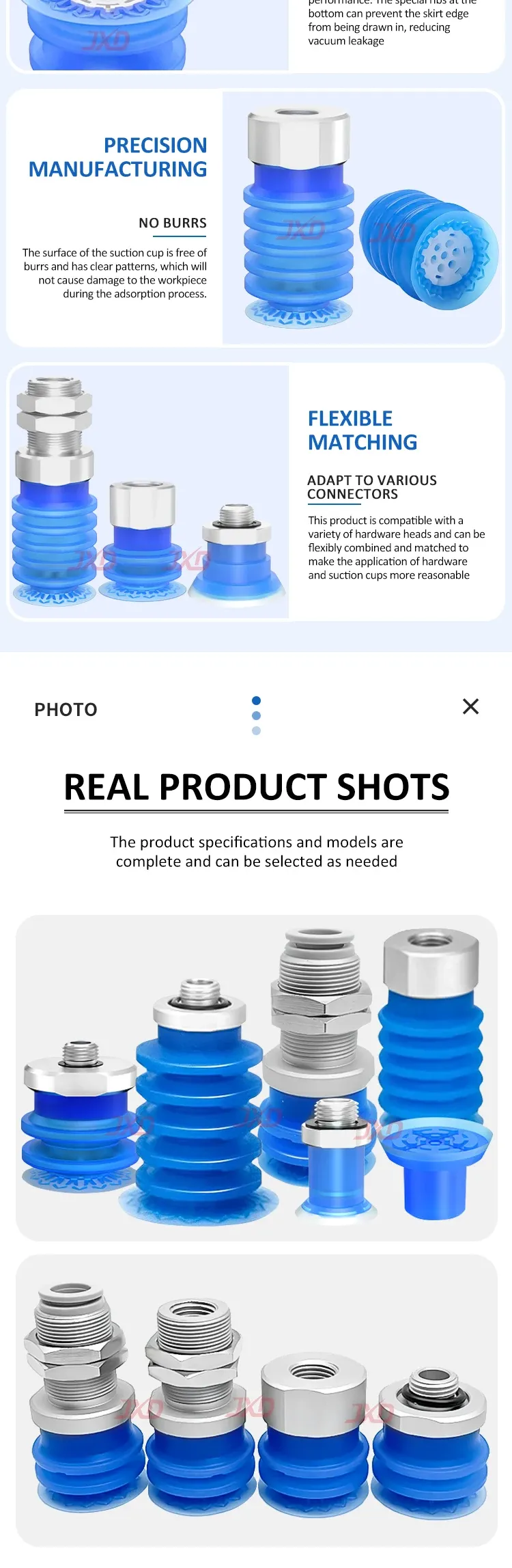

1. Food safety and durability: made of high-quality food-grade silicone providing a wide temperature resistance range (-50 to 300 °C), anti-static properties, excellent flexibility, high resilience and a long service life - ideal for applications in the food and pharmaceutical industries. 2. Corrosion-resistant connector: the special connector, made of corrosion-resistant aluminum alloy, forms a stable oxide film that effectively protects against chemical corrosion and oxidation. It has excellent machinability and a smooth burr-free surface for reliable installation. 3. Anti-wrinkle design: the integrated central support rib structure prevents wrinkling and minimizes deformation when handling thin, easily deformable film-packaged items (liquids, powders, films, vinyl plastics, etc.). 4. Universal specifications: various cup diameters (20/25/35/50 mm) and several thread options (external: A5/M5*0.8, A12/M12*1.75, AG1/G1/8, AG2/G1/4, AG/G3/8; internal: B5/M5*0.8, B8/M8*1.25) are available to meet diverse equipment needs. 5. Customization support: non-standard customization is available to meet specific application requirements related to unique workpieces or equipment.
