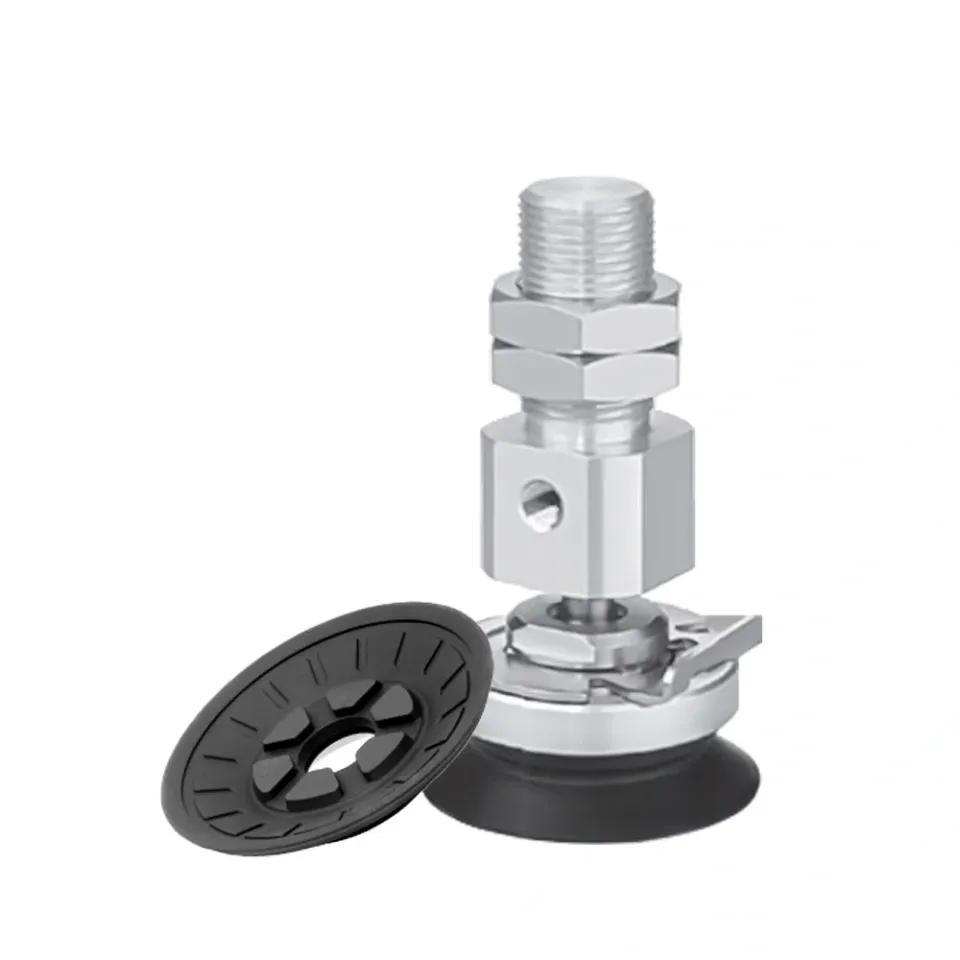

ZP3E-Y32UM-AL14 ZP3E-Y40UM-AL14 ZP3E-Y50UM-AL14 B10 industrial clamp for robotic arm with vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product name

ZP3E-BM Grooved Heavy-Duty Suction Cup

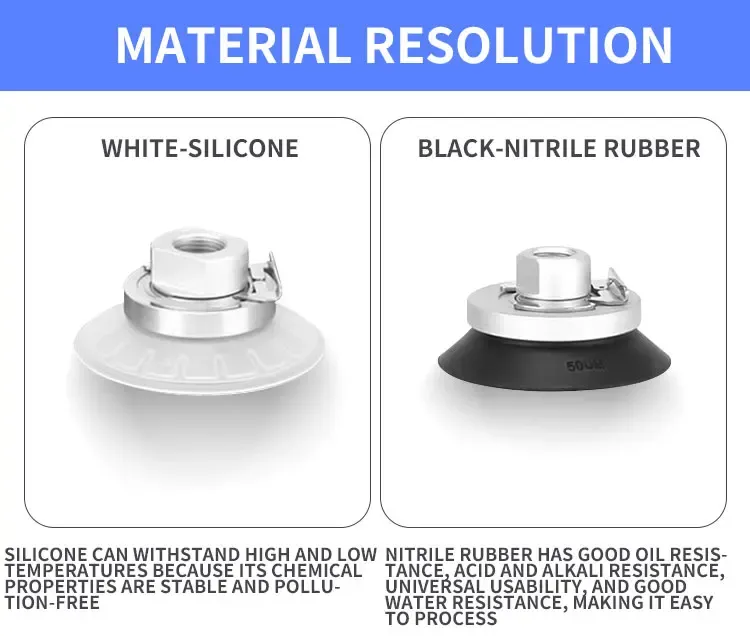

Material

White silicone, black anti-static

Product Shape

Non-buffered Side Air Inlet Type

Suction Cup Diameter

32/40/50/63/80/100/125mm

Customization Available

Non-standard customization is supported

Description

ZP3E-BM grooved heavy-duty suction cup: key advantages 1. Reliability for heavy-duty conditions across industries: designed as a sturdy suction cup, it provides stable grip and reliable fixation of workpieces in the sheet metal, glass and woodworking industries, meeting strict industrial load requirements. 2. Non-buffered side air intake for efficient operation: the non-buffered side air intake design optimizes airflow during suction and release, providing fast response - ideal for situations requiring quick workpiece transfer. 3. High structural and adsorption characteristics: thanks to integral vulcanization, the material has high strength and durability. The grooved suction surface increases contact area with workpieces, improving adsorption stability and providing smoother release. 4. Flexible thread compatibility and size options: compatible with 4 thread types (external: M14x1.5, M16x1.5; internal: M8x1.25, M12x1.75) for convenient integration with various equipment. In addition, the range includes models with 7 diameter options (from 32 to 125 mm), allowing the optimal variant to be selected for handling workpieces of various sizes. 5. Dual material choice and customization capability: white silicone (standard use) and black anti-static material (for static-sensitive environments) are available to match various workplace needs. Non-standard customization is supported for individual solutions.
