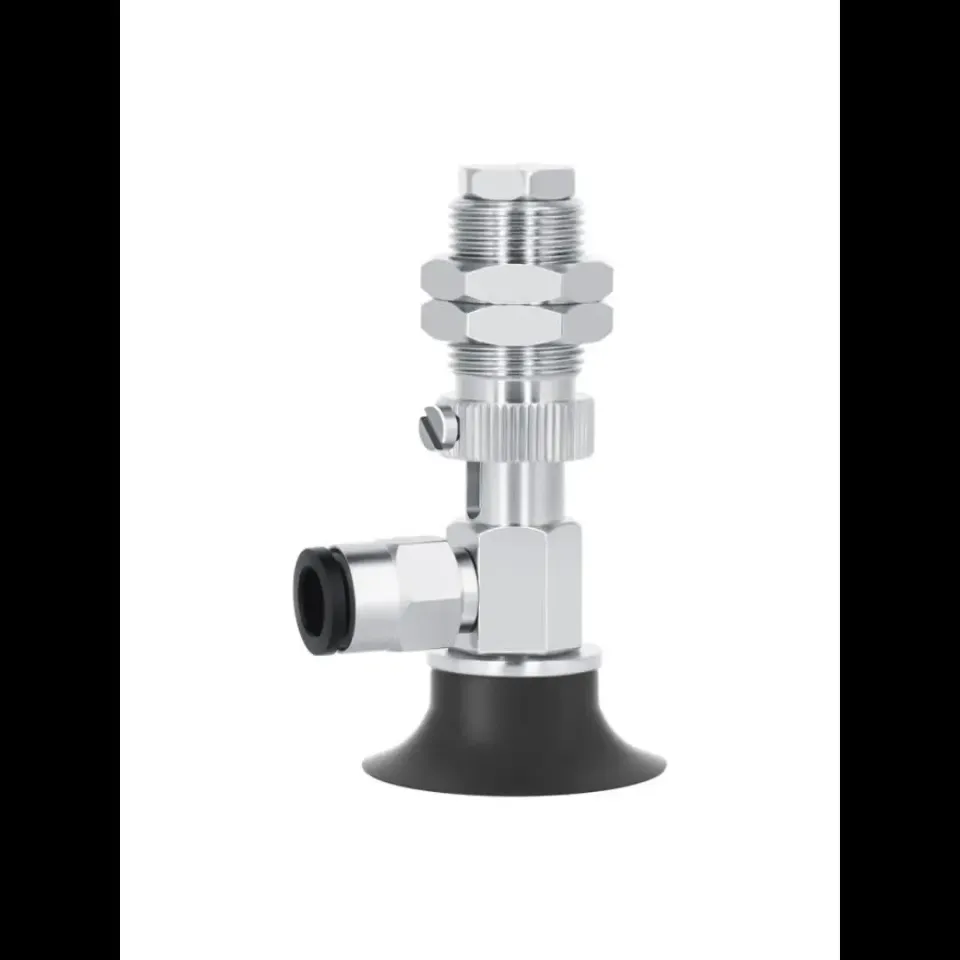

CONVUM PCG miniature vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

PCG Series Vacuum Suction Cup

Material

Nitrile Rubber / Silicone

Shape

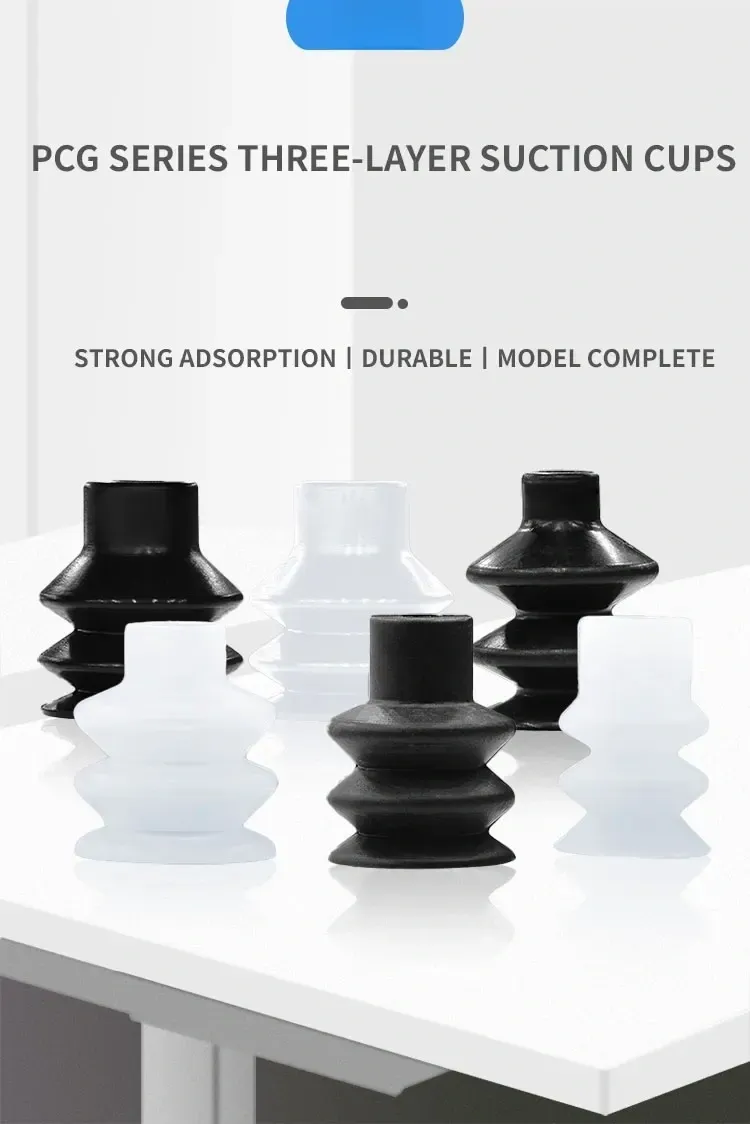

Triple-layer corrugated suction cup

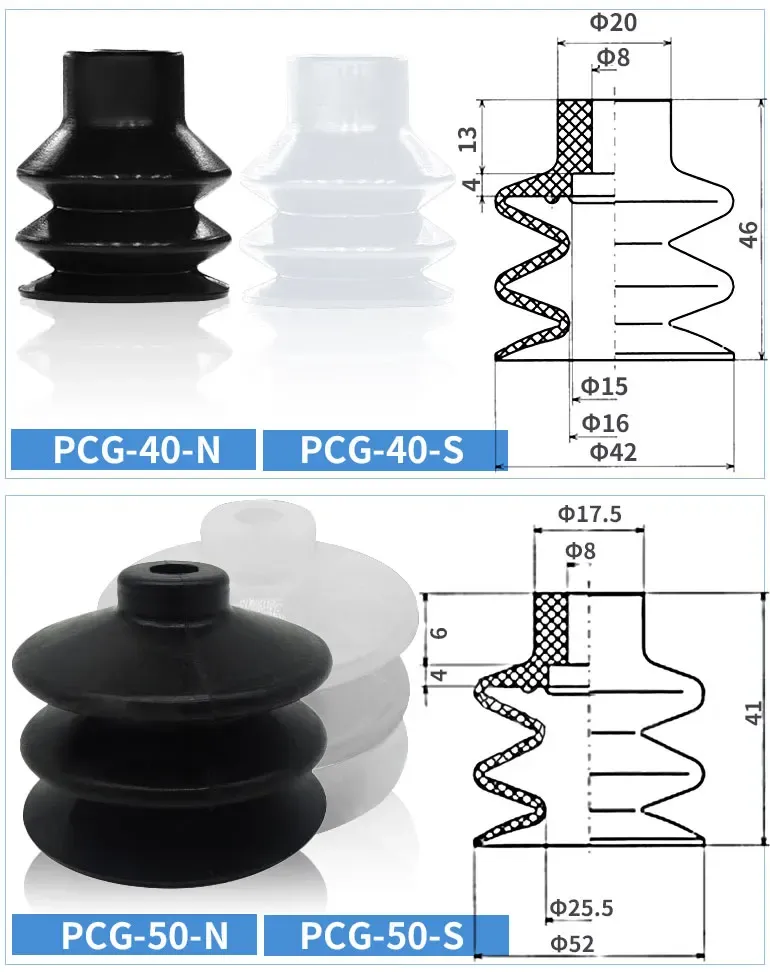

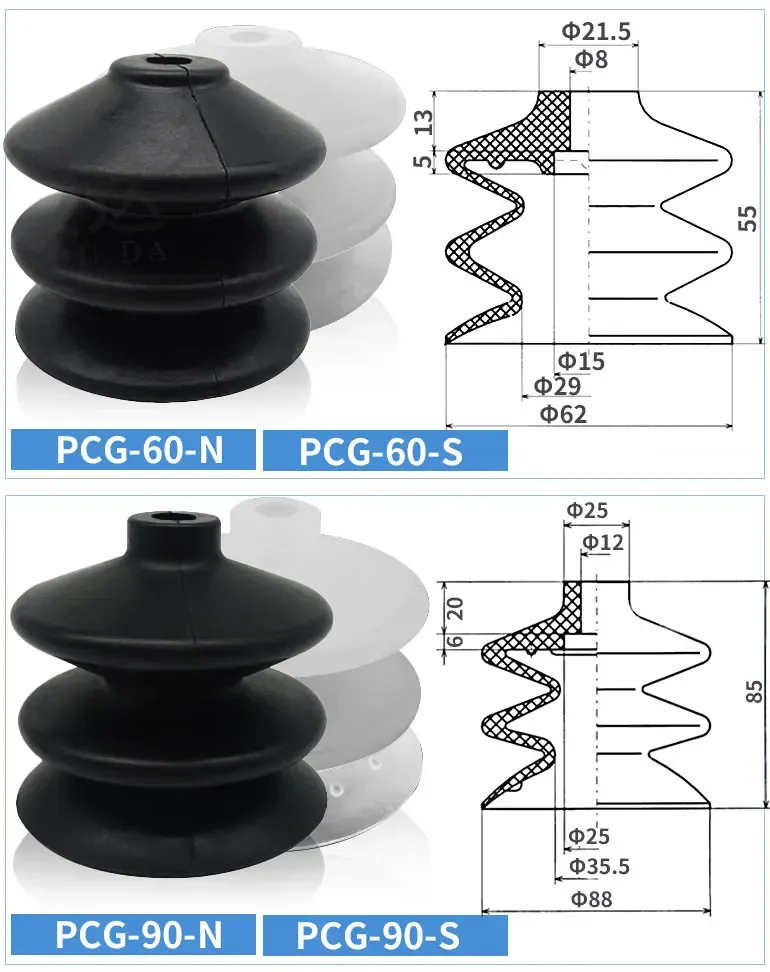

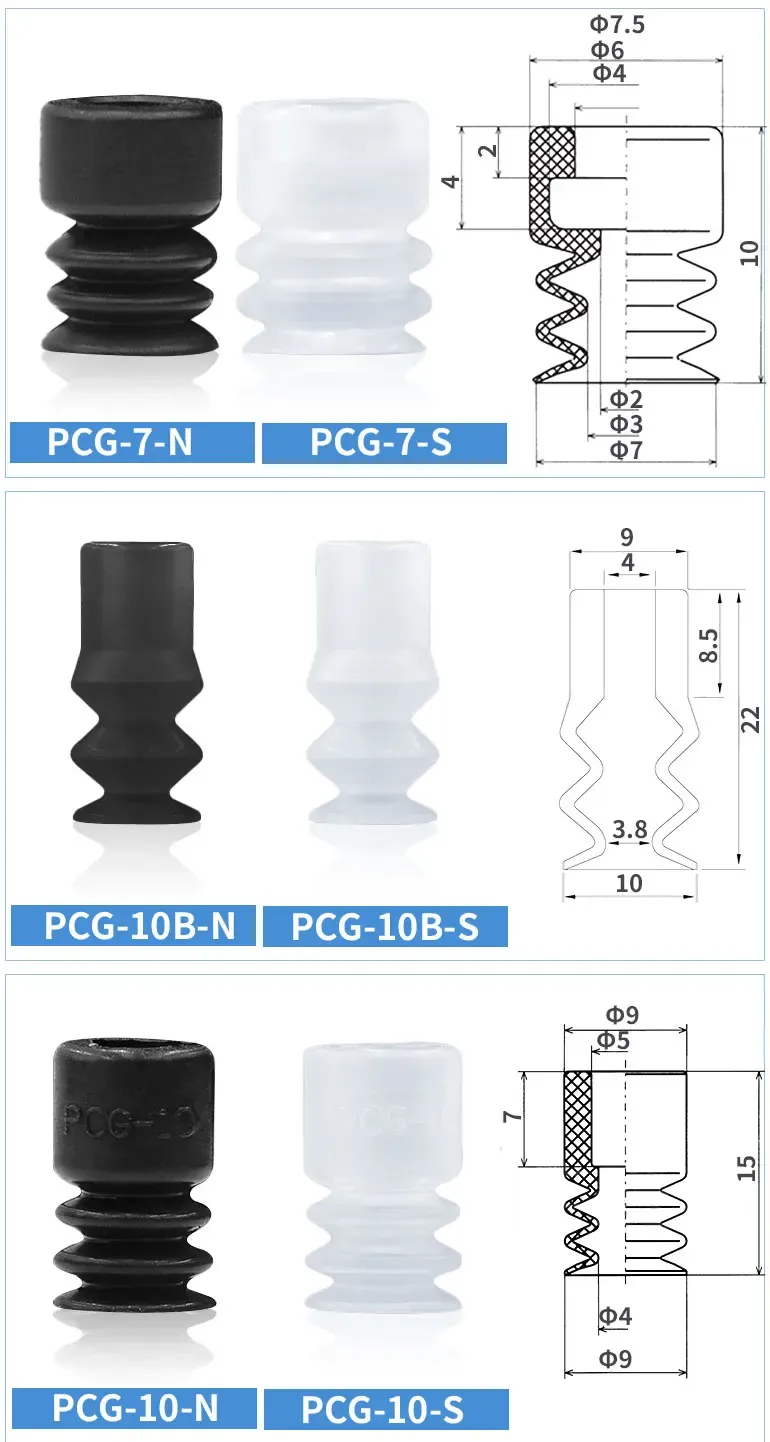

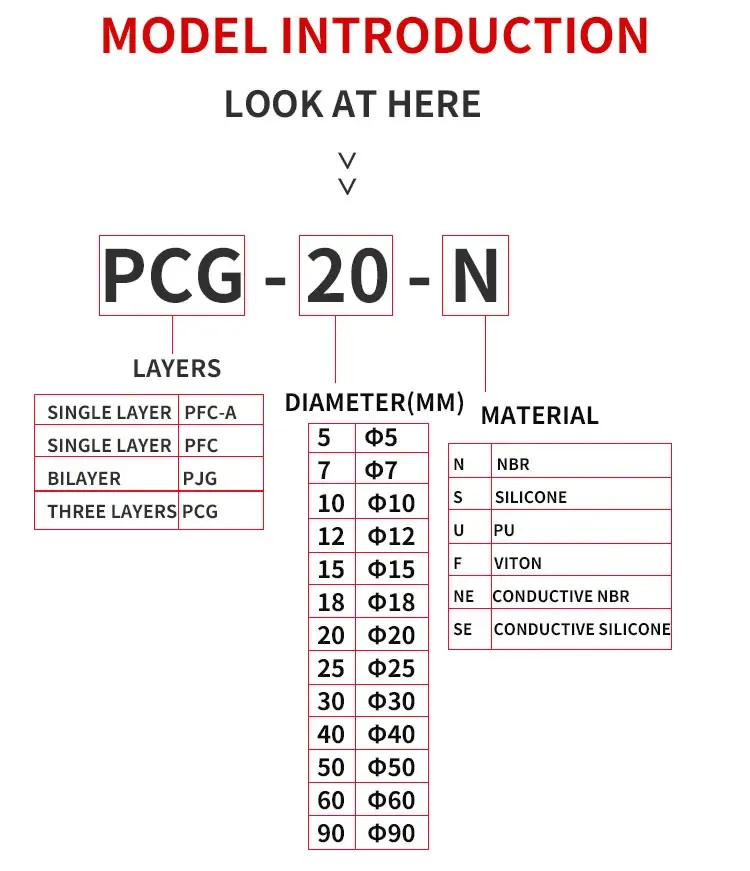

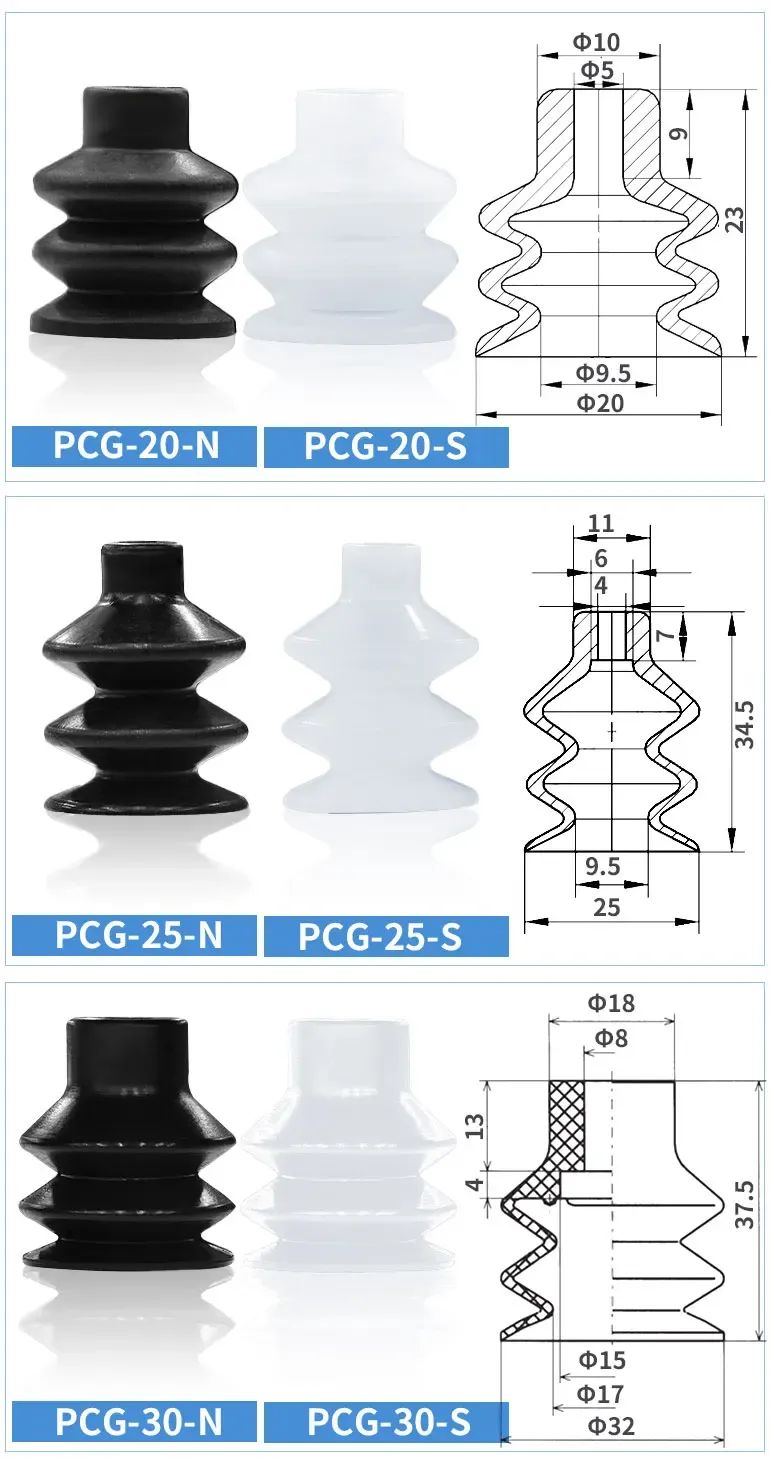

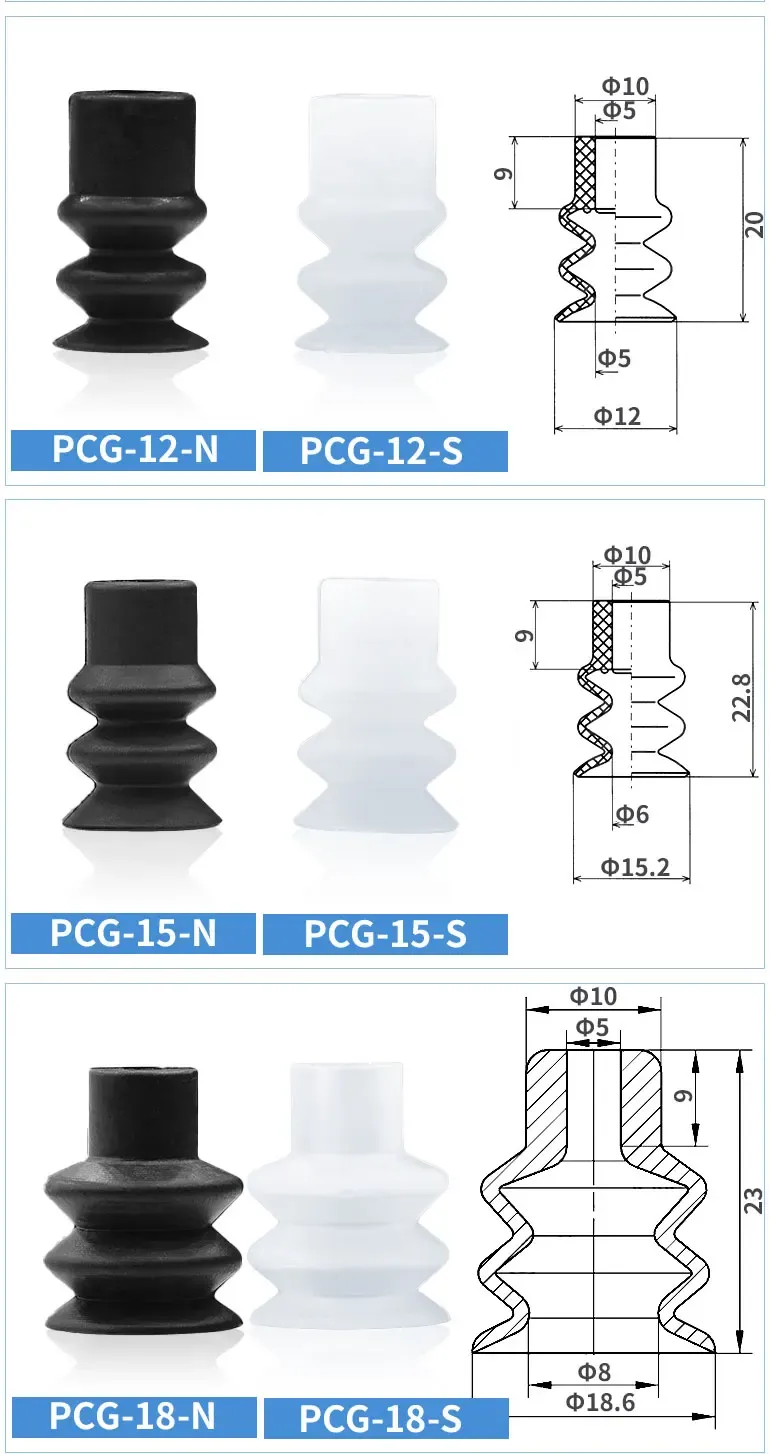

Suction Cup Diameter

5/7/10/12/15/18/20/25/30/40/50/60/90mm

Description

1. Triple-layer bellows structure: provides excellent adaptation to uneven surfaces and stable grip, improving handling accuracy for automated equipment. 2. High-quality material options: Nitrile rubber offers superior temperature resistance, wear resistance, air tightness and mechanical properties, ensuring reliable performance. Imported high-precision silicone offers durability, wear resistance and a wide operating temperature range (both high and low). 3. Wide size range: 13 diameter options (5-90 mm) to meet various adsorption needs of industrial robots and manipulators. 4. Dual color choice: available in black and white variants to match different operating environments and visual preferences. 5. Automation-oriented design: specially developed for industrial robots and manipulators, optimizing efficiency on automated production lines. 6. Non-standard customization: individual solutions are supported to meet the unique requirements of specialized automated handling tasks.
