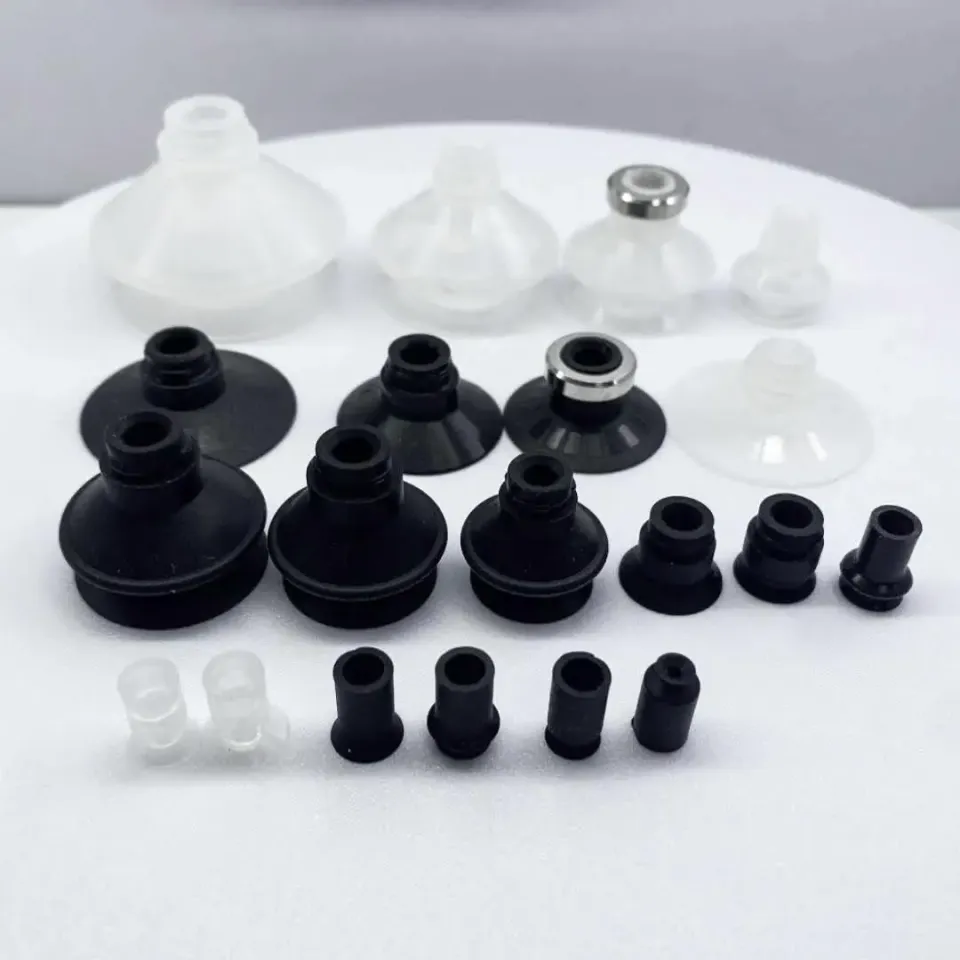

ZP-U vacuum suction cup NBR/silicone for SMC pneumatic manipulator

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

ZP Series Vacuum Suction Cup

Material

Black Nitrile Rubber / White Silicone

Mounting Hole

4-6mm

Shape

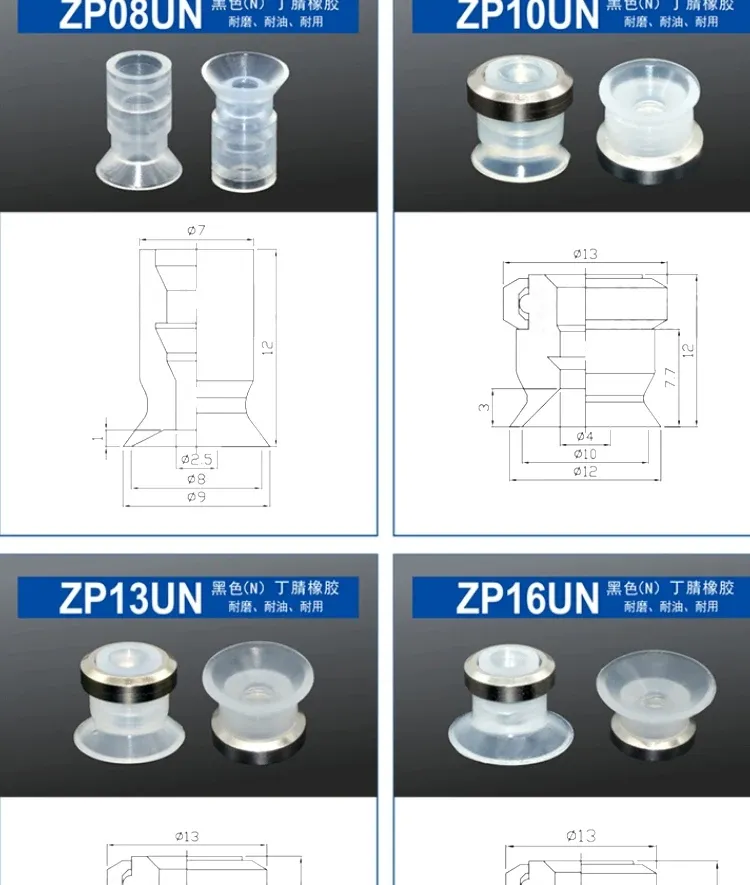

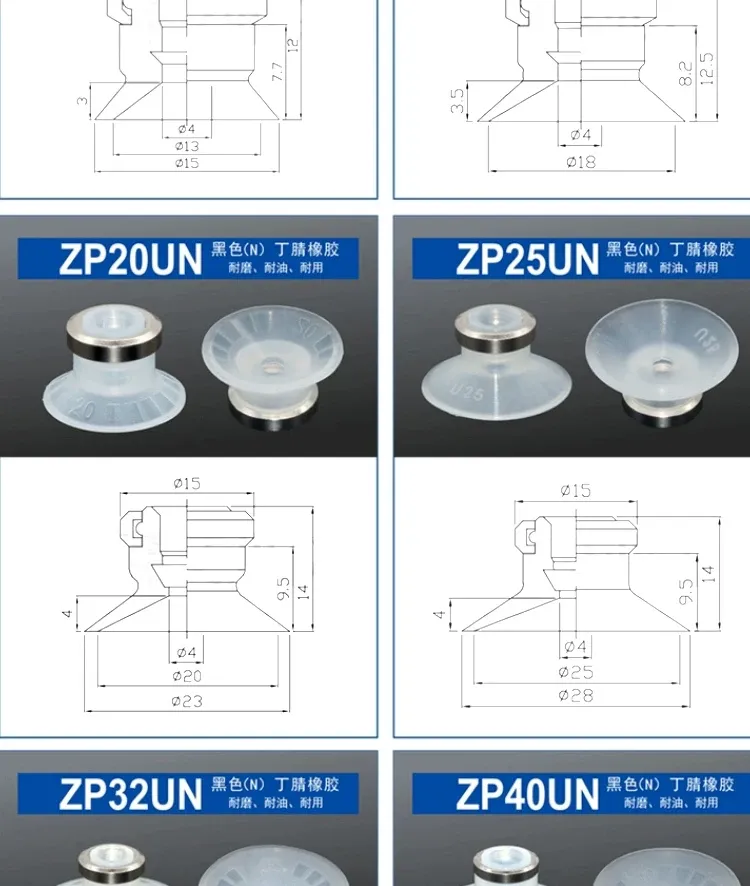

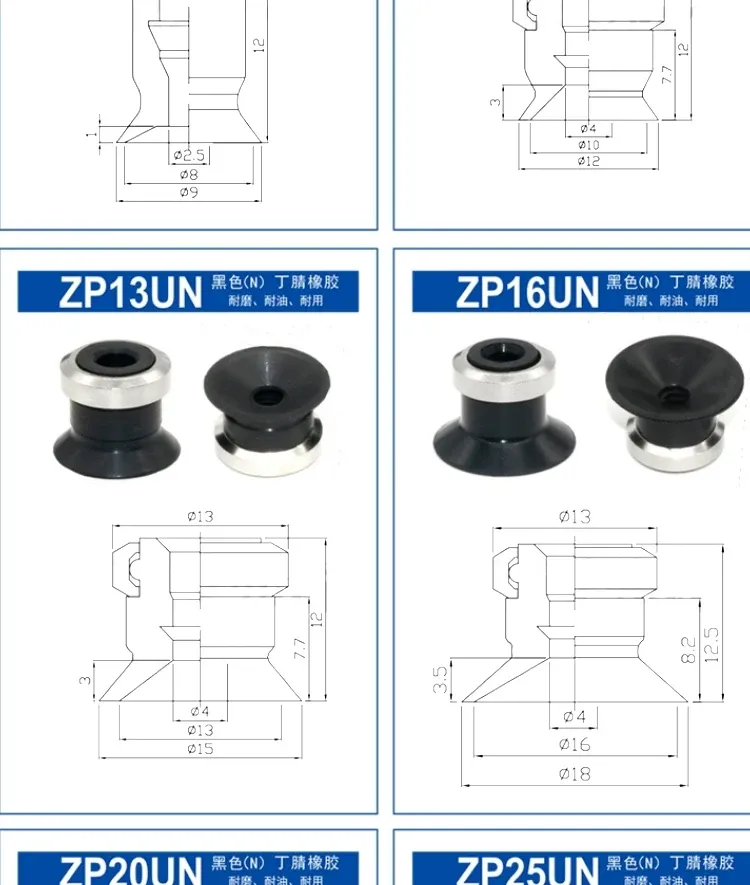

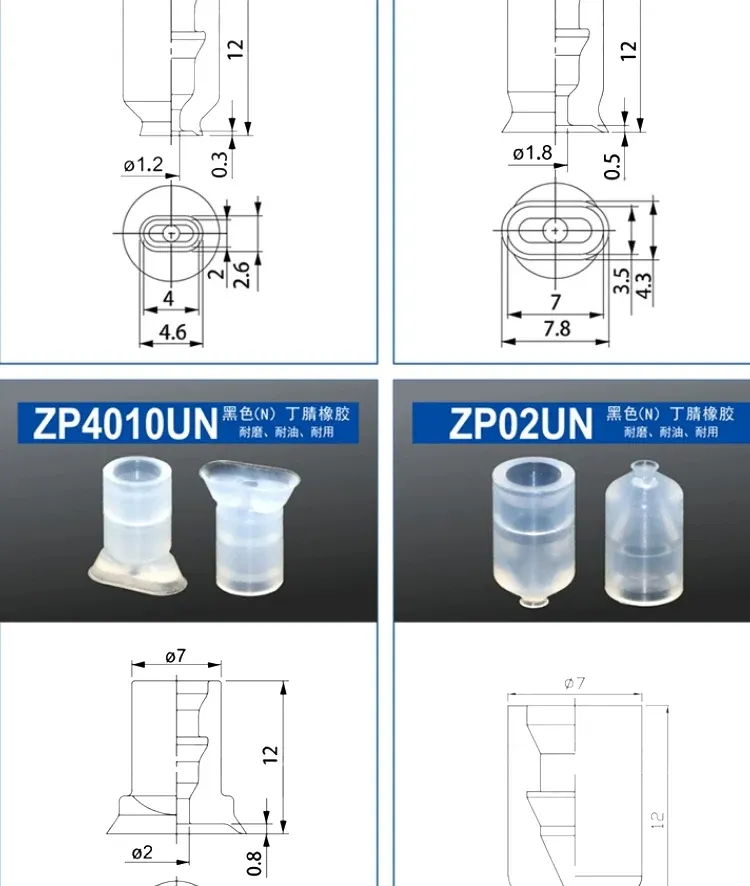

U Flat Type, B Bellows Type, C Flat Type with Ribs, D Deep Type

Cup Diameter

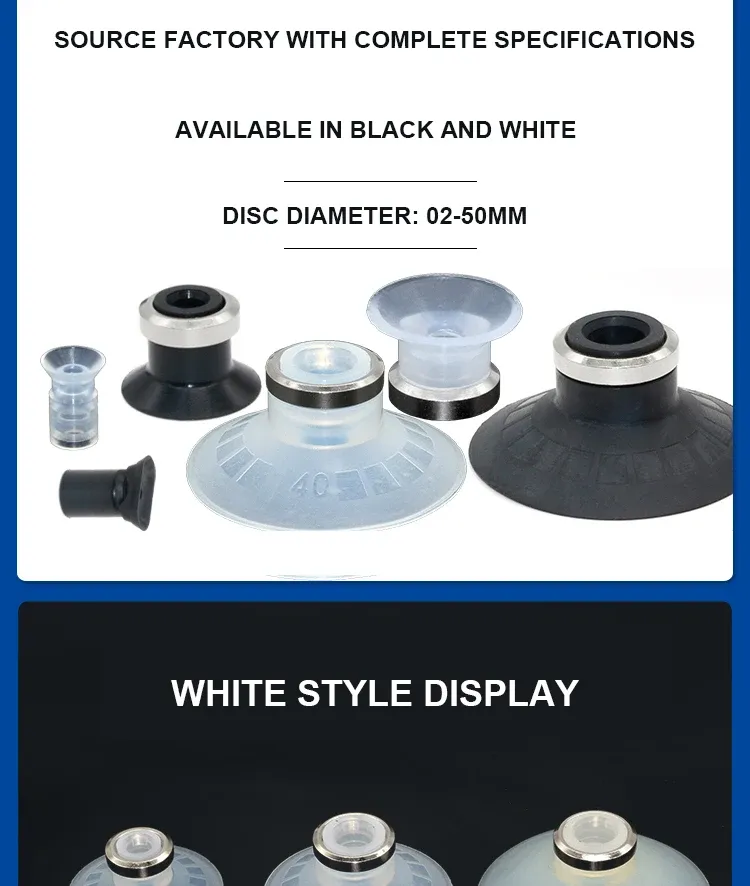

06/08/10/10/13/16/20/25/32/40/50mm

Application Scenarios

Suitable for handling small parts with flat suction surfaces, such as IC chips

Customization Availability

Non-standard customization is supported

Description

1. Premium material options for various needs Black nitrile rubber: exceptional oil resistance, wear resistance and anti-static properties, combined with high adhesion and reliable water resistance. Easy to machine, making it a universal choice for seals and suction cups in various industries. Imported white silicone: wide temperature resistance range (withstands both high and low temperatures), stable chemical properties and environmental friendliness. Ideal for medical, food and precision applications. Anti-static version: the spark-free design ensures safe use in vacuum smelting, vacuum drying, the chemical industry, pharmaceuticals, light industry, the electrical vacuum industry and other sensitive environments. 2. Variety of shapes and sizes for precise adaptation Shape choice: U flat, B bellows, C flat ribbed, D deep - adapted to various workpiece surfaces and handling requirements. Cup diameter range: 06/08/10/13/16/20/25/32/40/50 mm, suitable for handling small and medium parts with flat suction surfaces (e.g. IC chips, electronic components). Standard mounting hole: 4-6 mm for easy and reliable installation in automated systems. 3. Enhanced stability and safe damage-free handling Ribbed bottom design: minimizes tilting during transport, significantly improving operational stability and positioning accuracy. High-quality surface finish: burr-free, with uniform texture, has high tear strength, eliminating scratches and damage to delicate workpieces. 4. Customization flexibility Supports non-standard customization to meet unique size, shape, material or performance requirements (e.g. specialized temperature resistance, improved adhesion). 5. Wide application versatility Ideal for handling small parts with flat surfaces, such as IC chips, electronic components, precision hardware, as well as food and medical accessories - suitable for automated lines, assembly processes and precision manufacturing.
