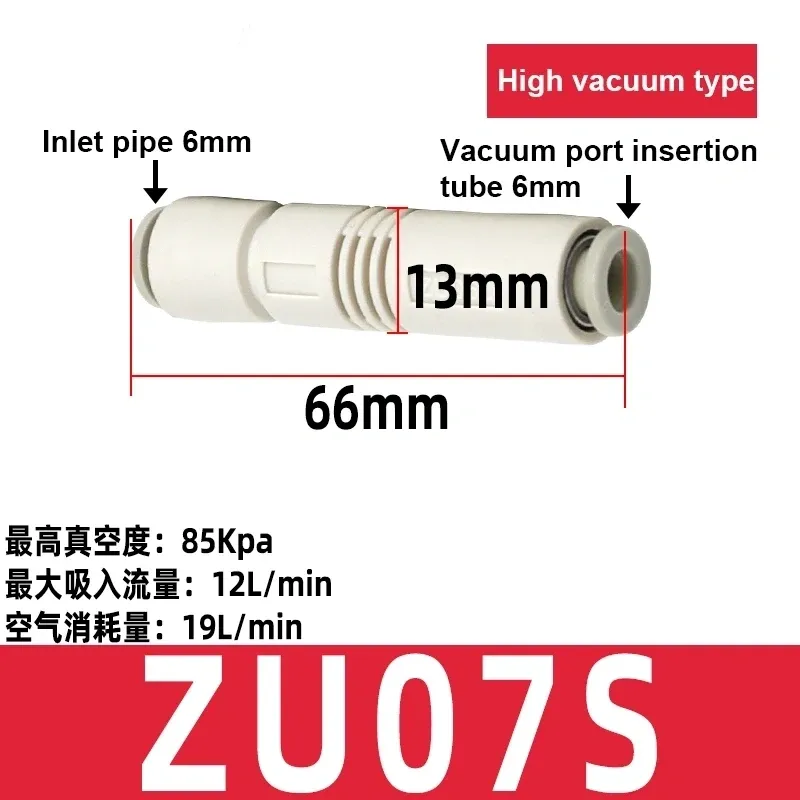

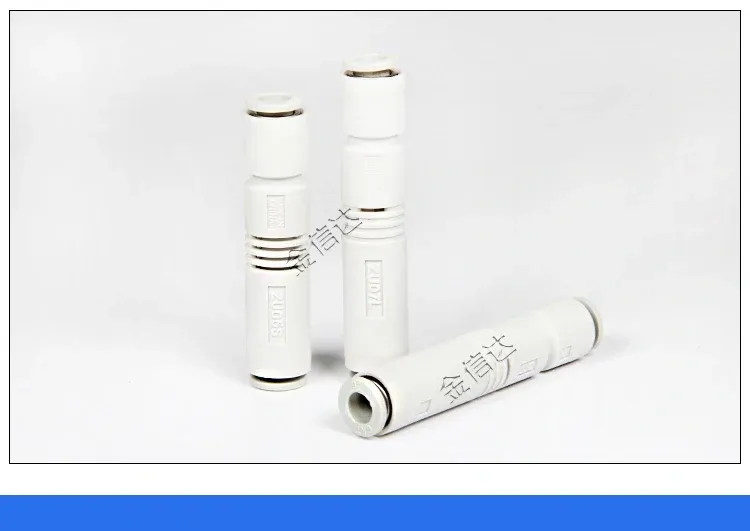

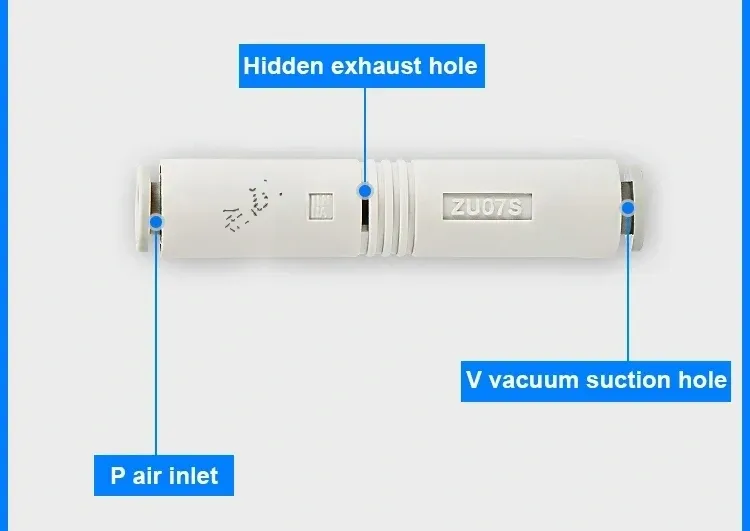

ZU07S industrial vacuum generator
SKU: 1005012328774406 · 9 sold
174 ₽
In stock
Specifications
- Brand name
- No
- Origin
- China
- Type
- Source purification device
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1
- Product Translation
- ZU Vacuum Ejector
- Product Name
- ZU Vacuum Ejector
- Material
- Resin (Die-Cast Molding)

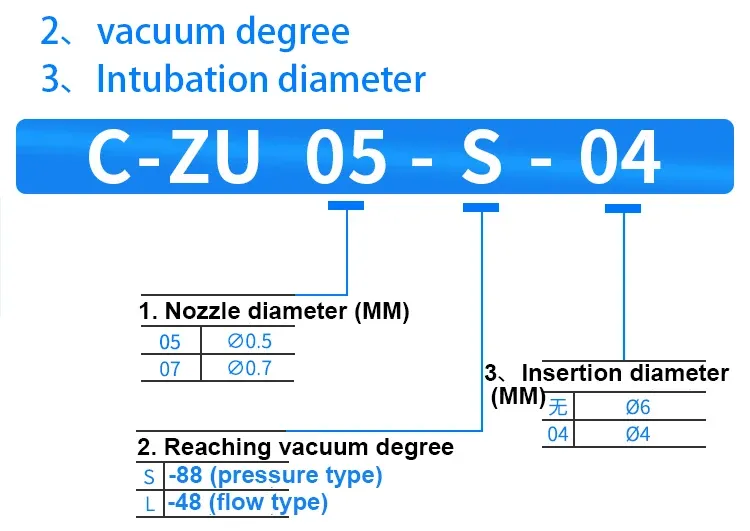

- Nozzle Diameter
- 0.3/0.4/0.5/0.7
- Operating Temperature Range
- -5~60 °C
- Applicable Fluid
- Air
- Suitable Pipe Materials
- Nylon, Soft Nylon, Polyurethane
- Operating Pressure Range
- 0.1~0.6 Mpa
- Maximum Operating Pressure
- 7 bar
- Standard Operating Pressure
- 4.5 bar
- Suitable Pipe Outer Diameter
- 6 mm
- Standard Supply Pressure
- ZU03/04 (0.35 Mpa), ZU05/07 (0.45 Mpa)
Description
