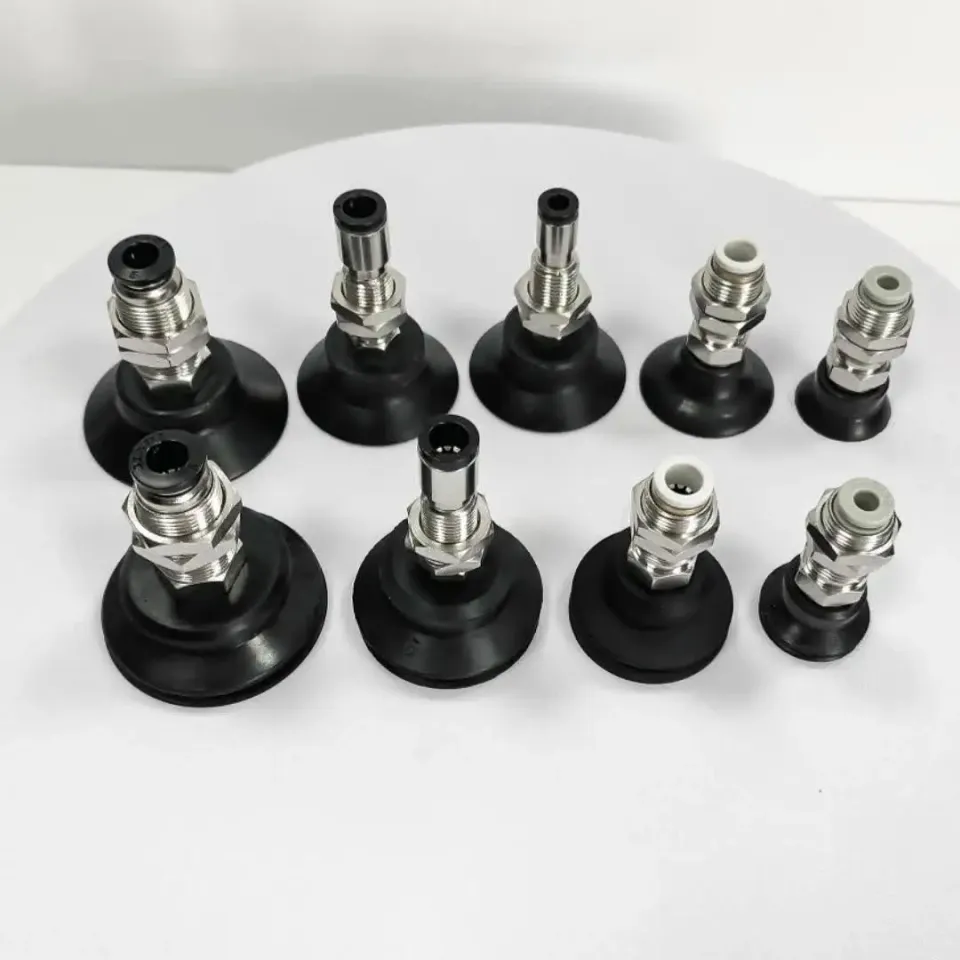

PAK 05-50 mm pneumatic vacuum suction cup
SKU: 1005012181059751 · 12 sold
In stock
Video
Specifications
- Brand name
- No
- Origin
- China
- Type
- Actuator
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1
- Product Name
- PAK Vacuum Suction Cup
- Color
- Black / White
- Material
- White Silicone; Black Anti-Static Material

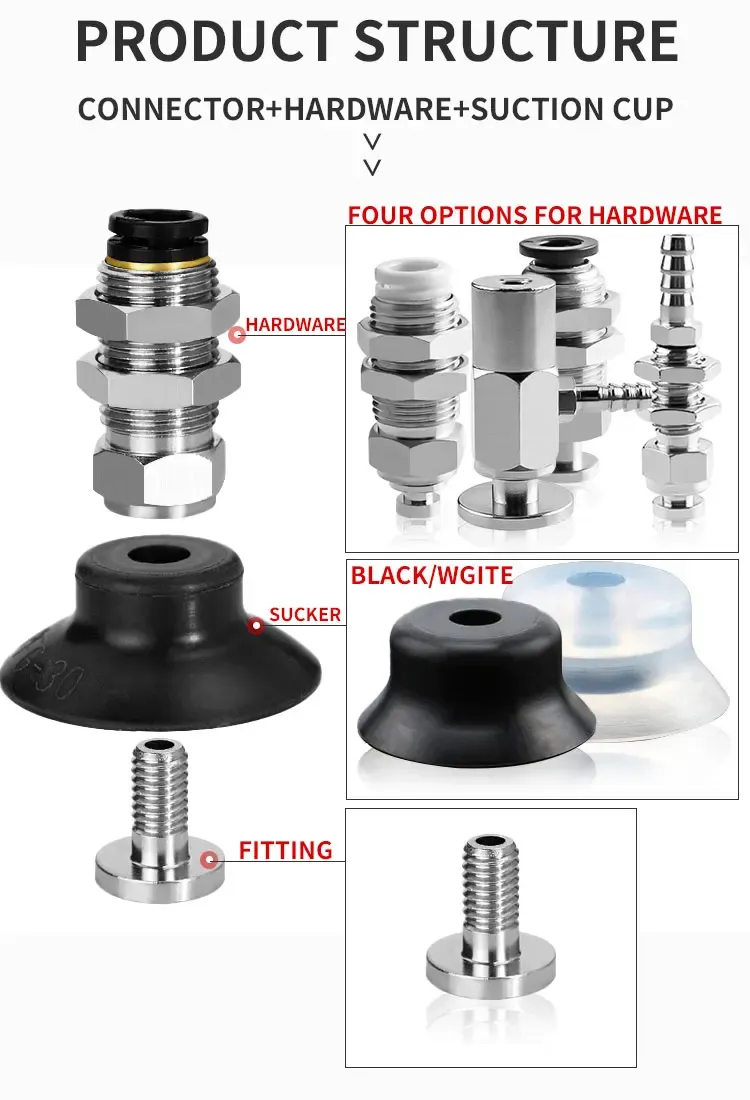

- Suction Cup Bracket Body
- Vertical Piping
- Air Inlet Type
- Rear Air Inlet

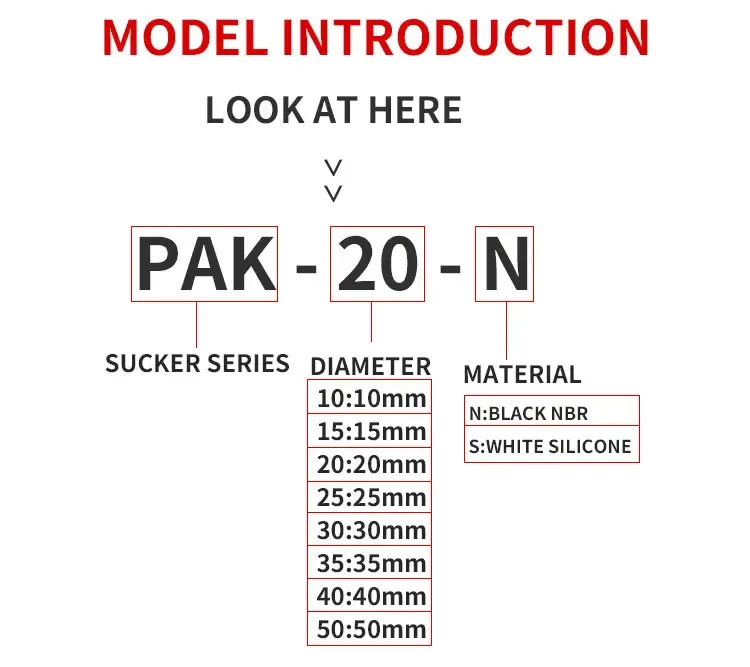

- Suction Cup Layers
- PAK (Single-Layer); PBK (Double-Layer)

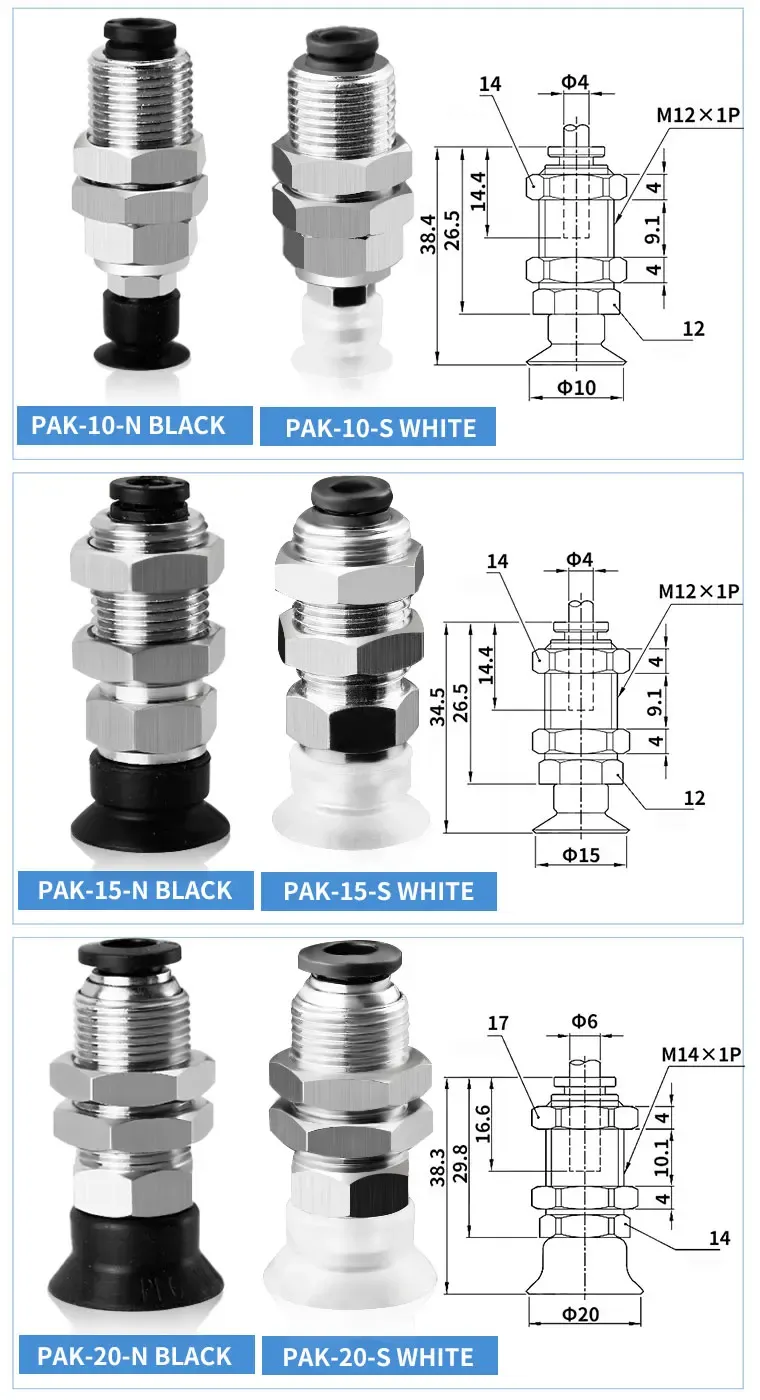

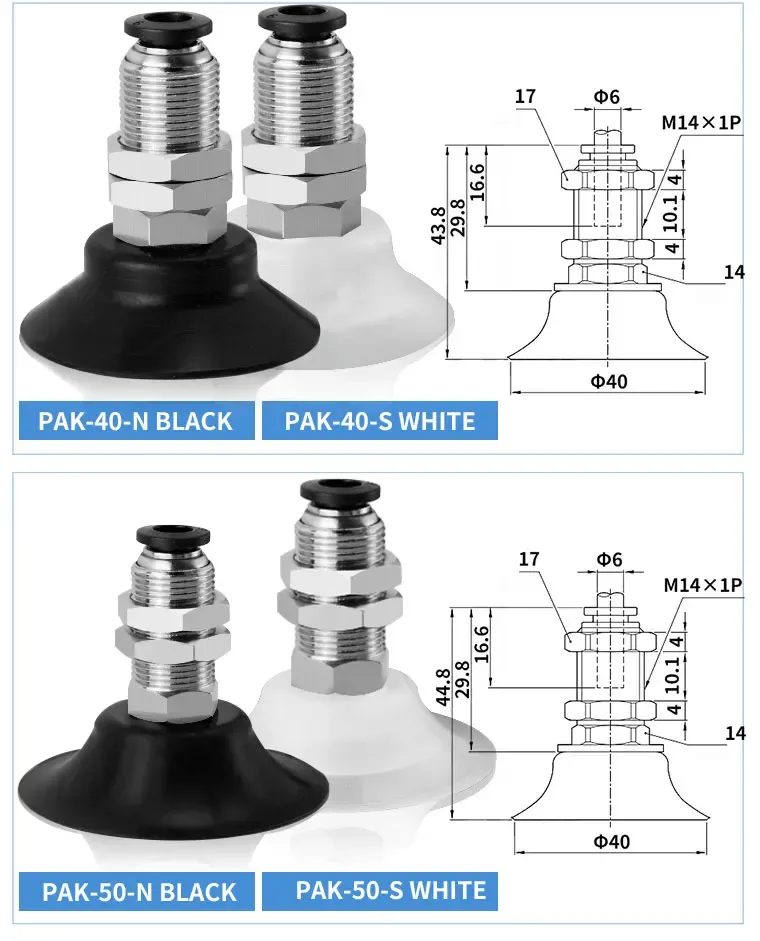

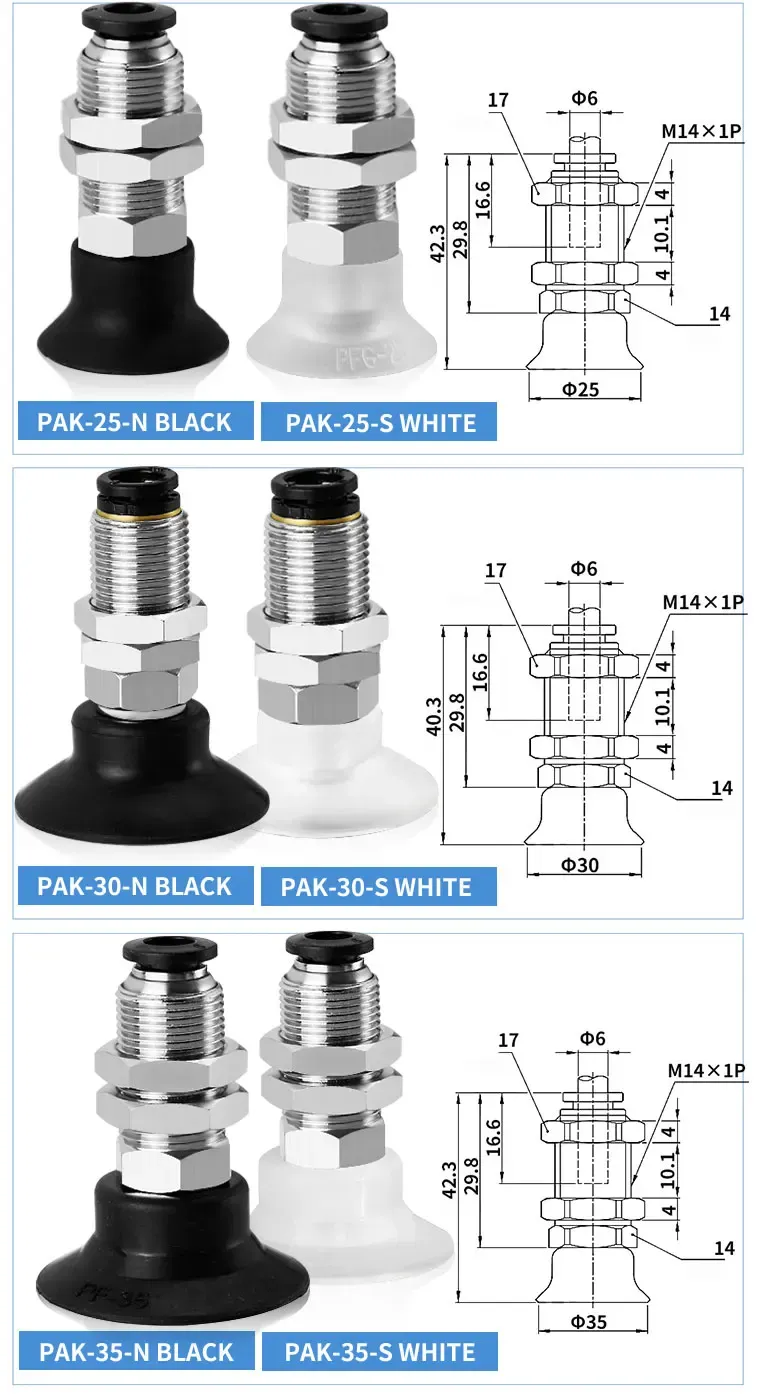

- PAK Cup Diameter
- PAK-06 / 08 / 10 / 15 / 20 / 30 / 35 / 40 / 50
- PBK Cup Diameter
- PBK-10 / 15 / 20 / 25 / 30 / 35 / 40 / 50
- Compatible Suction Cups
- PJG / PFG
- Fixing Thread
- M14 / M12
- Customization Option
- Non-standard customization is supported.
Description

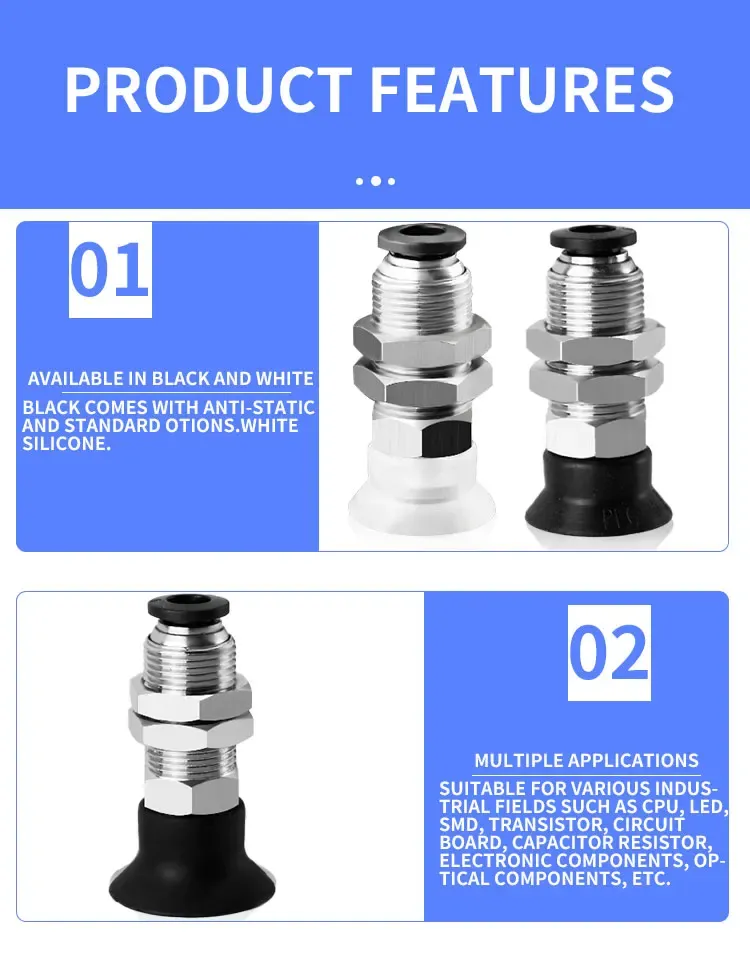

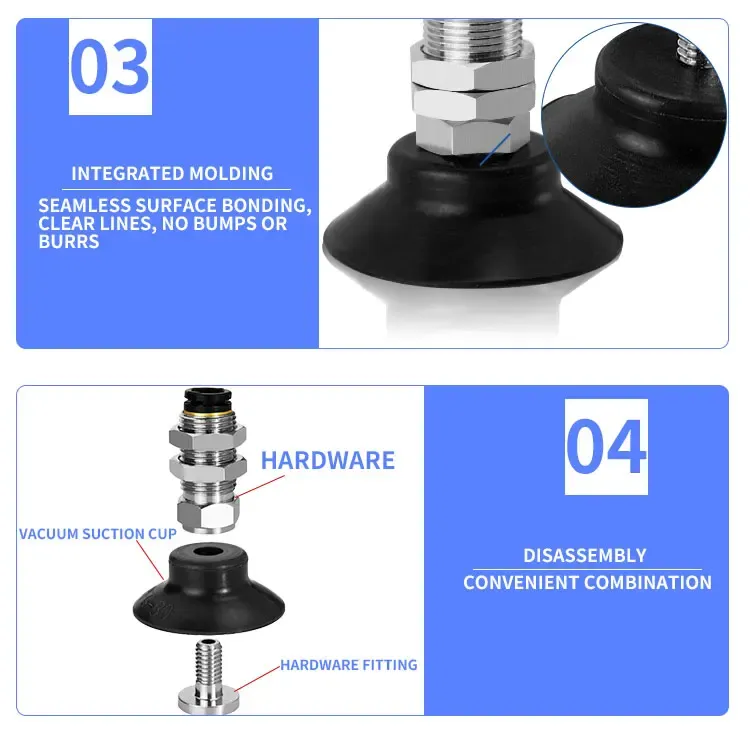

PAK/PBK vacuum suction cup: a high-performance solution for industrial handling 1. Dual material and color options: white silicone and black anti-static material meet the requirements of various industrial environments, ensuring reliability under different working conditions. 2. Stable and practical design: the vertical piping bracket ensures reliable mounting; single-layer PAK and double-layer PBK designs offer flexible options for different load and adhesion requirements. 3. Wide diameter range: PAK covers 6-50 mm, PBK offers 10-50 mm (all in mm), ideal for various workpiece and tube sizes. 4. High compatibility: perfectly compatible with PJG/PFG suction cups, increasing application versatility and reducing replacement costs. 5. Standard fastening design: equipped with standard M14/M12 metric threads, ensuring easy and reliable mounting on industrial robots and manipulators. 6. Wide range of applications: specially designed for handling workpieces and tubes with uneven surfaces, ideal for industrial robots and manipulators in various production scenarios. 7. Superior performance characteristics: the smooth burr-free surface with uniform texture ensures stable grip; high tear strength prevents deformation; safe adhesion protects workpieces from scratches and damage. 8. Customization support: offers non-standard customization to manufacture products according to specific customer requirements, meeting unique industrial needs.
