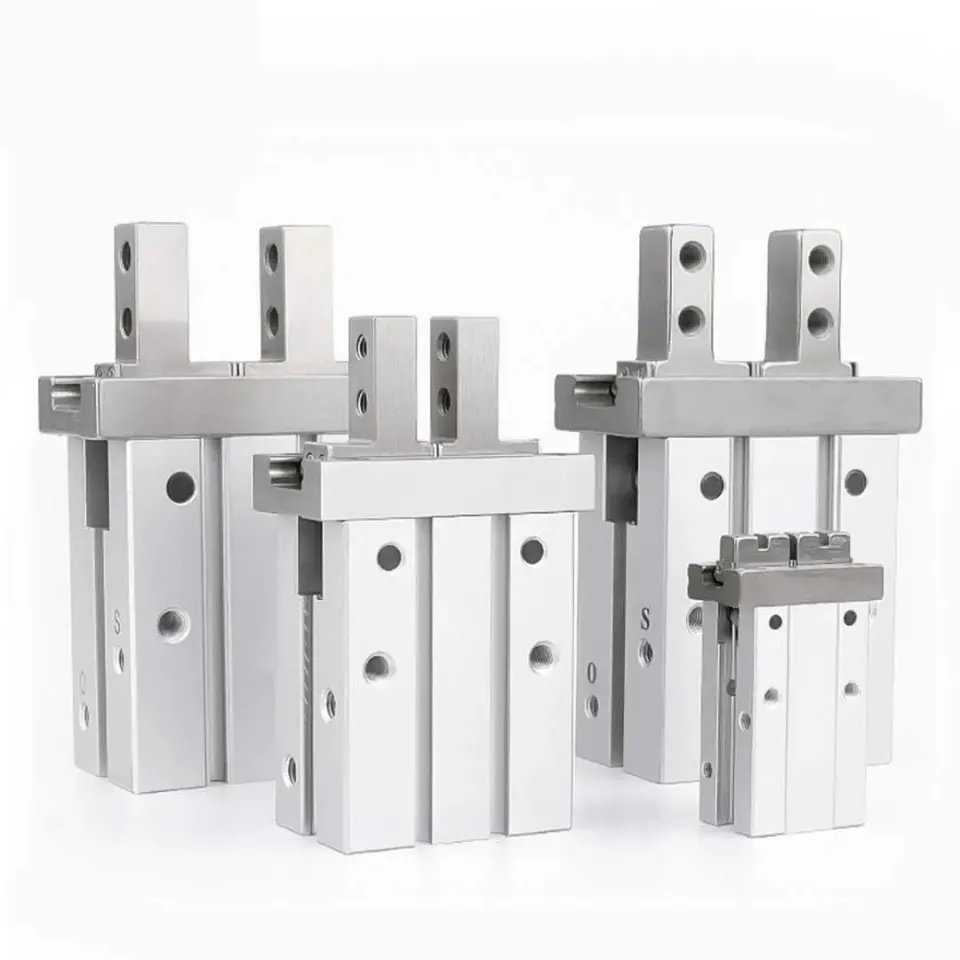

MHZL2/MHZ2 parallel gripper jaw pneumatic cylinder

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

MHZ2/MHZL Series Gripper Cylinder

Material

Aluminum Alloy

Mode

MHZ2 Parallel Opening/Closing Type; MHZL2 Long Stroke Type

Cylinder Bore Diameter

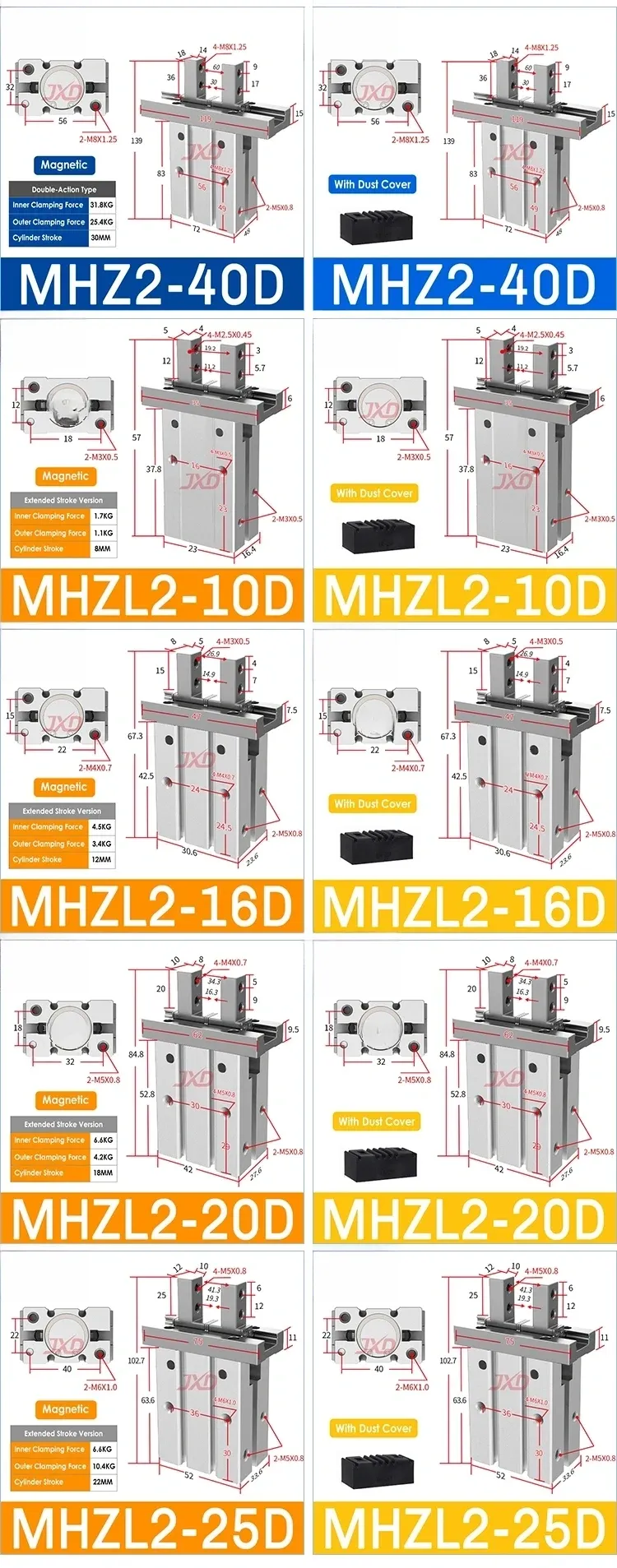

6 mm, 10 mm, 16 mm, 20 mm, 32 mm

Operating Medium

Air

Operating Temperature Range

-10 ~ 60 °C

Operating Pressure Range

0.25 - 0.7 MPa

Speed Range

30 ~ 800 mm/s

Action Type

D: Double-Acting Type S: Single-Acting Normally Open C: Single-Acting Normally Closed

Customization Availability

Non-standard customization is supported

Description

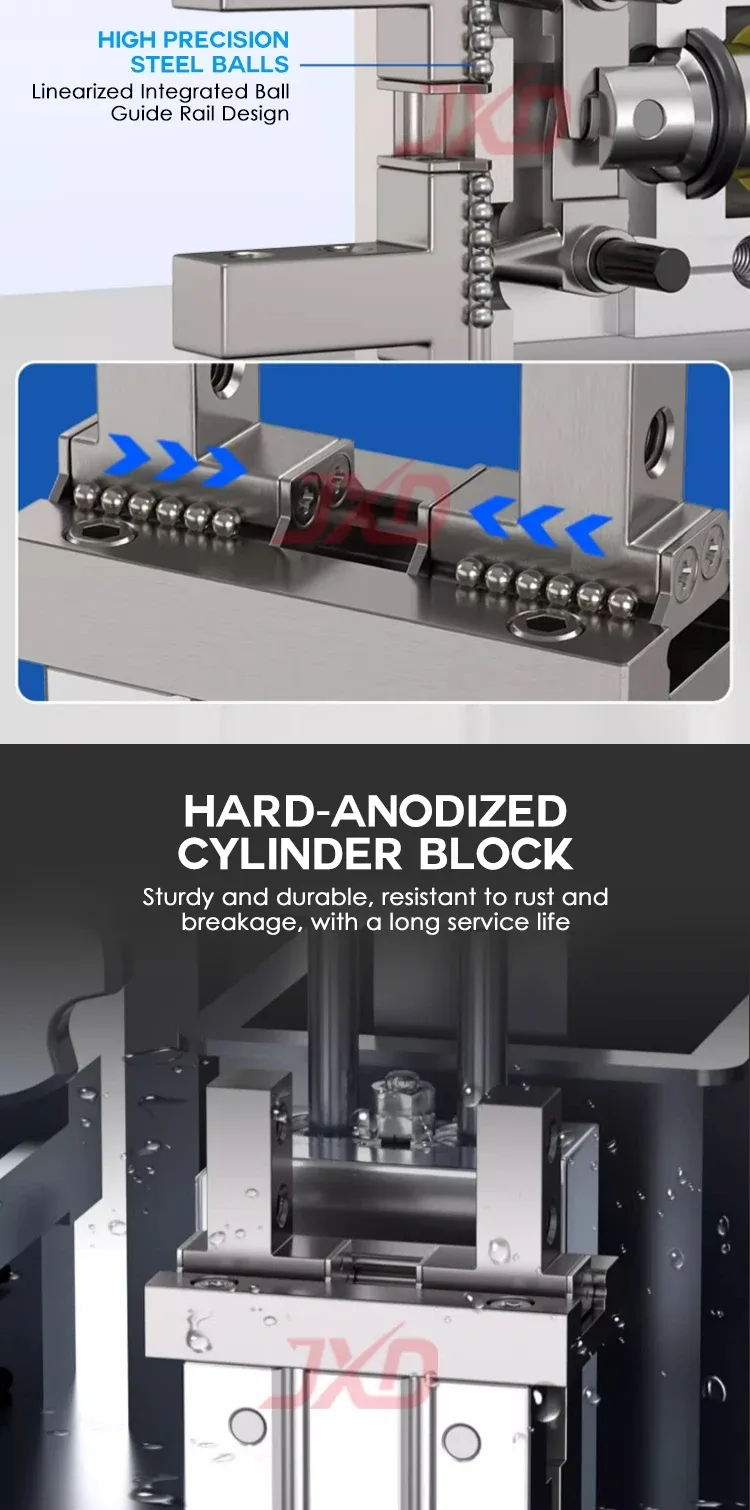

1. High-strength and durable 6061-T6 aluminum alloy construction Made of high-quality 6061-T6 aluminum alloy, with cylindrical bodies machined using water-cooling technology, providing a Vickers hardness of more than 13.5. High impact resistance prevents collision damage, and increased oxidation resistance ensures a long service life even in harsh industrial environments. 2. Various types and operation modes for different needs Two main types: MHZ2 (parallel opening/closing type) for precise gripping and MHZL2 (long stroke type) for applications with extended reach. Various operation modes are available: D (double-acting), S (single-acting, normally open), C (single-acting, normally closed), adapting to different automated workflow requirements. 3. Flexible size parameters and stable performance Five cylinder bore options (6/10/16/20/32 mm) to meet various load and gripping force requirements. Reliably operates across a wide range of conditions: from -10 to 60 °C operating temperature, a working pressure of 0.25-0.7 MPa and a speed range of 30-800 mm/s ensure stability in dynamic industrial environments. 4. Pneumatic efficiency for automation scenarios Using air as the working medium provides clean and easy-to-maintain operation, making this equipment ideal for integration into automated production lines. Smooth and responsive gripping/movement delivers high precision when performing tasks in assembly, sorting and material handling processes. 5. Custom solutions for specialized requirements Non-standard customization is supported, including custom cylinder sizes, stroke lengths or operation modes, to match unique application requirements. Adapts to specific industrial scenarios where standard models require adjustments to meet specific load, space or performance requirements. 6. Reliable performance for critical applications Sturdy construction and strict material processing control ensure stable operation under continuous use, reducing downtime and maintenance costs. Suitable for a wide range of industries, including automotive manufacturing, electronics assembly, packaging equipment and automated logistics.
