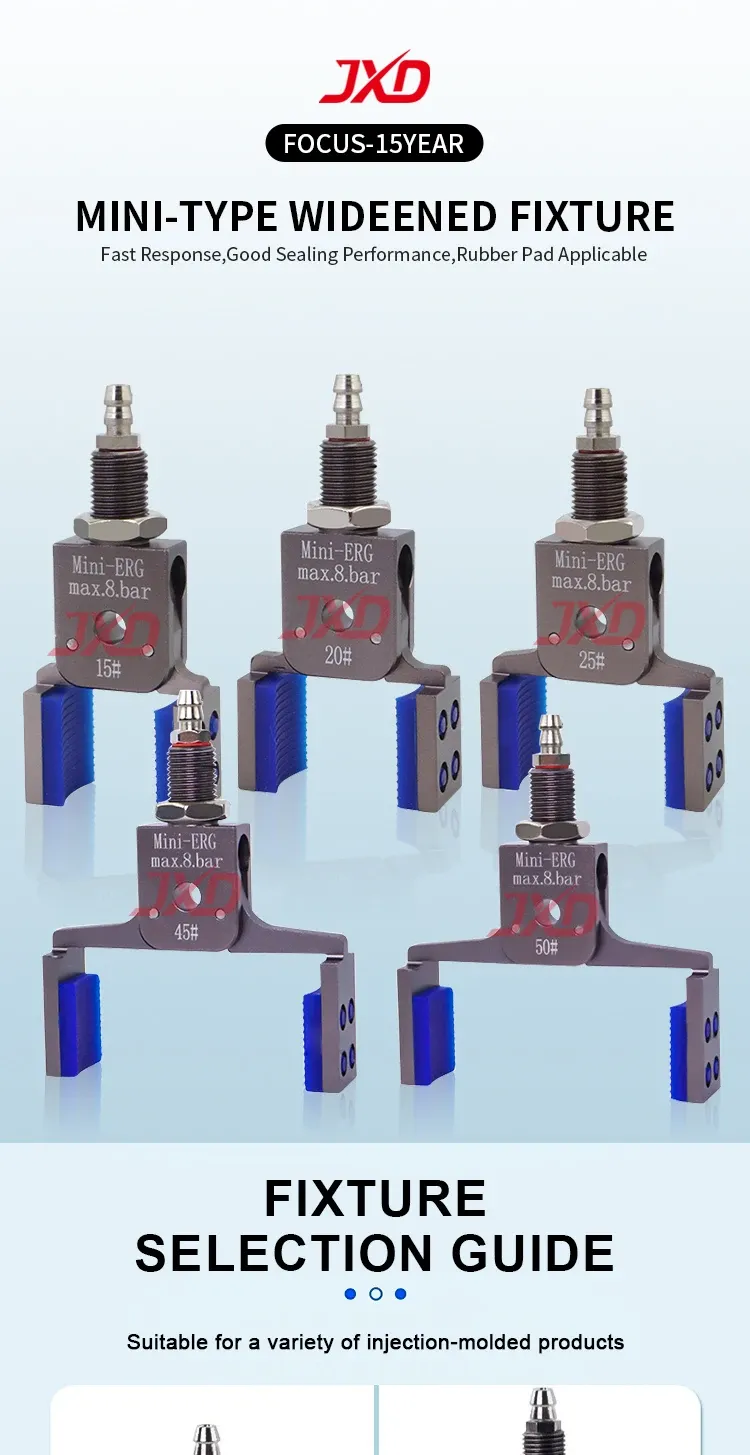

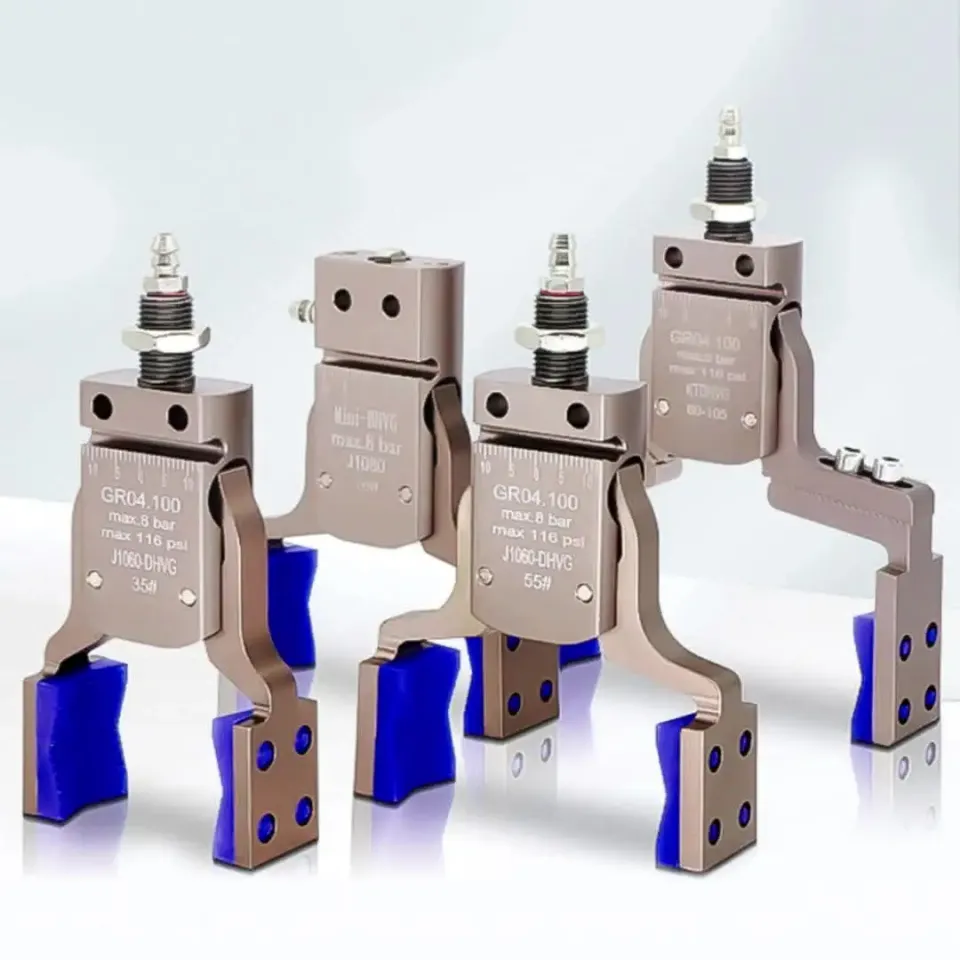

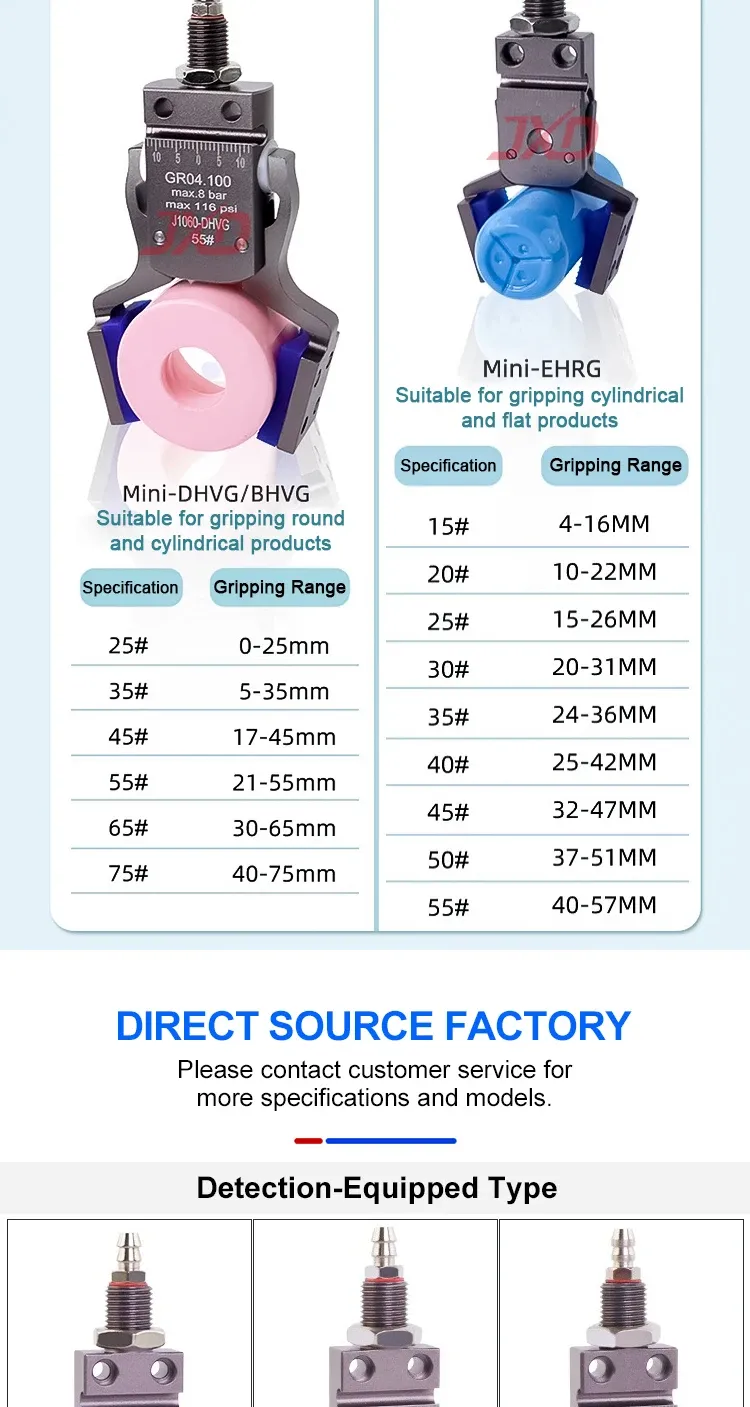

magnetic wide-band mini manipulator, pneumatic clamp, parallel pneumatic gripper with claws and non-slip silicone pad

Specifications

Brand name

No

Model number

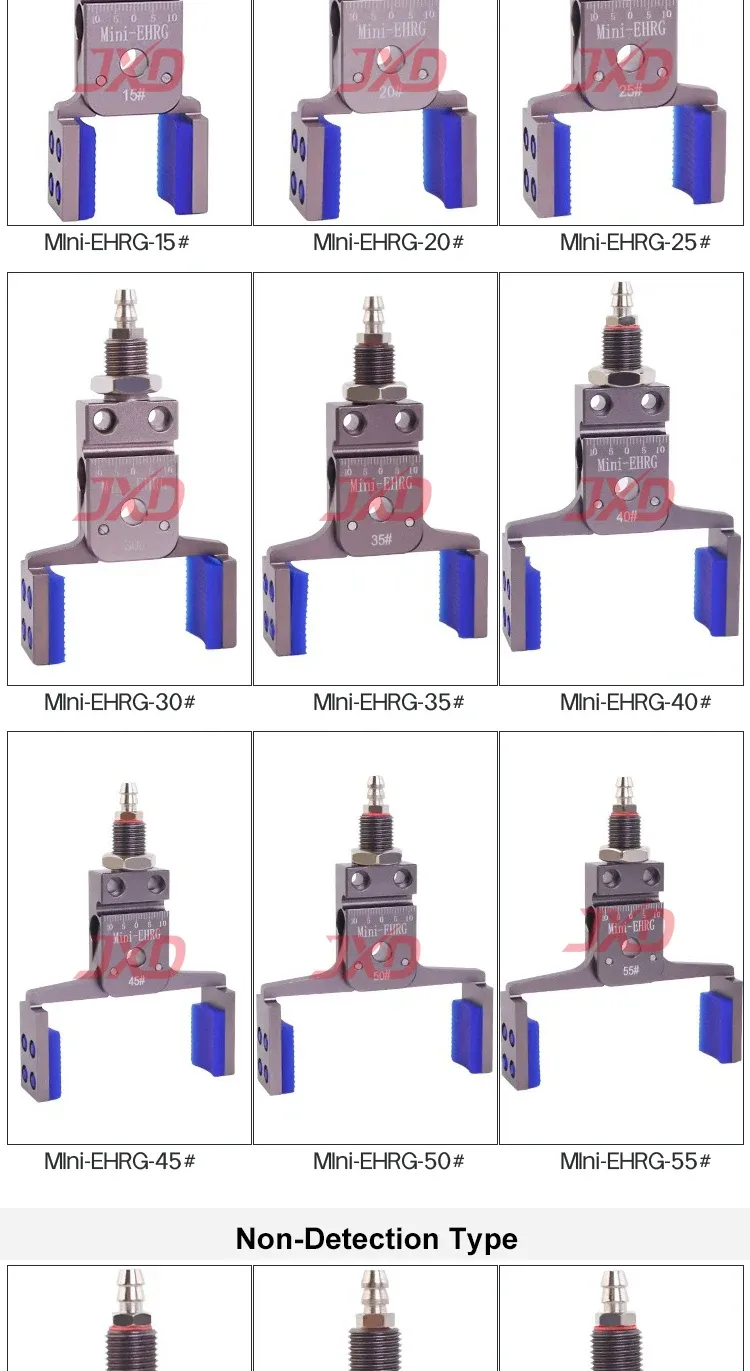

MIni-EHRG

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

Mini Fixture

Material

Aluminum Alloy

Type

Tail Air Inlet / Side Air Inlet

Gripping Force

80N (8KG)

Opening Size

Maximum 53mm, Minimum 20mm respectively

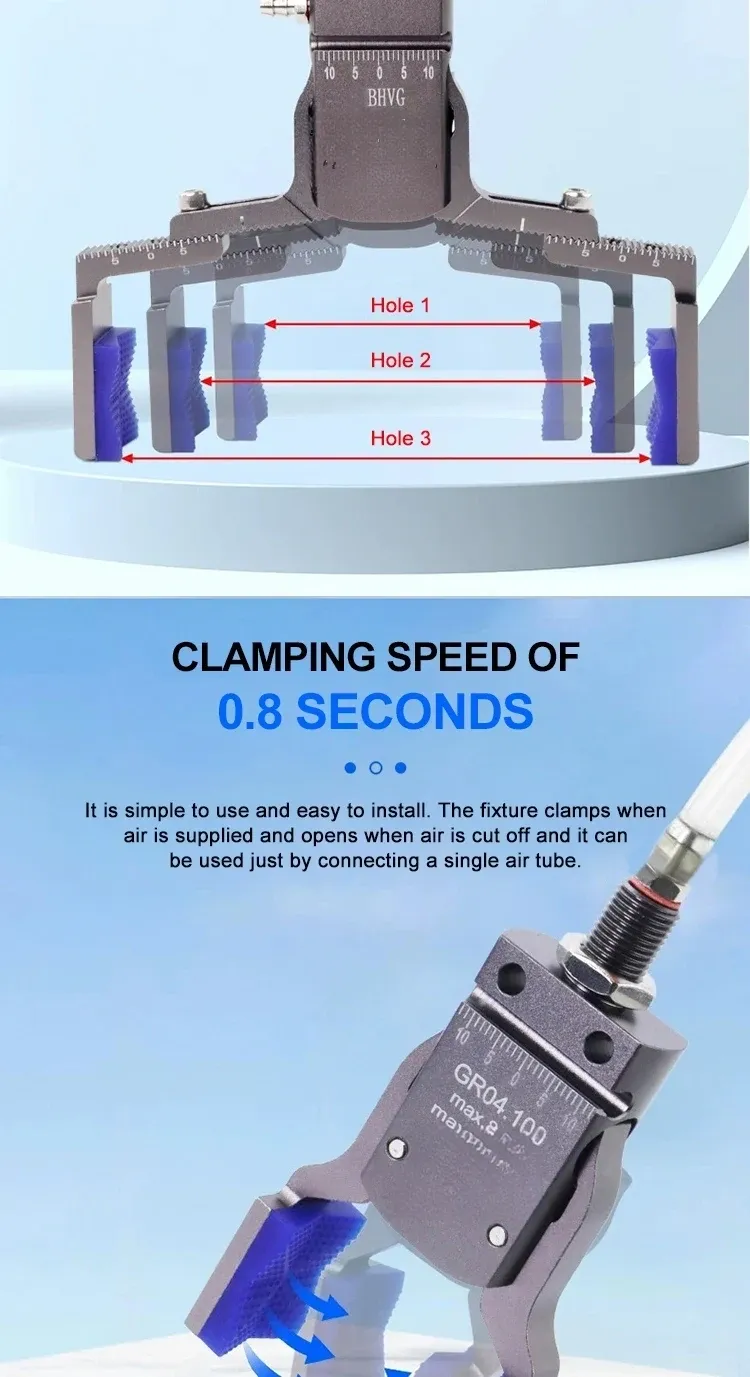

Maximum Gripping Speed

0.8S

Service Life

1,000,000 Cycles

Repeat Accuracy

< 0.04mm

Customization Available

Non-standard customization supported

Description

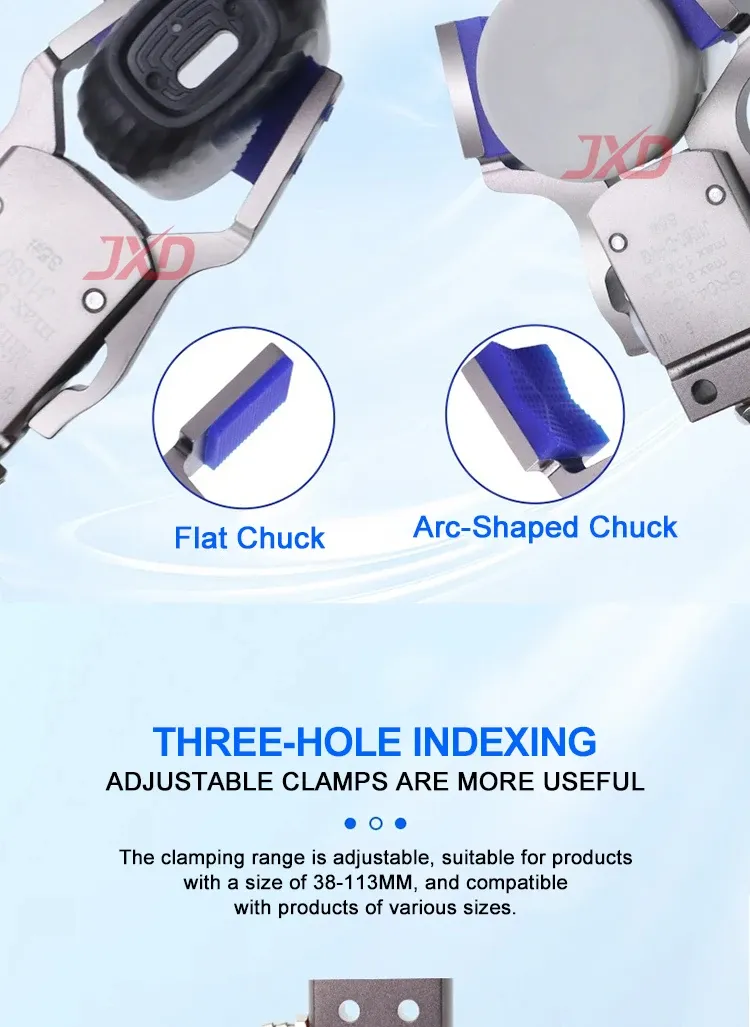

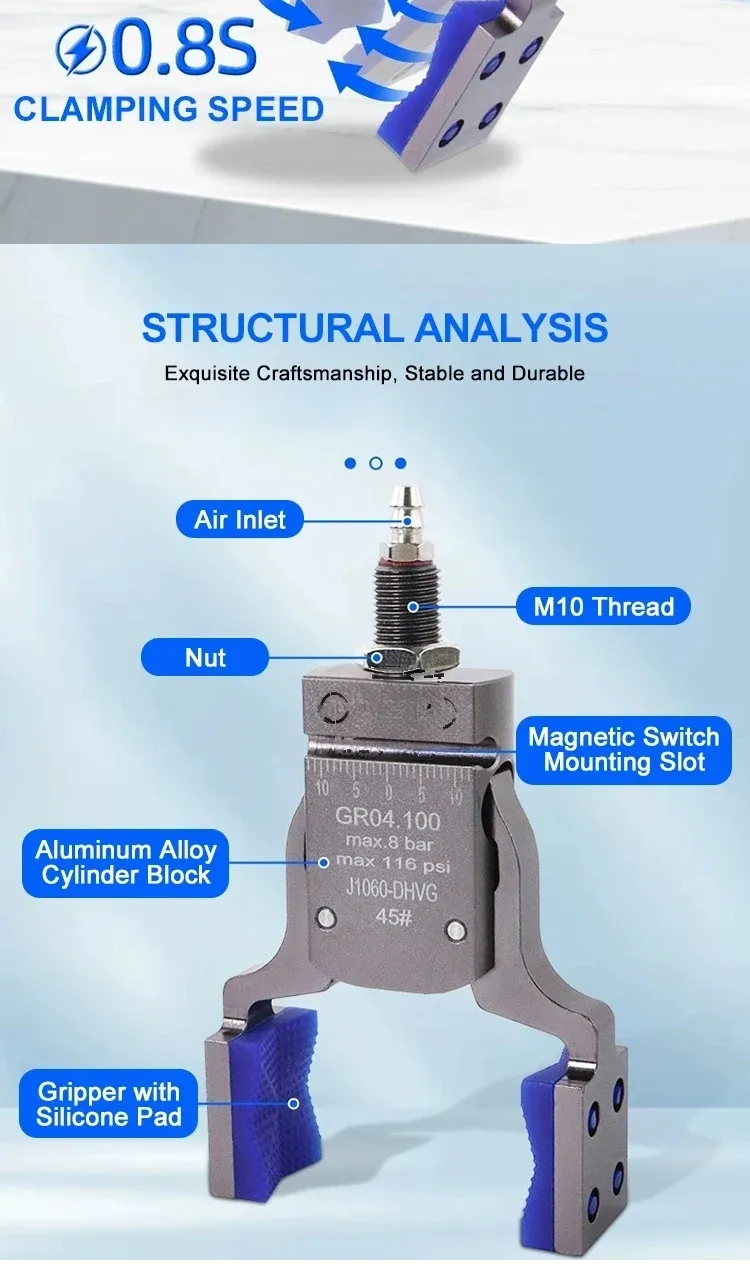

1. Superior stability and grip The undercut tooth and concave-convex jaw design provide reliable clamping of sprues and flat products, eliminating slipping during operation. Gripping force of 80 N (8 kg) matches most automation needs with light and medium loads. 2. High precision and efficiency Repeat accuracy of 0.04 mm for precise positioning, ideal for high-precision automated processes. Maximum gripping speed of 0.8 s significantly increases production line efficiency. 3. Robust and reliable construction Premium aluminum alloy provides superior corrosion resistance and high structural strength. A service life of 1,000,000 cycles guarantees long-term stable operation, reducing maintenance costs. 4. Intelligent safety system Built-in clamp detection switch: monitors gripping status in real time, preventing damage to the mold and products, improving operational safety. 5. Flexible installation and application Dual air supply options (rear/side) adapt to various equipment layout requirements. Standard M10*1.0 mounting thread for easy integration with injection molding machines, robots, manipulators and other automated equipment. 6. Custom solution Non-standard customization is supported to match specific workpiece sizes, loads or installation conditions.
