Specifications
- Brand name
- No
- Origin
- China
- Type
- Actuator
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1
- Product Name
- Mini Fixture
- Material
- Aluminum Alloy
- Type
- Tail Air Inlet / Side Air Inlet
- Gripping Force
- 80N (8KG)
- Mounting Thread
- M10*1.0
- Opening Size
- Maximum 53mm, Minimum 20mm respectively
- Maximum Gripping Speed
- 0.8S
- Service Life
- 1,000,000 Cycles

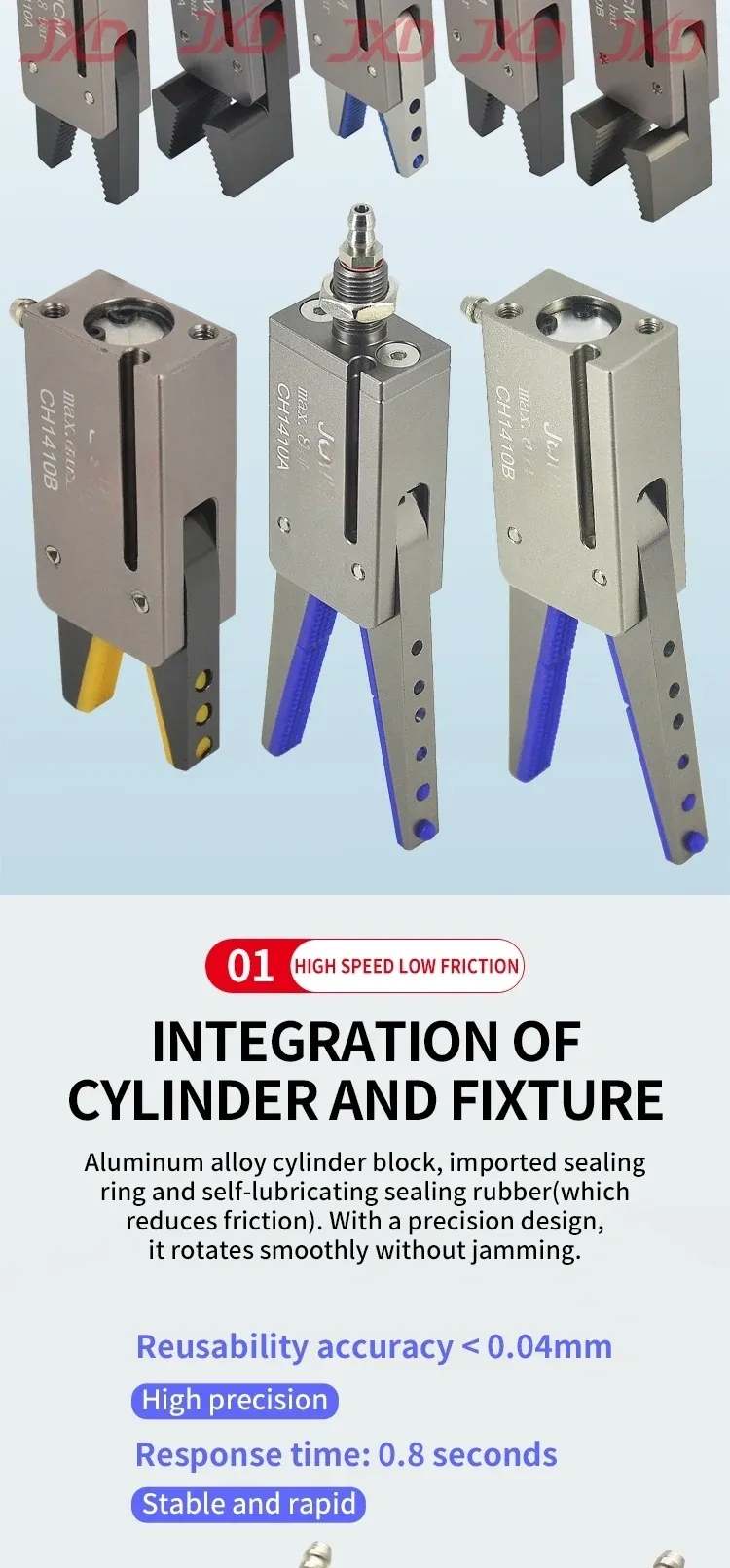

- Repeat Accuracy
- < 0.04mm
- Customization Available
- Non-standard customization supported
Description

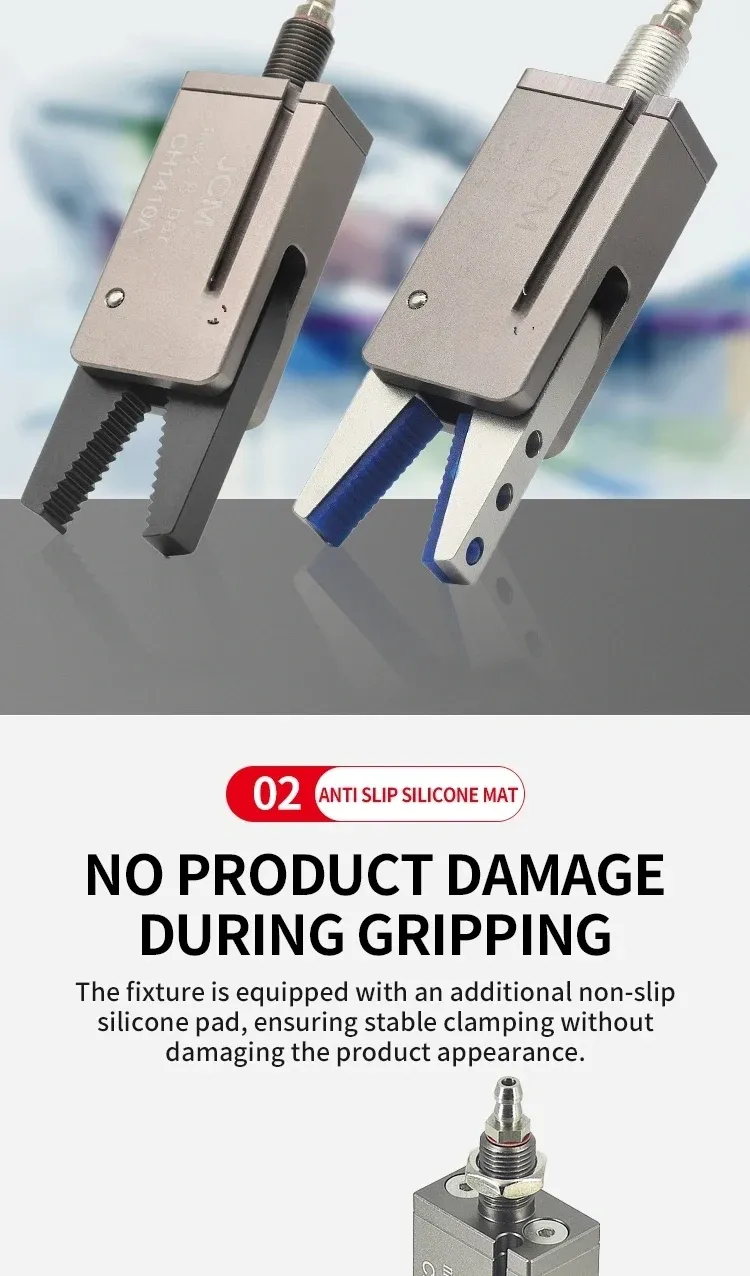

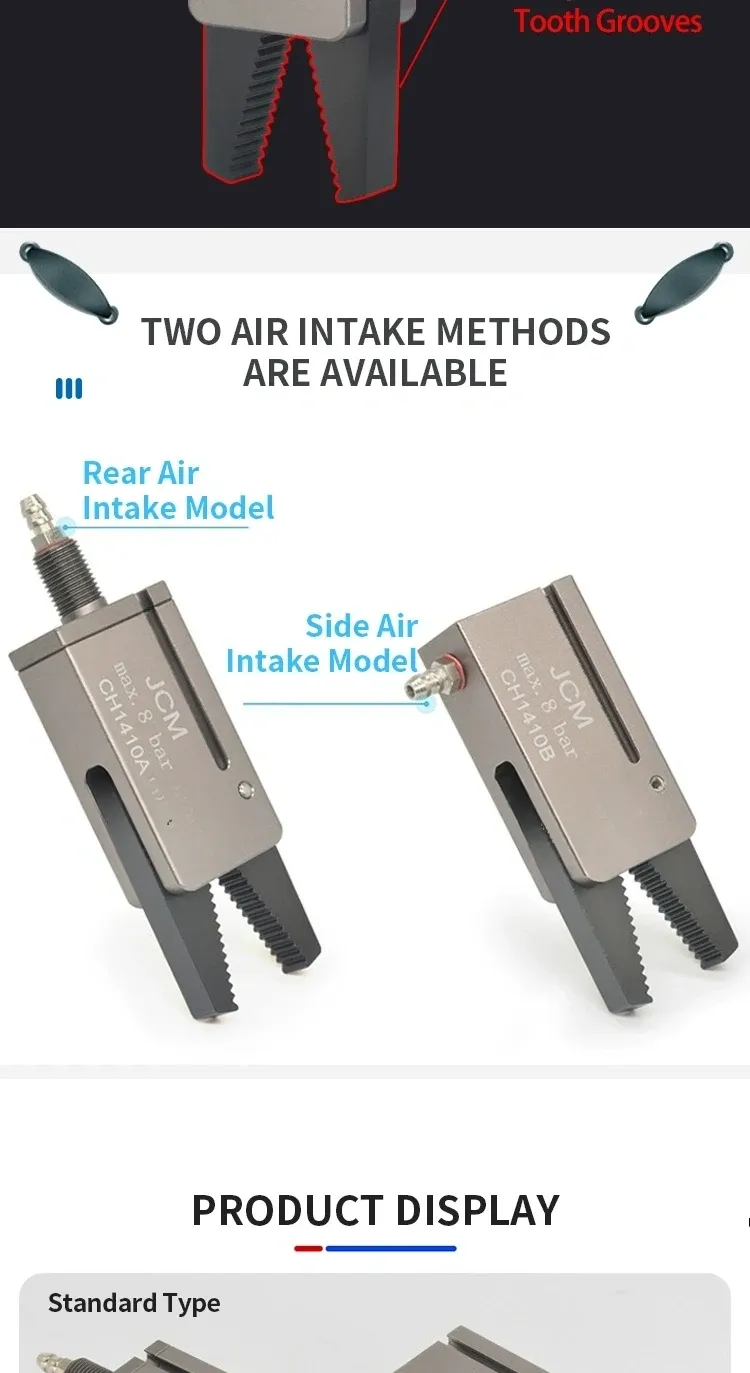

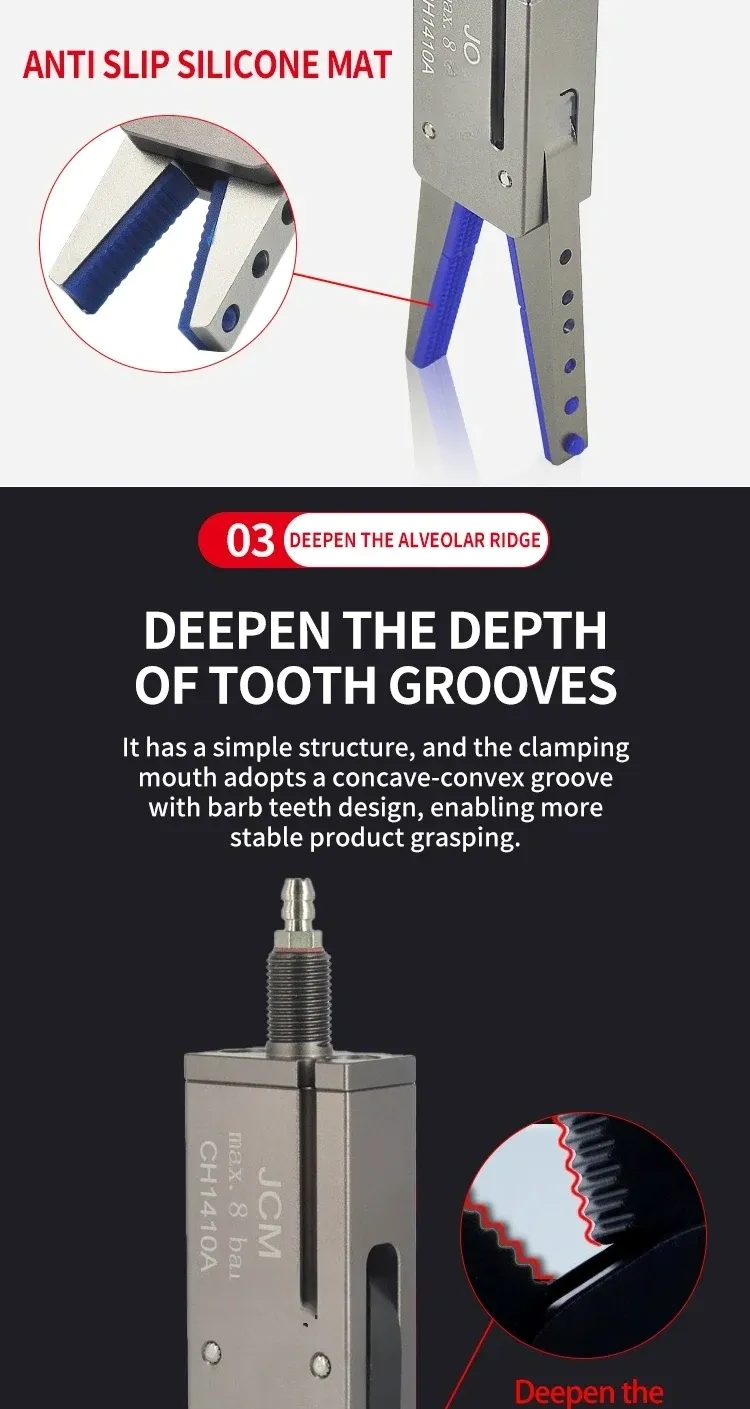

1. Superior stability and grip Notched concave-convex jaw design provides reliable clamping of sprues and flat products, eliminating slipping during operation. Gripping force of 80 N (8 kg) meets most automation needs for light and medium loads. 2. High precision and efficiency Repeat accuracy of 0.04 mm for precise positioning, ideal for high-precision automated workflows. Maximum gripping speed of 0.8 s significantly increases production line efficiency. 3. Robust and reliable construction High-quality aluminum alloy provides excellent corrosion resistance and structural strength. A service life of 1,000,000 cycles guarantees long-term stable operation, reducing maintenance costs. 4. Intelligent protection system Built-in jaw closure detection sensor: monitors gripping status in real time, preventing mold crushing and product damage, improving operational safety. 5. Installation and application flexibility Dual air intake options (rear/side) adapt to various equipment layout requirements. Standard M10*1.0 mounting thread for easy integration with injection molding machines, robots, manipulators and other automated equipment. 6. Custom solution Non-standard customization is supported to match specific workpiece sizes, loads or installation conditions.
