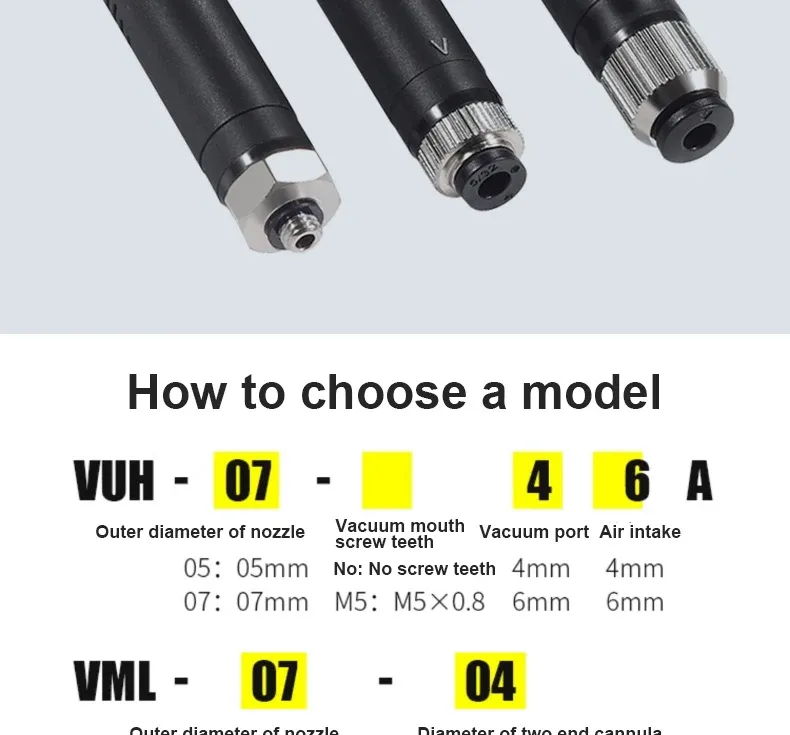

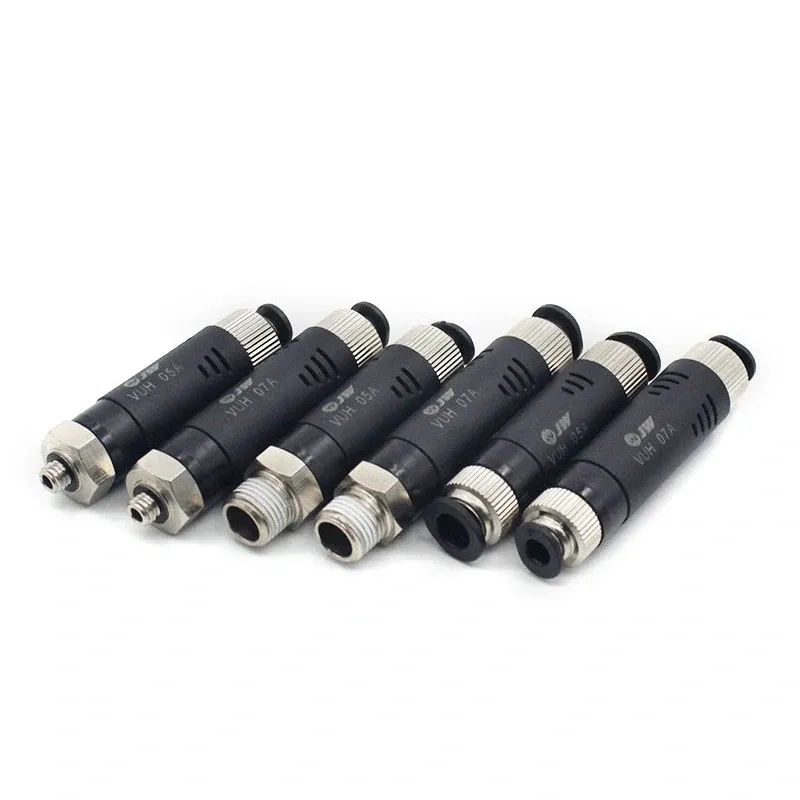

VU series VUH05 VUH07 VUE07 pneumatic vacuum generator

Specifications

Brand name

No

Origin

China

Type

Source purification device

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

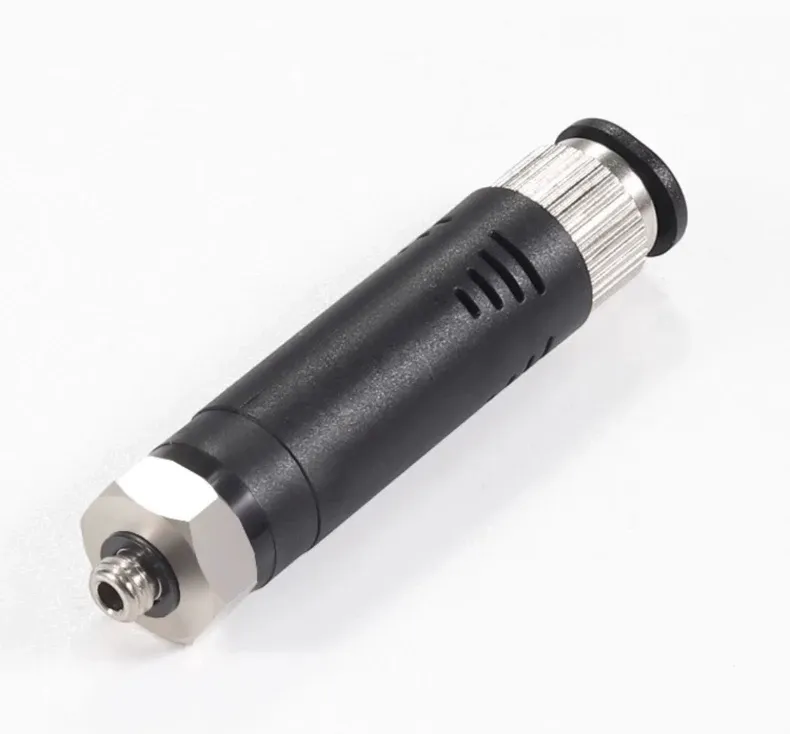

VUH/VUL Tube-type Vacuum Generator

Material

PVF (Polyvinyl Fluoride)

Maximum Pressure

1.5 Mpa

Minimum Pressure

0.1 Mpa

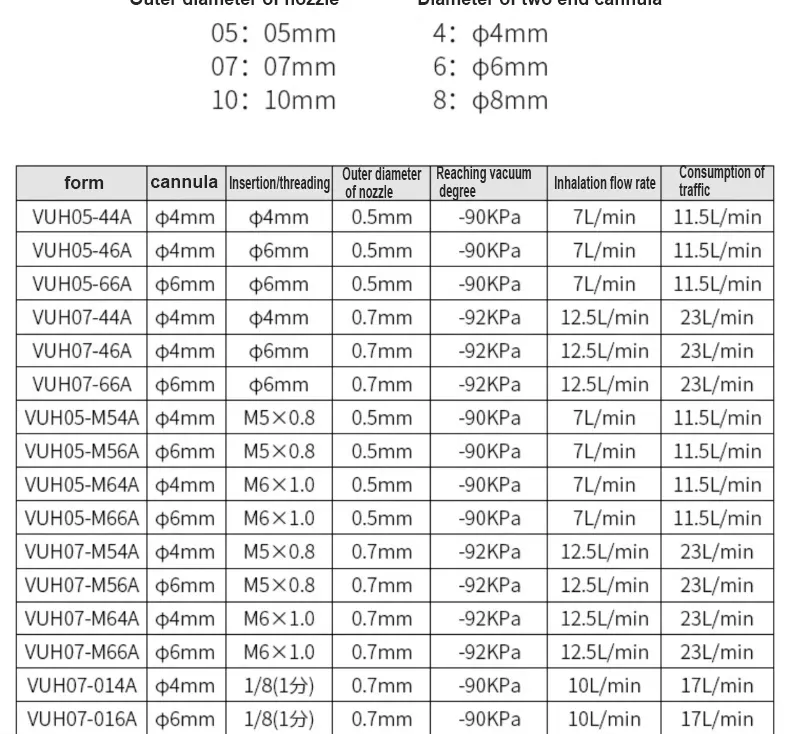

Nozzle Diameter

0.5/0.7/1.0 mm

Intubation Caliber

4/6/8 mm

Filtration Precision

10 μm

Operating Temperature Range

0~60 °C

Applicable Air Tube Materials

Nylon, soft nylon, polyurethane

Application Scenarios

Suitable for various air pipelines, pneumatic tools, and automated equipment

Customization Availability

Supports non-standard customization

Description

1. Premium PVF construction: made of industrial polyvinyl fluoride (PVF) for exceptional strength, corrosion resistance and long-term operational stability in industrial environments. 2. Flexible pressure range: adaptation to pressure from 0.1 to 1.5 MPa meets diverse vacuum requirements of pneumatic systems and automated equipment. 3. Various size configuration options: 3 nozzle diameters (0.5/0.7/1.0 mm) and 3 intubation calibers (4/6/8 mm) are offered, allowing use with nylon, soft nylon and polyurethane air tubes. 4. Precision filtration system: 10 um filtration precision removes impurities, protecting internal parts and ensuring stable vacuum system operation. 5. Wide temperature range: reliable operation from 0 to 60 °C, suitable for workshop indoor use and semi-enclosed industrial environments. 6. Seamless integration: compatible with air pipelines, pneumatic tools and automated production lines; pairs perfectly with vacuum suction cups for efficient material handling. 7. Non-standard customization: custom solutions are available for unique size, pressure or functional requirements to match specific project needs. 8. Efficient vacuum generation: quickly converts compressed air into powerful vacuum, accelerating material handling and increasing workflow productivity.
