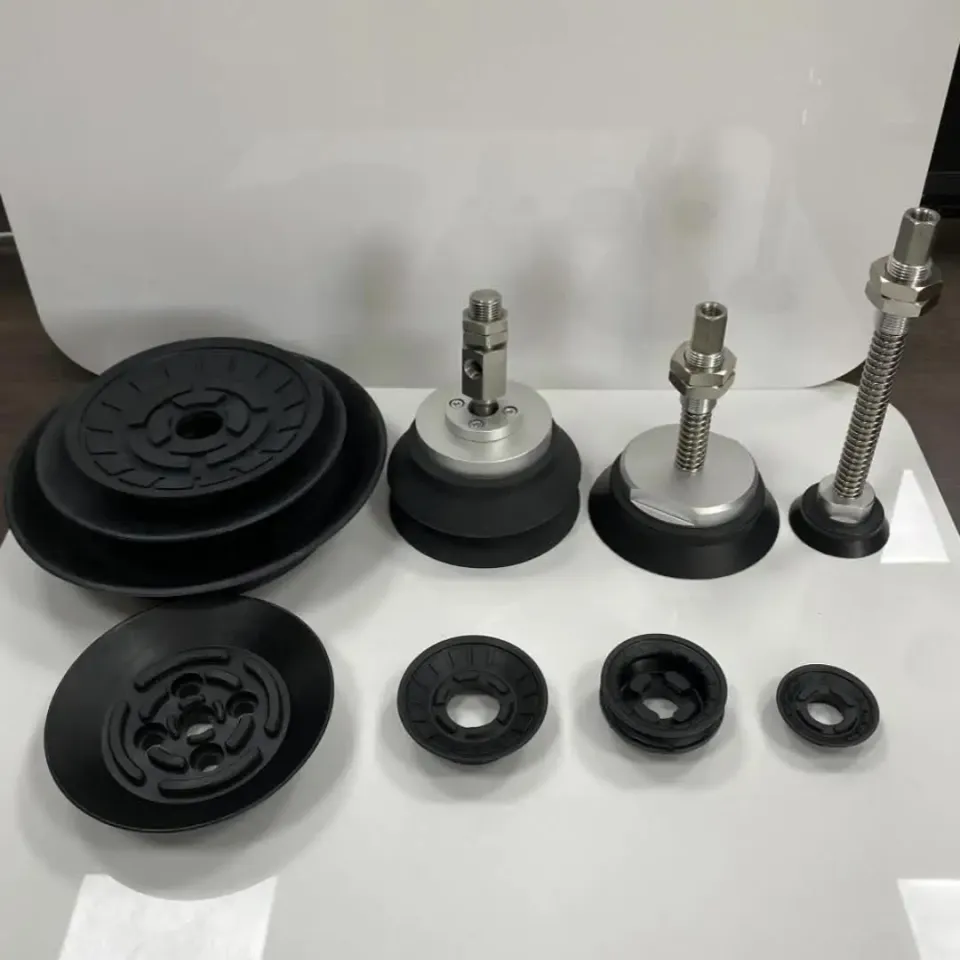

ZP-HB/H series pneumatic vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product name

ZPT Series Heavy-Duty Suction Cups

Material

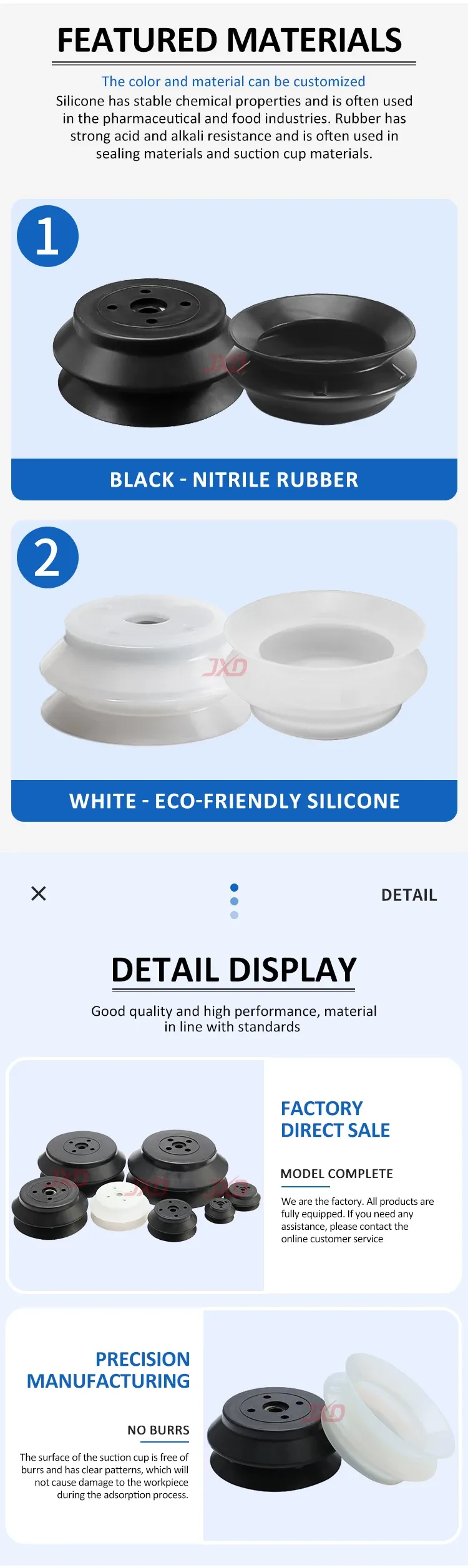

Black Nitrile Rubber / White Silicone

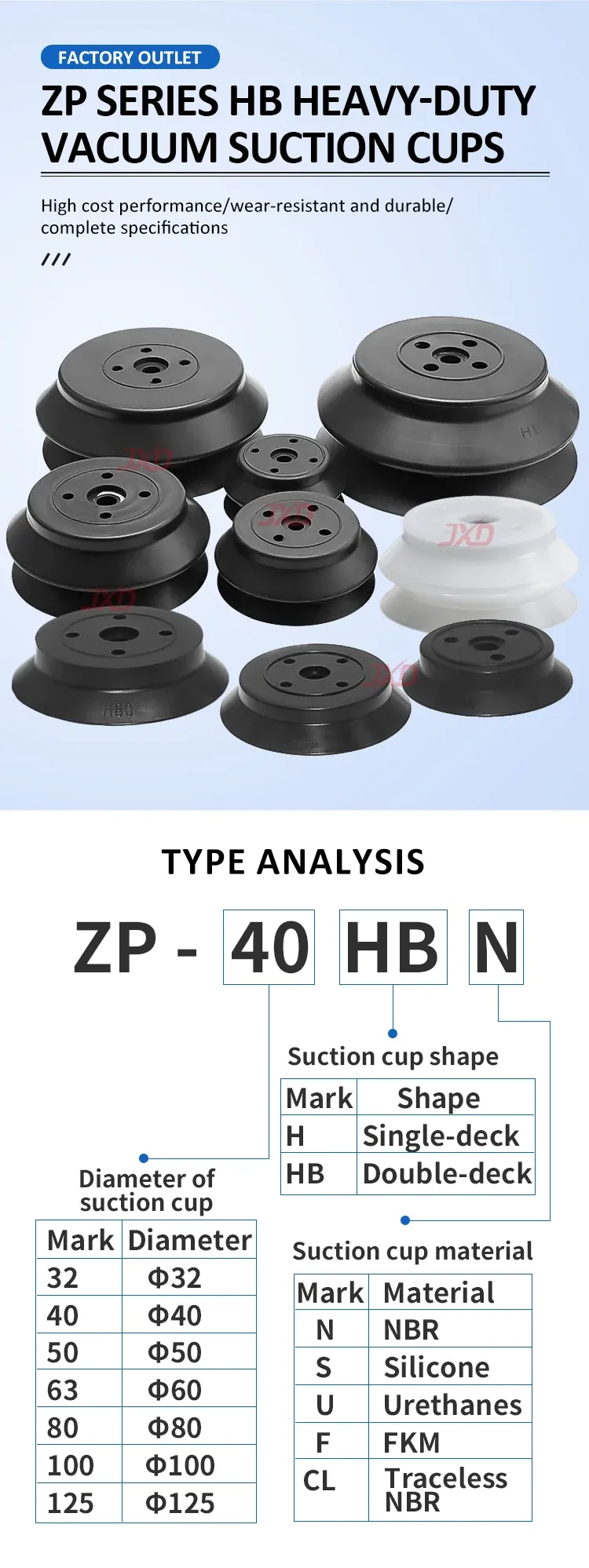

H

Single-Layer

HB

Double-Layer

External Threads

A16: M16*1.5, AL14: M14*1, AL16: M16*1.5

Suction Cup Diameter

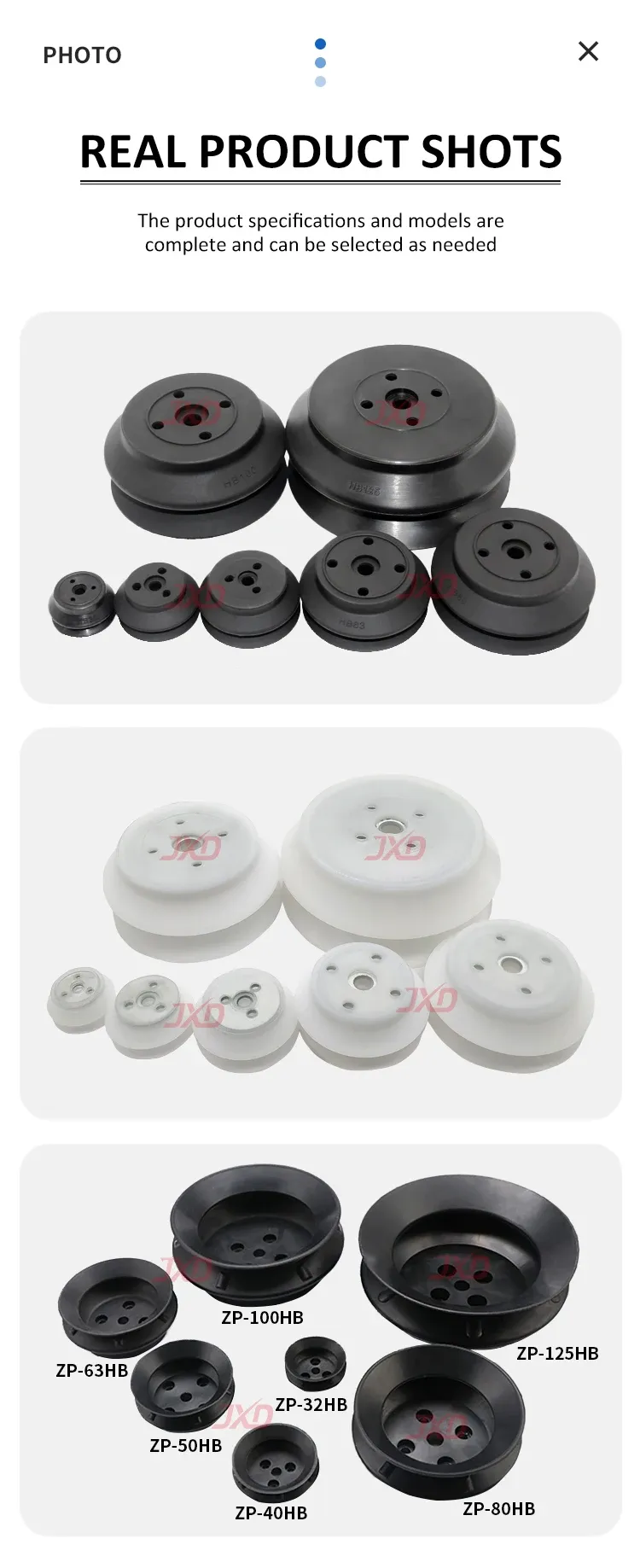

32/40/50/63/80/100/125mm

Customization Available

Supports non-standard customization

Description

1. Dual high-performance material options for universal needs. Black nitrile rubber: provides superior oil and water resistance, wear resistance, anti-static properties and strong adhesion. Easy to machine and widely used for seals and suction cups, ideal for industrial environments with oil or moisture. Imported white silicone: resistant to extremely high/low temperatures, with stable non-toxic chemical properties, meets safety standards for the medical and food industries - suitable for applications requiring hygiene or temperature resistance. 2. Structural flexibility to match handling requirements. Two shape options are available: single-layer (H) and double-layer (HB), both without buffer fittings, adapting to different workpiece thicknesses and weight requirements for heavy-duty gripping. Standard external threads (A16: M16x1.5, AL14: M14x1, AL16: M16x1.5) ensure easy installation with most industrial processing equipment, reducing assembly time. 3. Wide size coverage for various workpieces. Suction cup diameters range from 32 mm to 125 mm, ensuring precise matching of small and large workpieces in the sheet metal, glass and woodworking industries, eliminating the need for repeated tool changes. 4. Innovative suction surface design for efficient use. Concave-convex grooves and ribs on the suction surface increase contact area with workpieces, improving adsorption stability. Prevents sticking between the suction cup and the workpiece, improving quick release and optimizing workflow efficiency (no delays due to stuck workpieces). 5. Reliability for heavy-duty conditions. Designed for heavy gripping and handling, the materials and construction ensure durability even under frequent use, reducing maintenance and replacement costs. 6. Custom solutions for unique needs. Supports non-standard customization (e.g. material tweaks, thread sizes, diameter adjustment) to solve specific challenges in specialized industrial applications, ensuring a perfect fit for your workflow.
