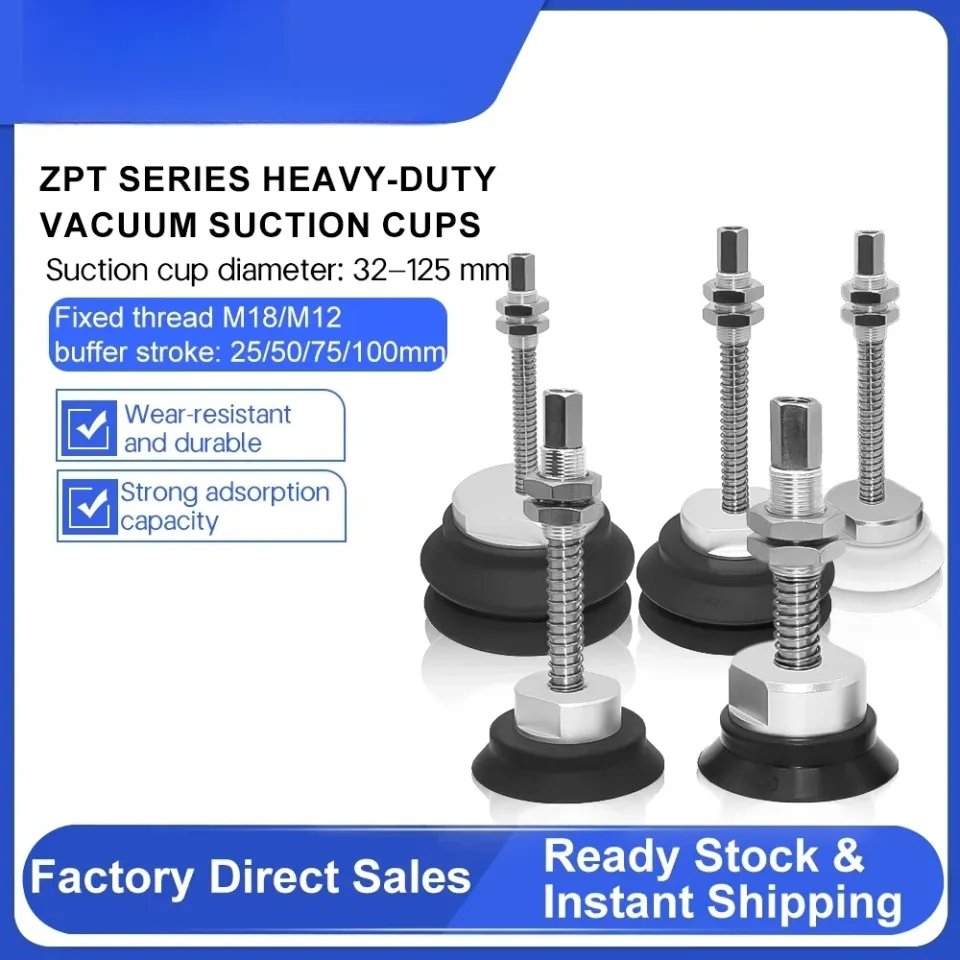

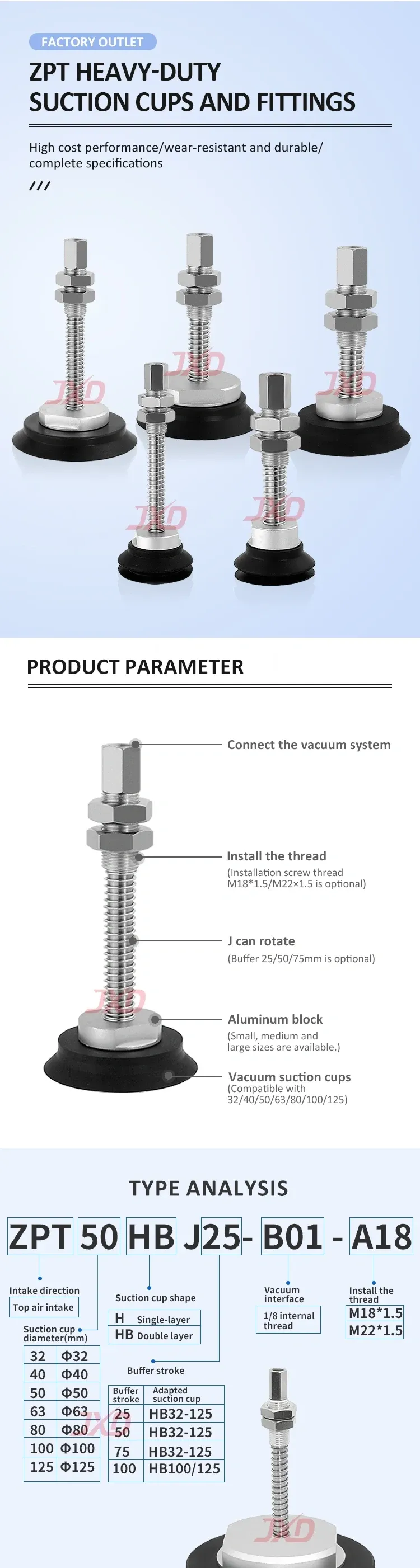

ZPT32/63/100H-J25/50-A18 industrial vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product name

ZPT Series Heavy-Duty Suction Cup

Color

Black/White

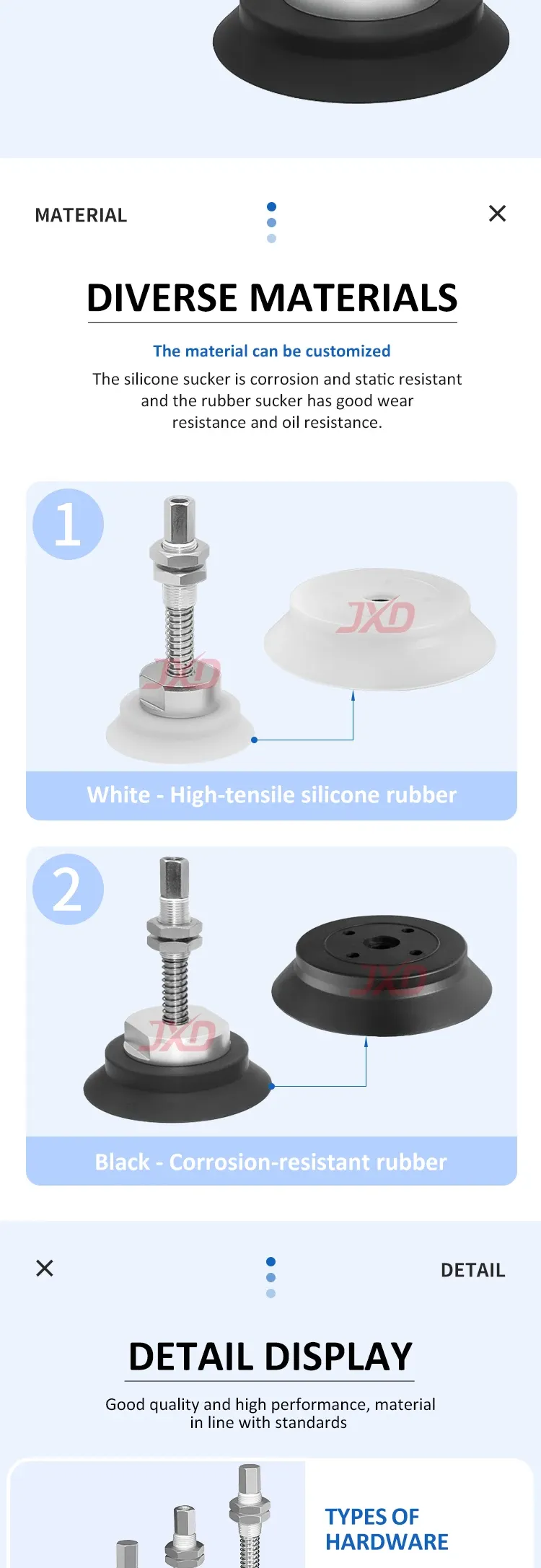

Material

White silicone, black anti-static

Product Shape

Non-buffered Side Air Inlet Type

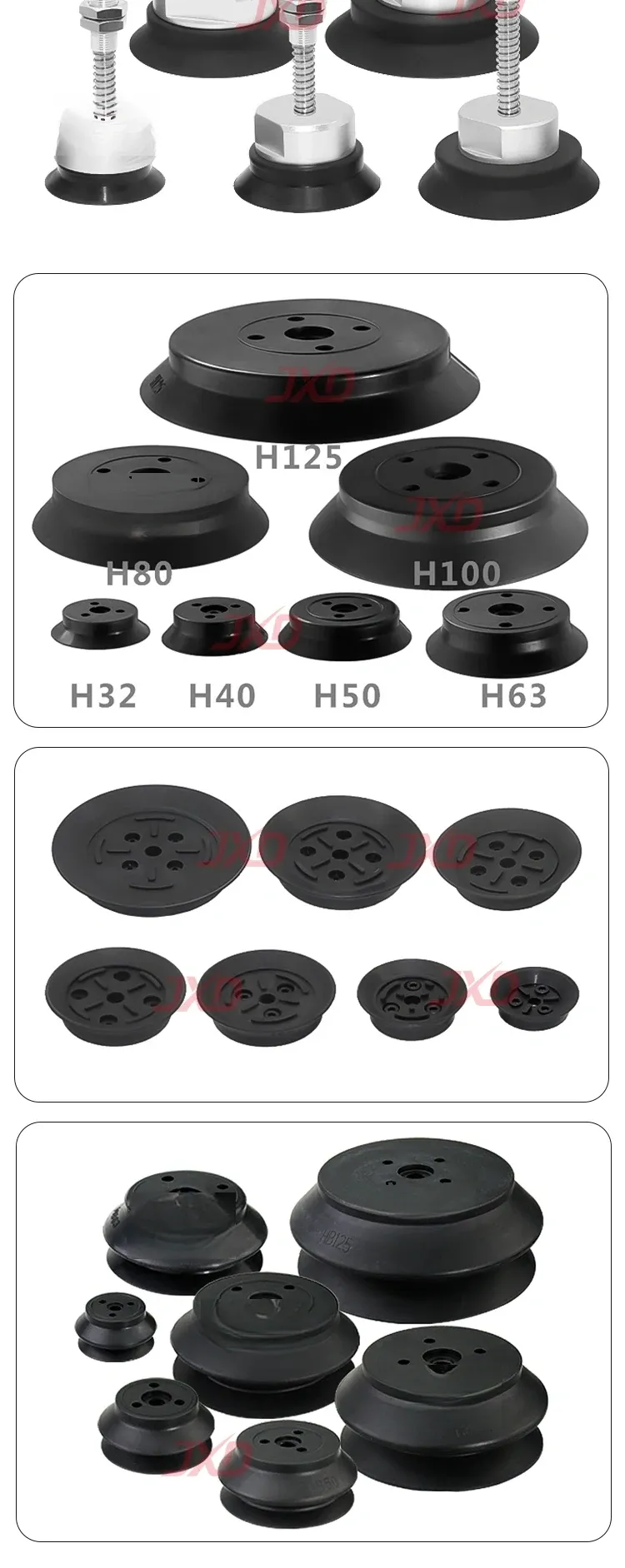

Suction Cup Diameter

32/40/50/63/80/100/125mm

Cushion Stroke

25/50/75mm

Customization Available

Non-standard customization is supported

Description

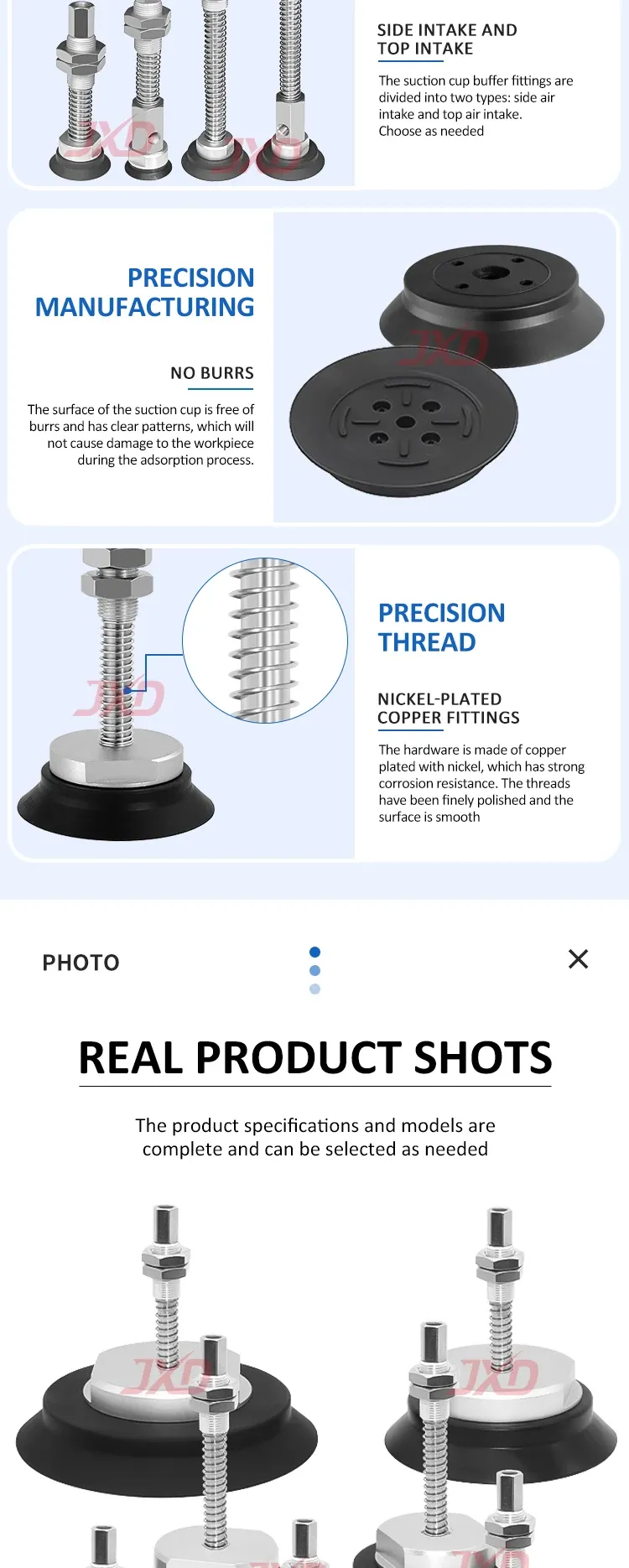

1. Two-material option for universal needs. Available in white silicone and black anti-static material, meeting various application requirements (e.g. anti-static requirements in sheet metal handling related to electronics). 2. Side air intake and non-buffered design. The side air intake design ensures stable airflow during suction; the non-buffered shape suits hard workpiece surfaces, increasing adsorption reliability. Multiple sizes and thread compatibility Suction cup diameters: 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, 125 mm (pads for handling small and large workpieces). Pad stroke: 25/50/75 mm 3. Matching threads: external (M14x1.5, M16x1.5) and internal (M8x1.25, M12x1.75), easily assembled with various automation equipment. 4. Wide industrial application Ideal for gripping and transferring workpieces in the sheet metal, glass and woodworking industries - suitable for heavy-duty and high-frequency handling scenarios. 5. Ribbed surface and integral vulcanization The ribbed design increases contact area with workpieces, improving suction stability; it also improves releasability to avoid workpiece damage. Integral vulcanization molding ensures high structural integrity, reducing wear and extending service life. 6. Non-standard customization support Custom solutions for special sizes, materials or structural needs are offered, adapting to unique production line requirements.
