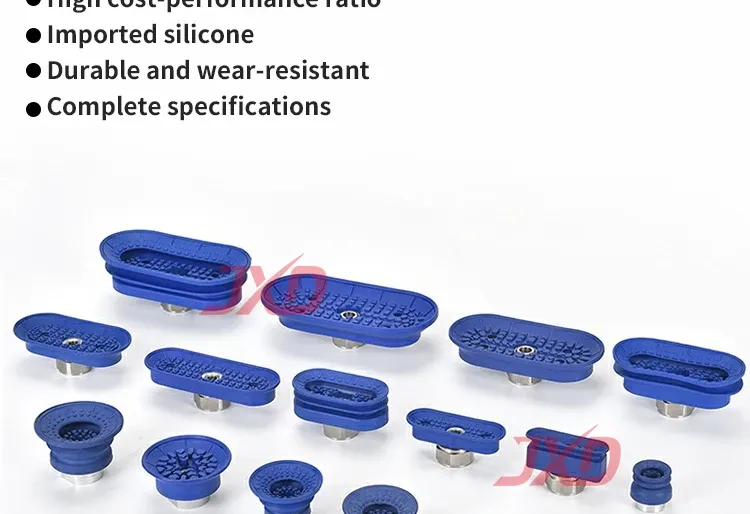

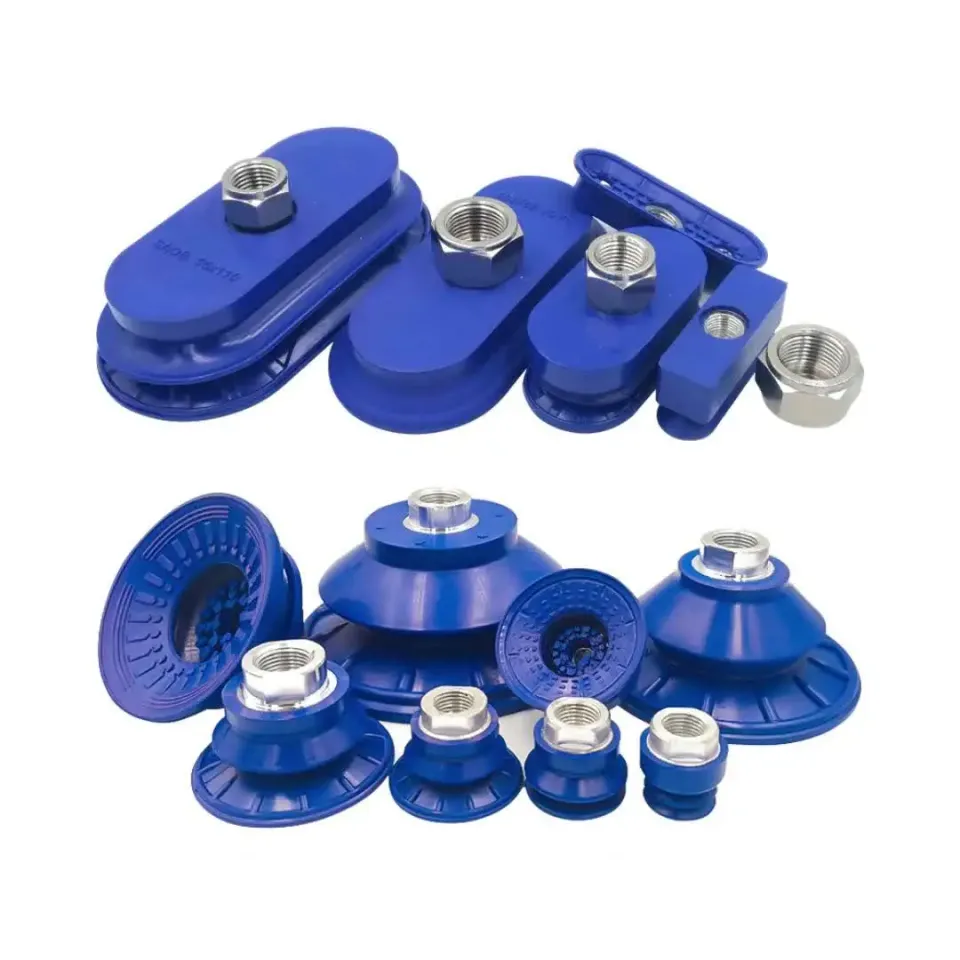

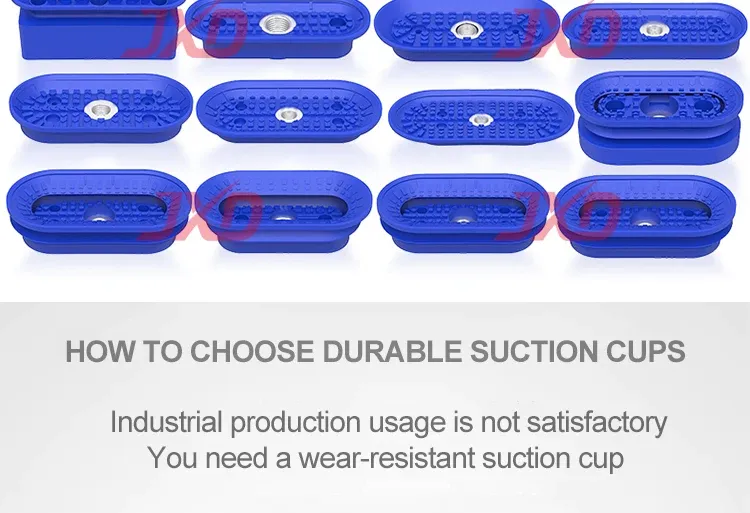

Schmalz sheet-metal oval strip vacuum suction cups for robots - industrial pneumatic heavy-duty suction cups SAOF/SAOB

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

SAOF/SAOB Vacuum Suction Cup

Color

Blue

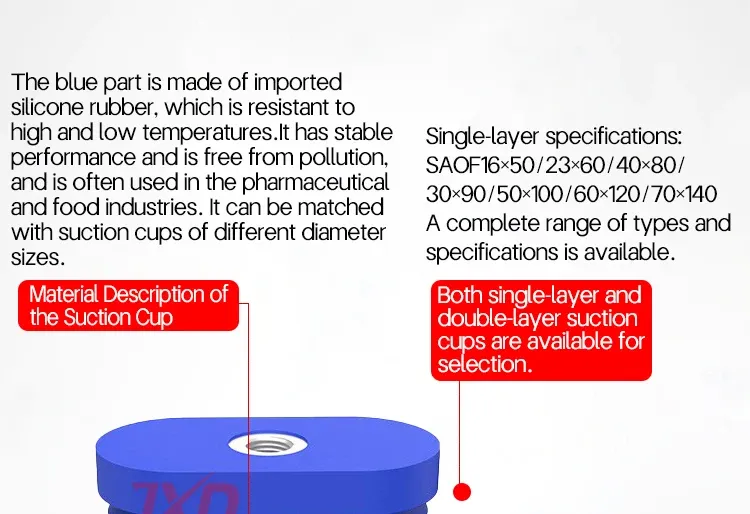

Material

Composite NBR (Nitrile Butadiene Rubber) Material

Shape

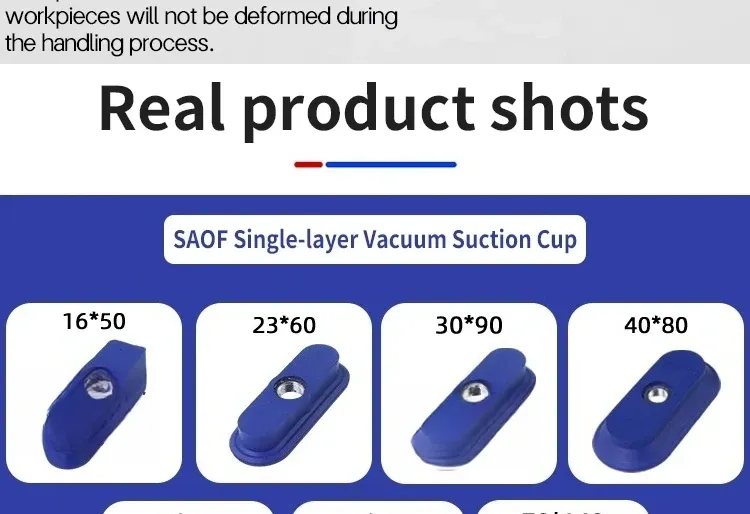

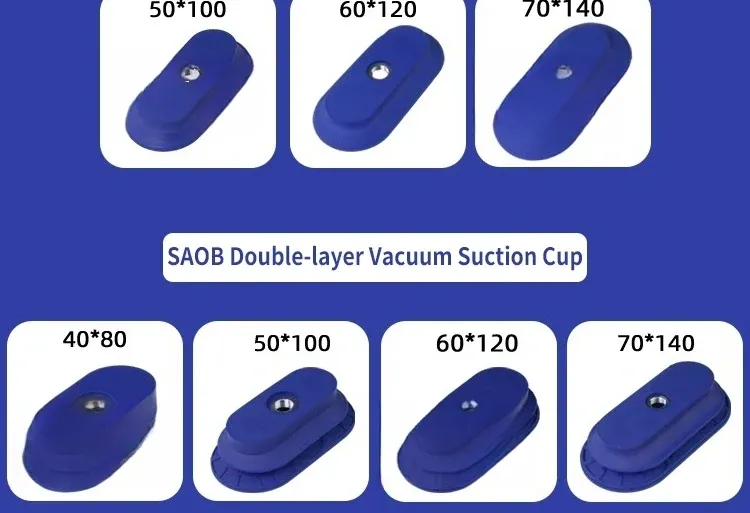

Oval Corrugated Type (SAOF: Single-layer / SAOB: Double-layer, optional)

Suction Cup Diameter

16-70mm

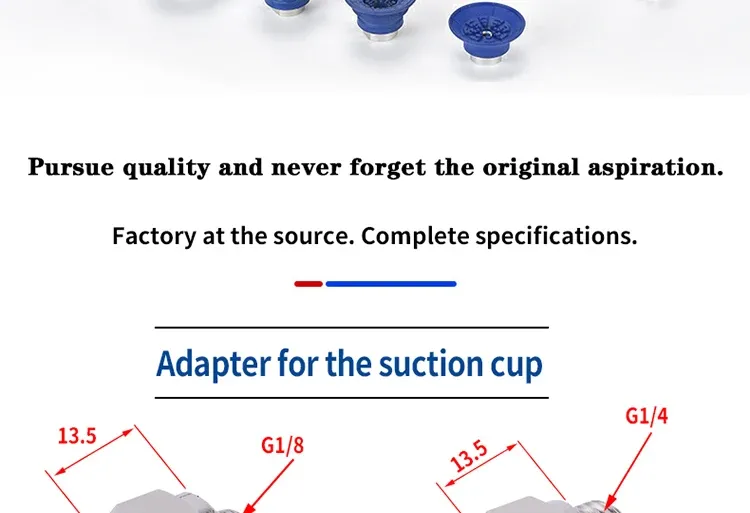

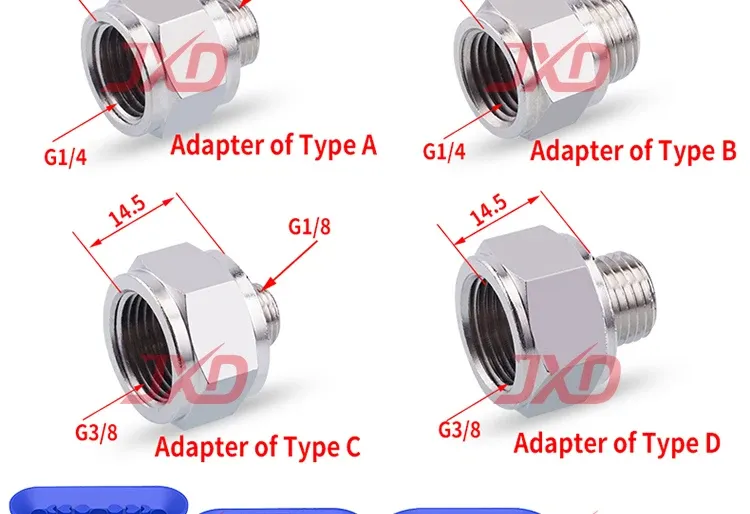

Compatible Fitting Heads

IG3/8; IG1/4

Application Scope

Suitable for handling oil-based thin metal sheets, automotive parts, and other similar items.

Customization Availability

Non-standard customization is supported

Description

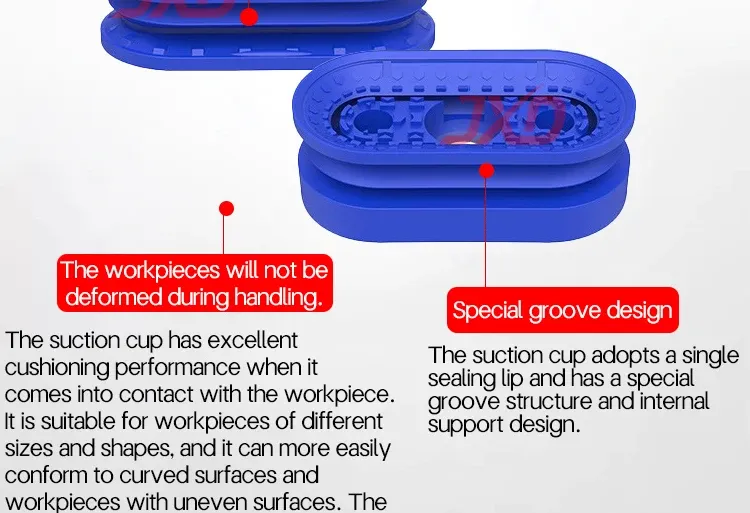

1. Premium composite NBR material Made of high-quality composite nitrile butadiene rubber (NBR) with exceptional oil resistance, strength and wear resistance. Specially designed for reliable performance in oily industrial environments, ideal for handling oil-contaminated parts. 2. Universal structural design Oval bellows shape: increases contact area with workpieces, improving adsorption stability and adaptability to uneven surfaces, especially for thin metal sheets and automotive parts. Layer options: available in single-layer (SAOF) and double-layer (SAOB). The double-layer design provides superior buffering performance and load capacity, while the single-layer version offers light flexibility. Reliable vulcanized joint: the suction cup and connector are firmly bonded by vulcanization, providing a seamless airtight joint that prevents detachment and extends service life. Single sealing lip and special structure: equipped with a single sealing lip for high air tightness. The special ribbed design and internal support structure increase structural rigidity, preventing deformation during use and ensuring stable suction. 3. Comprehensive excellent performance Delivers outstanding multifunctional characteristics, including waterproofing, sealing, sound insulation, damping and thermal insulation. Effectively protects workpieces and adapts to various harsh working conditions. 4. Wide compatibility and size range Mounting head compatibility: compatible with IG3/8 and IG1/4 mounting heads, ensuring easy integration with various automated equipment such as manipulators, improving assembly efficiency. Diameter coverage: offers a diameter range of 16-70 mm, meeting various workpiece size requirements in industrial handling scenarios. 5. Target application scenarios Specially designed for handling oil-based thin metal sheets, automotive parts and similar items. Ideal for automotive manufacturing, metal processing and other related industries. 6. Customization support Non-standard customization services are available, allowing specifications such as size, structure and performance to be adapted to specific customer needs, increasing product adaptability in special application scenarios.
