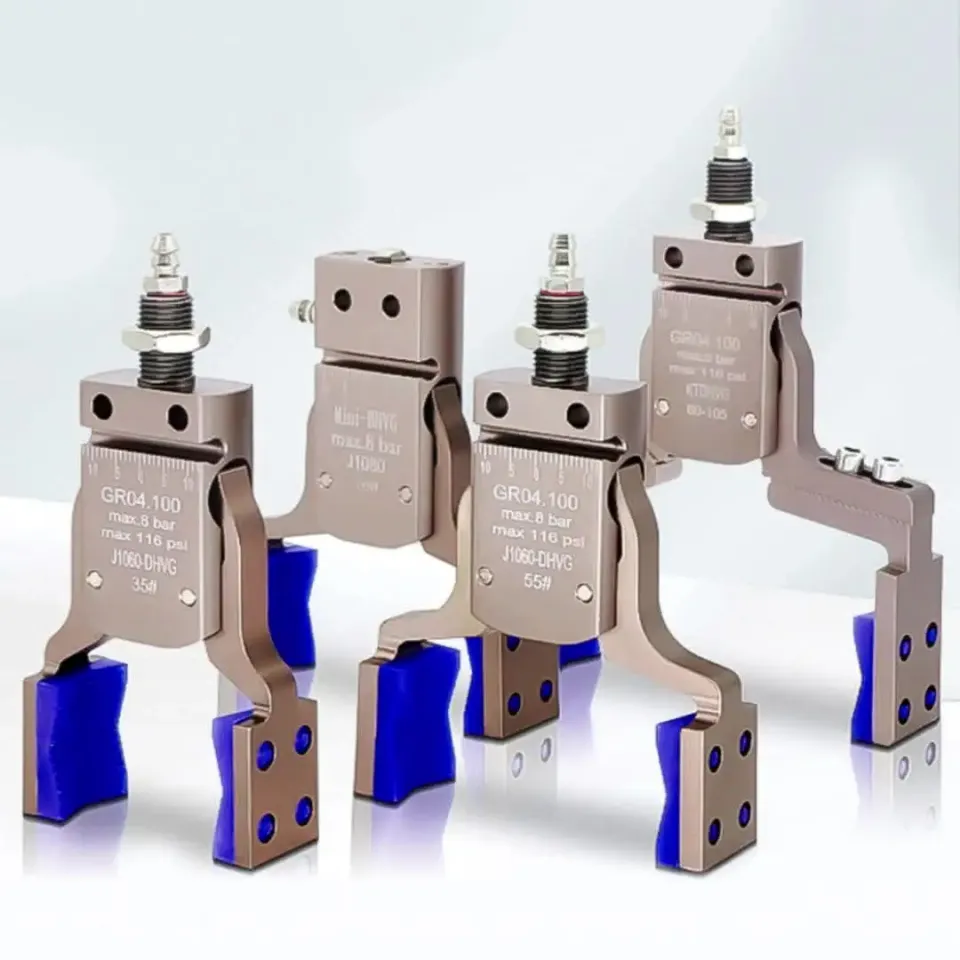

pneumatic mini grippers

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

Mini Fixture

Material

Aluminum Alloy

Model

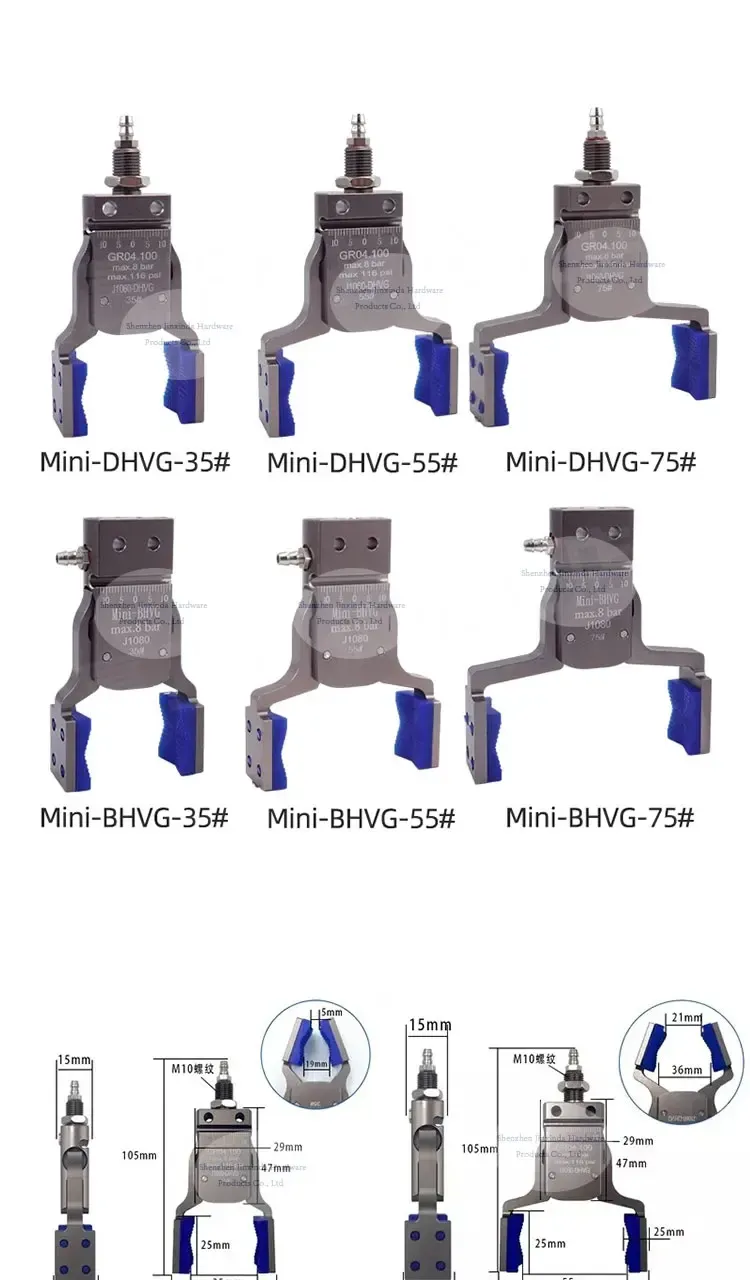

Tail Air Inlet / Side Air Inlet

Gripping Force

80N (8KG)

Mounting Thread

M10*1.0

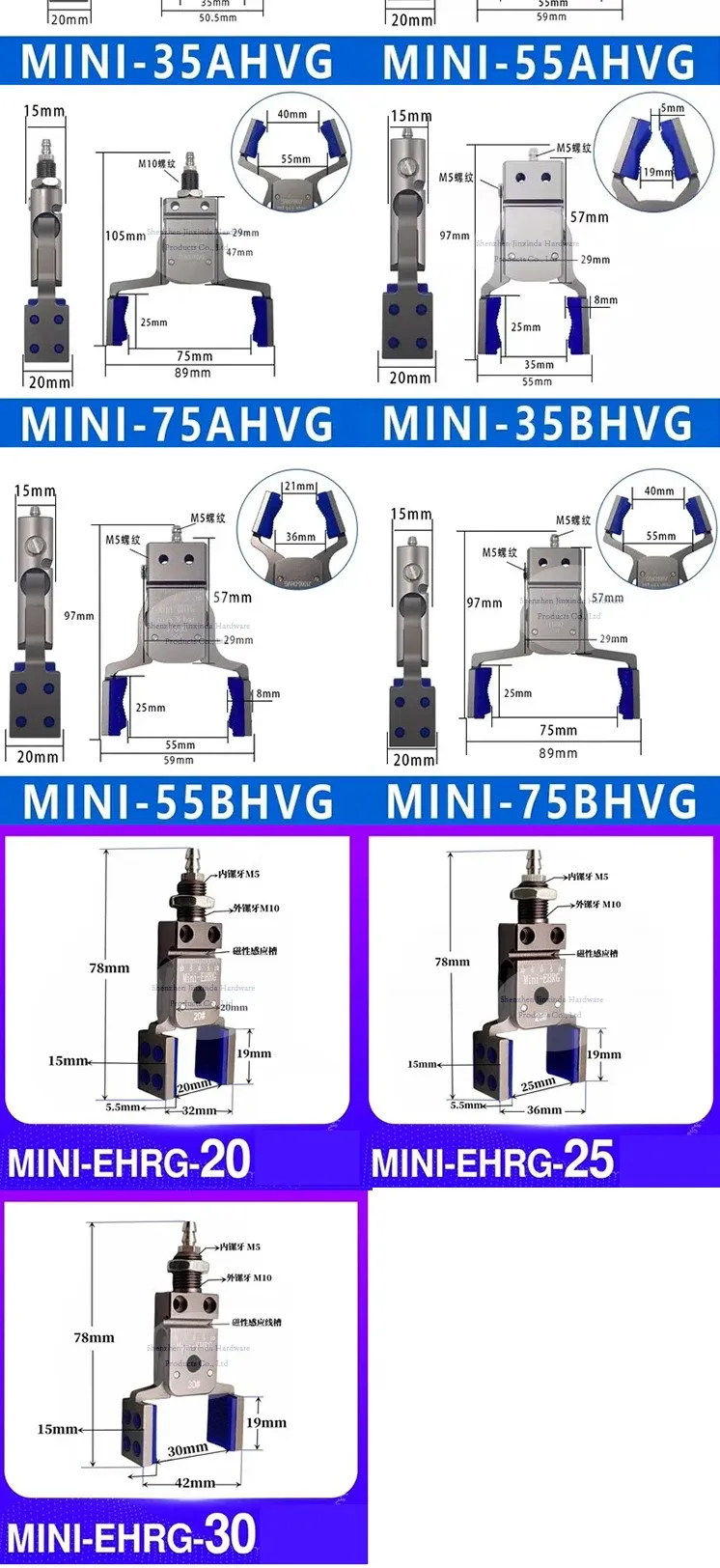

Opening Size

Maximum 53mm, Minimum 20mm respectively

Maximum Gripping Speed

0.8S

Service Life

1,000,000 Cycles

Repeat Accuracy

< 0.04mm

Customization Available

Non-standard customization supported

Description

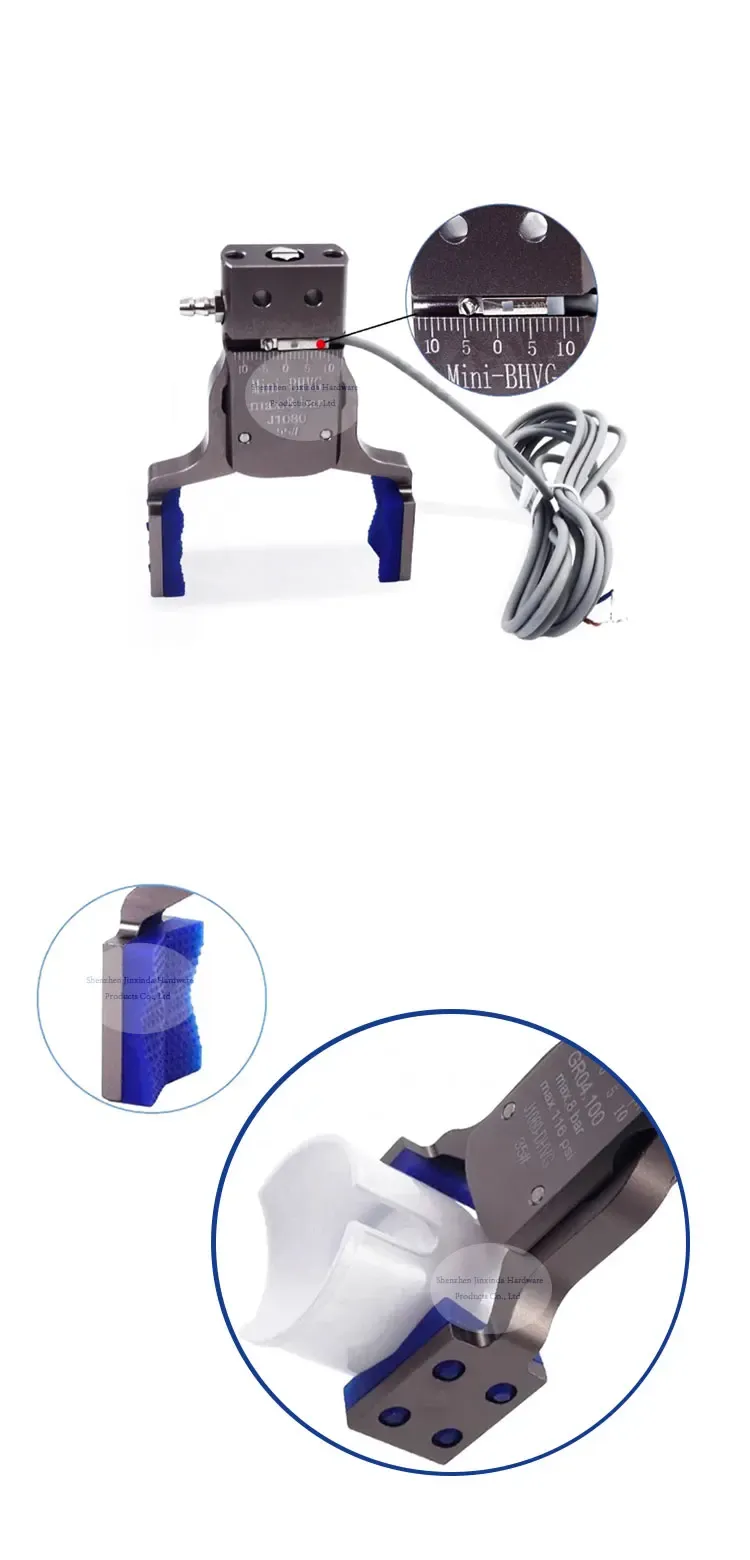

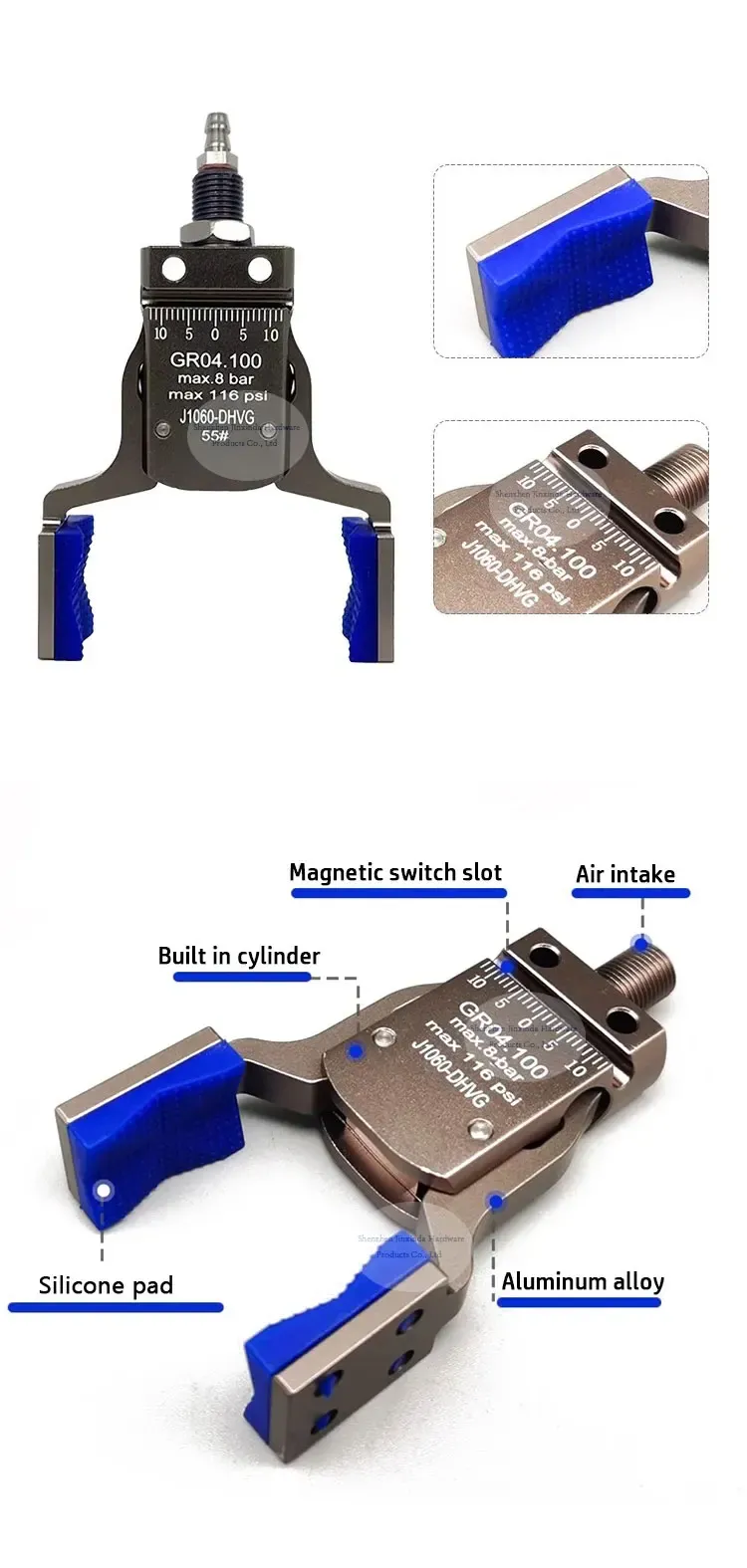

1. High stability and superior gripping performance Notched teeth plus a concave-convex jaw design provide reliable clamping for sprues and flat products, eliminating slipping during operation. A gripping force of 80N (8 kg) meets most automation needs when handling light and medium loads. 2. High precision and efficiency Repeat accuracy of 0.04 mm for precise positioning, ideal for high-precision automated workflows. Maximum gripping speed of 0.8 s significantly increases production line efficiency. 3. Robust and reliable construction High-quality aluminum alloy provides excellent corrosion resistance and high structural strength. A service life of 1000000 cycles guarantees long-term stable operation, reducing maintenance costs. 4. Intelligent safety system Built-in grip detection switch: monitors gripping status in real time, preventing product deformation and damage and improving operational safety. 5. Flexible installation and application Dual air intake options (rear/side) adapt to various equipment layout requirements. Standard M10*1.0 mounting thread for easy integration with injection molding machines, robots, manipulators and other automation equipment. 6. Custom solution Non-standard customization is supported to match specific workpiece sizes, loads or mounting conditions.
