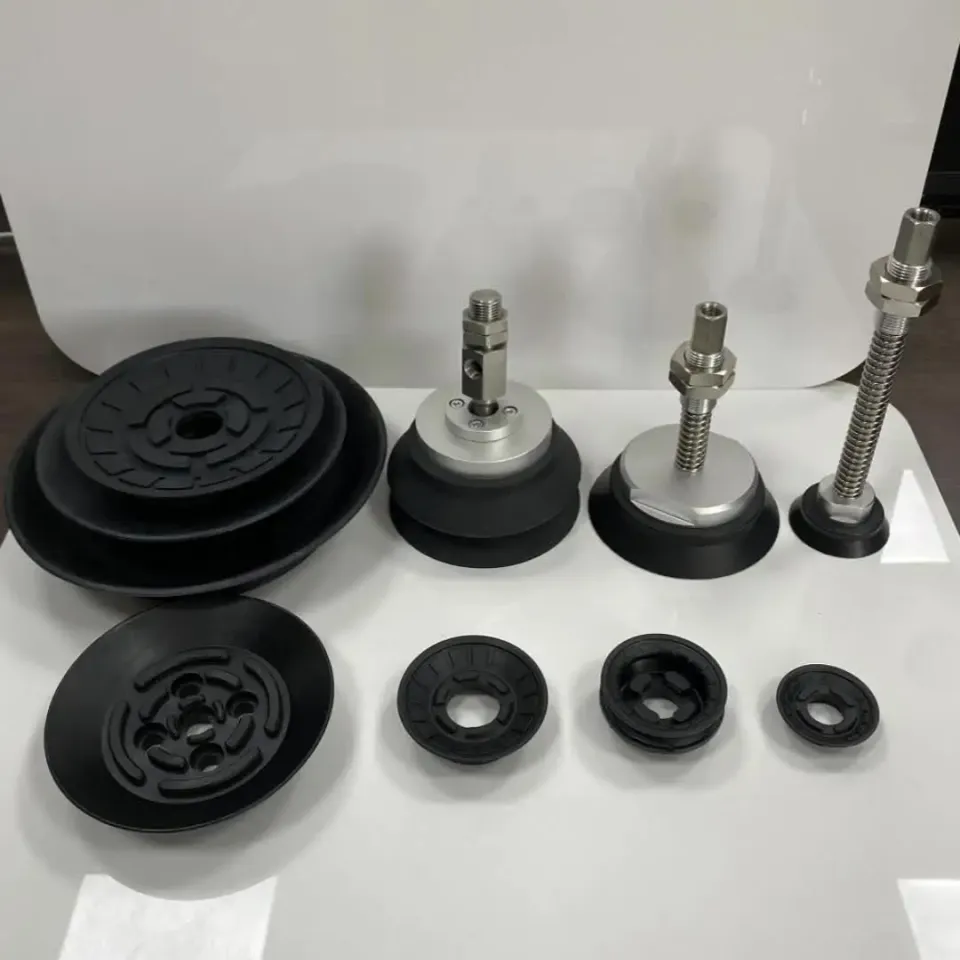

PISCO pneumatic vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

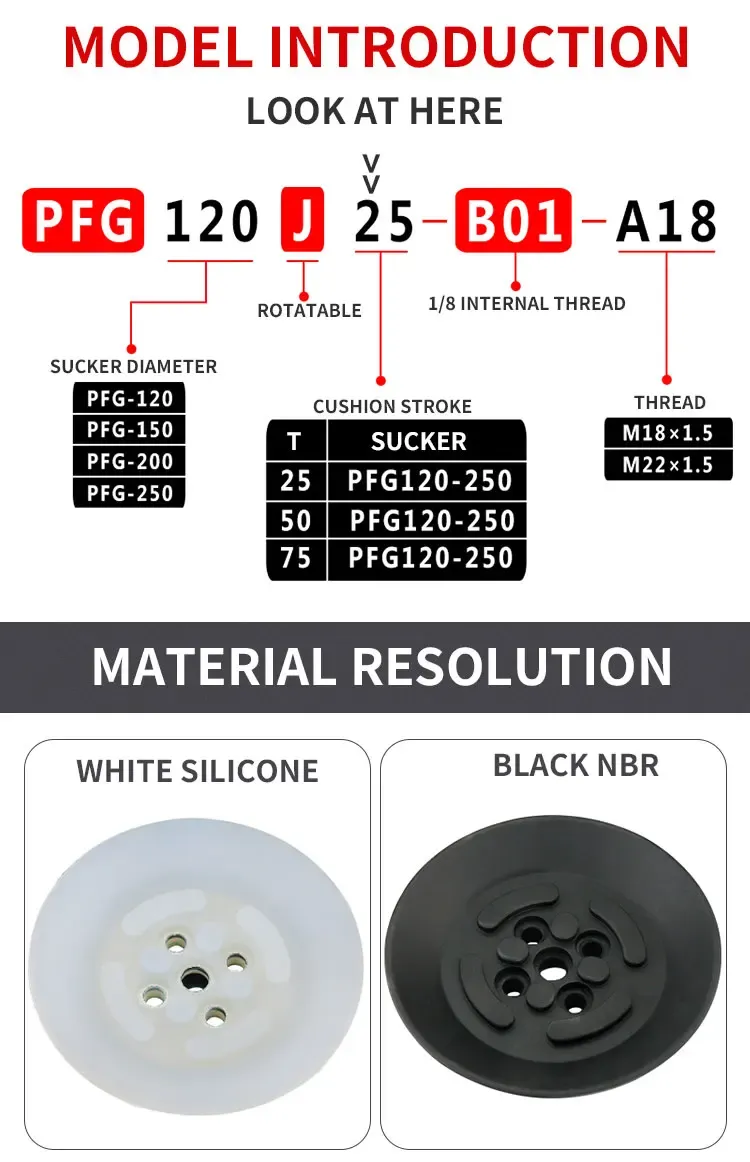

Product Name

PFG Series Heavy-Duty Suction Cups

Material

Black Nitrile Rubber / White Silicone

Shape

Suction Cup + Hardware Bracket, Side Air Inlet

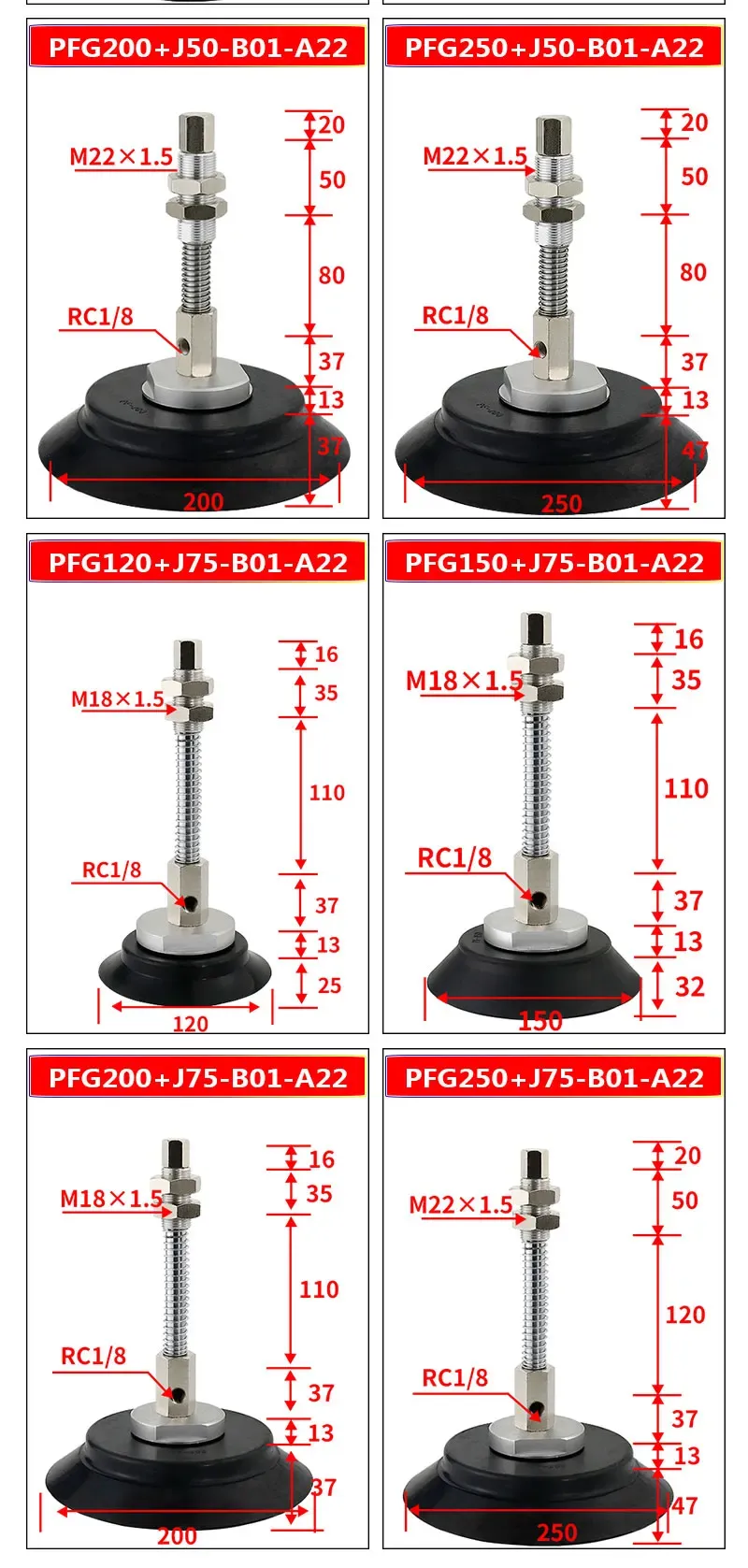

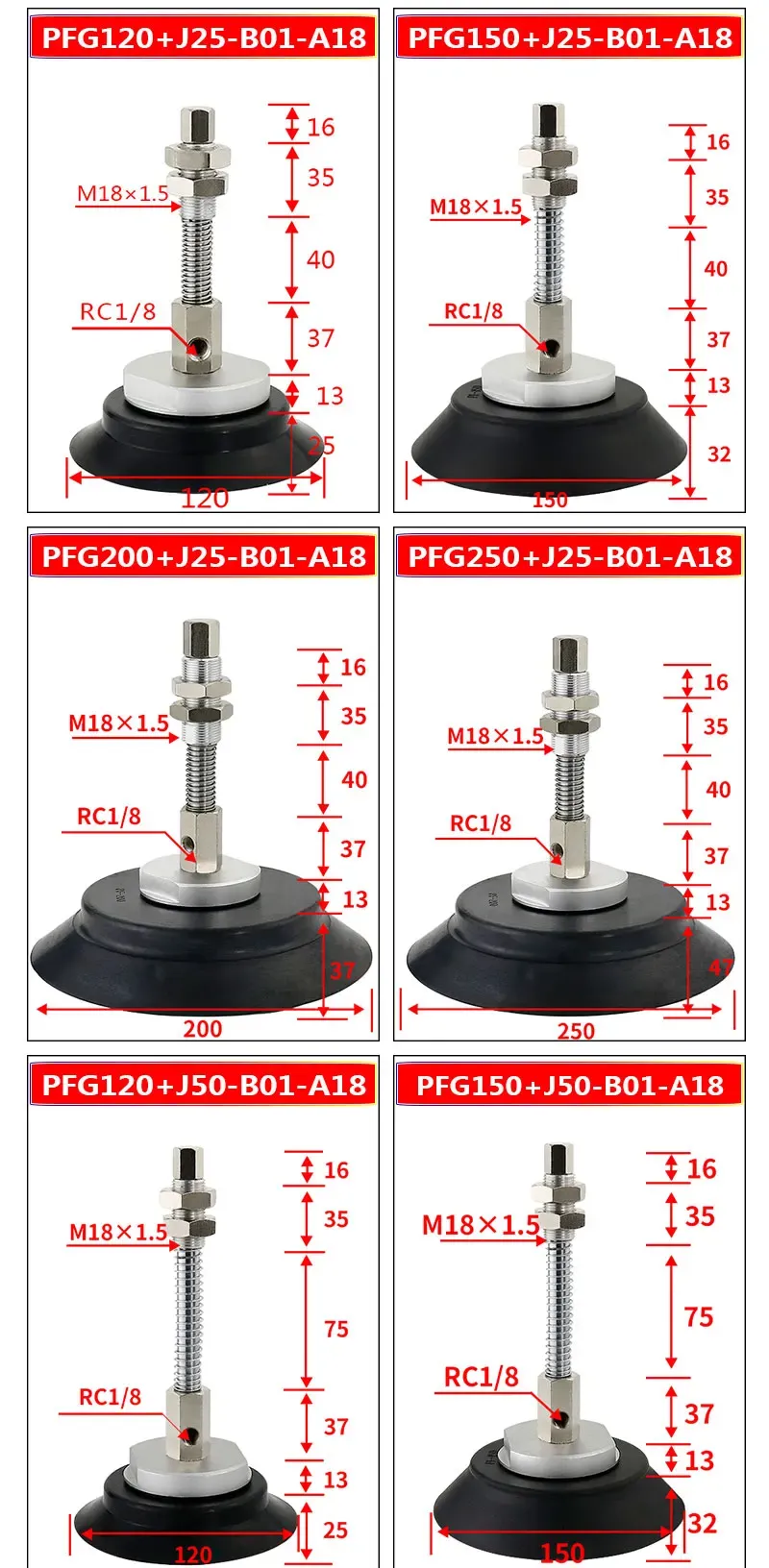

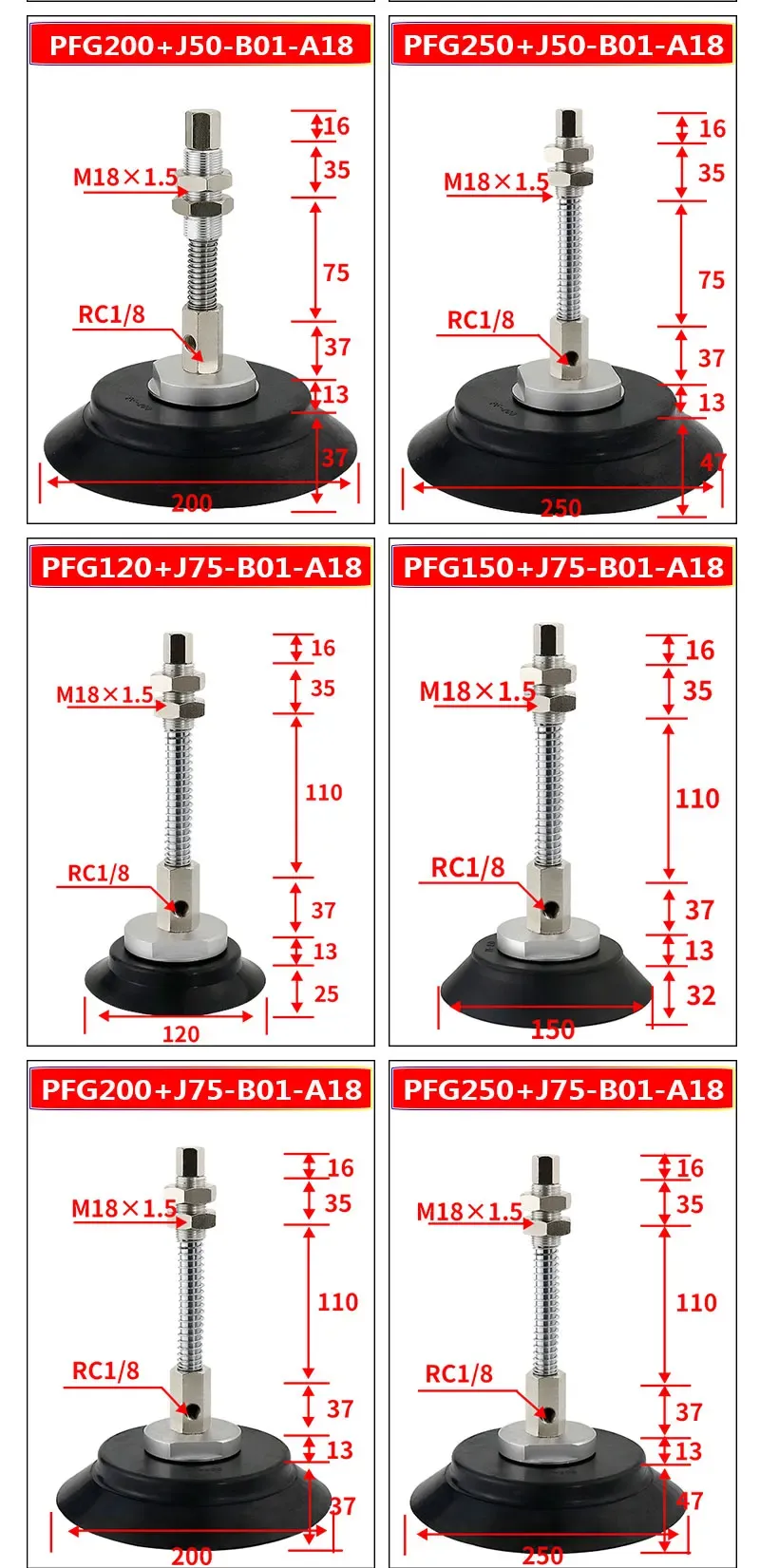

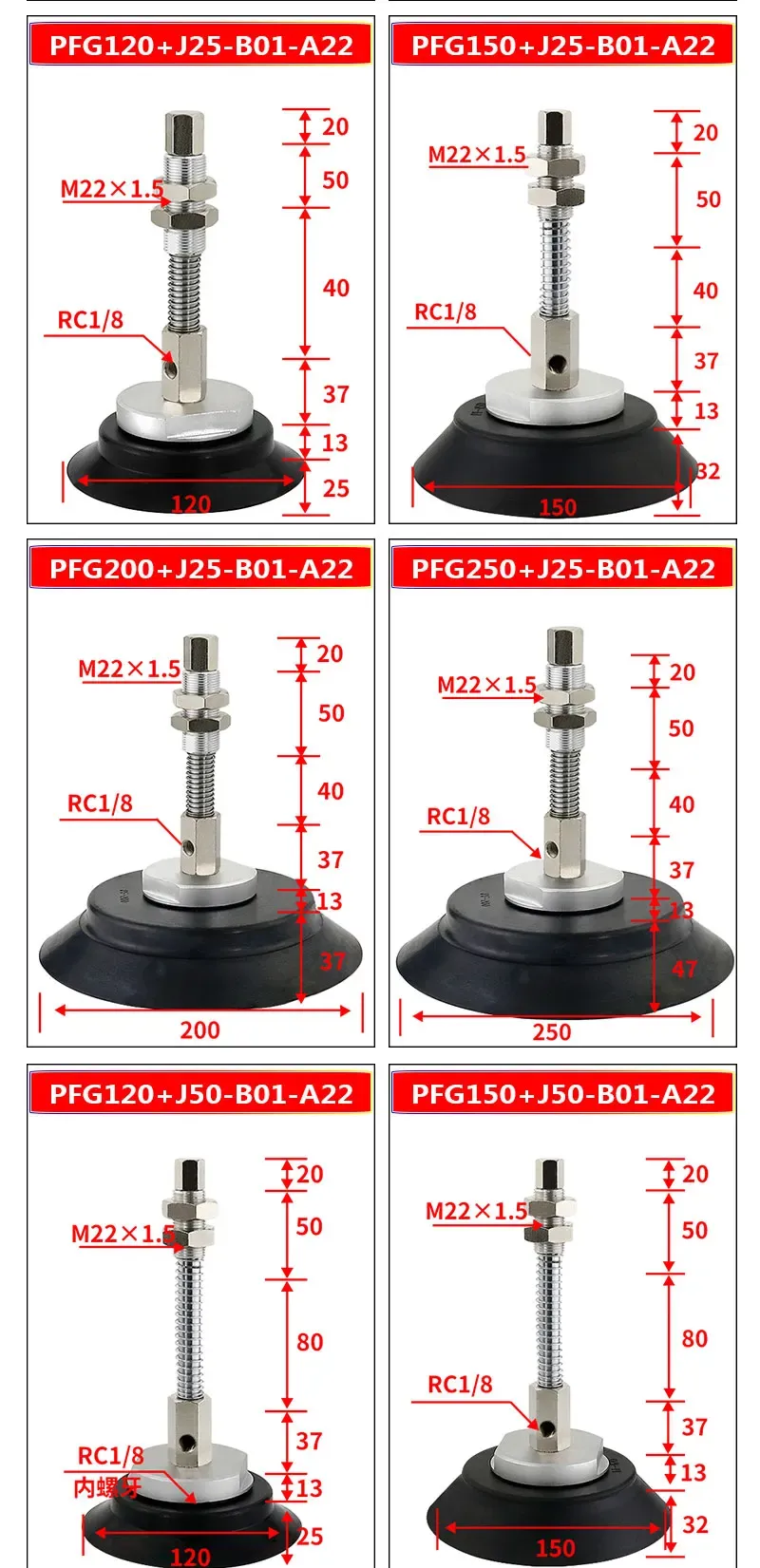

Buffer Stroke

25/50/75mm

Fixing Threads

A18: M18*1.5, A22: M22*1.5

Suction Cup Diameter

PFG-120/150/200/250 (mm, default unit for industrial specifications)

Description

1. Dual premium materials for targeted industrial needs. Black nitrile rubber: features oil and water resistance, wear resistance and anti-static characteristics combined with strong adhesion. Easy to machine and widely trusted for seals and suction cups - ideal for harsh industrial environments with oil, moisture or static problems. Imported white silicone: withstands extremely high/low temperatures and has non-toxic, stable chemical properties. Meets strict safety standards in the medical and food industries, making it suitable for applications sensitive to hygiene or temperature fluctuations. 2. Ergonomic structural design for efficient operation. Integrated "suction cup + hardware bracket" setup: eliminates the need for separate bracket assembly, saving installation time and ensuring a stable connection to control equipment. Side air intake: optimizes airflow for faster suction activation and release, increasing workflow efficiency compared to top-inlet designs. 3. Adjustable buffer stroke for workpiece protection. Offers 3 buffer stroke options (25/50/75 mm): absorbs impact during gripping and handling, preventing damage to fragile or high-value workpieces (e.g. glass, precision sheet metal), while reducing wear on the suction cup itself. 4. Durable fastening threads and a wide diameter range. Heavy-duty fixing threads (A18: M18x1.5, A22: M22x1.5): ensure reliable attachment to industrial equipment, withstanding heavy loads without loosening - critical for reliable heavy-duty handling. Large diameter options (PFG-120/150/200/250 mm): designed for gripping large workpieces (e.g. large glass panels, large wooden boards) in the sheet metal, glass and woodworking industries, eliminating the need for multiple small suction cups. 5. Innovative suction surface for stable and smooth handling. Concave-convex grooves and ribs on the suction surface: increase contact area with workpieces to improve adsorption stability, even on slightly uneven surfaces. Anti-stick design: prevents the suction cup from sticking to workpieces, ensuring quick and smooth release and avoiding workflow delays. 6. Custom solutions for unique requirements. Supports non-standard customization: custom material combinations, buffer stroke lengths, thread sizes or diameter specifications to match specialized industrial needs, ensuring a perfect fit for your unique handling scenarios.
