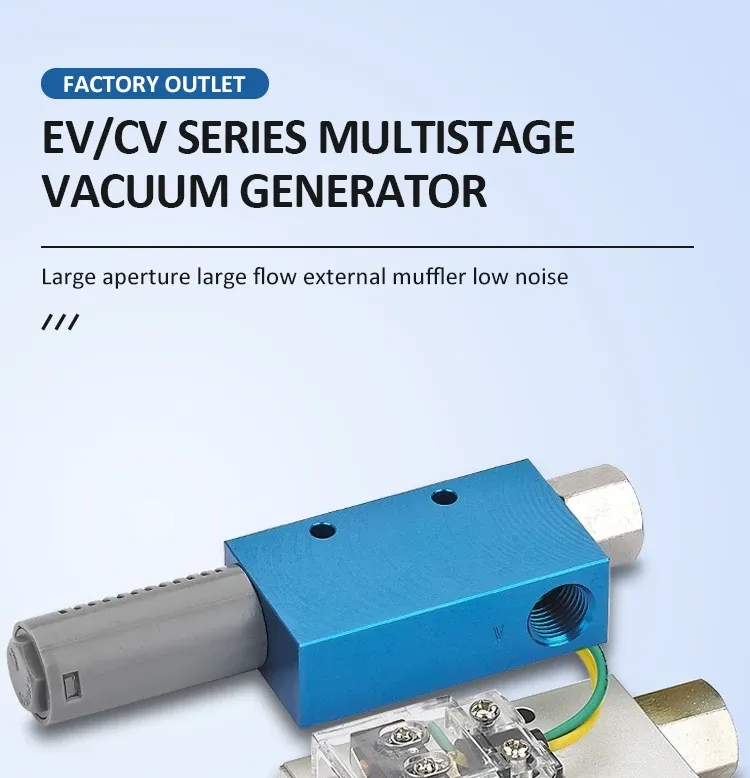

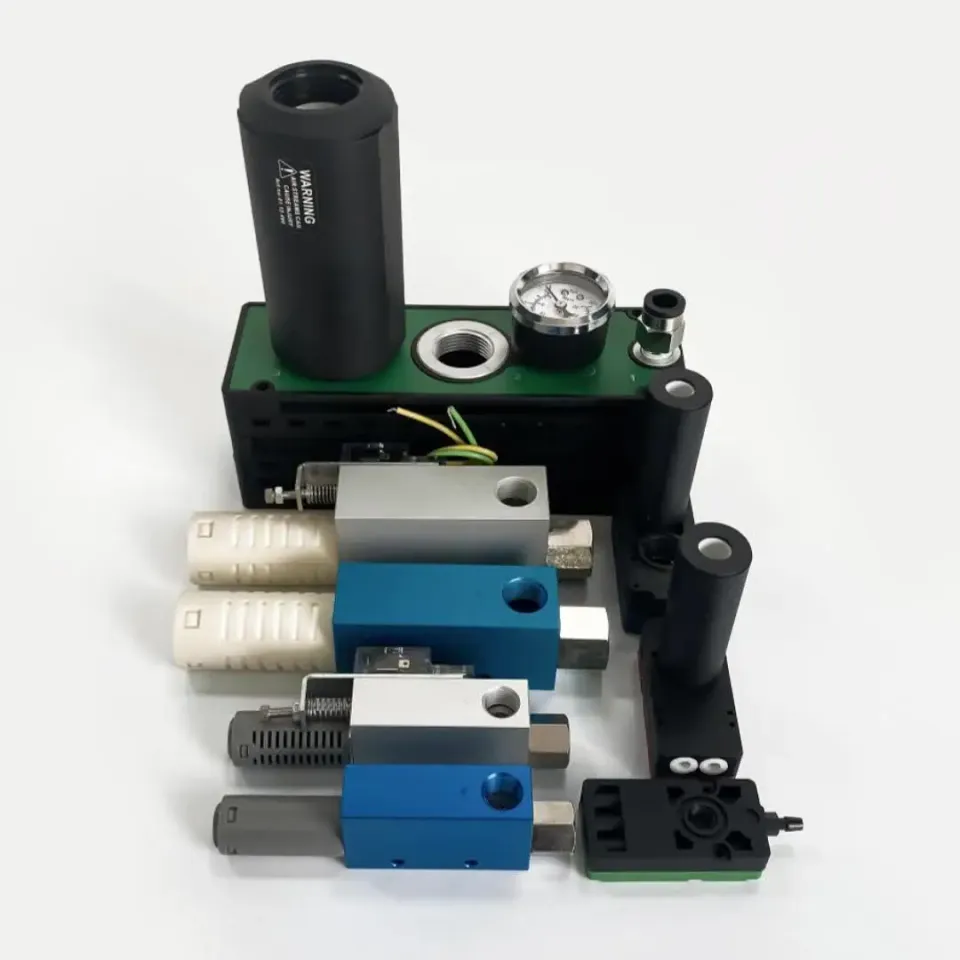

CV/EV/SVM multi-stage vacuum generator

Specifications

Brand name

No

Origin

China

Type

Fittings

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

CV Series Vacuum Generator

Body Material

Aluminum Alloy

Nozzle Diameter

H (-92KPA Pressure Type), L (-58KPA Flow Type)

Rated Supply Pressure

S (4.5bar), R (3.5bar)

Vacuum Pressure Achieved

06/08/10

Number of Vacuum Ports

T6 (6 Ports), T8 (8 Ports)

Maximum Vacuum Degree

-94Kpa

Pilot Method

Optional Internal Pilot or External Pilot

Description

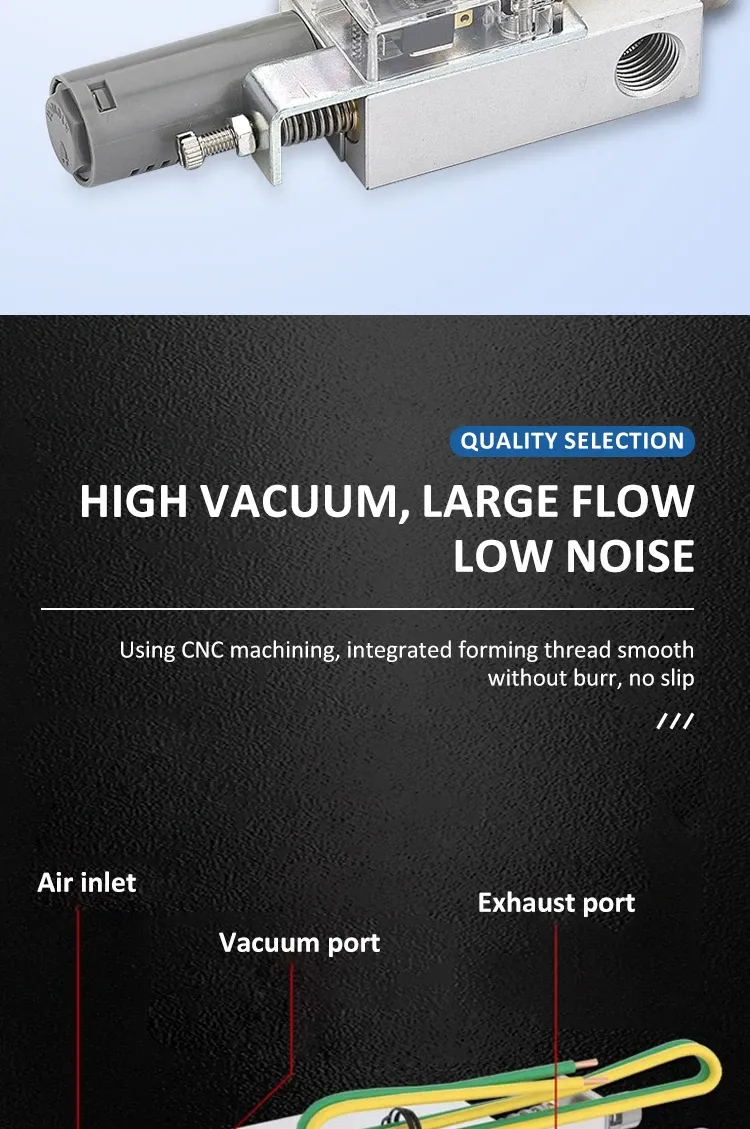

1. Pump-free vacuum generation: uses the jet principle for air intake, generating vacuum purely with compressed air, eliminating the need for an additional vacuum pump, saving installation space and equipment costs. 2. Exceptional suction performance: provides a maximum vacuum degree of -94 kPa with stronger suction force at the same air pressure; H (-92 kPa type) and L (flow type -58 kPa) nozzle diameters are available to meet high-pressure or high-flow application requirements. 3. Fast response and high efficiency: features a fast reaction speed and a large flow rate, enabling rapid vacuum buildup for time-sensitive operations (e.g. material handling, automated assembly lines). 4. Flexible configuration options: multiple rated supply pressures (S: 4.5 bar, R: 3.5 bar), vacuum pressure grades (06/08/10) and vacuum port choices (T6: 6 ports, T8: 8 ports) adapt to various industrial system requirements. 5. Durable and reliable aluminum alloy body: lightweight yet high-strength material simplifies installation; the corrosion-resistant oxide film surface withstands wear and extends service life, while excellent thermal conductivity ensures stable operation. 6. Dual pilot choice: optional internal or external pilot methods improve compatibility with various air supply systems, ensuring flexible integration into existing industrial setups. 7. Wide application versatility: the compact design, multi-port options and adaptable pressure/flow configuration make it suitable for the packaging, robotics, electronics and automotive industries. 8. Economical operation: low energy consumption (only compressed air required) and minimal maintenance needs reduce long-term operating costs, optimizing overall production efficiency.
