Specifications
- Brand name
- No
- Origin
- China
- Type
- Actuator
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1

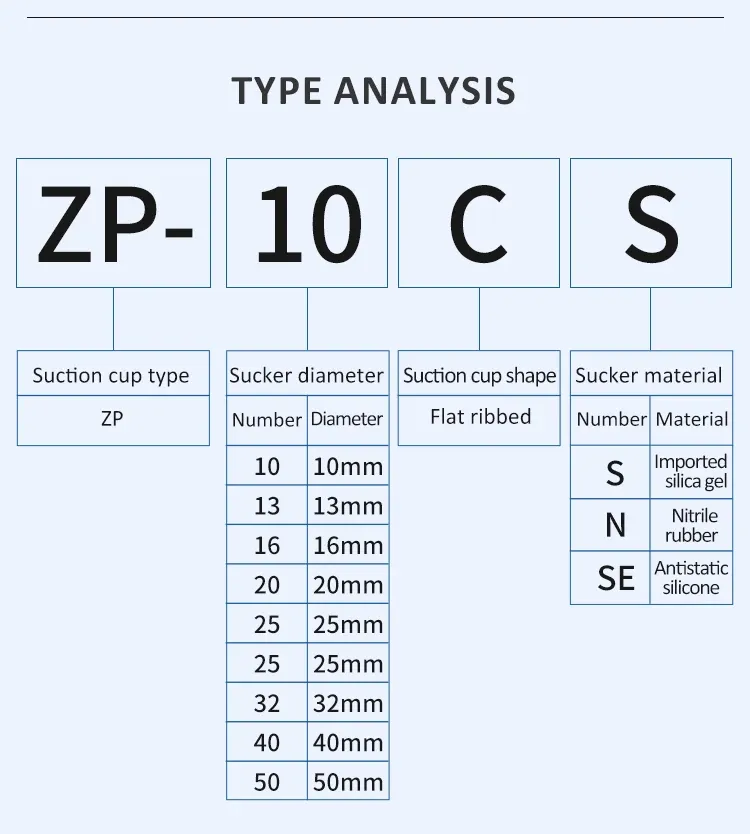

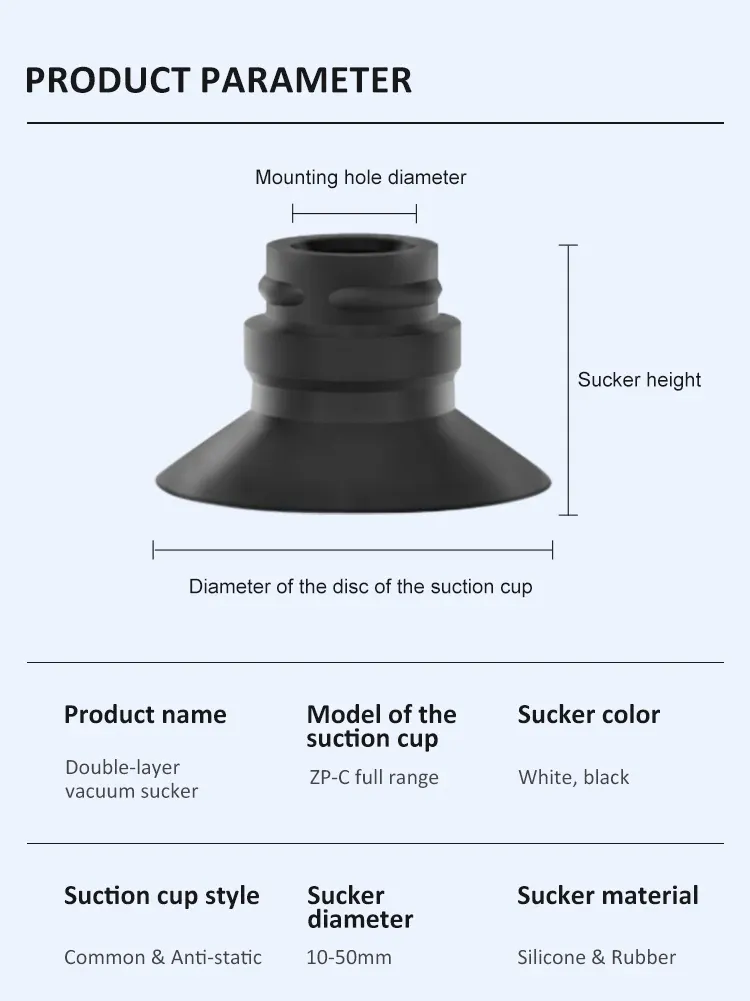

- Product Name

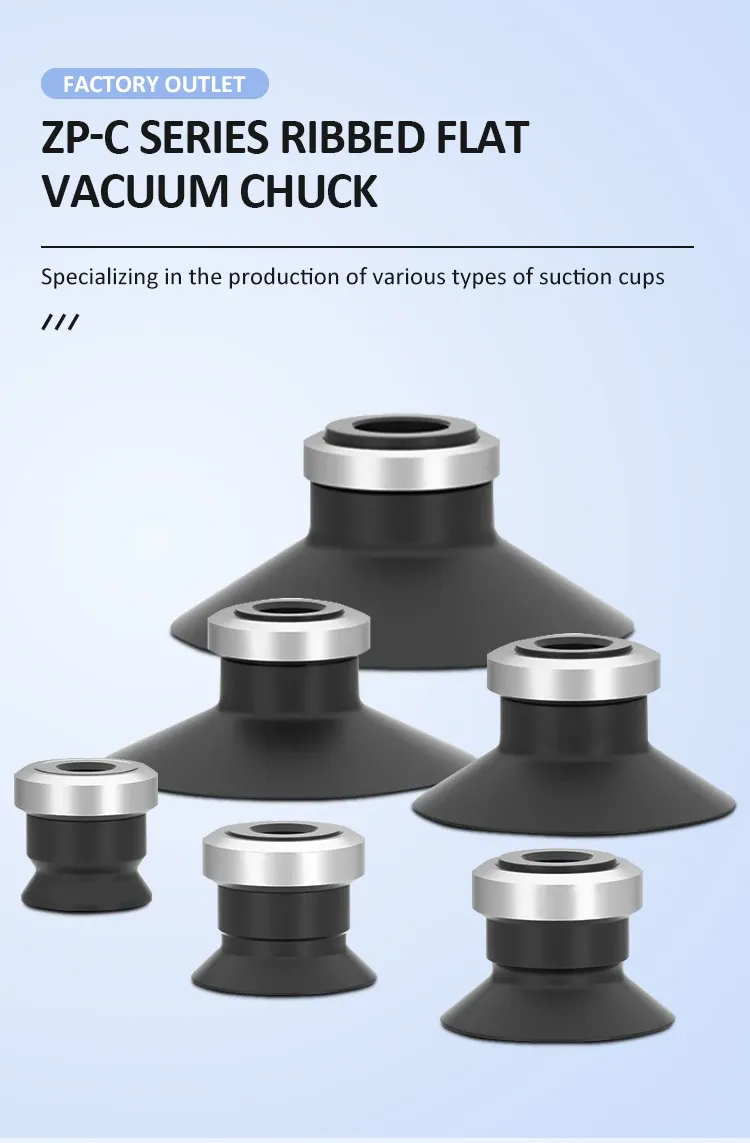

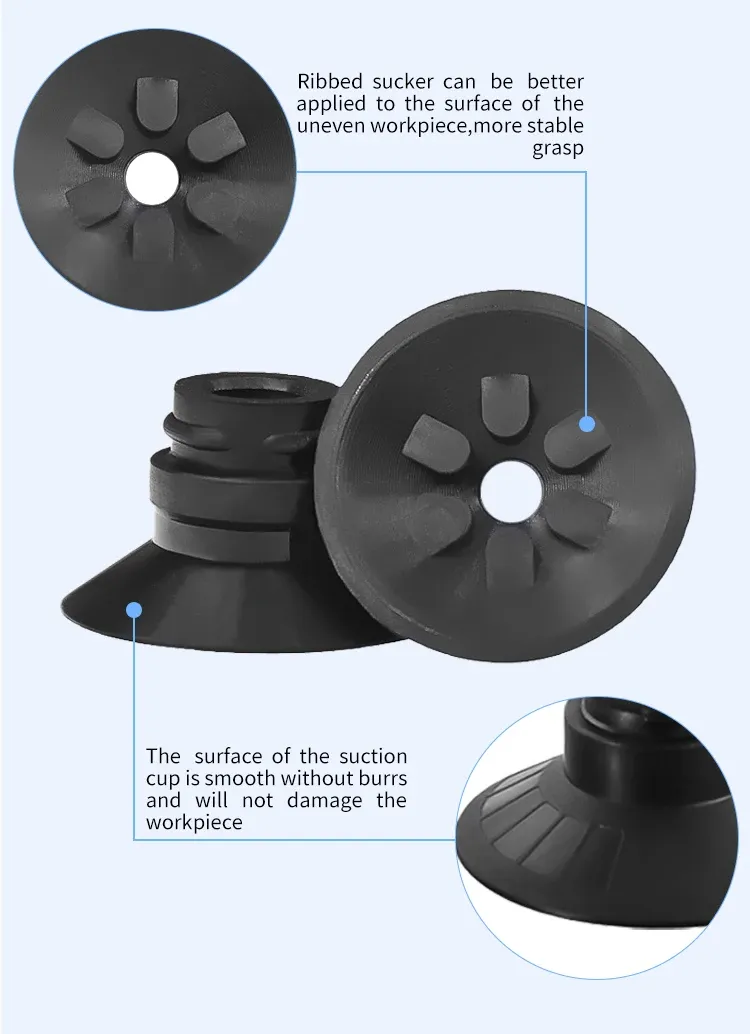

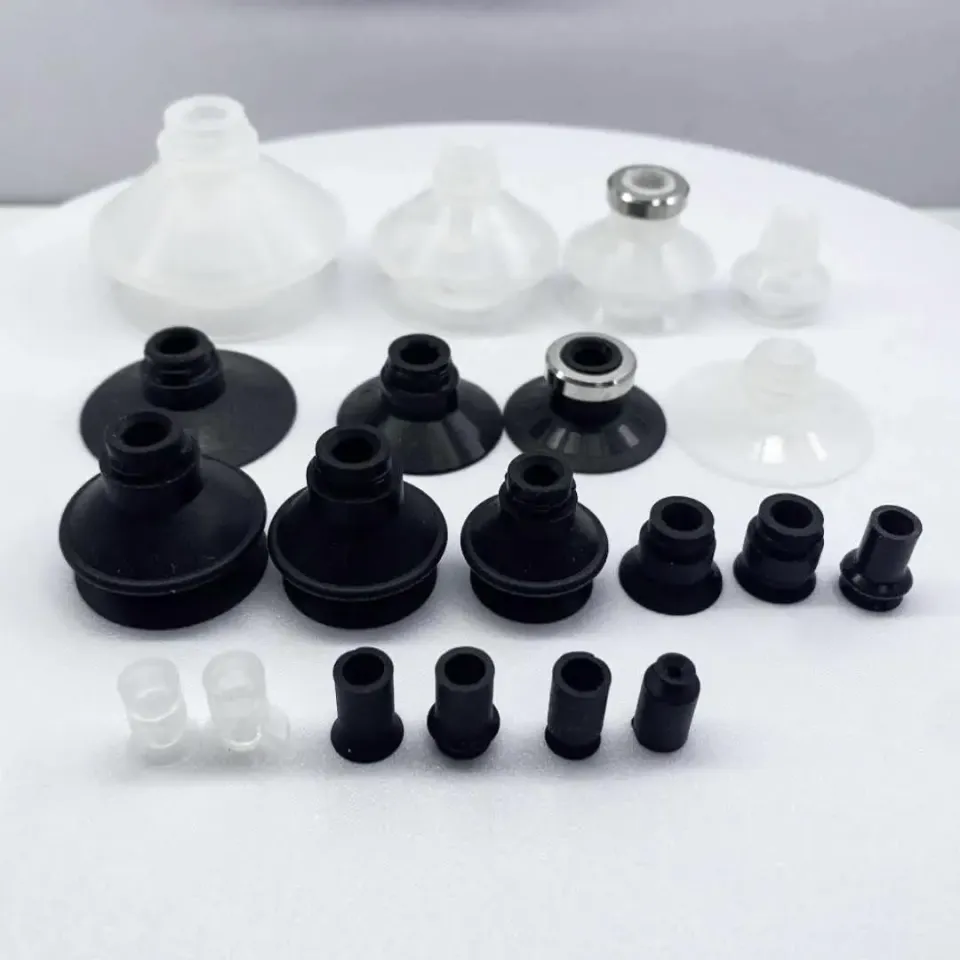

- ZP-C Flat Ribbed Vacuum Suction Cups

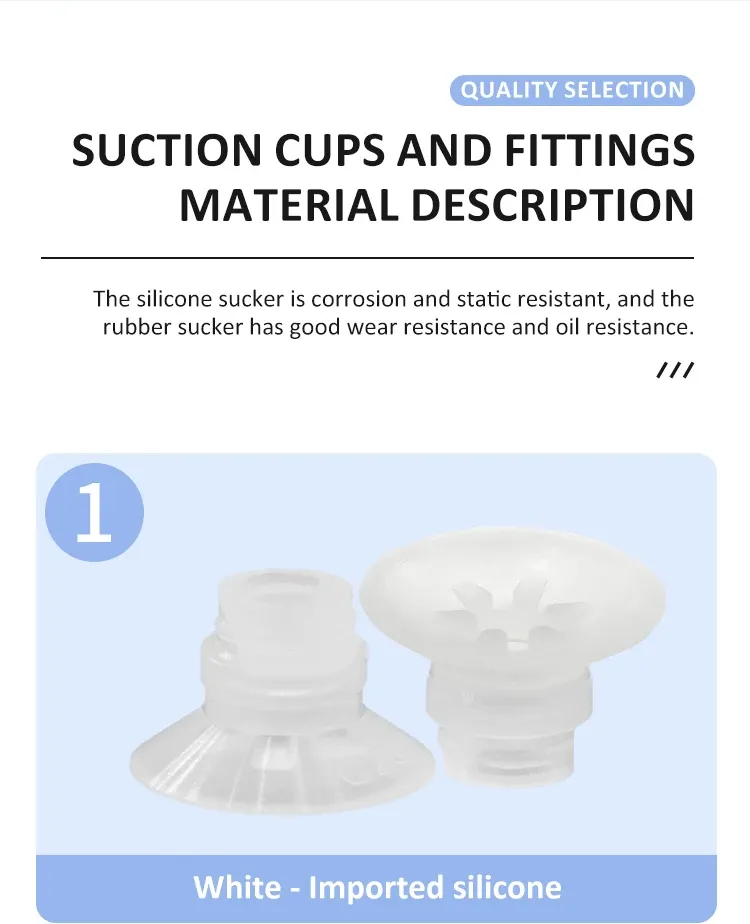

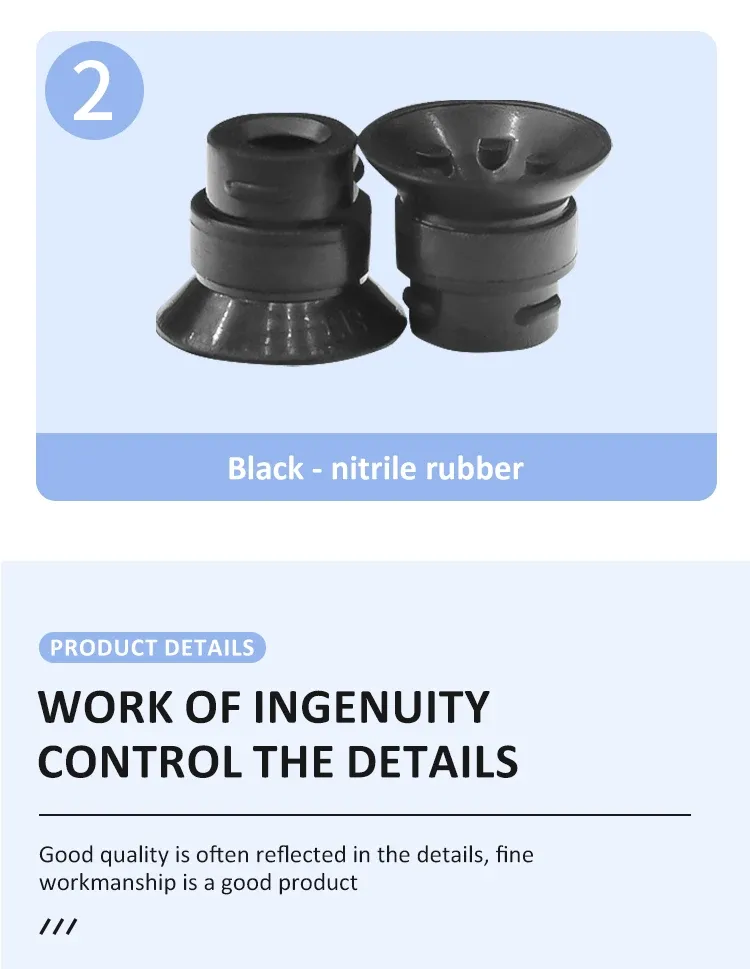

- Material
- Black Nitrile Rubber / White Silicone

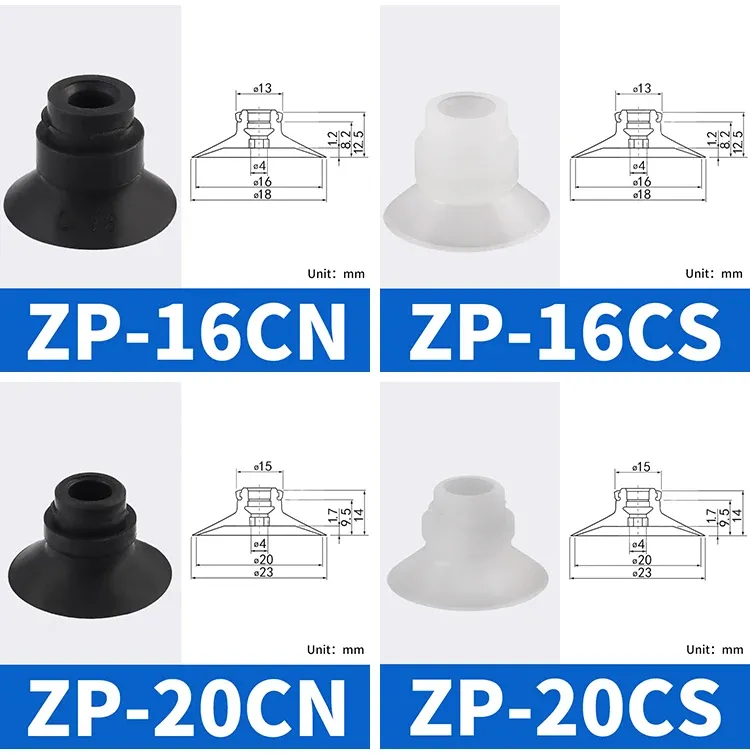

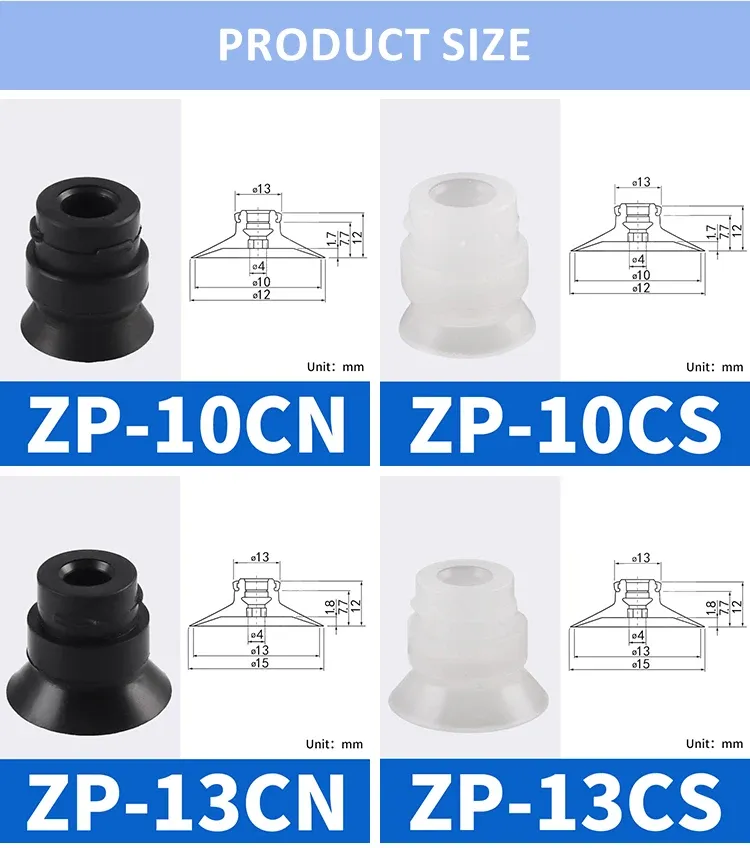

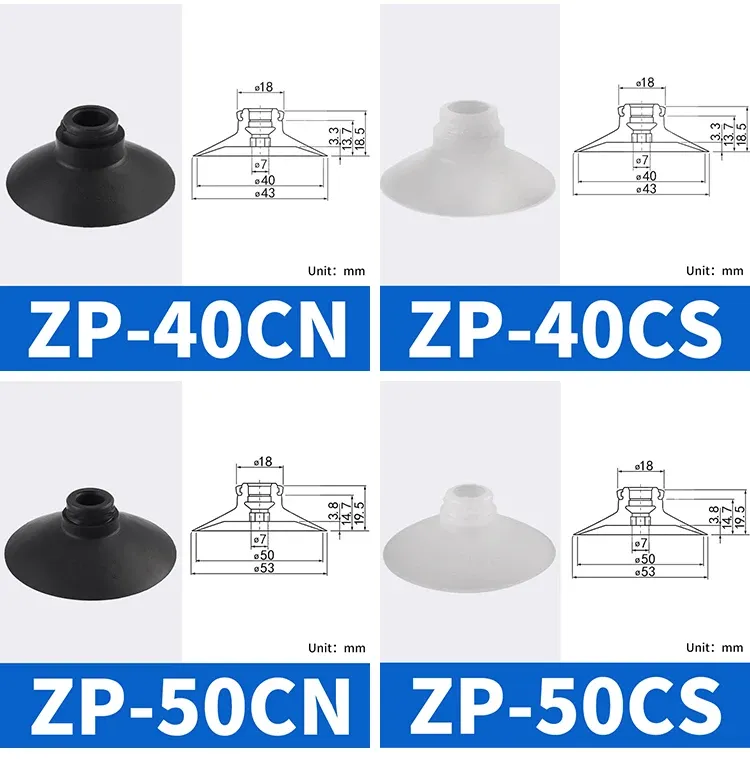

- Suction Cup Type
- U-Flat, C-Flat Ribbed, D-Deep, B-Bellow Type

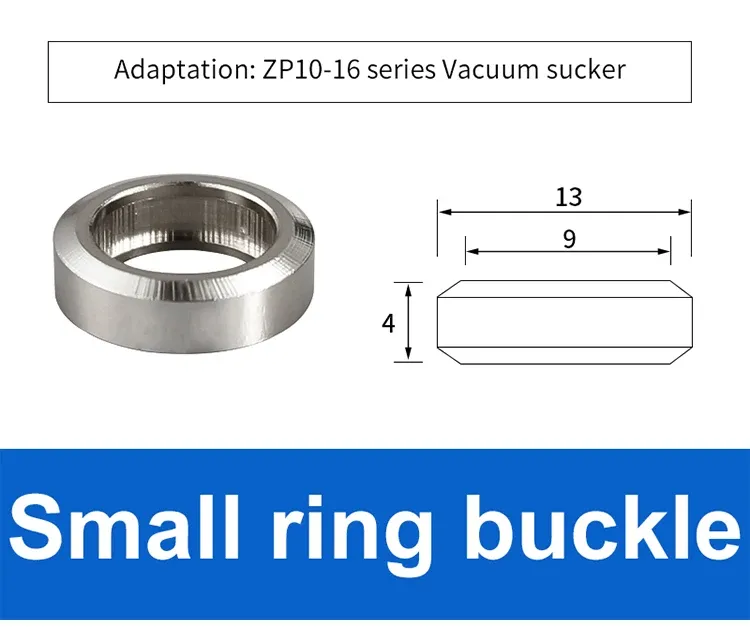

- Mounting Hole Size
- 4.5/5.5/9 (mm, default unit for industrial hardware specifications)
- Customization Availability
- Non-standard customization is supported.
Description
1. Dual premium materials: black nitrile rubber (oil/water resistant, anti-static, wear resistant) or imported white silicone (temperature resistant, non-toxic, stable). 2. Anti-static safety: the spark-free model suits sensitive industries such as electronics, pharmaceuticals and chemical engineering. 3. Wide size range: 11 diameters (1.5-30 mm) for various component gripping needs. 4. Damage-free and efficient: adjustable air pressure avoids component damage; improves SMT placement efficiency and prevents soldering defects. 5. Universal and customizable: ideal for IC chips, BGA chips, glass, LEDs; non-standard customization is supported.
