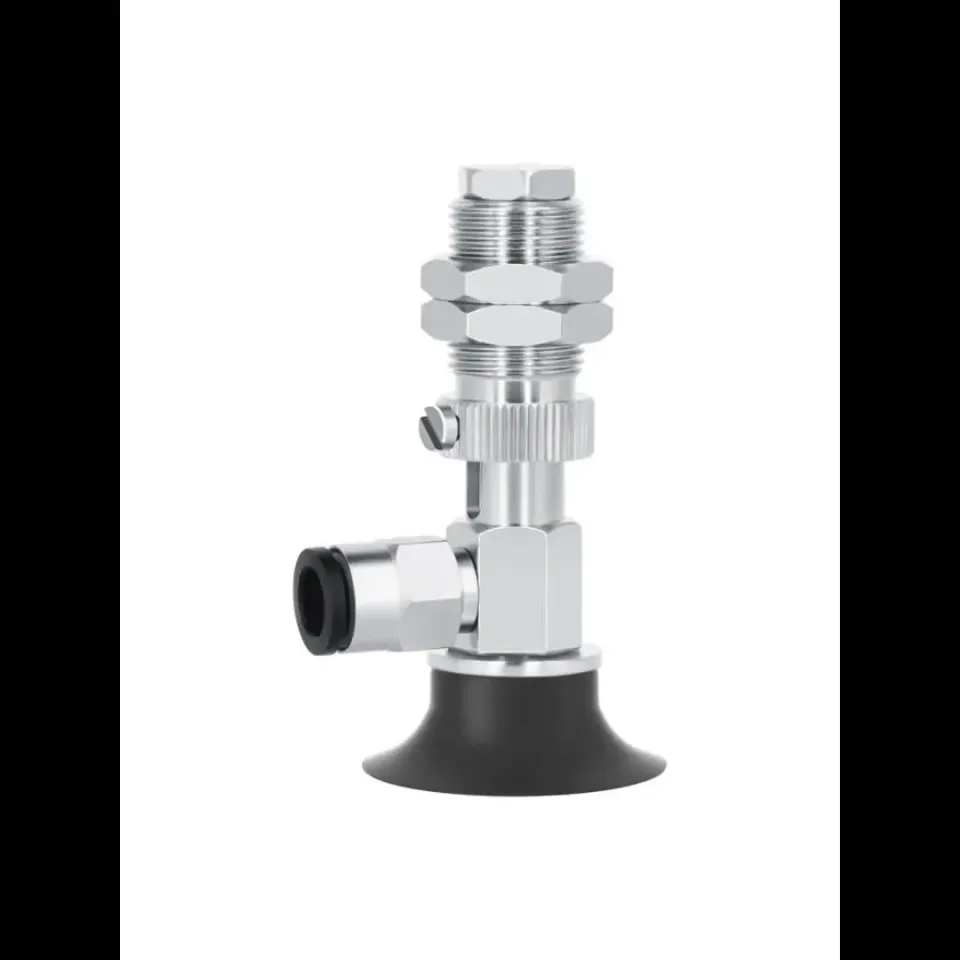

PISCO VPF-2/3/4/6/8/10/15/20/25/30/40/50 manipulator vacuum suction cup set, small vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

VP Vacuum Suction Cup Bracket

Suction Cup Color

Black / White

Suction Cup Compatibility

Single-layer or double-layer

Suction Cup Material

Nitrile Rubber / Silicone

Suction Cup Diameter

2/3/4/6/8/10/15/20/25/30/40/50

Mounting Thread

M12*1.0, M14*1.0

Air Inlet Size

4/6mm

Customization Availability

Supports non-standard customization

Description

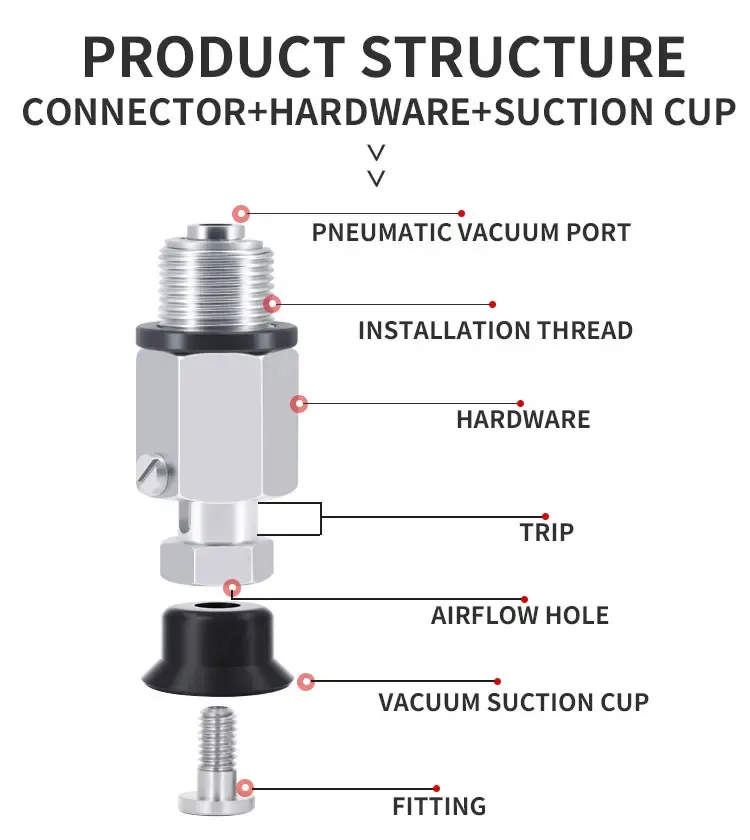

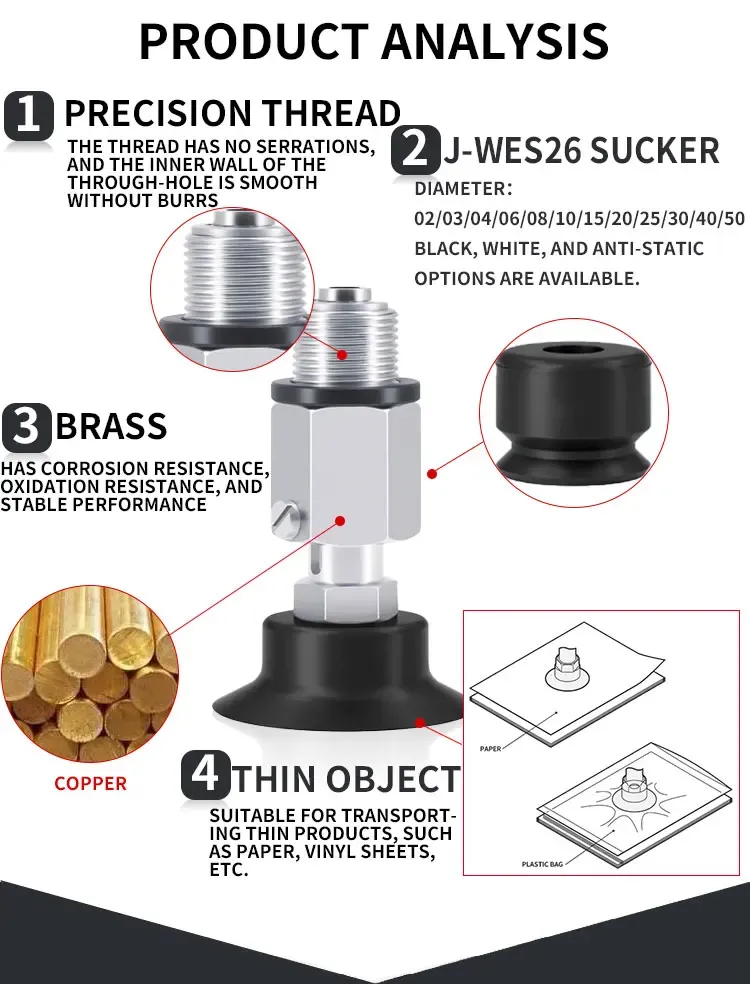

1. Premium nickel-plated copper bracket: the bracket body is made of nickel-plated copper, which significantly increases hardness, provides superior corrosion resistance and wear resistance, and effectively prevents oxidation and vulcanization, extending service life in harsh industrial conditions. 2. Safe and airtight connection design: the built-in fixed connection between the connector and the suction cup interface has a rational structure that ensures tight assembly, not prone to air leakage or loosening, guaranteeing stable vacuum adsorption. 3. Universal suction cup configuration: offers optional single-layer or double-layer suction cups in nitrile rubber or silicone with 12 diameter options (2-50 mm) to meet diverse adsorption requirements for various workpieces. 4. Standard compatibility and easy installation: equipped with M12*1.0 and M14*1.0 metric thread mounts and an air intake size of 4/6 mm, ensuring smooth integration with most industrial robots and mechanized automated equipment. 5. Low-friction automation adaptability: specially designed for automation equipment requiring low friction, such as industrial robots and mechanized systems, optimizing the efficiency of automated handling processes. 6. Customizable solutions: supports non-standard customization of bracket specifications, suction cup parameters and connection details to meet unique operational needs.
