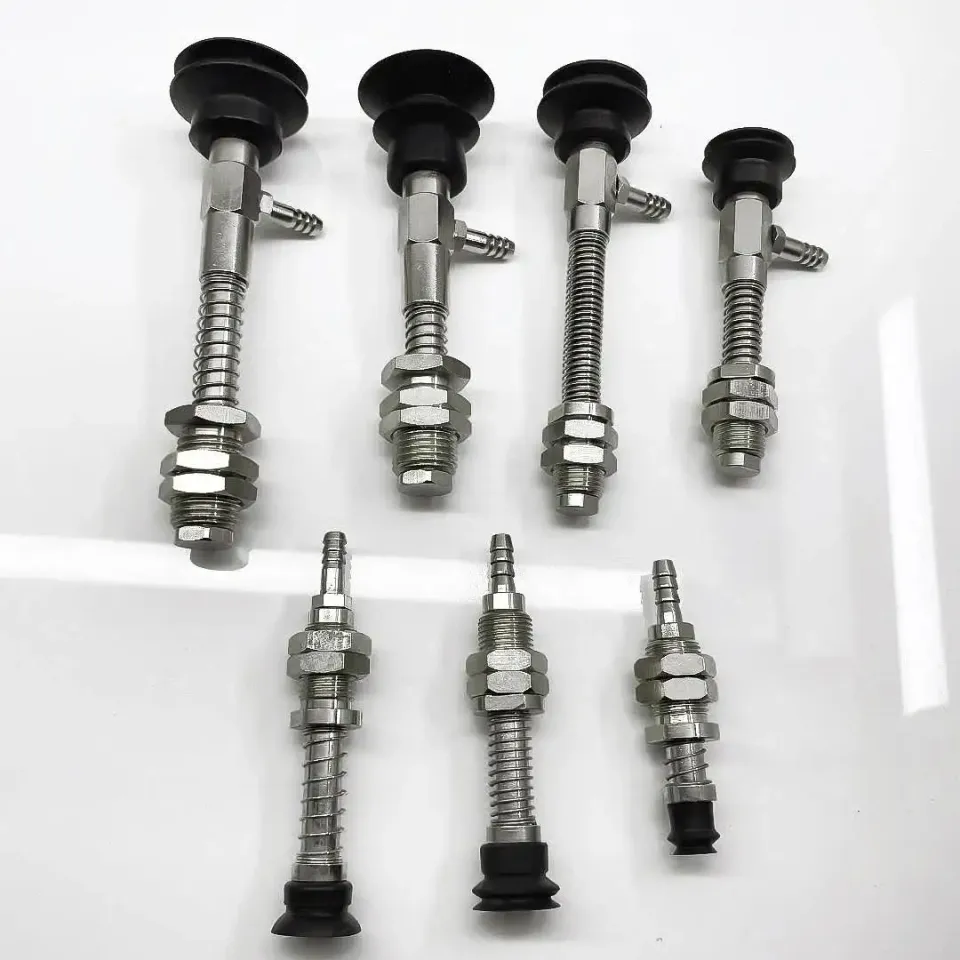

Qilike PBFS series buffer-type suction cups

Specifications

Brand name

No

Model number

PBFS

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

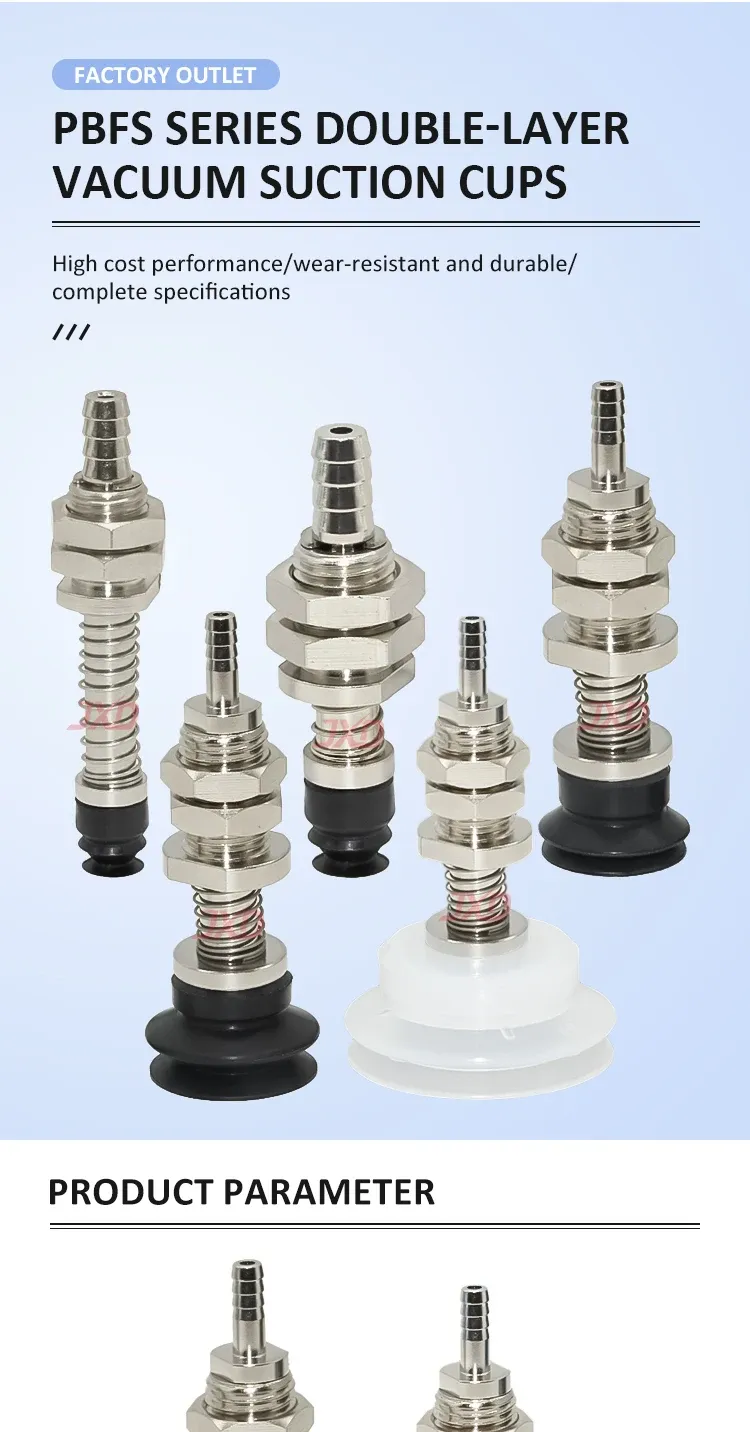

PBFS Series Suction Cup Bracket

Description

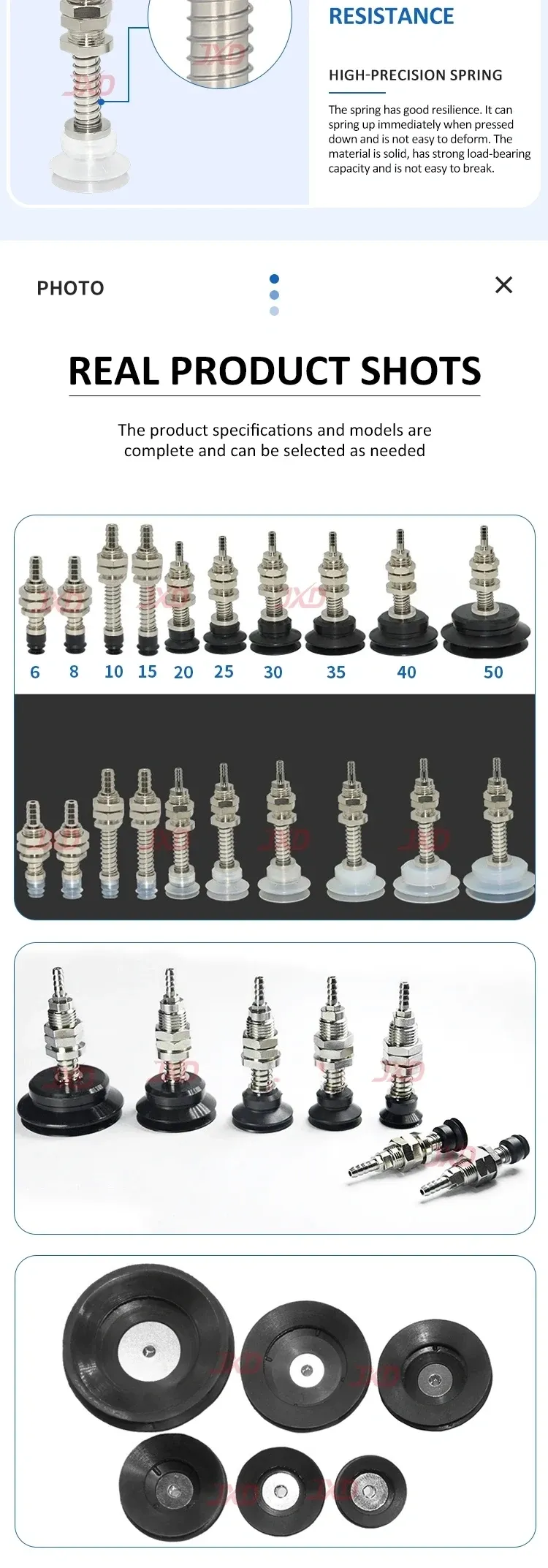

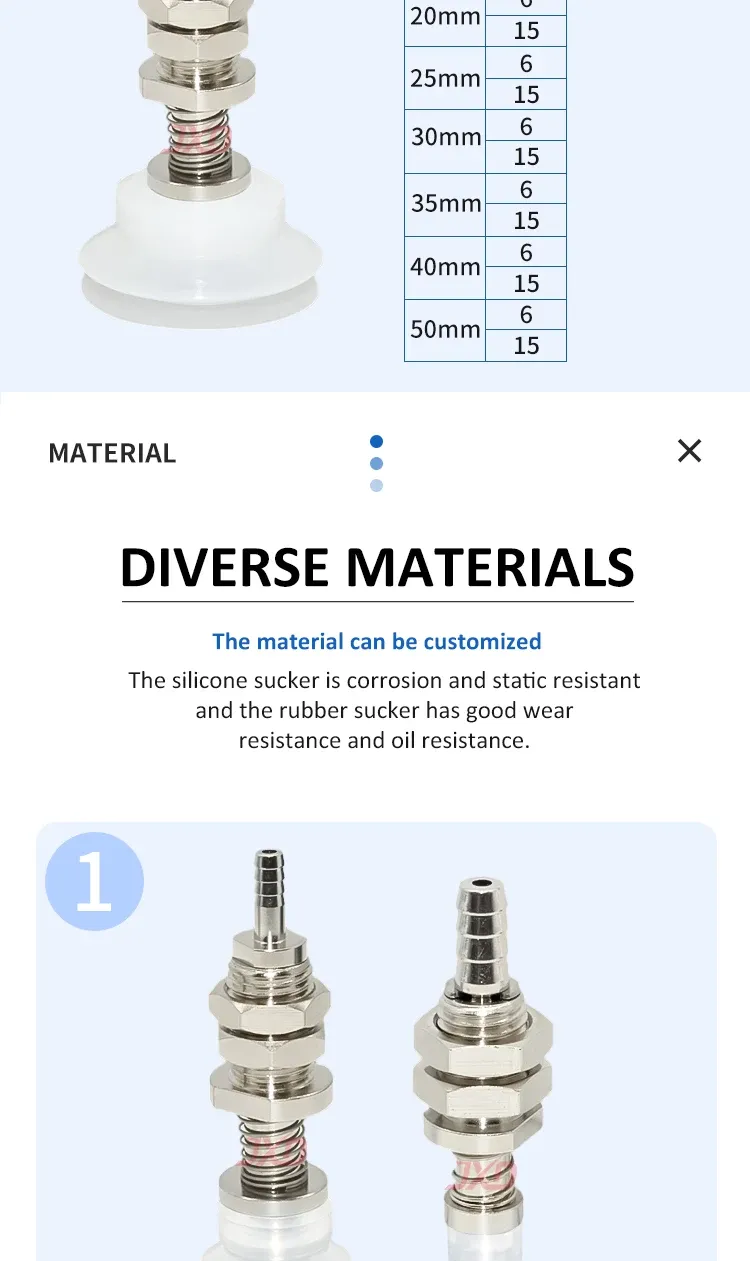

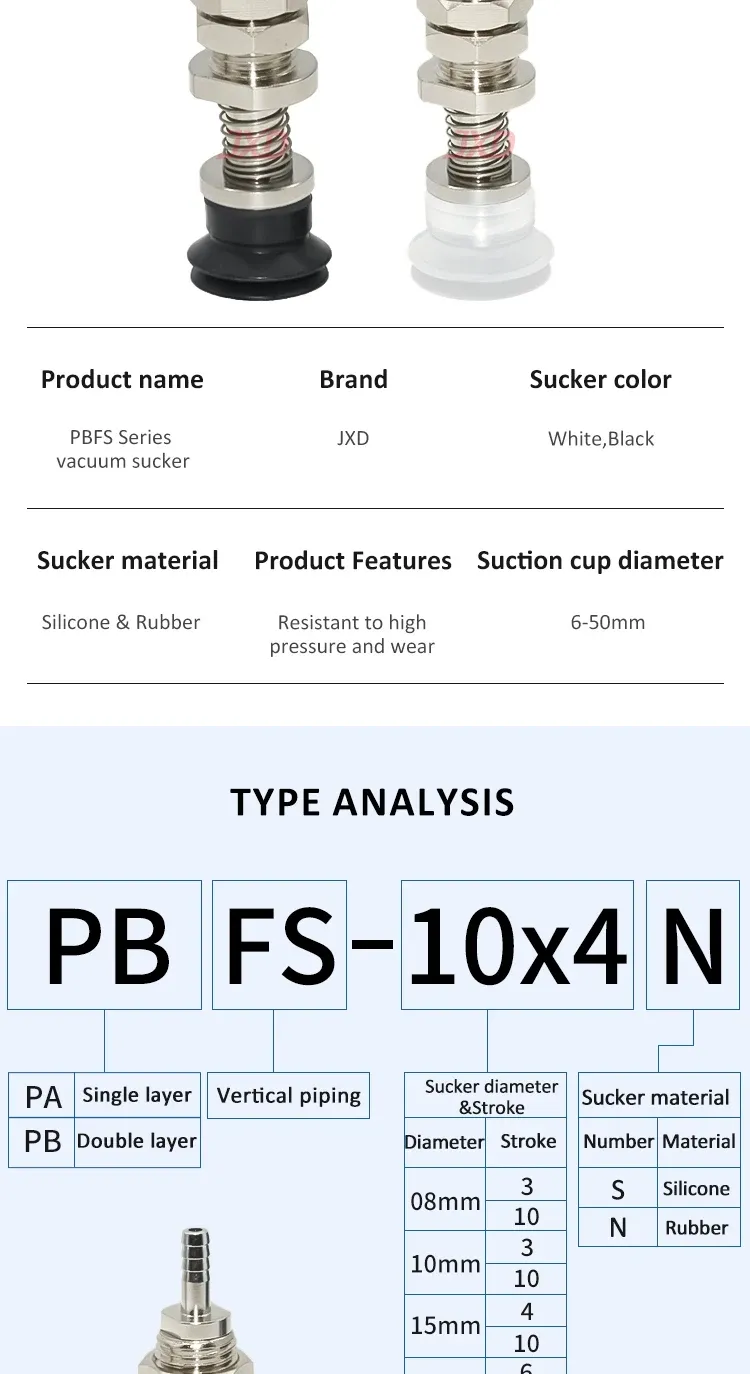

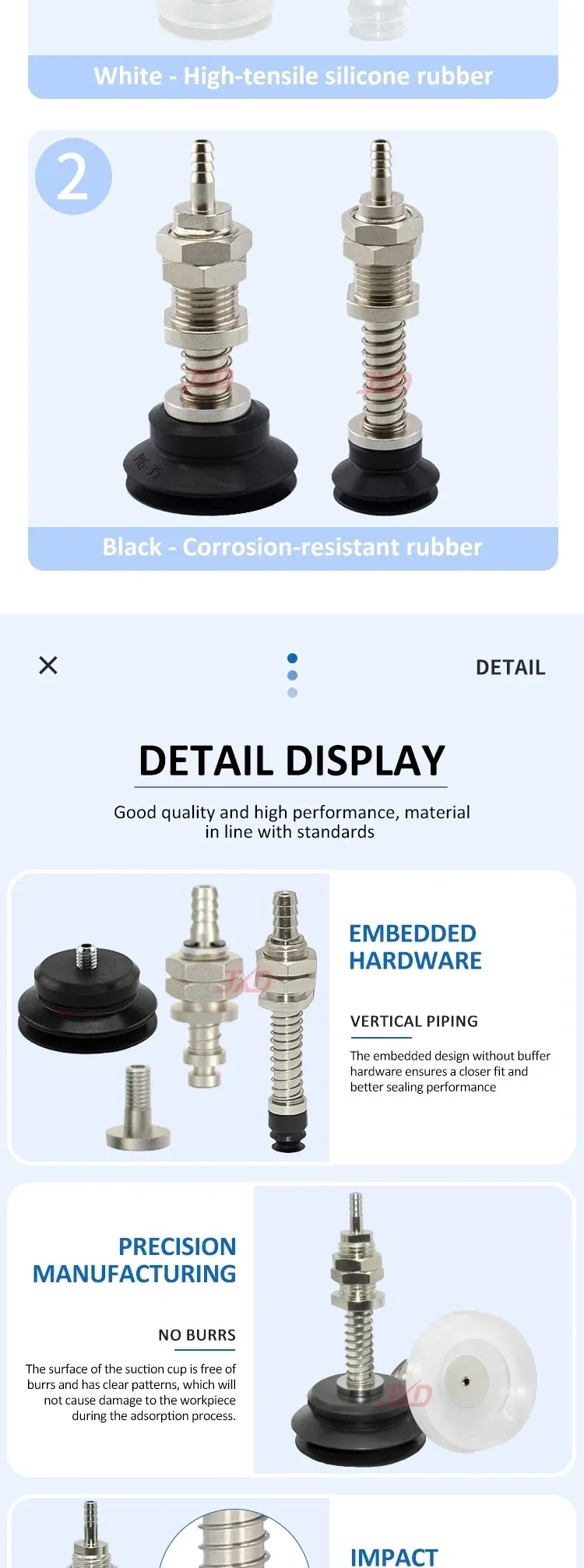

1. Vertical spring structure for stable support. Features a vertical spring design that provides flexible and stable support for suction cups during automatic handling. The spring structure helps absorb minor vibrations, ensuring constant contact with workpieces and increasing overall operational reliability. 2. Sturdy nickel-plated copper body. The main body is made of copper plated with a 0.2 um thick nickel layer. This premium material combination provides superior corrosion resistance, wear resistance and a long service life - ideal for harsh industrial environments and frequent use. 3. Wide size and stroke options for versatility. Suction cup diameter compatibility: supports a wide range of suction cup diameters (06 mm, 08 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm), adapting to various workpiece sizes. Multiple stroke options: offers 3 mm, 4 mm, 6 mm, 10 mm and 15 mm stroke variants, matching different handling distances and workpiece thicknesses for flexible automation setup. 4. Wide thread and air tube compatibility. Thread versatility: equipped with M9x1, M10x1 and M14x1 threads, ensuring easy installation and compatibility with various industrial automation equipment. Air tube compatibility: works easily with 4 mm and 6 mm air tubes, integrating smoothly into existing pneumatic systems without additional adapters. 5. Smooth damage-free design protects suction cups. Nick-free threads, smooth through-hole inner walls and burr-free surfaces prevent scratches and damage to suction cups during assembly and use, extending the service life of both the bracket and the suction cups. The tight fit with suction cups improves adsorption stability while maintaining the integrity of the suction cup, reducing replacement costs and downtime. 6. Ideal for low-friction automation tasks. Ideal for automation equipment requiring low friction, such as industrial robots and automated machinery. It optimizes movement efficiency and precision in production, assembly and logistics workflows. 7. Custom solutions for special requirements. Contact us to customize specifications (e.g. alternative materials, sizes or threads) that match your unique automation setup, ensuring the bracket meets your specific production needs.
