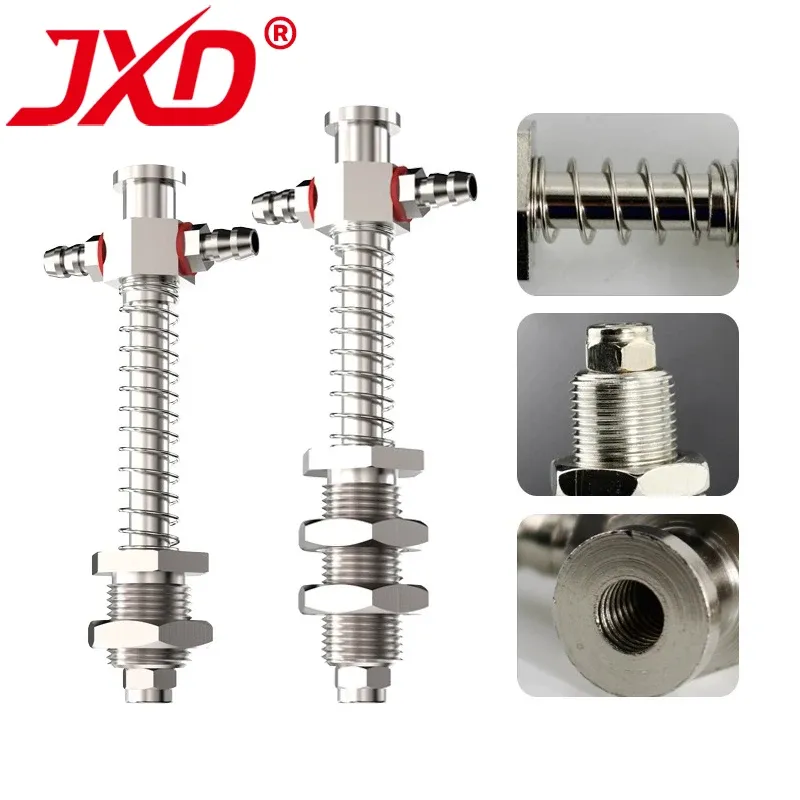

M10/M12 pneumatic vacuum fitting with suction cup

Specifications

Brand name

No

Origin

China

Type

Source purification device

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

Tianxing Series Suction Cup Bracket

Material

Nickel-Plated Iron

Type

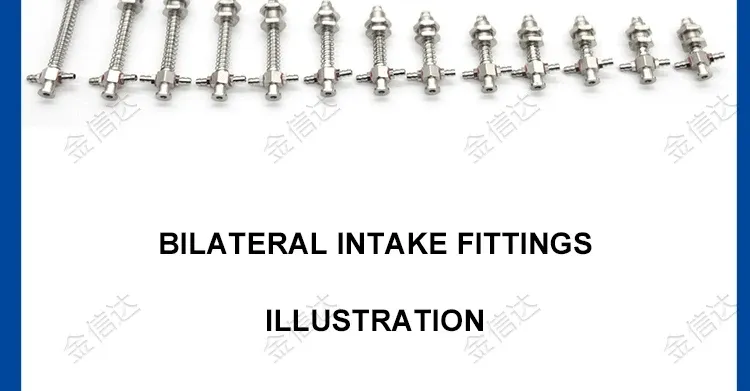

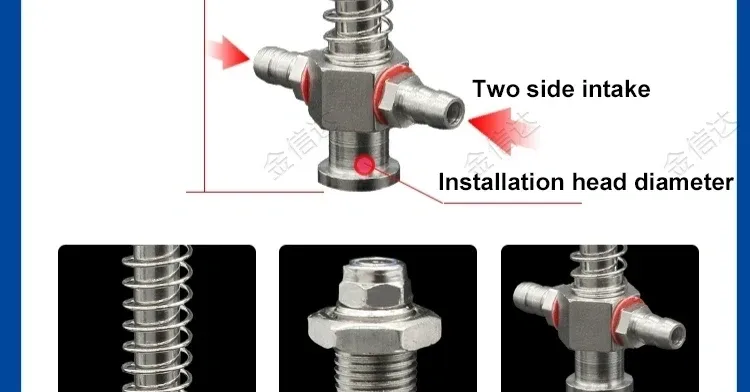

Side Air Inlet / Top Air Inlet

Mounting Diameter

7 / 11 mm

Mounting Thread

M10 / M12

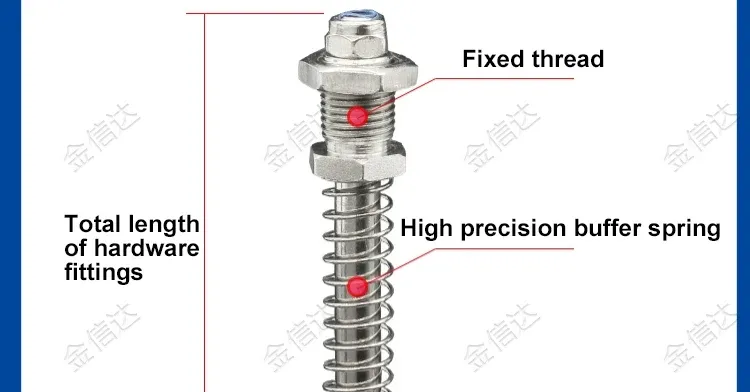

Fixture Length

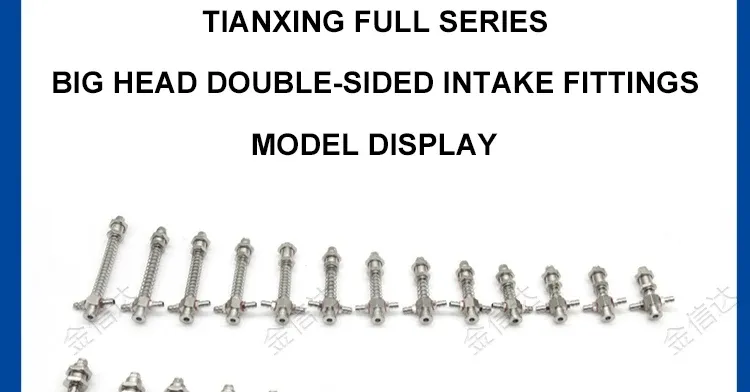

Optional 50 / 53 / 55 / 60 / 65 / 70 / 75 / 80 / 100 / 150 mm

Compatible Suction Cups

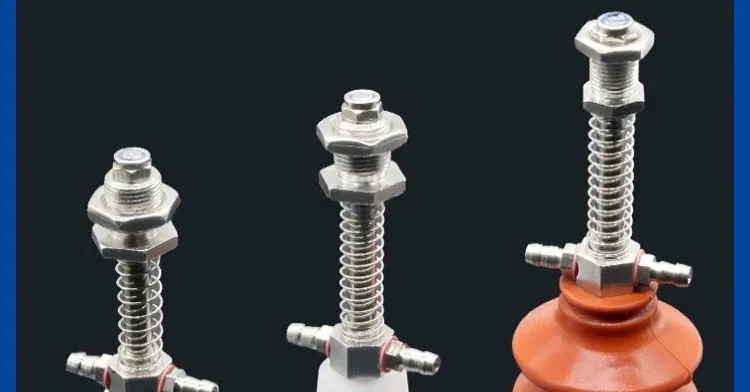

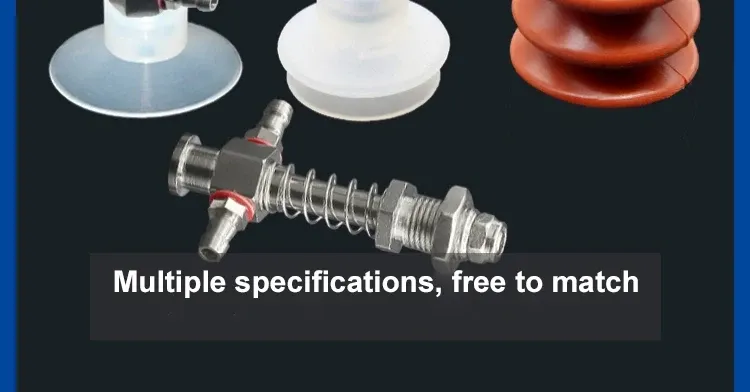

Tianxing Series large-head and small-head vacuum suction cups

Customization Available

Non-standard customization supported

Description

1. Premium protective construction Environmentally friendly nickel-plated iron with a double electroplated layer: resists corrosion and wear, suitable for various working conditions. High-precision machining plus polishing/grinding: nick-free threads and a burr-free through-hole inner wall prevent suction cup damage, extending overall service life. 2. Superior tightness for stable performance Precision-matched fit with suction cups provides more reliable tightness, which is critical for reliable vacuum gripping operations. The tight seal ensures stable performance even under frequent use, reducing the likelihood of failures. 3. Flexible compatibility and configuration Two air intake options (side/top) plus two mounting diameters (7/11 mm) and threads (M10/M12) for easy integration with automation systems. Compatible with Tianxing series vacuum suction cups (large head/small head), meeting various application requirements. 10 fitting length options (50-150 mm) to adapt to different installation spaces and workflow needs. 4. Customizable for specific requirements Non-standard customization is supported: adapting fitting length, mounting parameters or coating to match unique operational requirements.
