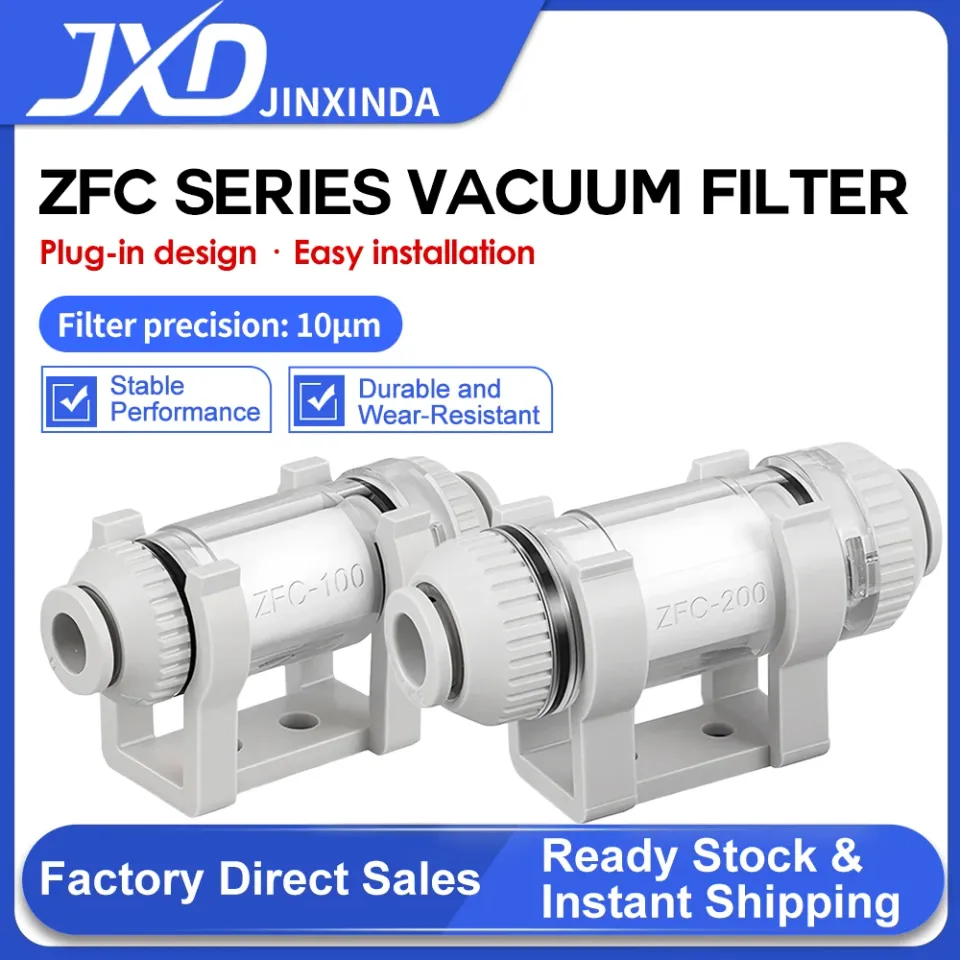

VFJ ZFC050-04 vacuum filters (VFU1-44)

Specifications

Brand name

No

Origin

China

Type

Source purification device

Power type

Other

Unit of measurement

pcs

Quantity

1

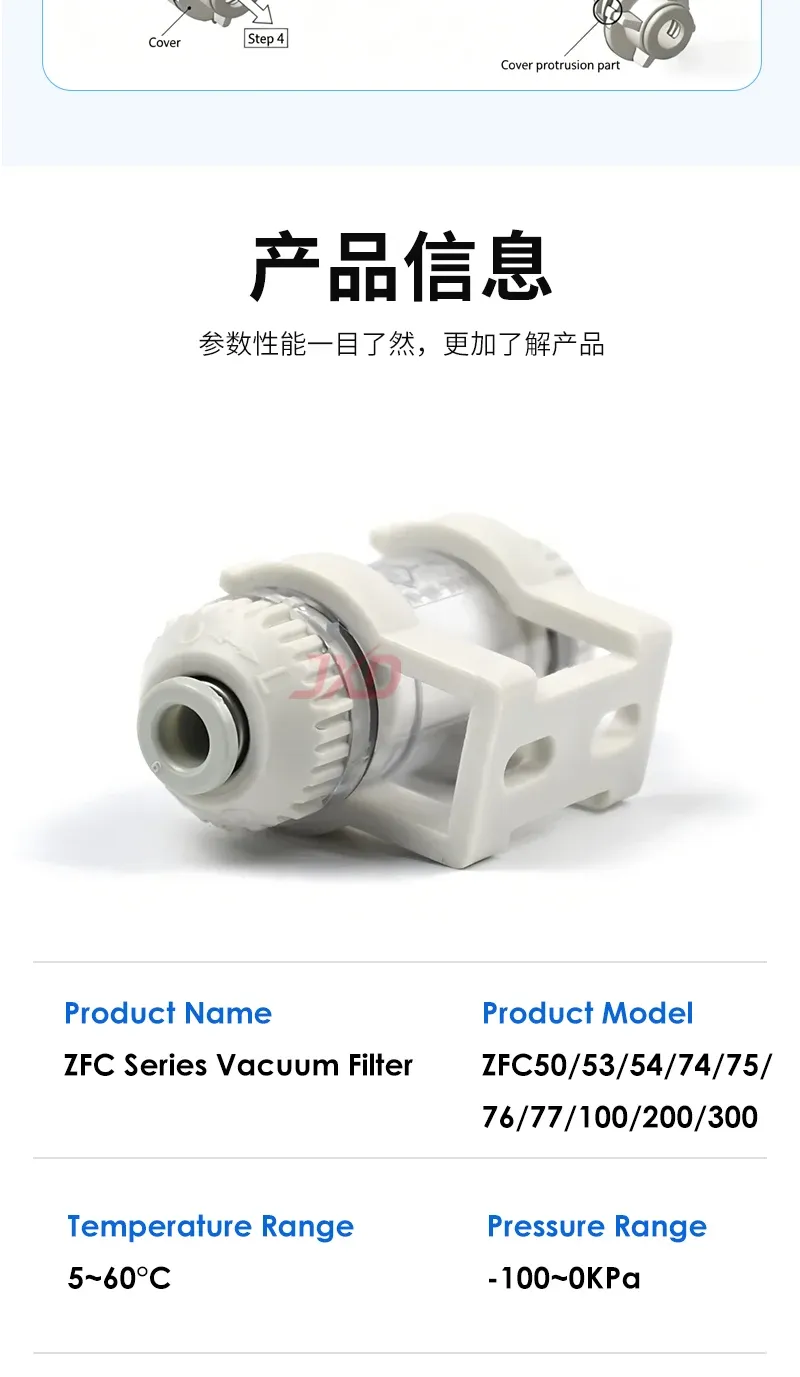

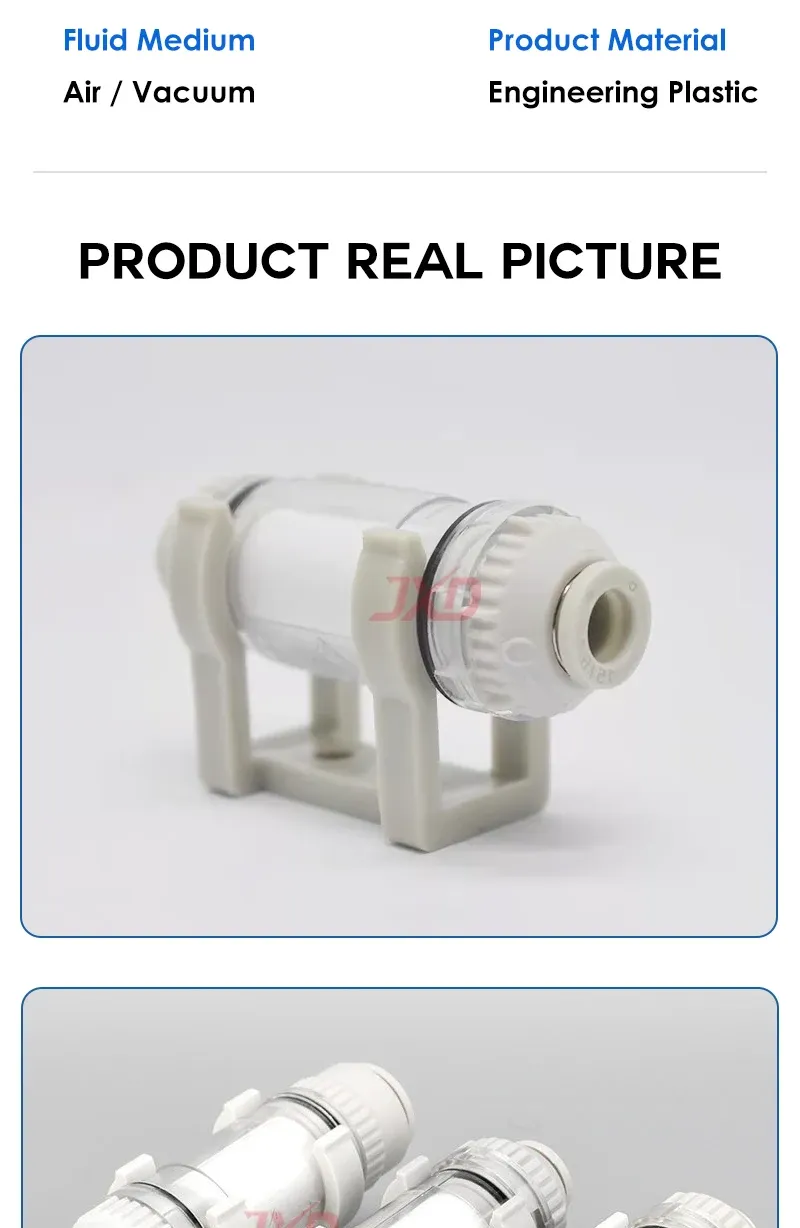

Product Name

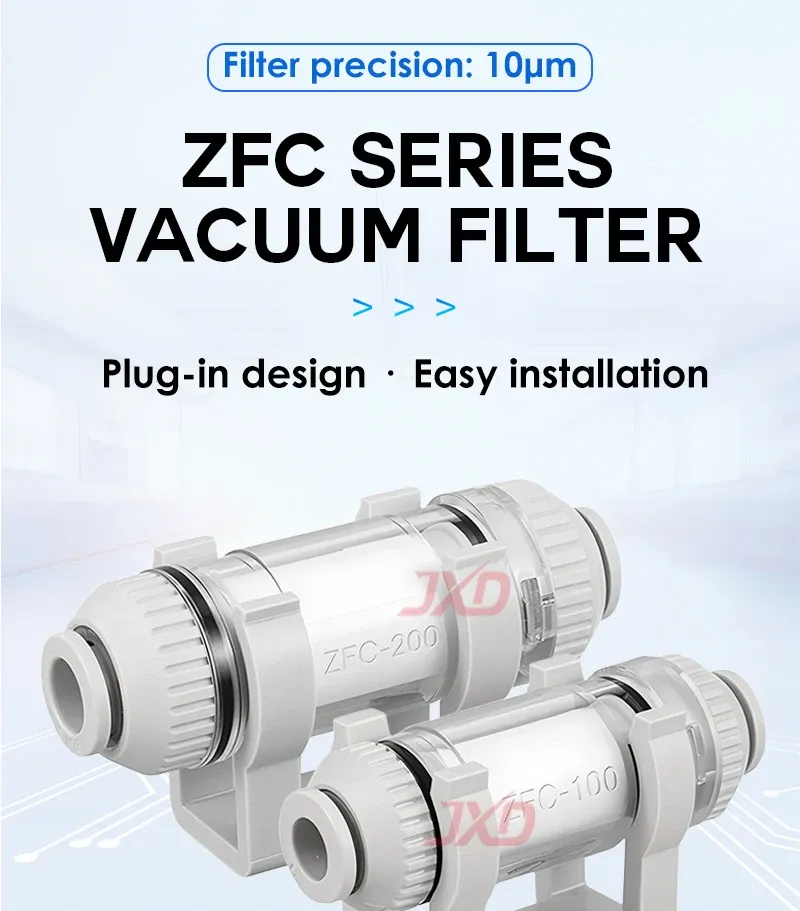

ZFC Series Vacuum Filter

Filter Material

Resin Fiber Filter Element

Applicable Fluids

Air, Nitrogen

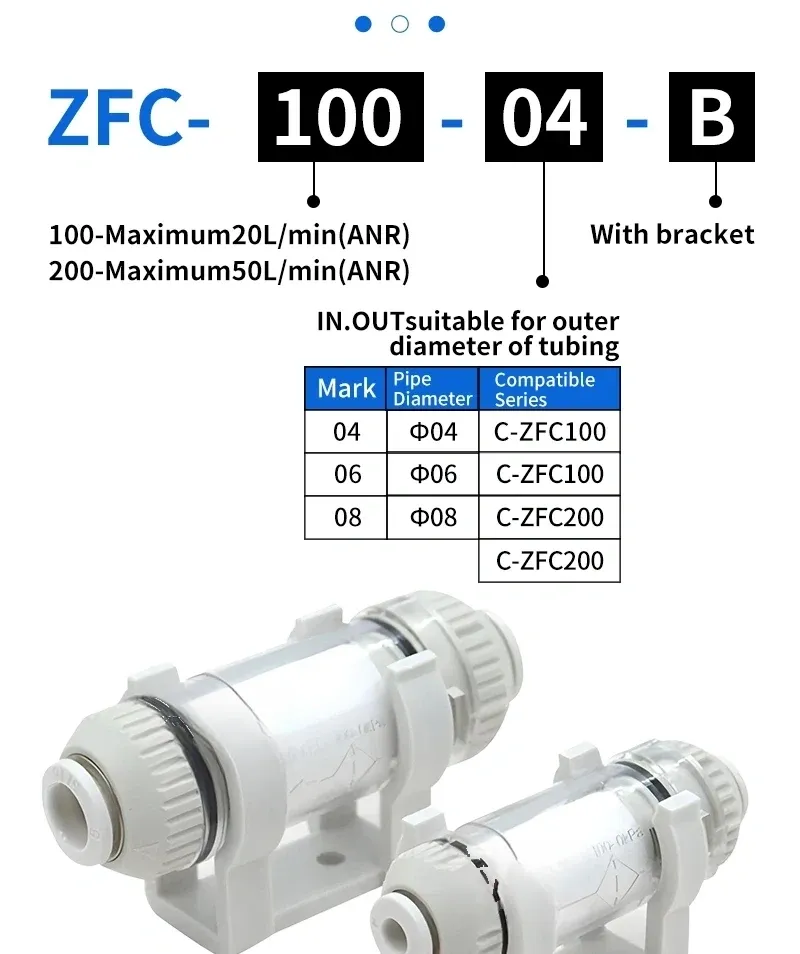

Suitable Hose Outer Diameters

4/6/8/10/12

Operating Pressure Range

-100~0 Kpa

Filtration Precision

10 μm (Filtration Efficiency: 95%)

Ambient & Fluid Pressure

1.5 MPA

Operating Temperature Range

0~60 °C

Filter Element Pressure Difference Resistance

0.15 Mpa

Applicable Hoses

Nylon Hoses, Soft Nylon Hoses, PU Hoses, Ultra-Soft PU Hoses

Description

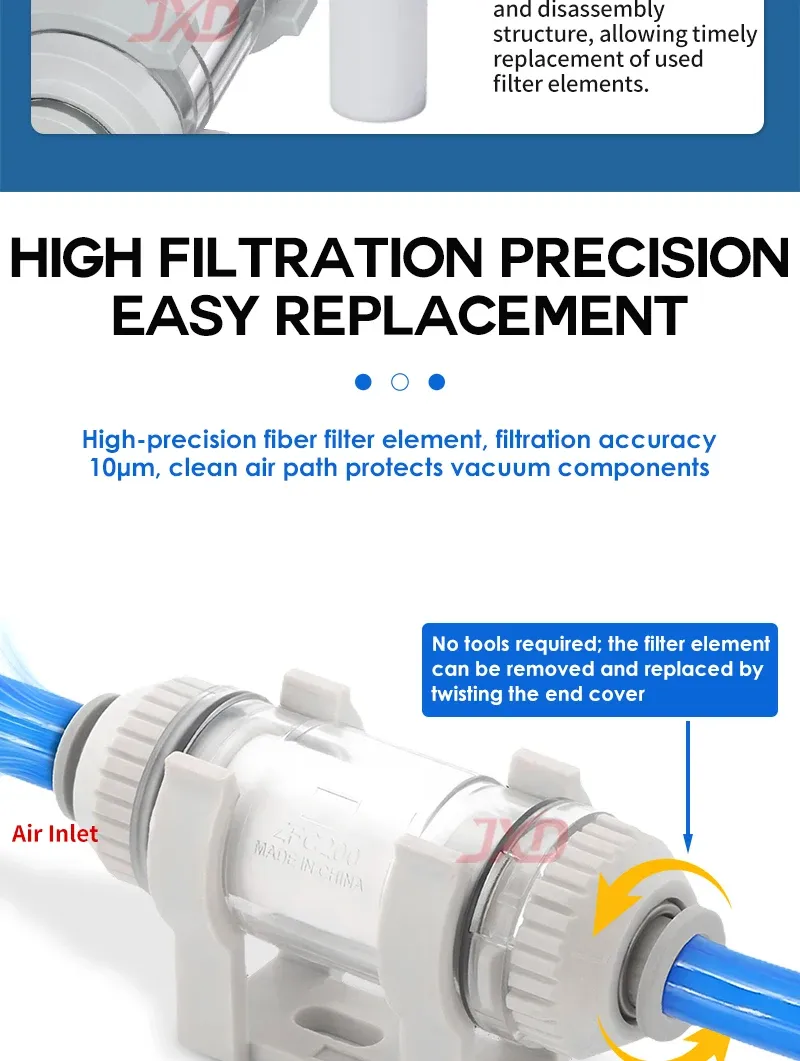

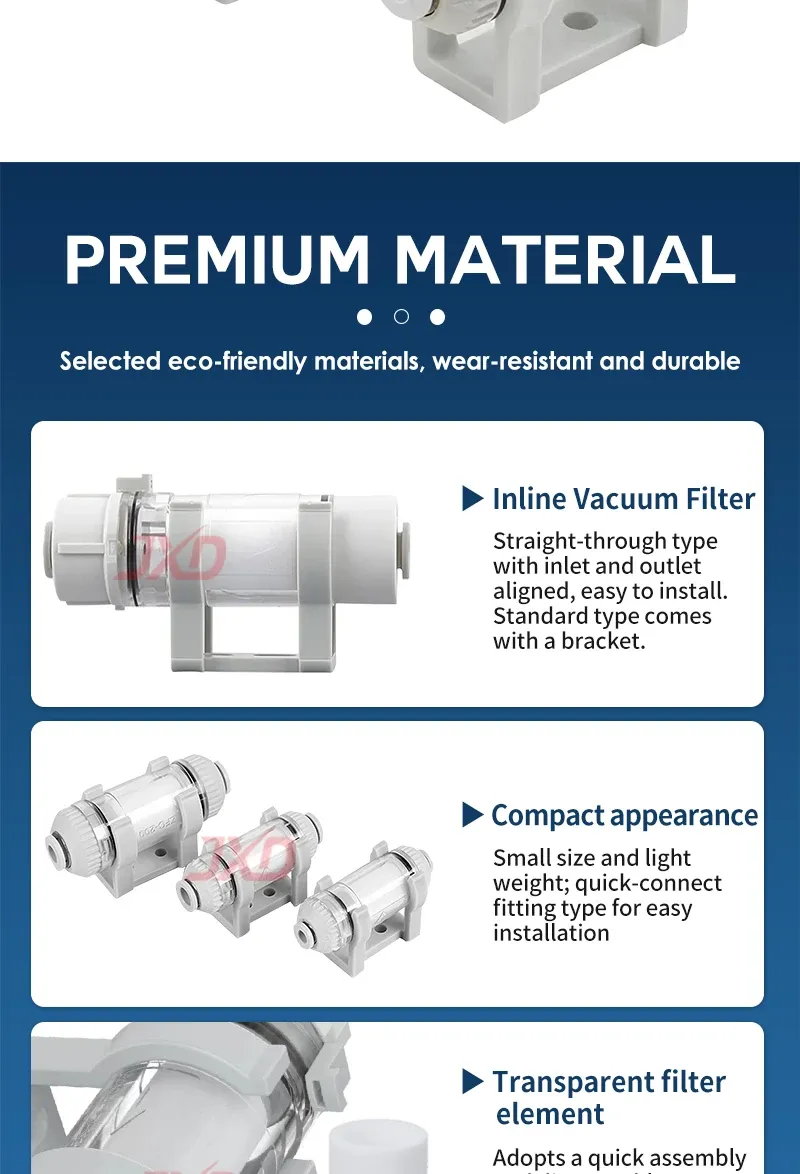

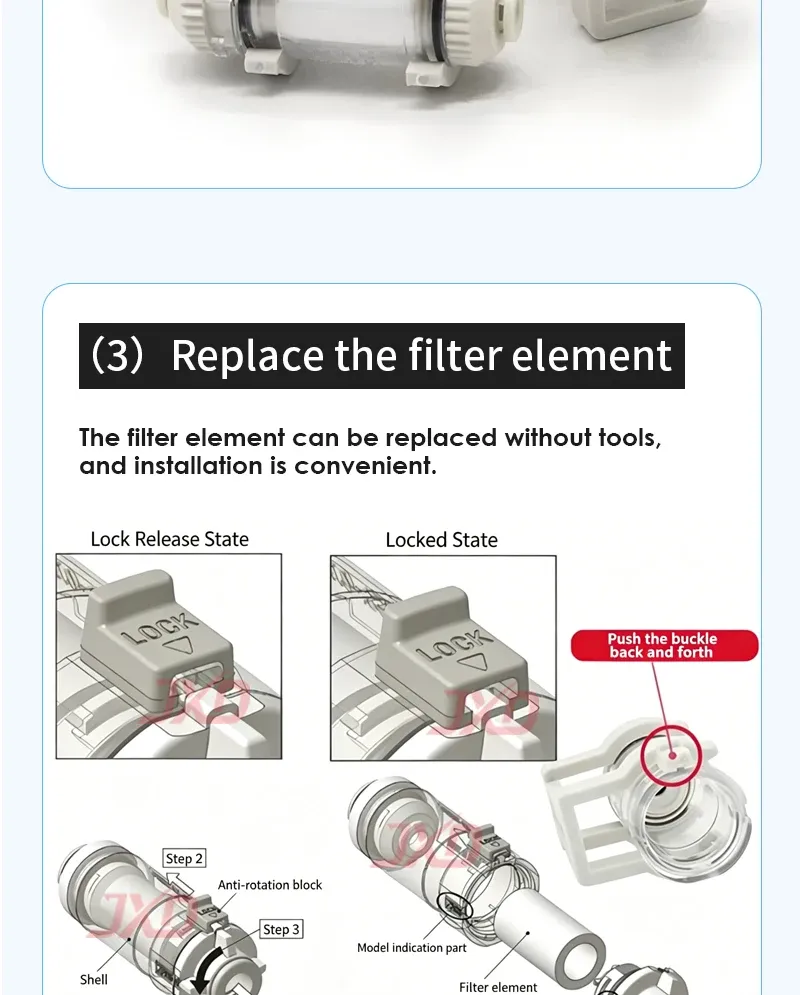

1. Superior filtration performance The resin fiber filter element with 10 um precision and 95% filtration efficiency effectively captures vacuum impurities and fully protects the vacuum generator from damage. 2. Easy filter replacement Simply turn the knob counterclockwise to open the cover - no complex tools required, ensuring quick and convenient maintenance of the filter element. 3. Wide compatibility Suitable for air and nitrogen fluids, compatible with nylon hoses, soft nylon hoses, polyurethane hoses and ultra-soft polyurethane hoses. Available for hoses with an outer diameter of 4/6/8/10/12 (mm, confirm the unit if necessary) to meet diverse installation needs. 4. Stable and reliable operation A wide operating temperature range (0~60 °C) and pressure adaptability (working pressure -100~0 kPa, ambient and fluid pressure 1.5 MPa), plus a filter element differential pressure resistance of 0.15 MPa, ensure stable performance in various industrial environments. 5. Customization support Non-standard customization is available to adapt the filter to your specific application requirements, providing flexible solutions for unique system configurations.
