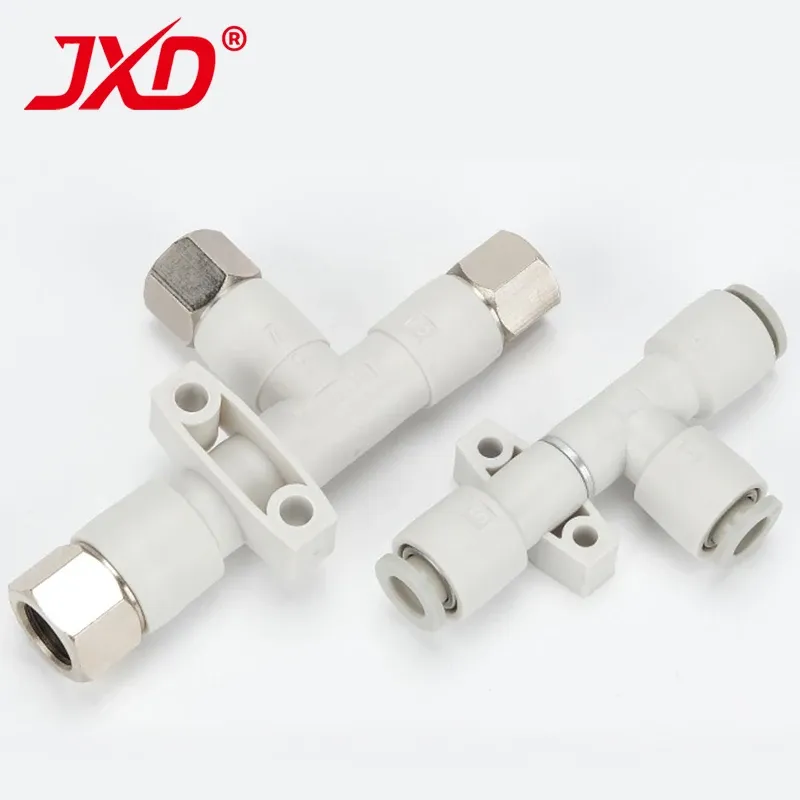

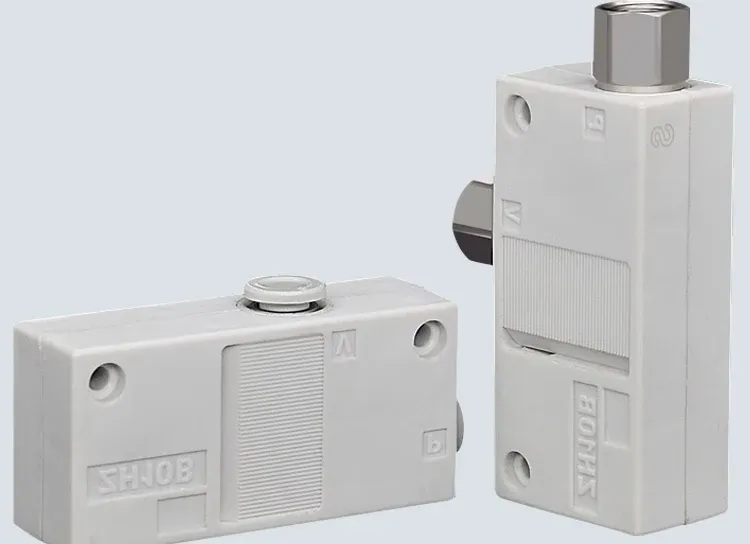

pneumatic vacuum generator

Specifications

Brand name

No

Origin

China

Type

Source purification device

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

AQ Quick Exhaust Valve

Material

PBT High-Strength Plastic

Shape

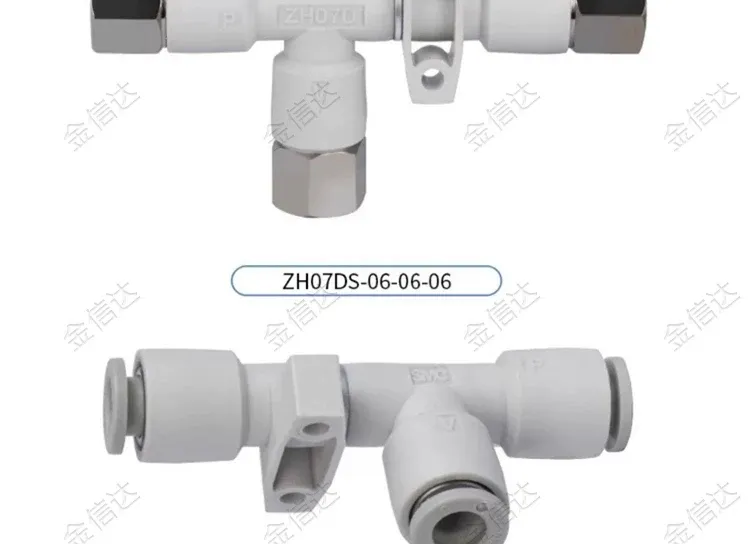

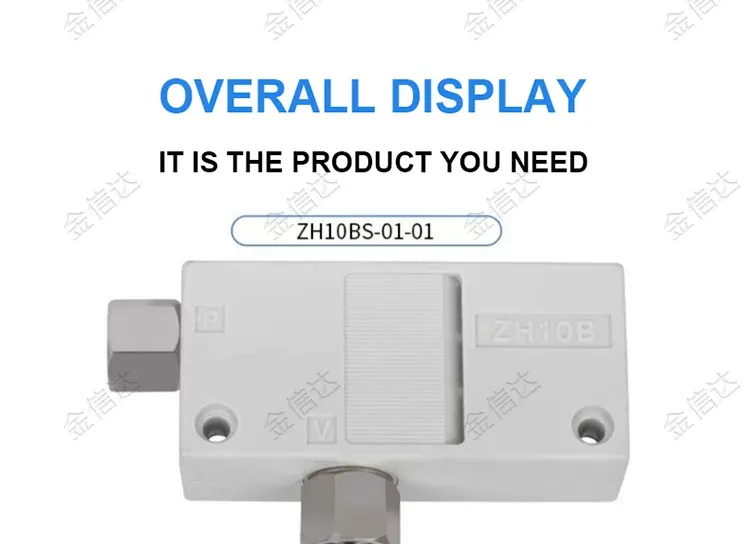

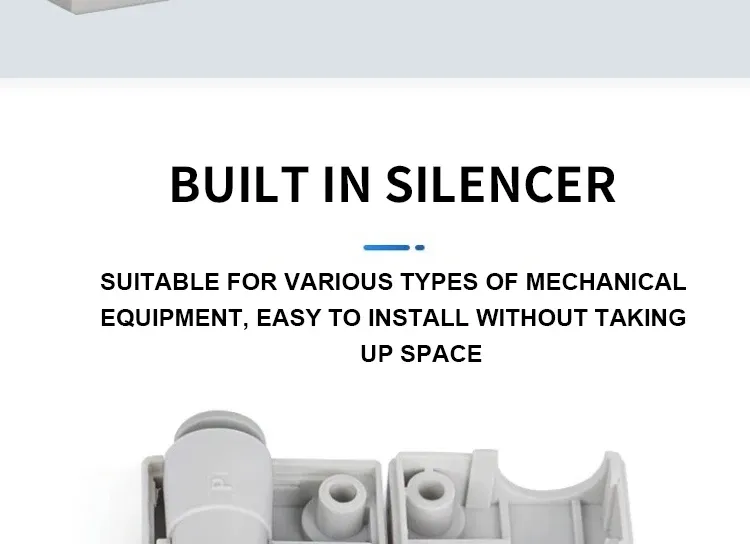

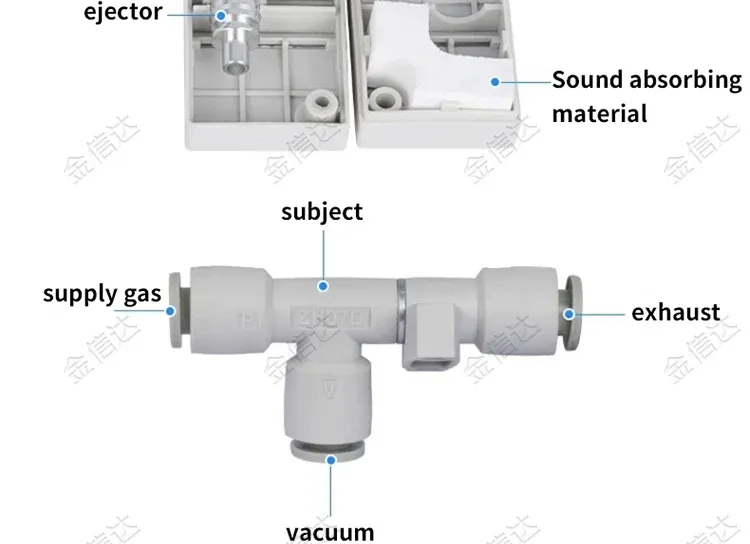

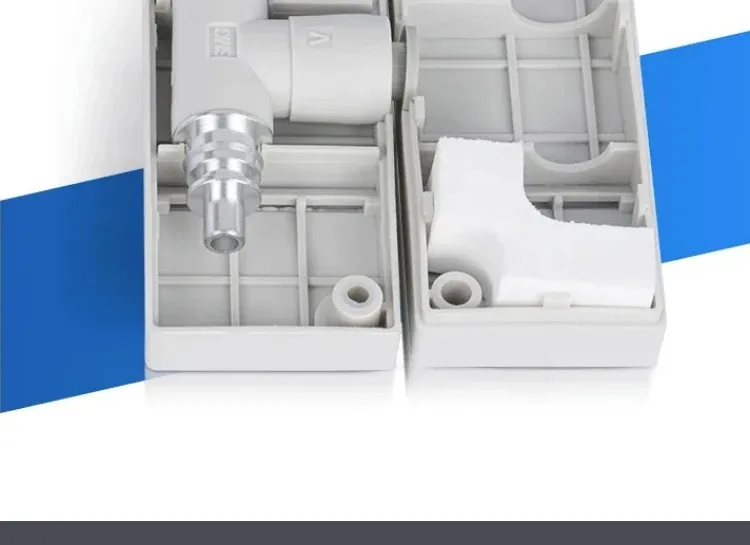

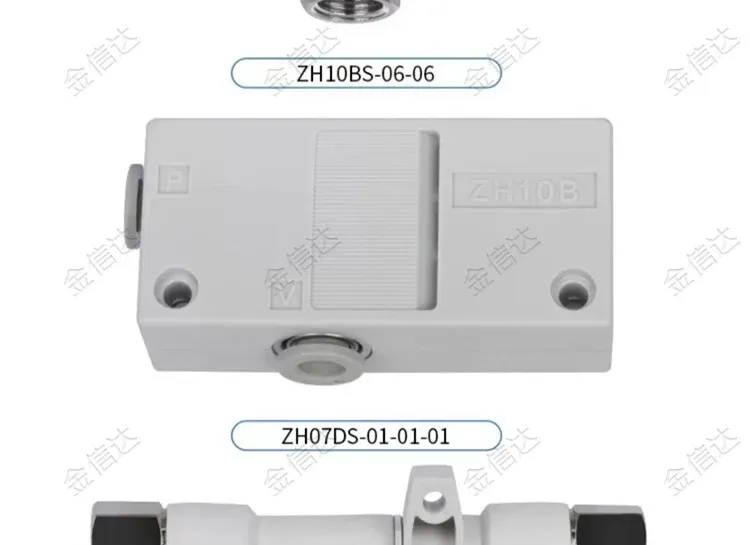

Type D (Direct Piping, No Muffler); Type B (Box-Type, Built-in Muffler)

Performance

Type S (High Vacuum); Type L (Large Flow Rate)

Type S (High Vacuum)

Maximum Vacuum Degree of -88 Kpa

Type L (Large Flow Rate)

Maximum Vacuum Degree of -48 Kpa

Nozzle Diameter

0.5/0.7/1.0/1.3/1.5/1.8/2.0 mm

Application Scenarios

Suitable for various air pipelines, pneumatic tools, and automated equipment

Customization Availability

Non-standard customization is supported

Description

1. Dual shape and performance options: choose type D (direct piping, no muffler) or type B (box type with built-in muffler); type S (high vacuum, -88 kPa) or type L (large flow, -48 kPa) for targeted needs. 2. Specifications adapted to scenarios: type S excels at airtight handling of flat workpieces with high negative pressure; type L suits low-leakage scenarios with stable suction flow. 3. Sturdy and reliable construction: made of high-strength PBT plastic, ensuring long-term use in industrial pneumatic systems. 4. Flexible compatibility: multiple nozzle diameters (0.5, 0.7 mm) suit various air pipelines, pneumatic tools and automated equipment. 5. Easy installation and operation: the 360-degree rotating muffler connection port simplifies air tube installation; intuitive cylinder speed adjustment. 6. Efficient exhaust solution: solves exhaust airflow smoothness problems, directly improving overall work efficiency. 7. Customization support: non-standard customization is available for thread, size or specific performance requirements.
