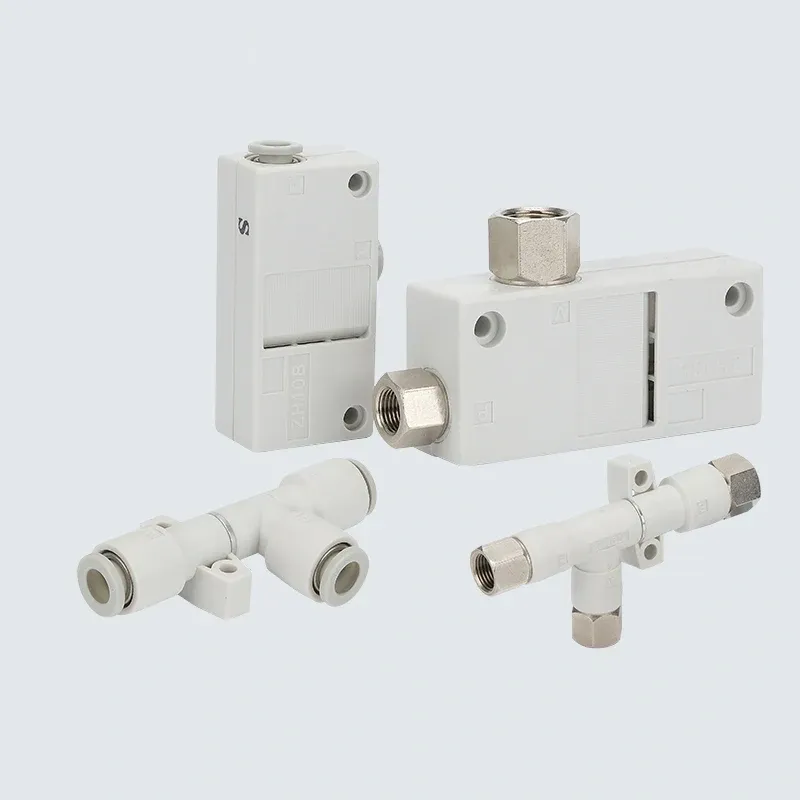

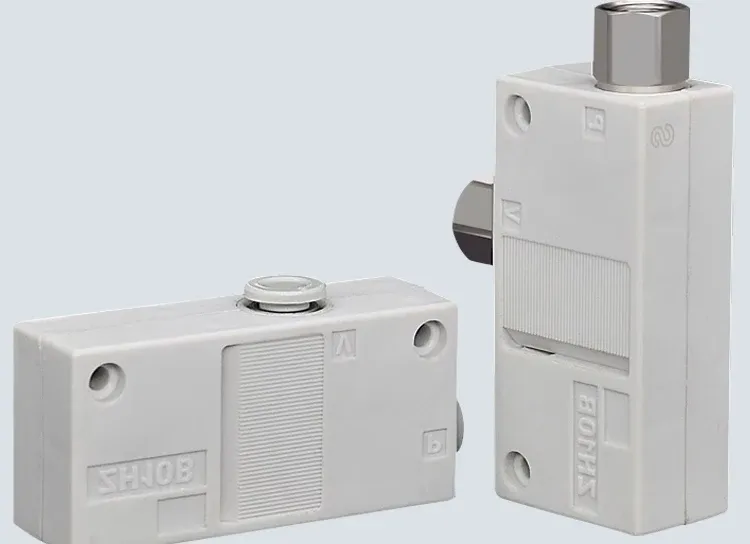

ZH series pneumatic vacuum generator

Specifications

Brand name

No

Origin

China

Type

Source purification device

Power type

Hydraulic fluid

Unit of measurement

pcs

Quantity

1

Product Name

ZH Box-Type Vacuum Generator

Material

Resin Housing

Temperature Range

-5~50°C

Pressure Medium

Air

Accuracy Class

0.1~0.6Mpa

Applicable Pipe Materials

FEP / PFA / Nylon / Soft Nylon / Polyurethane

Nozzle Diameter

0.5 / 0.7 / 1.0 / 1.3 / 1.5 / 1.8 / 2.0

Description

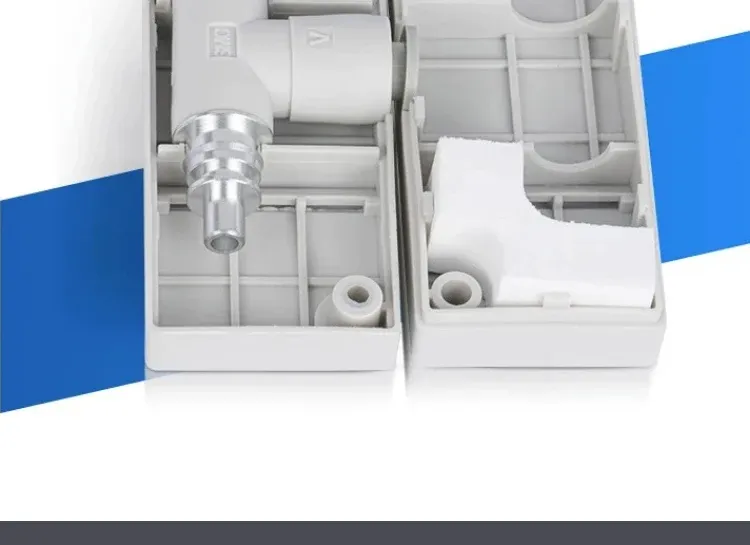

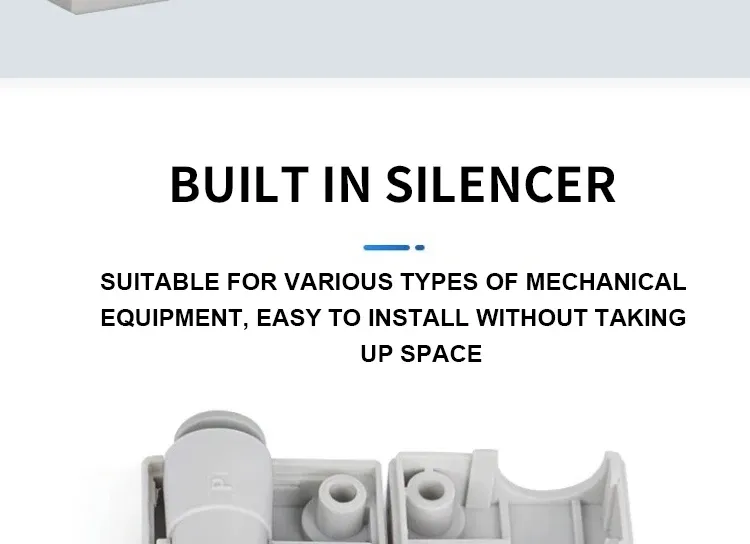

1. Increased operational stability: the built-in silencer not only reduces operating noise but also optimizes internal airflow, ensuring stable vacuum performance and long-term operational stability. 2. Airtight compact construction: the streamlined and tight design minimizes air leakage caused by component loosening, significantly reducing the risk of malfunction and increasing reliability in continuous operation. 3. Durable resin body: the polymer material offers superior corrosion resistance and lightweight properties, simplifying installation and withstanding harsh industrial conditions, with a wide temperature range of -5 ~ 50 °C for universal use. 4. Precise pressure control: has an accuracy class of 0.1-0.6 MPa, providing precise vacuum regulation to meet the requirements of sensitive industrial applications (e.g. small part handling, electronics assembly). 5. Wide tube compatibility: compatible with multiple tube materials (FEP/PFA/nylon/soft nylon/polyurethane), ensuring smooth integration into existing industrial air systems without additional modifications. 6. Universal nozzle options: 7 nozzle diameter options (0.5/0.7/1.0/1.3/1.5/1.8/2.0 mm) allow it to be configured according to specific vacuum flow and pressure requirements, adapting to various application scenarios. 7. Air-focused efficiency: specialized in air as the pressure medium, it optimizes vacuum generation efficiency with minimal energy consumption - ideal for pneumatically driven automatic production lines. 8. Compact box-type design: the compact box construction saves installation space, making it suitable for equipment with limited layout room while maintaining reliable operation.
