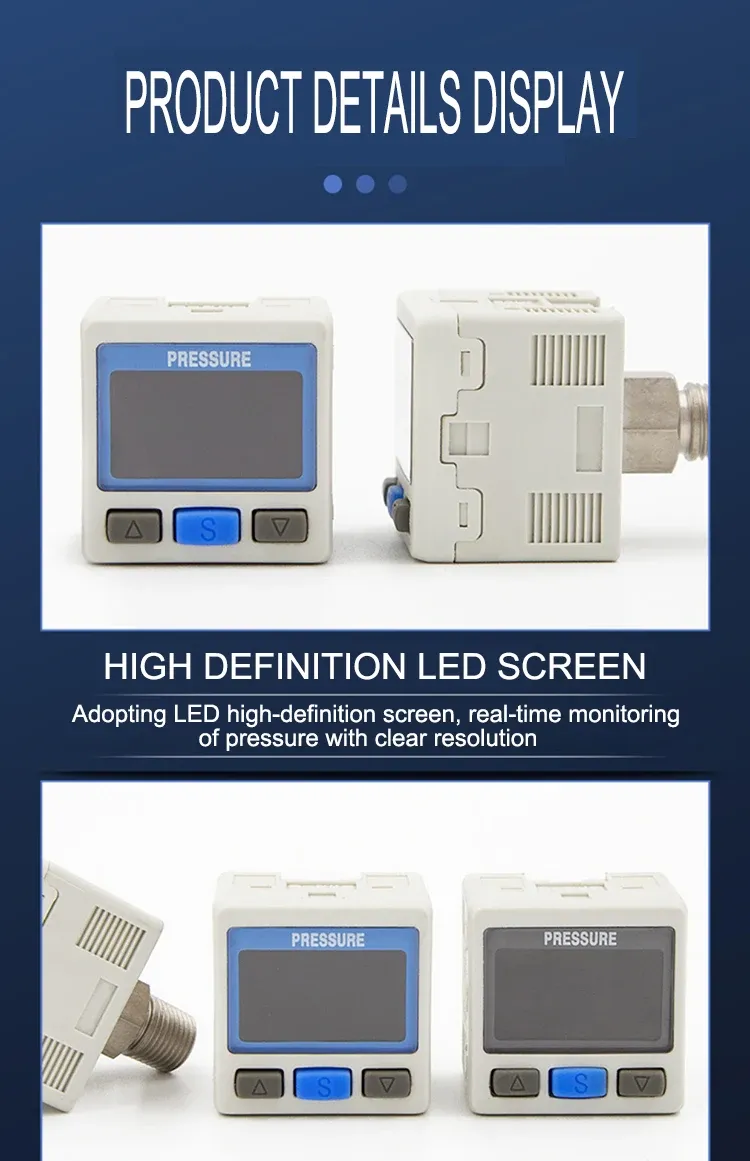

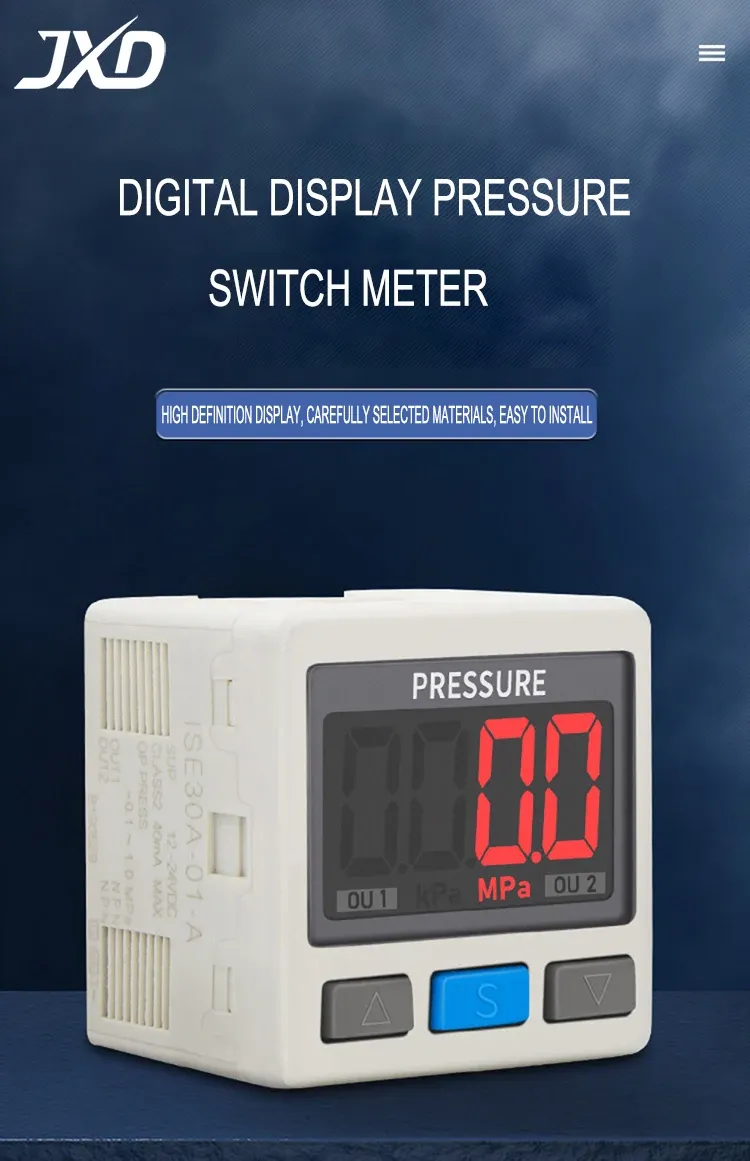

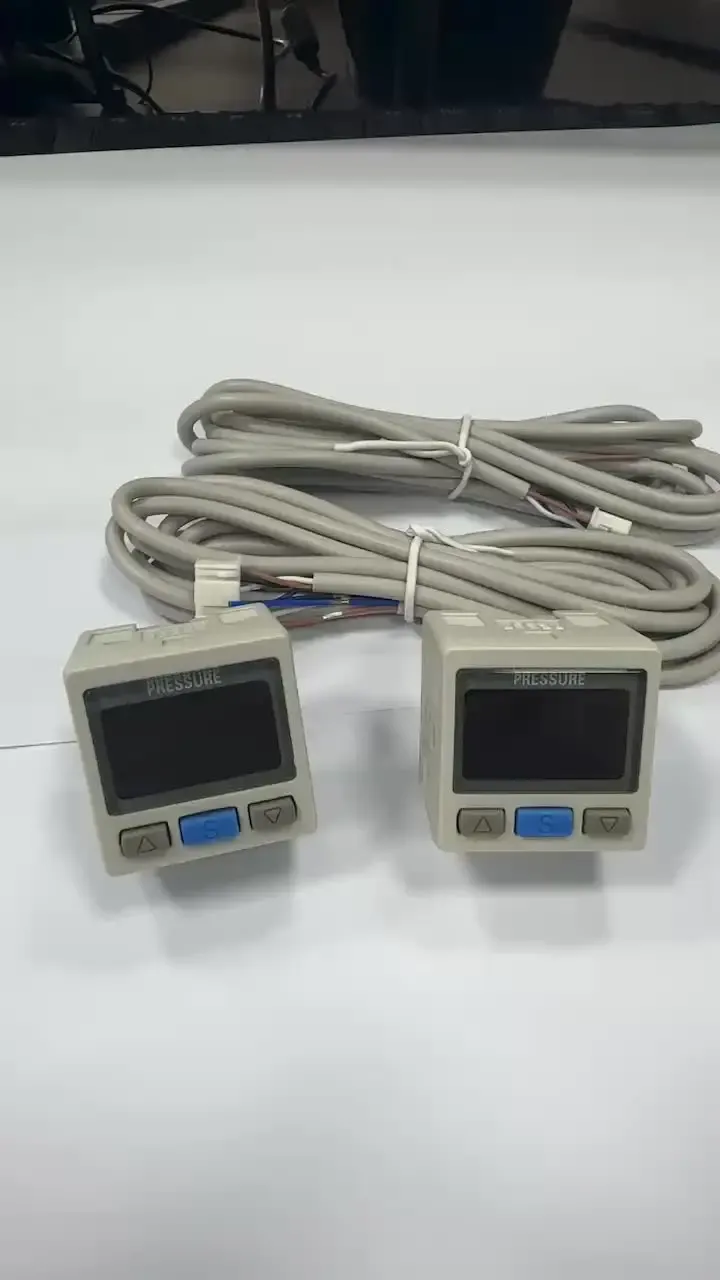

ISE30A-01-N-L digital vacuum gauge
SKU: 1005006388084632 · 52 reviews · 319 sold
1,169 ₽
In stock
Video
Specifications
- Brand name
- No
- Origin
- China
- Type
- Actuator
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1
- Product Translation
- Electronic Digital Display Pressure Switch
- Product Name
- Electronic Digital Display Pressure Switch
- Material
- Resin (Die-Cast Molding)

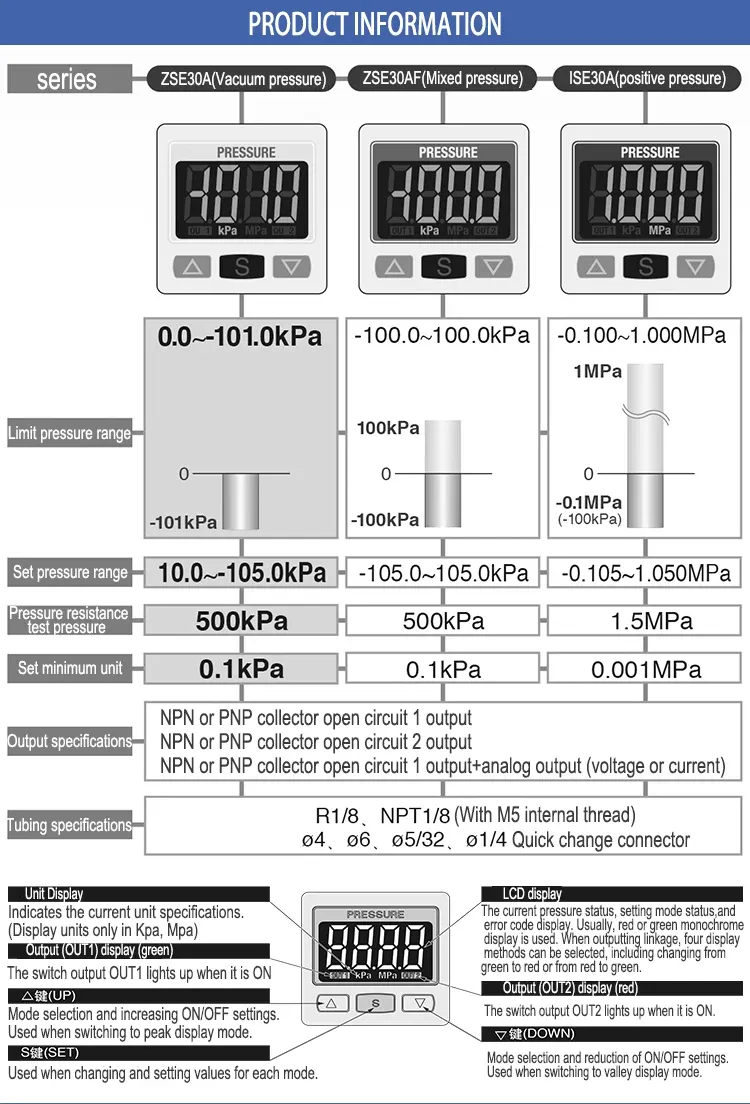

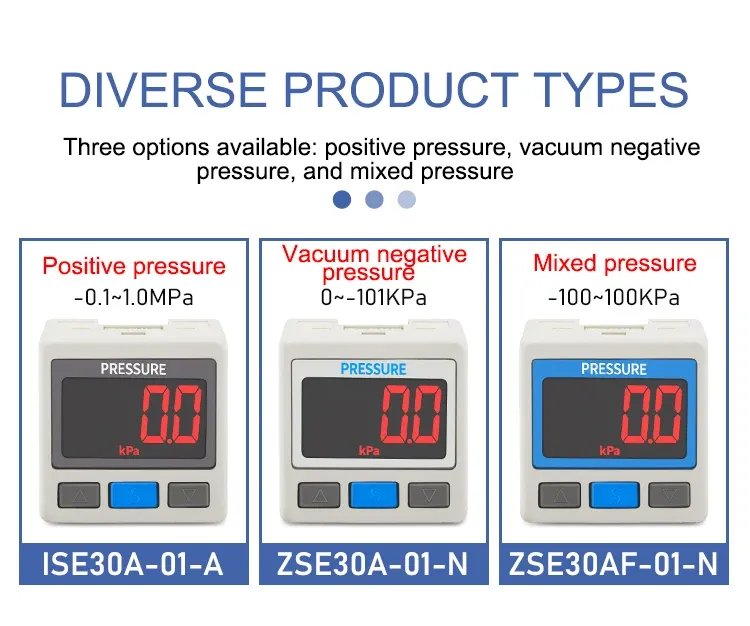

- Positive Pressure
- -0.1~1.0 MPA
- Vacuum Negative Pressure
- 0~101 KPA
- Mixed Pressure
- -100~100 Kpa

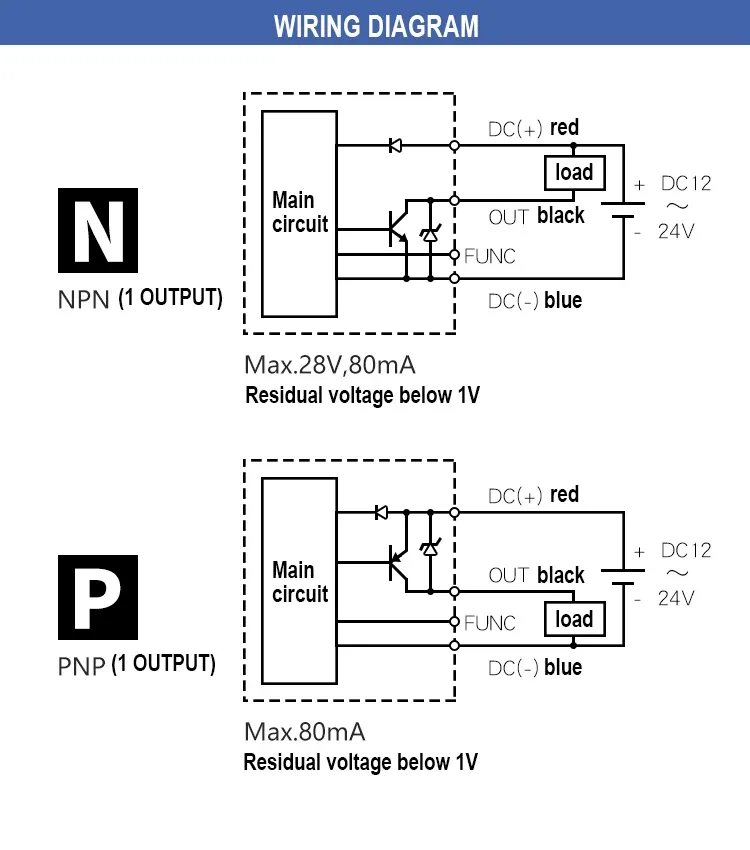

- Red Wire
- Positive Terminal Input of Power Supply
- Black Wire
- Switch Output Signal
- Blue Wire
- Negative Terminal Input of Power Supply
- Applicable Fluid
- Air
- Suitable Pipe Materials
- Nylon, Soft Nylon, Polyurethane
- Operating Pressure Range
- 0.1~0.6 Mpa
- Maximum Operating Pressure
- 7 bar
- Standard Operating Pressure
- 4.5 bar
- Suitable Pipe Outer Diameter
- 6 mm
