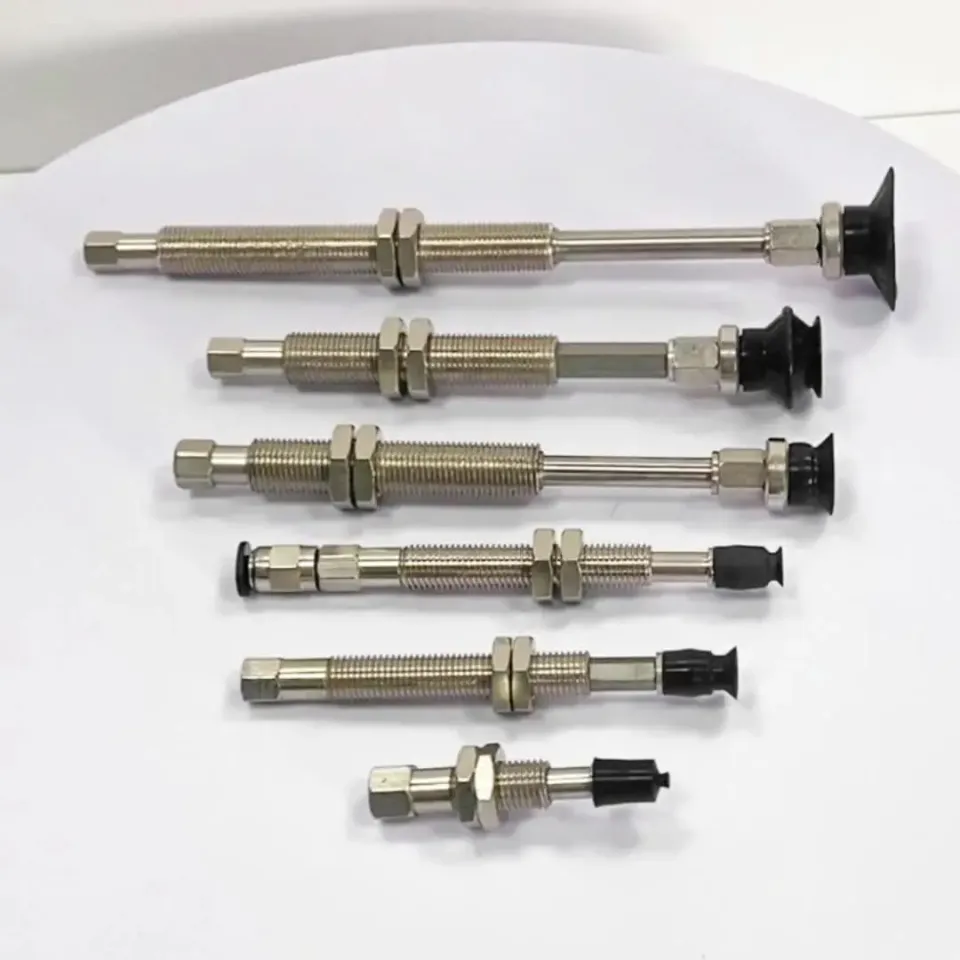

ZPT10 brass pneumatic suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

ZPT Series Buffer Suction Cup Bracket

Material

Nickel-Plated Copper

Type

Top Air Inlet

Rotation Mode

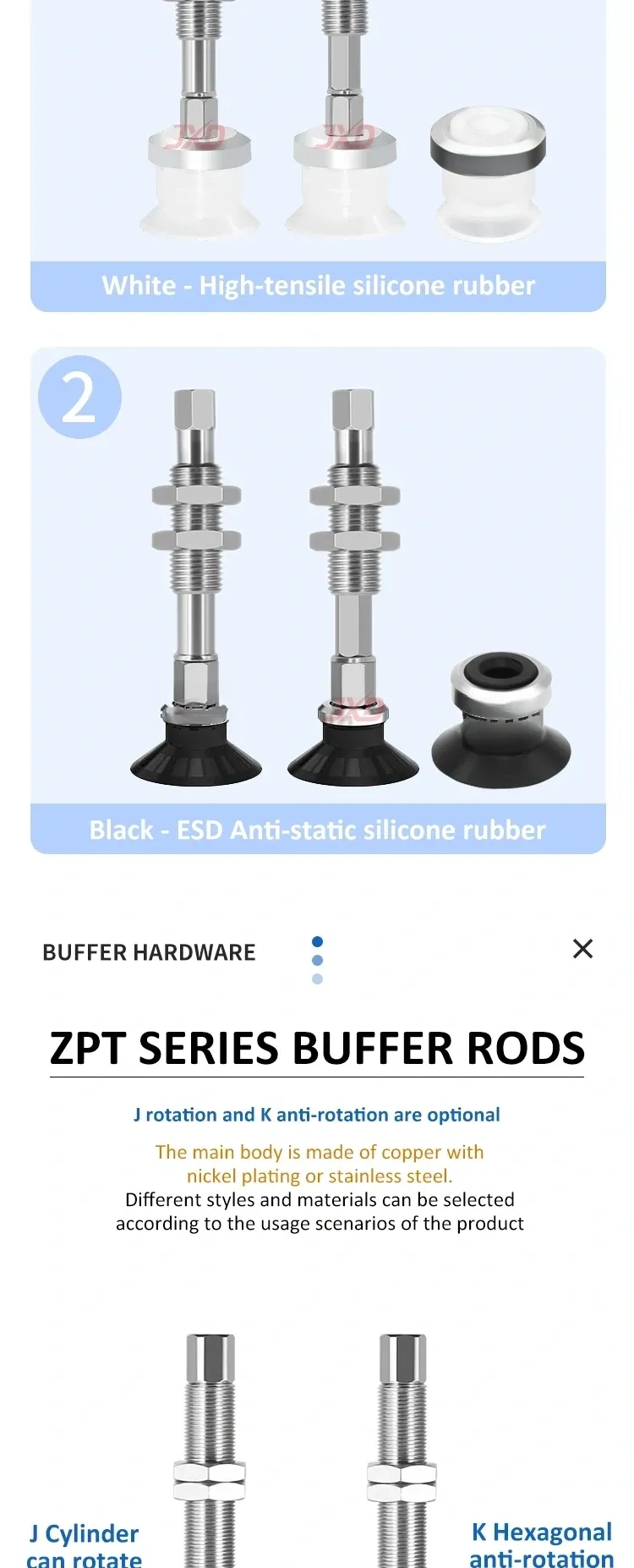

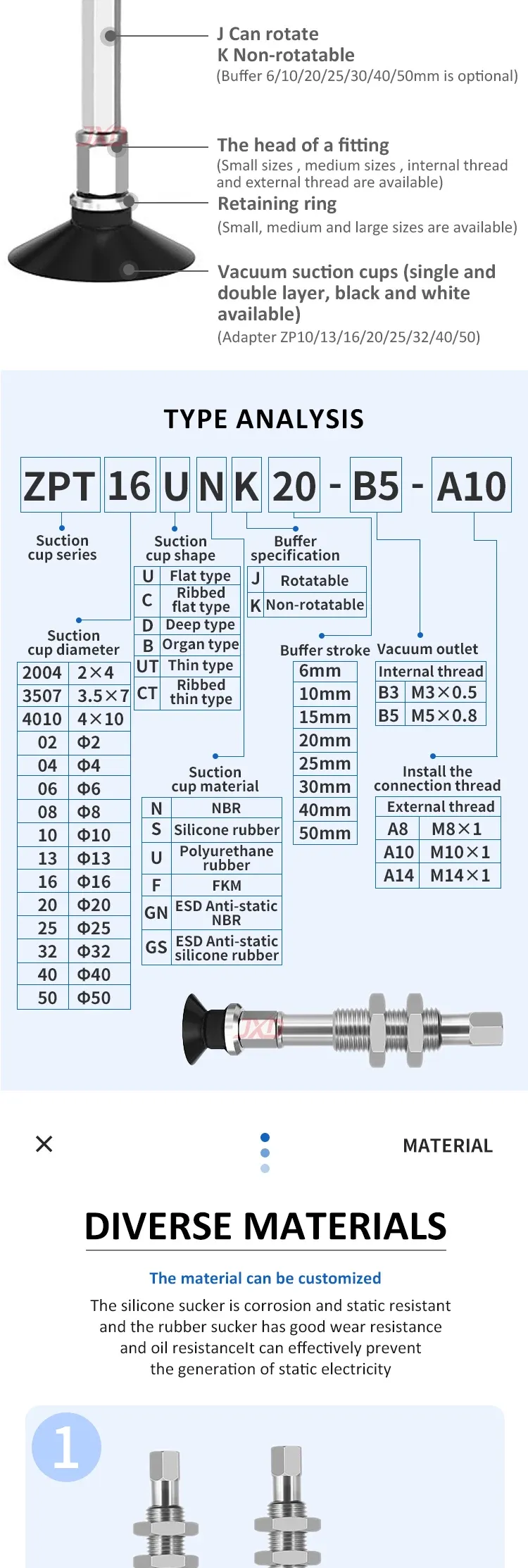

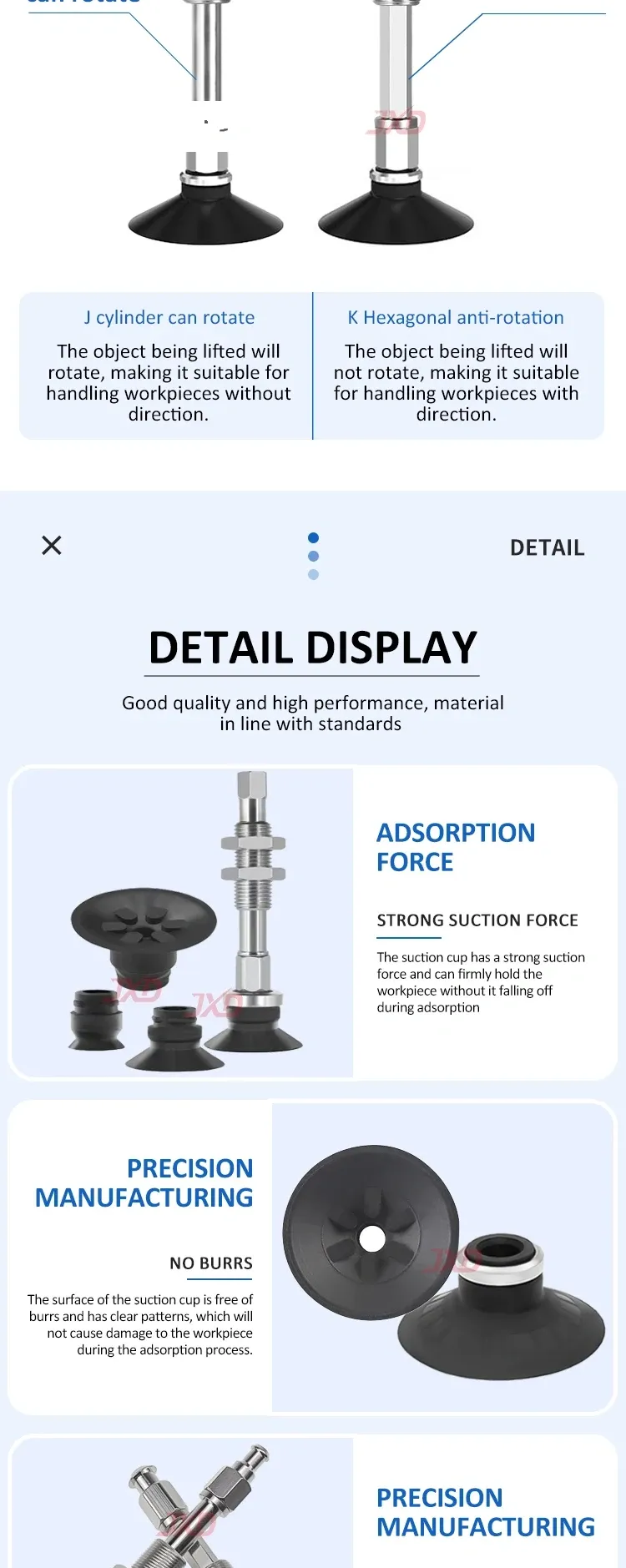

K (Non-Rotatable), J (Rotatable)

Compatible Suction Cups

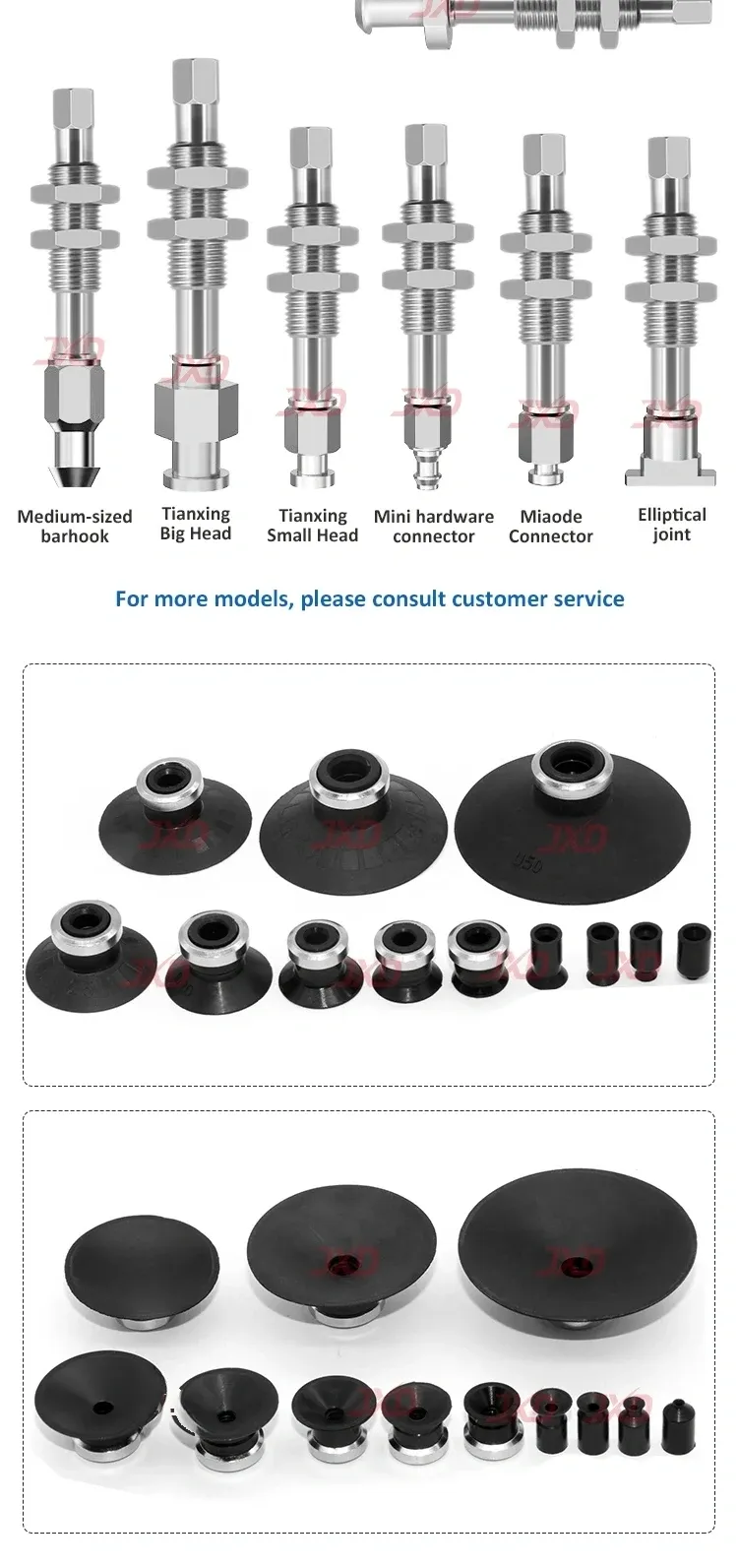

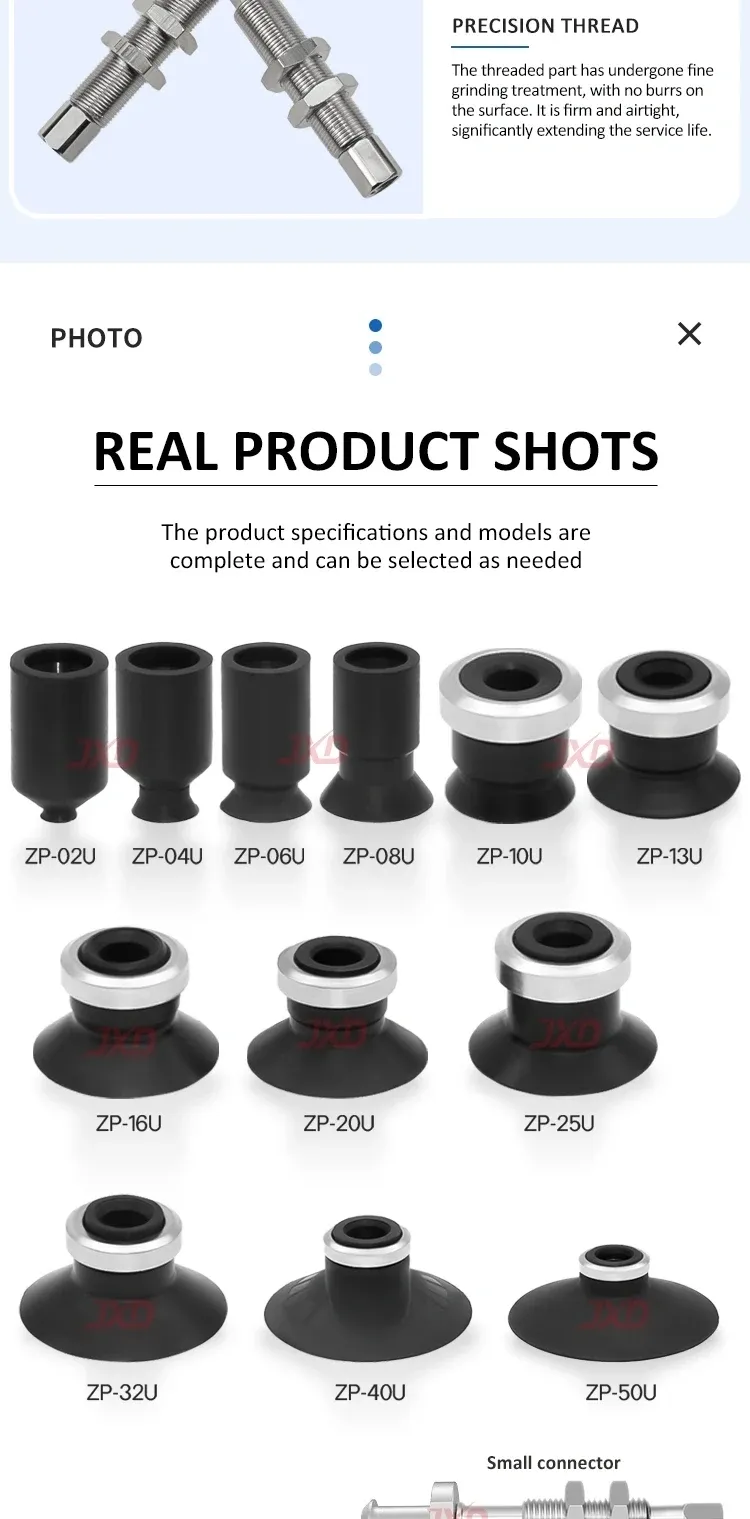

ZP-B, ZP-C, ZP-U, ZP-D series; Tianxing large-head and small-head suction cups

Compatible Diameter

2 / 4 / 6 / 8 / 10 / 13 / 16 / 20 / 25 / 32 / 40 / 50 mm

Buffer Stroke

6 / 10 / 15 / 20 / 25 / 30 / 40 / 50 mm

Mounting Thread

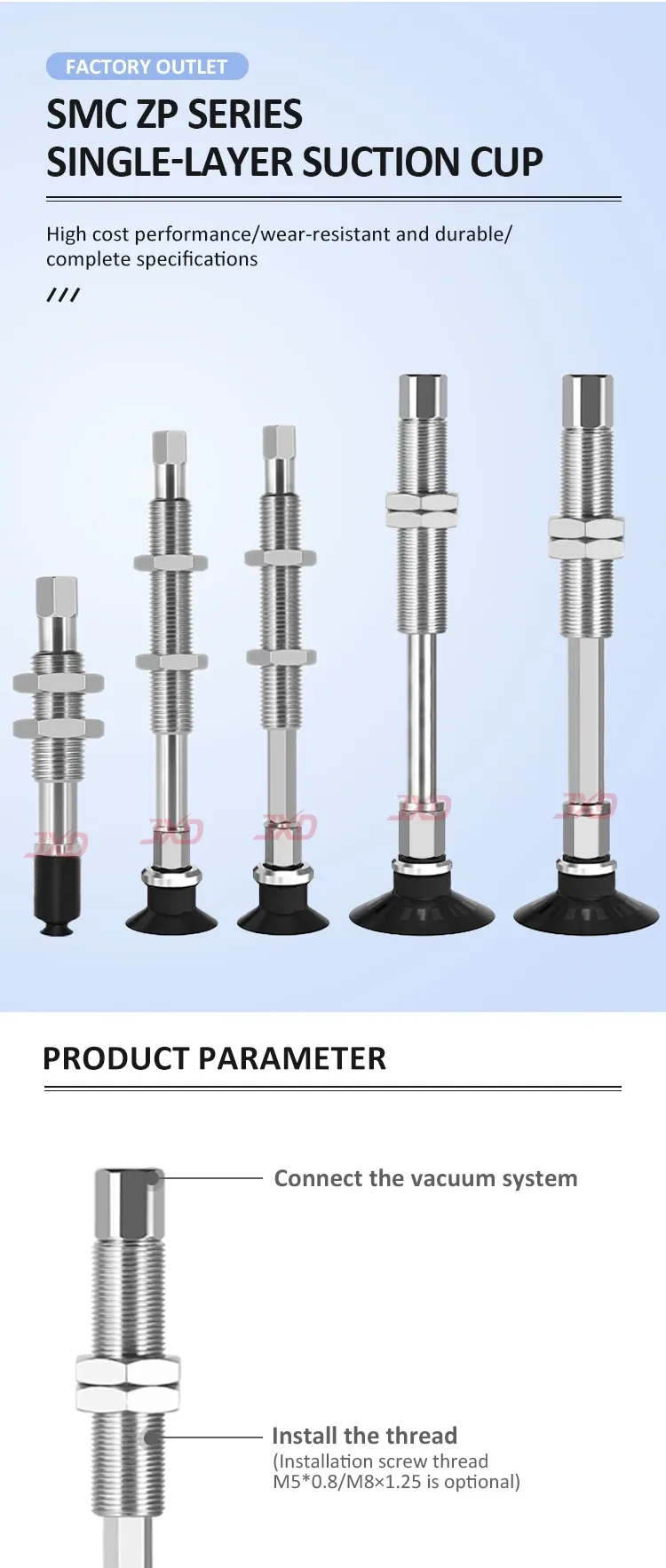

M10 / M8,External Threads M8*1, M10*1, M14*1

Customization Available

Non-standard customization supported

Description

1. Premium material and sturdy construction Nickel-plated copper with a 0.2 um nickel layer: excellent corrosion resistance, smooth surface and durability for stable performance in various conditions. Precision machining: thread without burrs, burr-free through-hole inner wall and smooth surface prevent suction cup damage, extending overall service life. 2. Superior fit and tightness Fits tightly to compatible suction cups, providing high air tightness - crucial for reliable vacuum gripping operations. Damage-free design protects the integrity of the suction cup, reducing replacement costs and downtime. 3. Universal compatibility and flexible configuration Wide compatibility: works with ZP-B/ZP-C/ZP-U/ZP-D series and Tianxing large/small head suction cups (diameter 2-50 mm), covering extensive application scenarios. Dual rotation modes (K: non-rotating / J: rotating) and multiple mounting threads (M8/M10/M14*1) for easy integration into various automation setups. 8 optional buffer strokes (6-50 mm) to adapt to different shock absorption needs during gripping. 4. Customizable solutions Non-standard customization is supported: custom diameter, buffer stroke, mounting specifications or coating to meet unique operational requirements.
