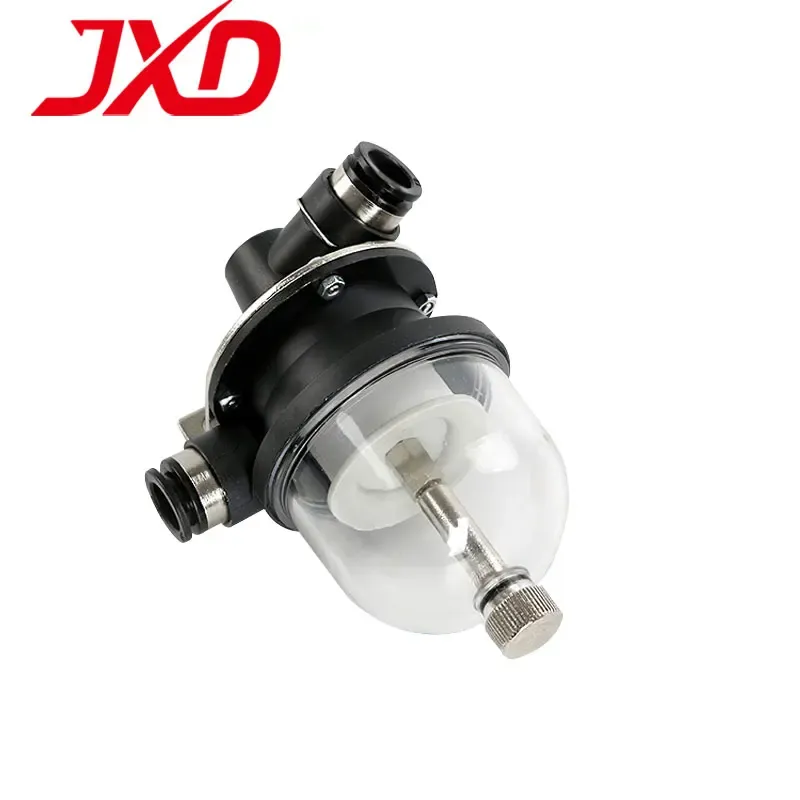

VFR20 pneumatic air filter

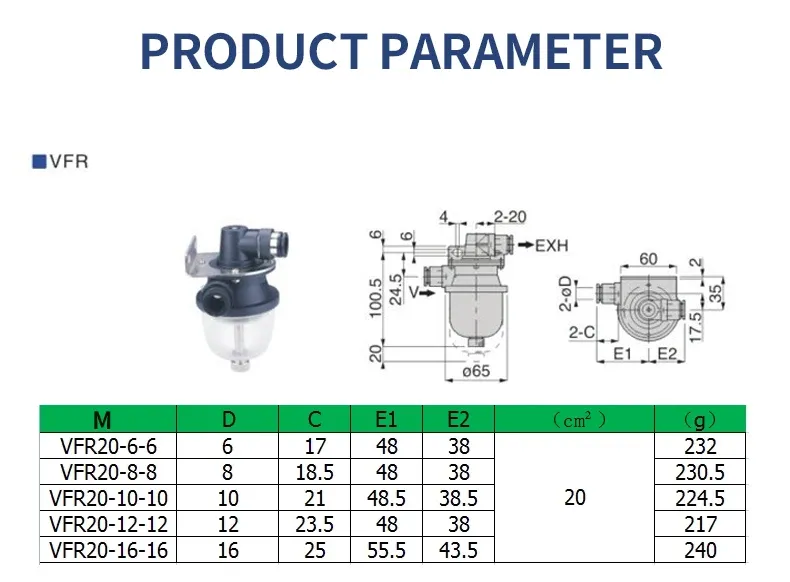

Specifications

Brand name

No

Origin

China

Type

Source purification device

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

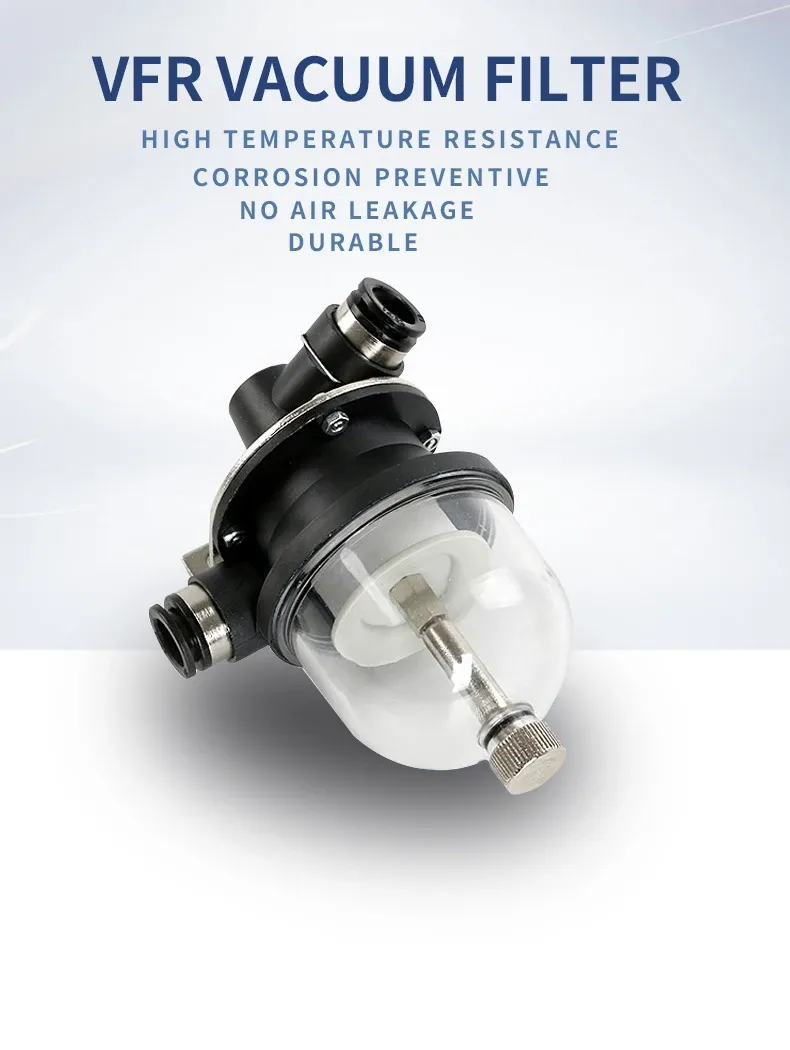

VFR Series Vacuum Filter

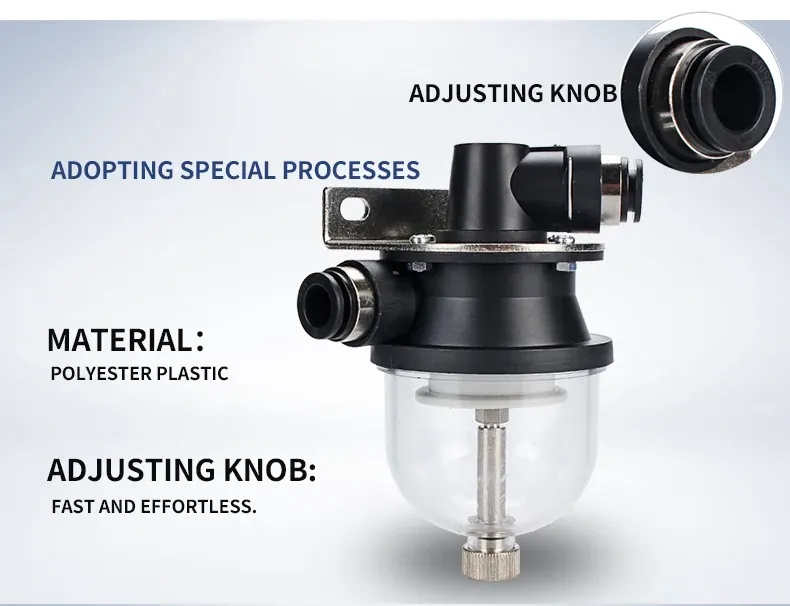

Material

Polyester Plastic

Filtering Area

20cm²

Maximum Operating Pressure

1MPa

Minimum Operating Pressure

0.1MPa

Ambient & Fluid Temperature

-50~60°C

Material of Hose Used

Polyurethane

Insertion Tube Diameter

6/8/10/12/16

Description

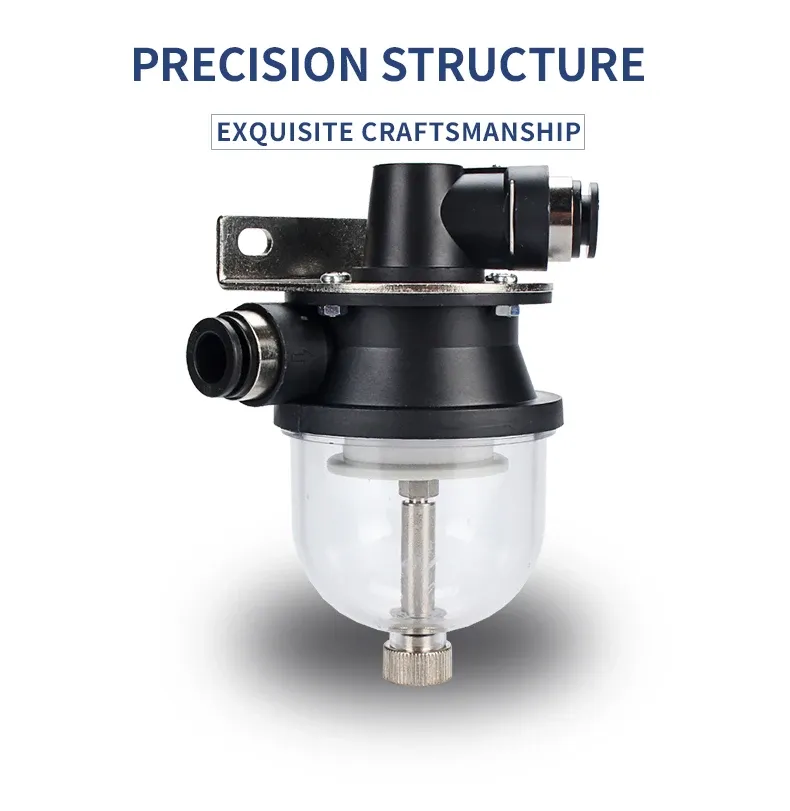

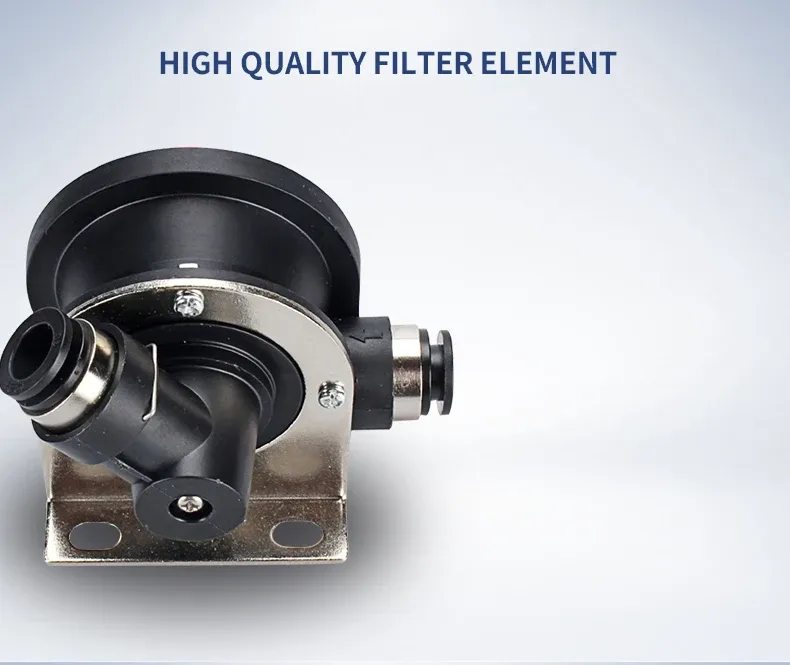

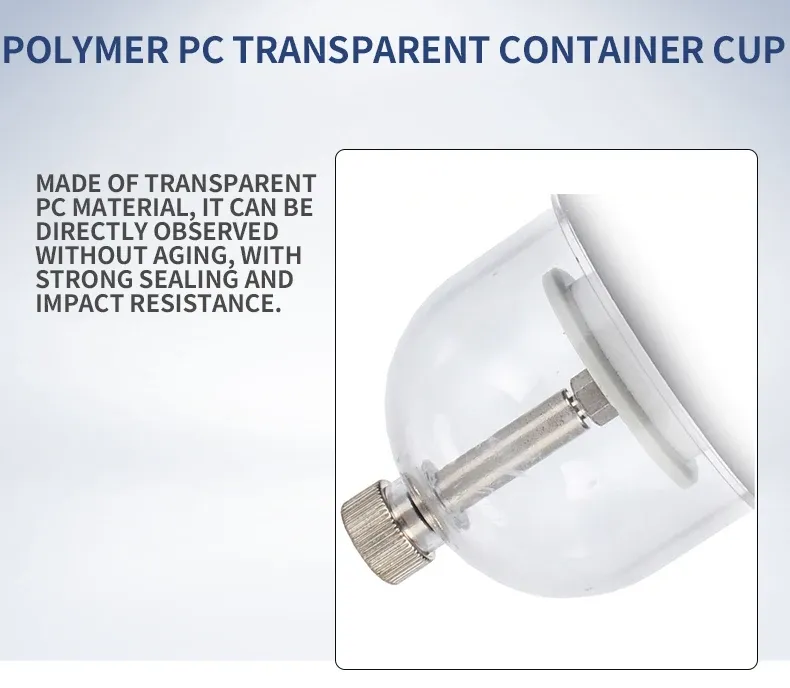

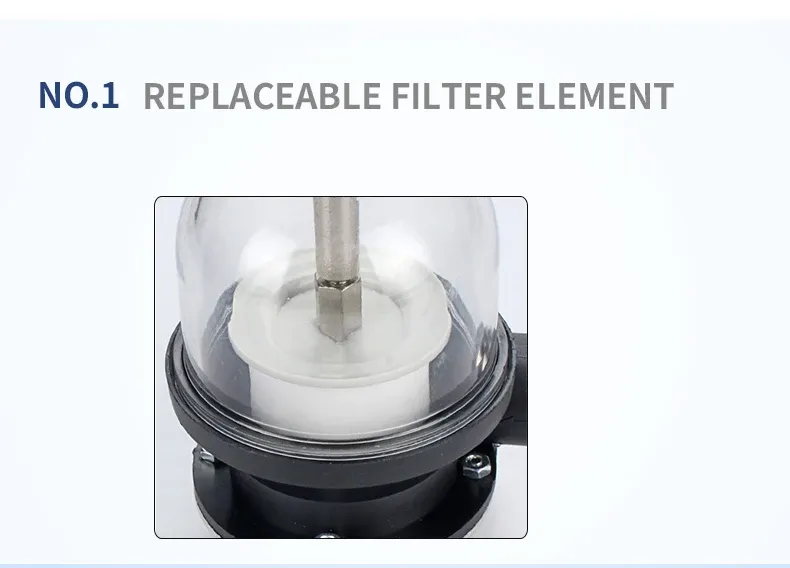

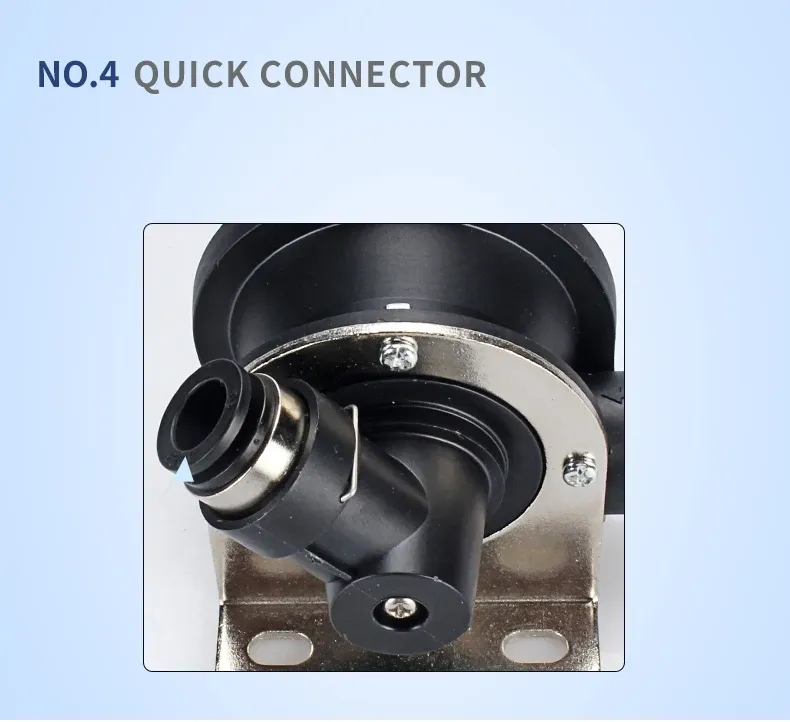

1. Superior structural durability: the one-piece molded polyester body combined with a transparent PC (polycarbonate) cup provides exceptional impact resistance, anti-aging characteristics and corrosion resistance, ensuring long-term reliability in harsh industrial environments. 2. High-efficiency filtration: equipped with a premium fiber filter element and a 20 cm2 filtration area providing 40 um filtration precision. Effectively traps impurities, debris and particles, keeping the air circuit clean and protecting downstream vacuum components from damage. 3. Wide pressure adaptability: operates stably in a pressure range of 0.1-1 MPa, compatible with most industrial vacuum and pneumatic systems - no additional pressure regulation devices are needed, ensuring smooth integration. 4. Extreme temperature resistance: withstands ambient and fluid temperatures from -50 to 60 °C, operating reliably both in low-temperature cold storage and in high-temperature workshops, expanding application versatility. 5. Compatibility with flexible hoses and tubes: designed for polyurethane hoses with 5 insertion tube diameter options (6/8/10/12/16 mm) to match various piping requirements, ensuring easy connection without material or size mismatch. 6. Transparent visual monitoring: the transparent PC cup allows real-time observation of the filter contamination level, facilitating timely replacement of filter elements and reducing maintenance downtime. 7. Compact design: the streamlined one-piece construction minimizes installation space, making it suitable for equipment with limited layout room while maintaining reliable filtration efficiency. 8. Economical protection: extends the service life of vacuum generators, valves and other downstream components by preventing impurity accumulation, reducing overall equipment maintenance and replacement costs. 9. Industrial-grade reliability: the polyester body and high-quality fiber filter element meet industrial standards of durability and filtration efficiency, ideal for automation, material handling, electronics and automotive manufacturing.
