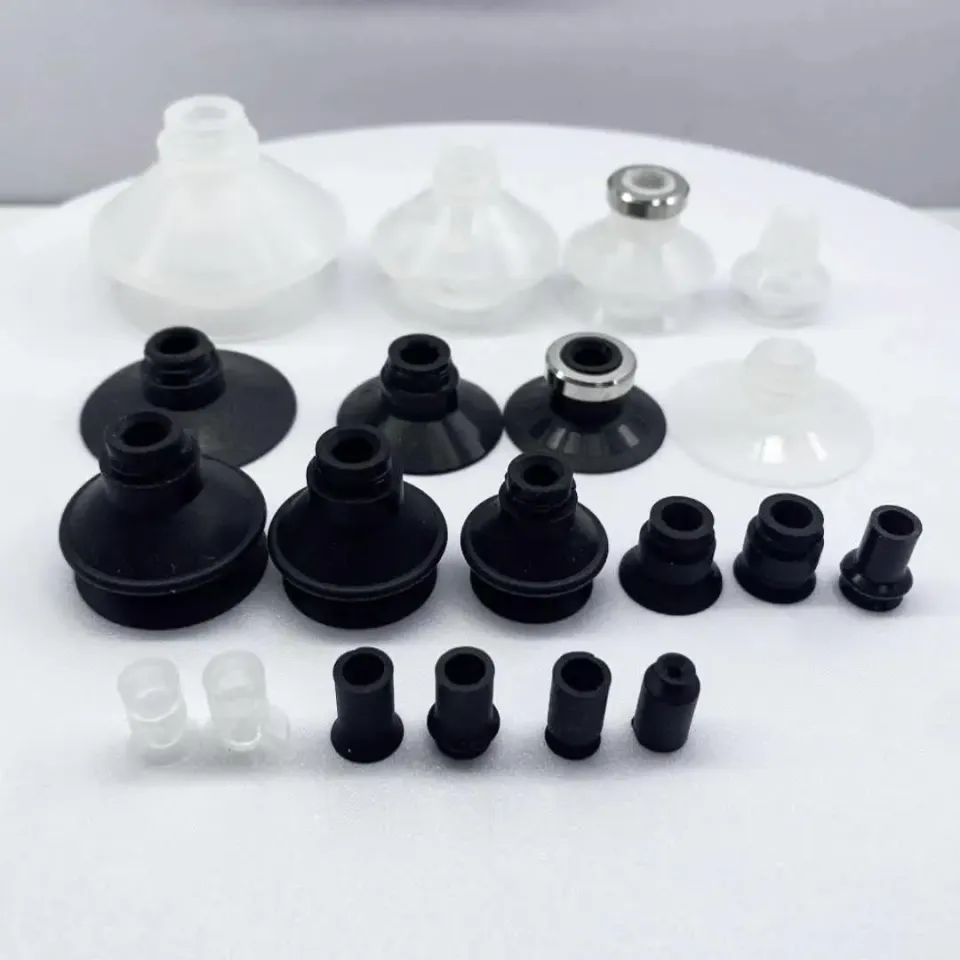

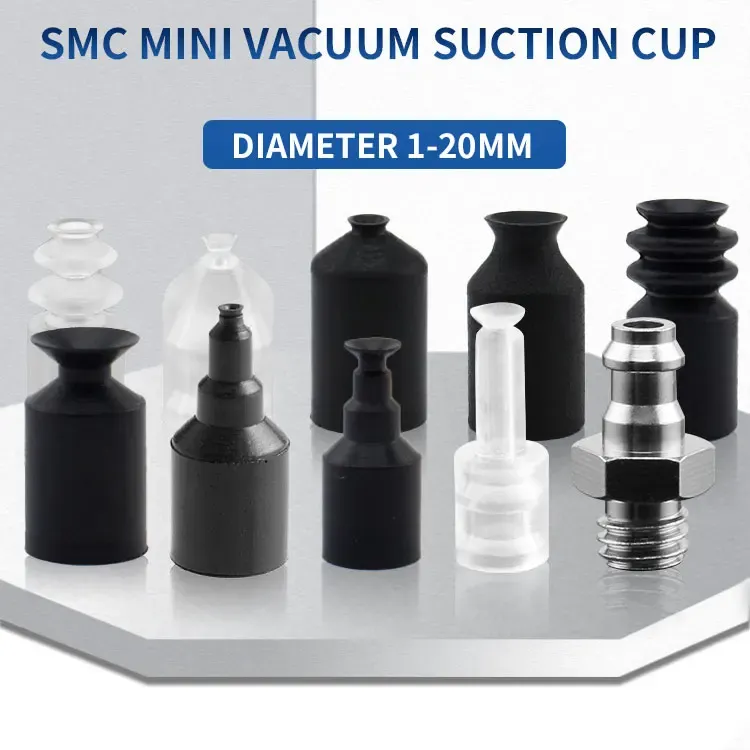

ZPT Black ESD anti-static silicone suction cup (ZPT10/13/16/20/25/32B-B5-A10) for industrial pneumatic manipulators

Specifications

Brand name

No

Model number

ZPL-04Vacuum sucker

Origin

China

Type

Seals

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

ZP Mini-Series Vacuum Suction Cups

Material

Black Nitrile Rubber / White Silicone

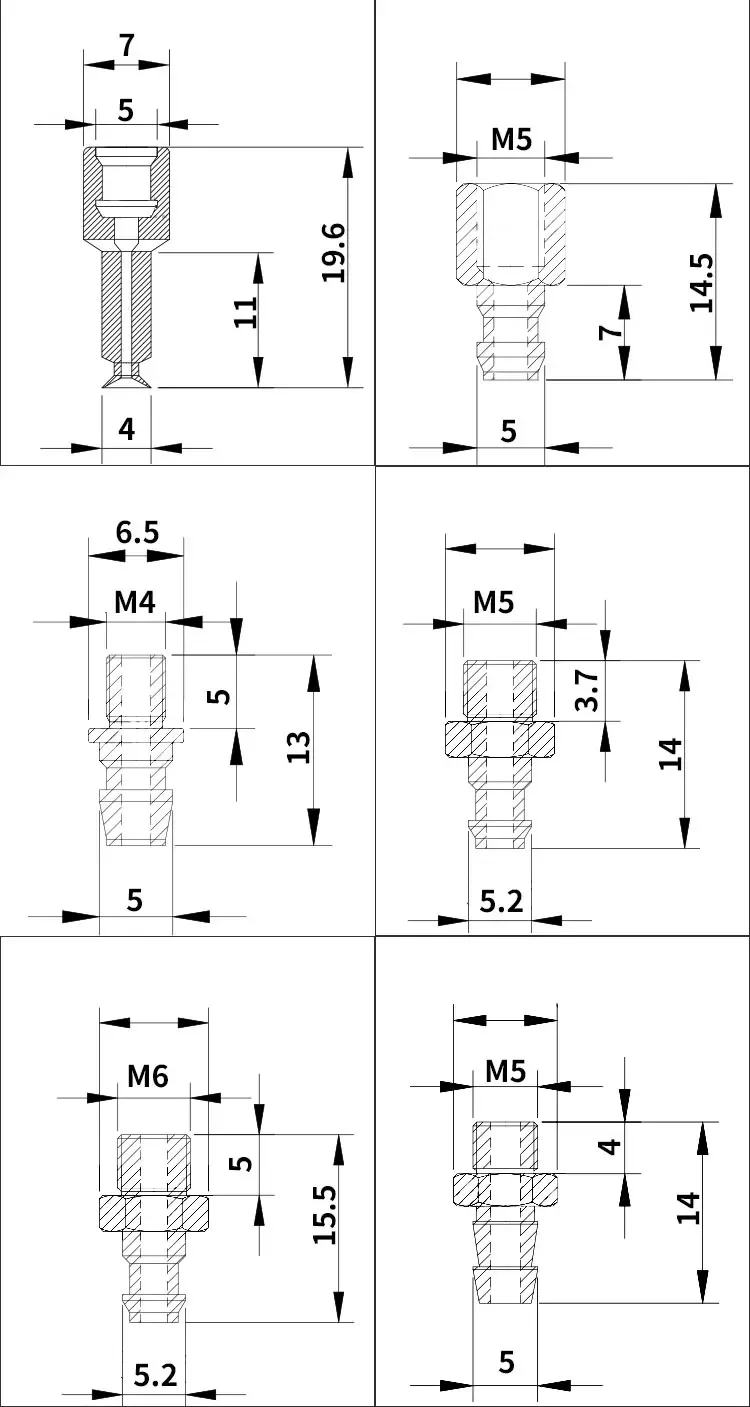

Mounting Thread

M5/M6/M8/M10/M14

Suction Cup Diameter

2-20mm

Customization Availability

Non-standard customization is supported.

Description

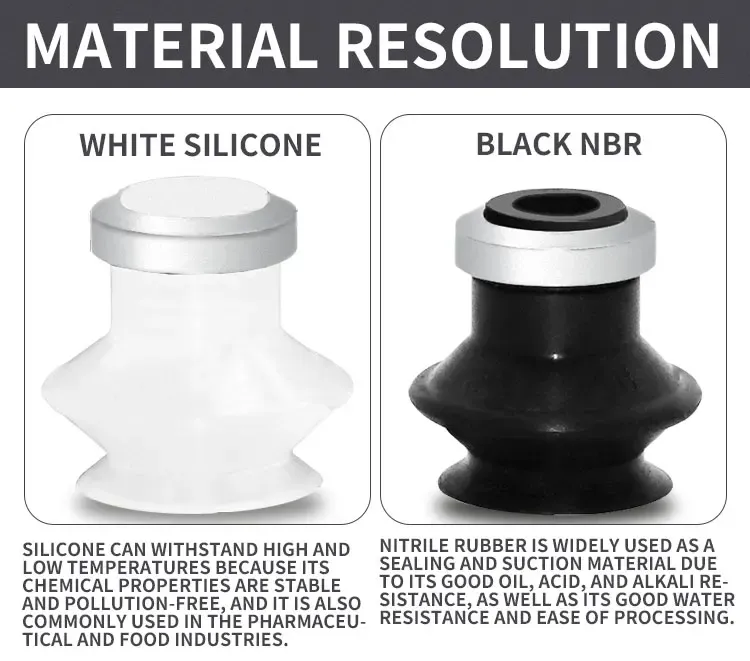

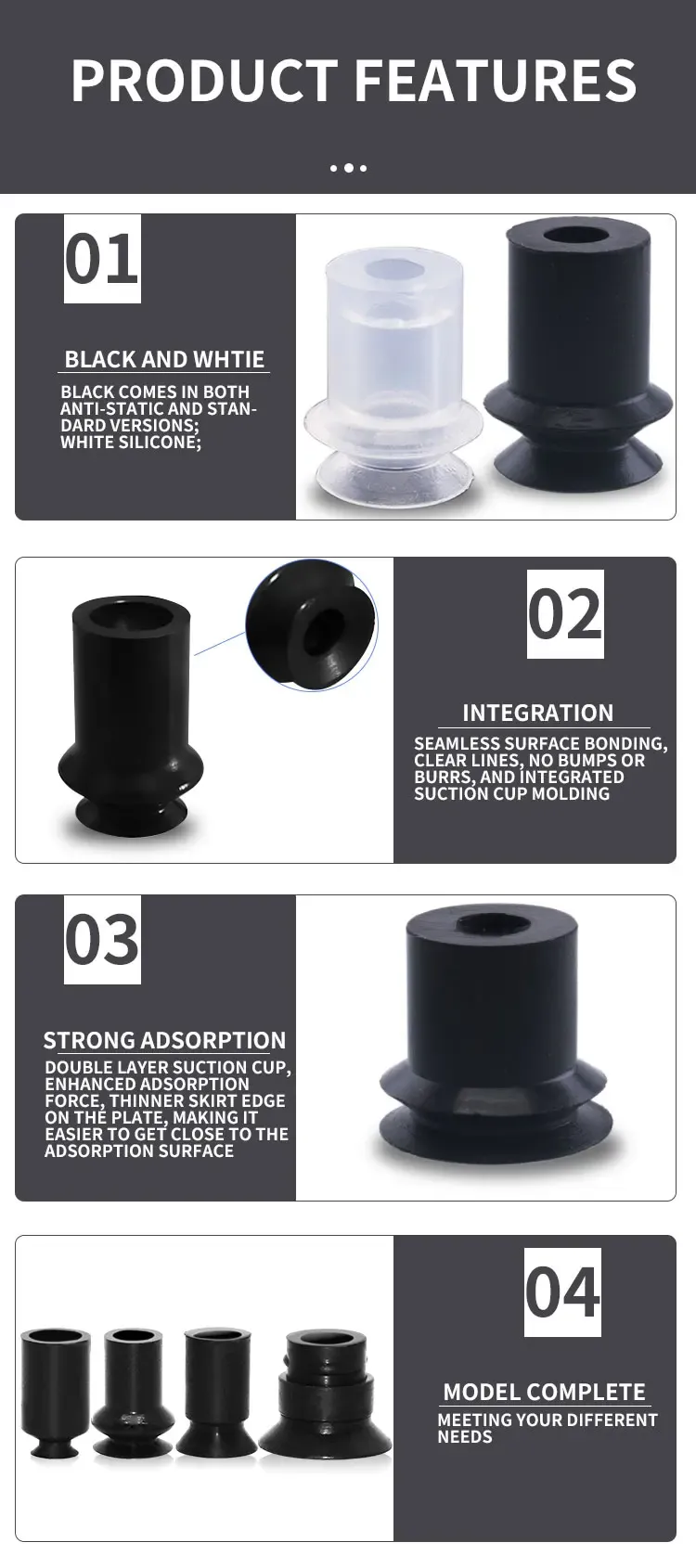

1. Dual high-quality material options: choose between black nitrile rubber (excellent oil/water resistance, wear resistance, anti-static properties, strong adhesion) and imported white silicone (wide temperature resistance, non-toxic, chemically stable - ideal for the medical/food industry). 2. Specialized anti-static model: the spark-free design ensures safe use in vacuum smelting, chemical machinery, pharmaceutical production and other sensitive industrial fields. 3. Precise and universal specifications: multiple mounting threads (M5/M6/M8/M10/M14) and suction cup diameters (2-20 mm) suit various installation needs and small-part handling. 4. Superior design: the ribbed base reduces tilting during transport, and the textured burr-free surface provides high tear strength without damaging workpieces such as IC chips. 5. Wide application and customization: ideal for handling small parts with flat surfaces; non-standard customization is supported to meet unique project requirements.
