Specifications
- Brand name
- No
- Model number
- BT/ZP
- Origin
- China
- Type
- Vacuum suction cup
- Power type
- Other
- Unit of measurement
- pcs
- Quantity
- 1

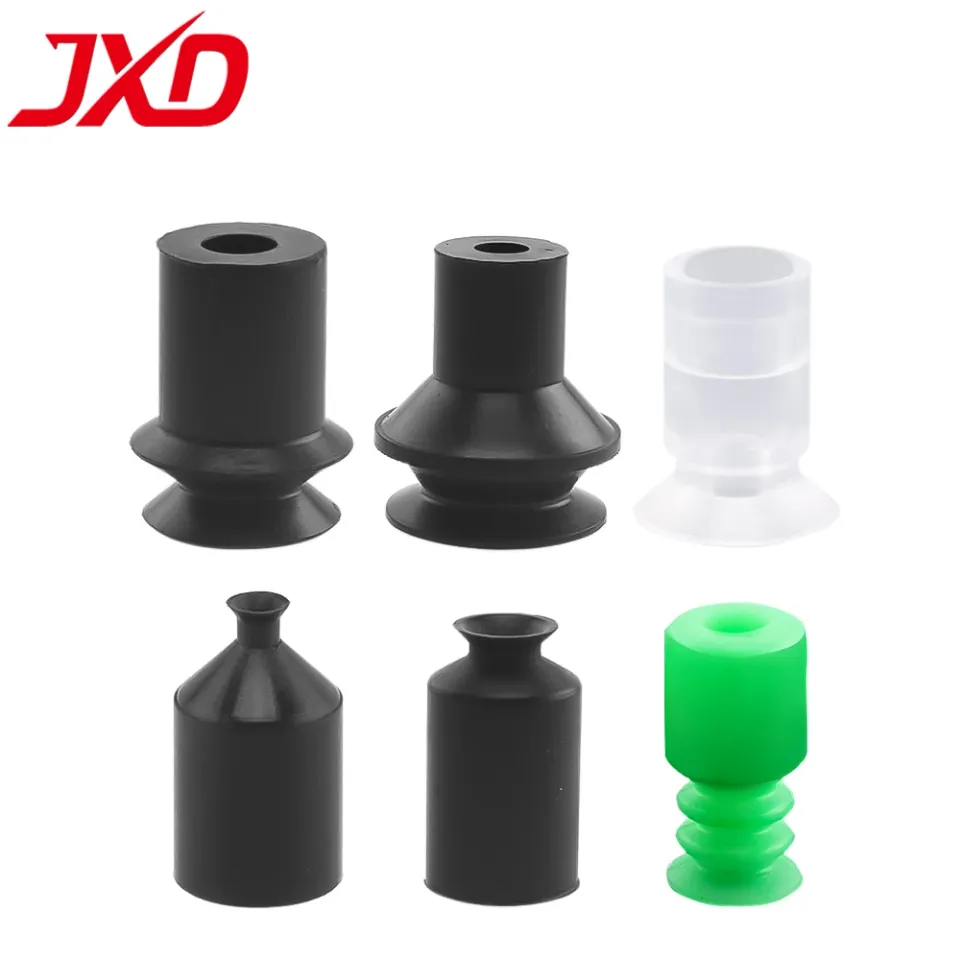

- Product Name
- ZP Mini-Series Vacuum Suction Cups
- Material
- Black Nitrile Rubber / White & Green Silicone
- Mounting Thread
- M5/M6/M8/M10/M14
- Suction Cup Diameter
- BT-3/4/5/6/7/9/10/15/16
- Customization Availability
- Non-standard customization is supported.
Description
1. Dual high-quality material options: choose between black nitrile rubber (excellent oil/water resistance, wear resistance, anti-static properties, strong adhesion) and imported white silicone (wide temperature resistance, non-toxic, chemically stable - ideal for the medical/food industry). 2. Specialized anti-static model: the spark-free design ensures safe use in vacuum smelting, chemical machinery, pharmaceutical production and other sensitive industrial fields. 3. Precise and universal specifications: multiple mounting threads (M5/M6/M8/M10/M14) and suction cup diameters (2-20 mm) suit various installation needs and small-part handling. 4. Superior design: the ribbed base reduces tilting during transport, and the textured burr-free surface provides high tear strength without damaging workpieces such as IC chips. 5. Wide application and customization: ideal for handling small parts with flat surfaces; non-standard customization is supported to meet unique project requirements.
