PISCO VPME silicone pneumatic suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

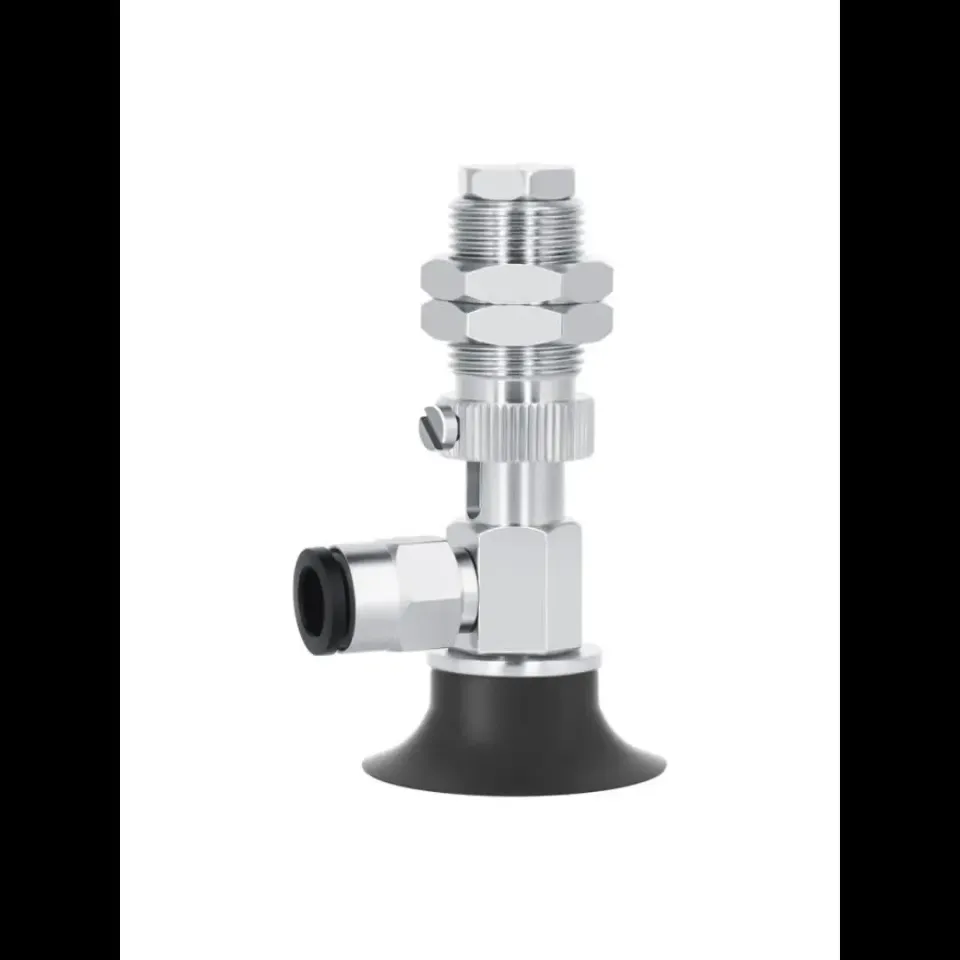

VP Vacuum Suction Cup Bracket

Suction Cup Color

Black / White

Suction Cup Compatibility

Single-layer or double-layer

Suction Cup Material

Nitrile Rubber / Silicone

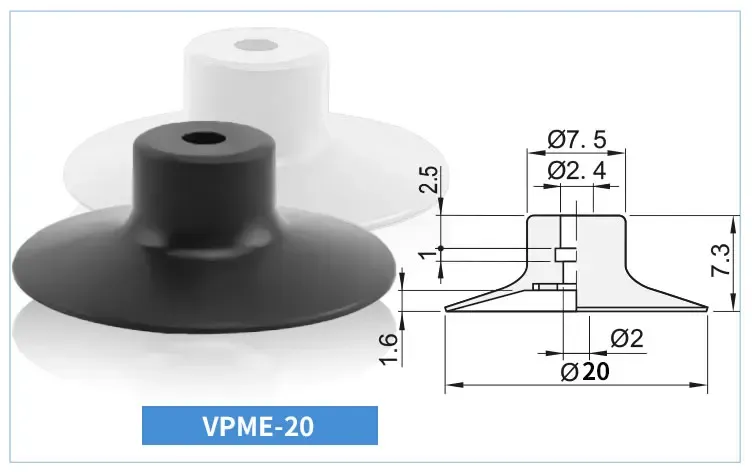

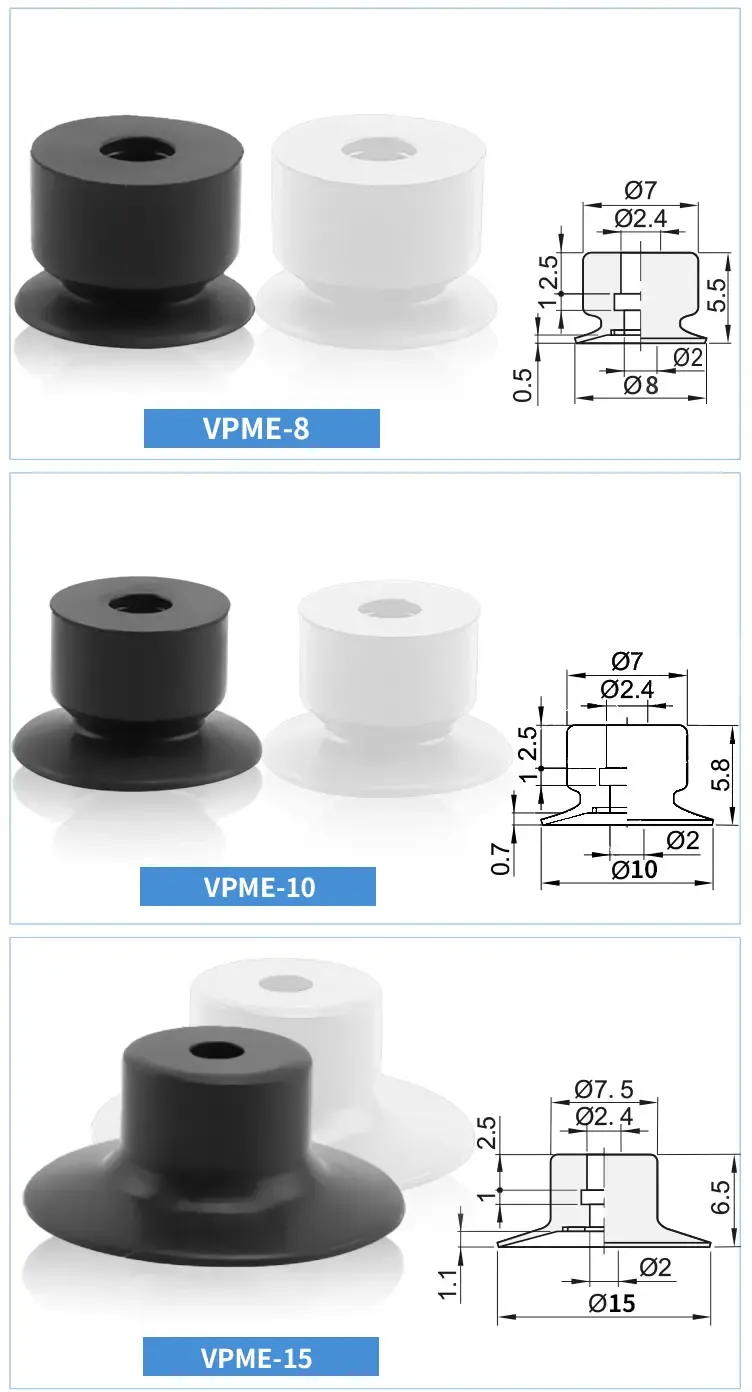

Suction Cup Diameter

8/10/15/20

Customization Availability

Supports non-standard customization

Description

1. Dual high-performance suction pad materials: Nitrile rubber: provides superior oil resistance, alkali resistance, anti-static properties and water resistance. Easy to machine, making it a universal choice for sealing and suction cups in various industries. White silicone: withstands extremely high and low temperatures, has stable chemical properties and does not pollute the environment, ideal for the pharmaceutical and food industries. 2. Flexible configuration options: Supports the choice of a single-layer or double-layer suction cup to adapt to various adsorption requirements. Available in 4 diameter sizes (8/10/15/20 mm) and 2 color options (black/white) for different operational needs. 3. Safe and airtight connection design: The built-in fixed connection between the connector and the suction cup interface ensures a tight fit, effectively preventing air leakage and loosening during operation. 4. Low-friction automation adaptability: Specially designed for low-friction automated equipment such as industrial robots and mechanized systems, optimizing efficiency in automated handling processes. 5. Customizable solutions: Supports non-standard customization of bracket specifications, suction cup parameters and connection details to meet unique industrial requirements.
