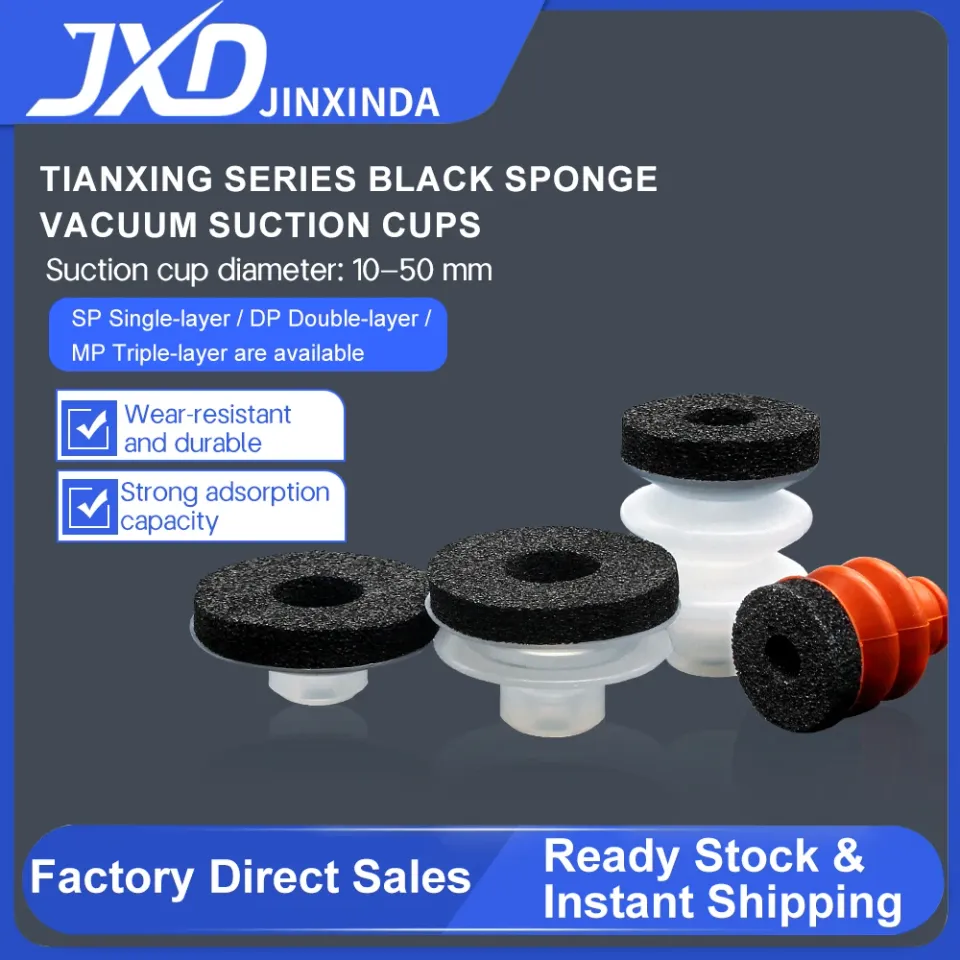

pneumatic vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

Tianxing Sponge Vacuum Suction Cups

Finish

Black / Red

Material

Suction cup body (Silicone); accessories (Imported EP sponge)

Black sponge

Specialized for rough surfaces

Red sponge

Suitable for easy adsorption; applicable to rough surfaces, uneven surfaces, and non-flat surfaces

Structure Type

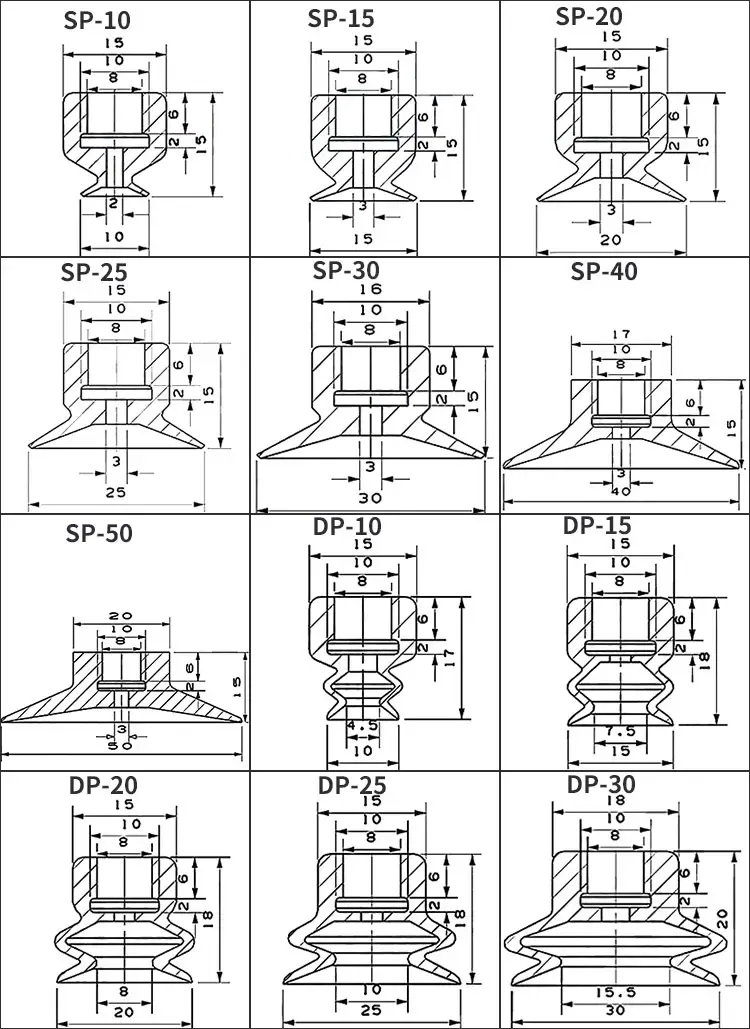

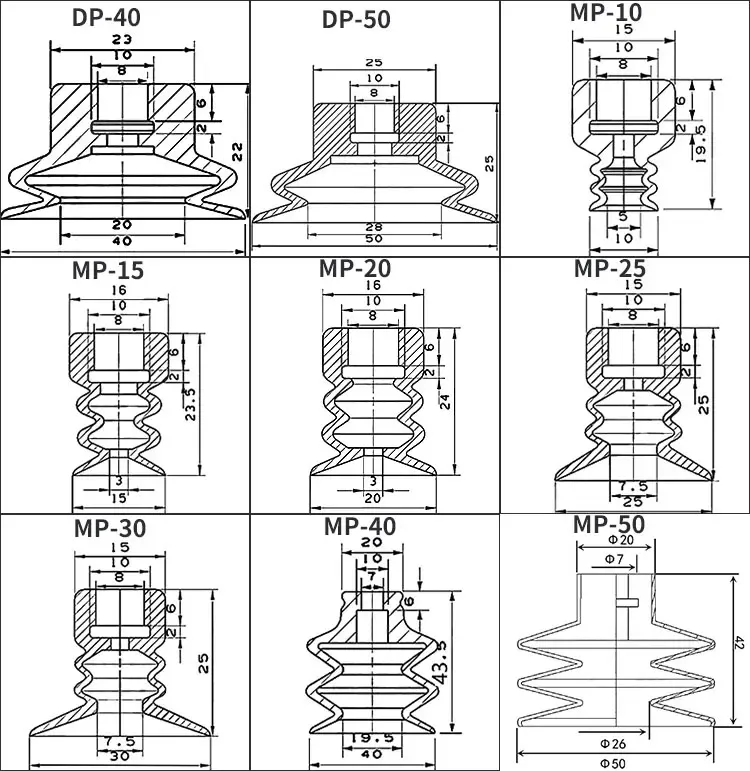

SP (Single-layer) / DP (Double-layer) / MP (Triple-layer)

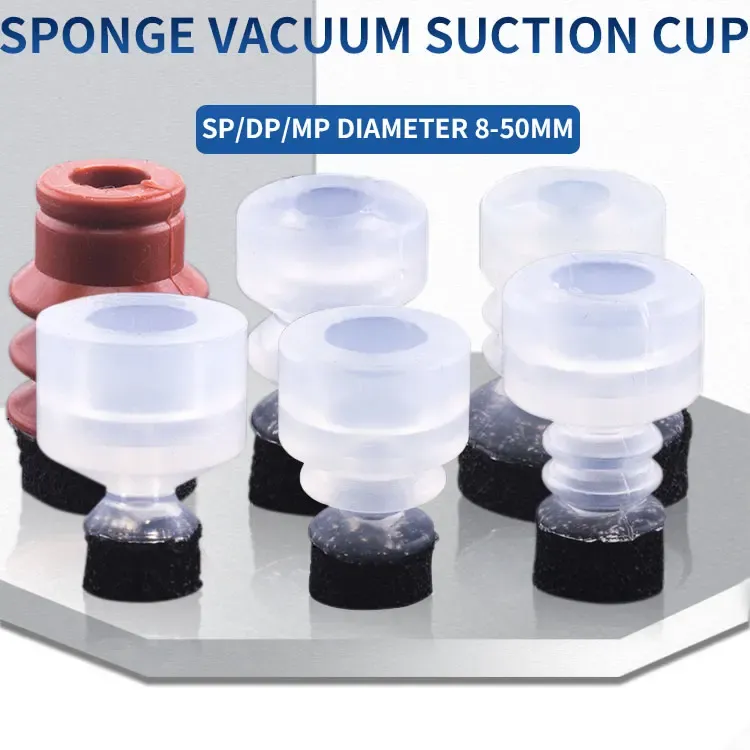

Suction Cup Diameter

8-50mm

Mounting Holes

Small-end mounting hole (5mm), Large-end mounting hole (8mm)

Customization Available

Supports non-standard customization

Description

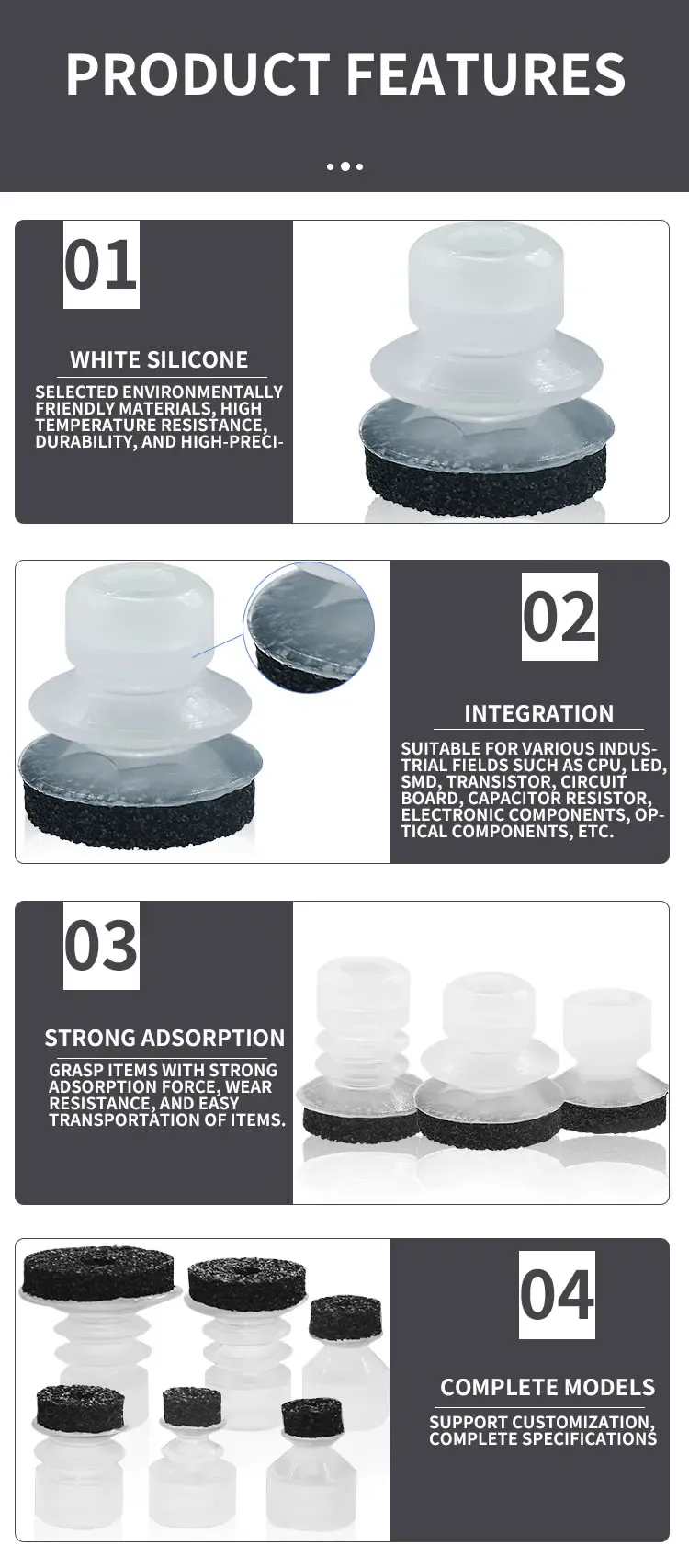

1. Targeted sponge options for different surfaces: black sponge is specialized for rough surfaces, while red sponge provides light adsorption on rough, uneven and non-flat surfaces, covering most uneven workpiece scenarios. 2. High-quality materials for reliability: contains imported EP sponges and silicone cup bodies bonded with premium adhesive for durable attachment. Burr-free edges ensure smooth contact with workpieces. 3. Precise thickness and size matching: sponge thickness is matched to cup diameter - 5 mm for diameters of 8-25 mm and 8 mm for diameters of 30-60 mm. A diameter range of 8-50 mm plus more than 30 models (e.g. SP-S10, MP-50) suits workpieces of various sizes. 4. Damage-free and mark-free adsorption: reliably grips workpieces without leaving adsorption marks or damaging the surface, ideal for fragile or finish-sensitive materials. 5. Flexible installation and design: compatible with small and 8 mm mounting holes. Available in SP (single-layer), DP (double-layer) and MP (triple-layer) designs to adapt to various automation setups. 6. Custom solutions for unique needs: supports non-standard customization (size, sponge type, structure) to solve specific handling challenges in industries such as electronics, glass or packaging.
