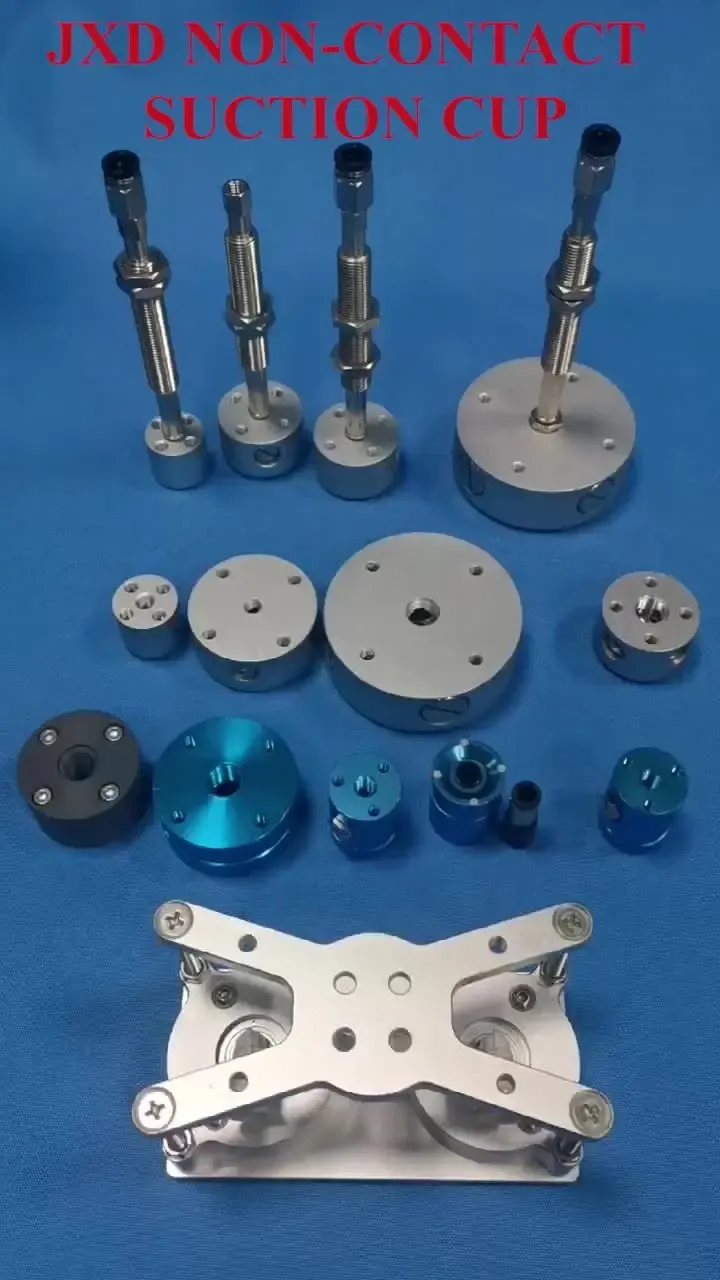

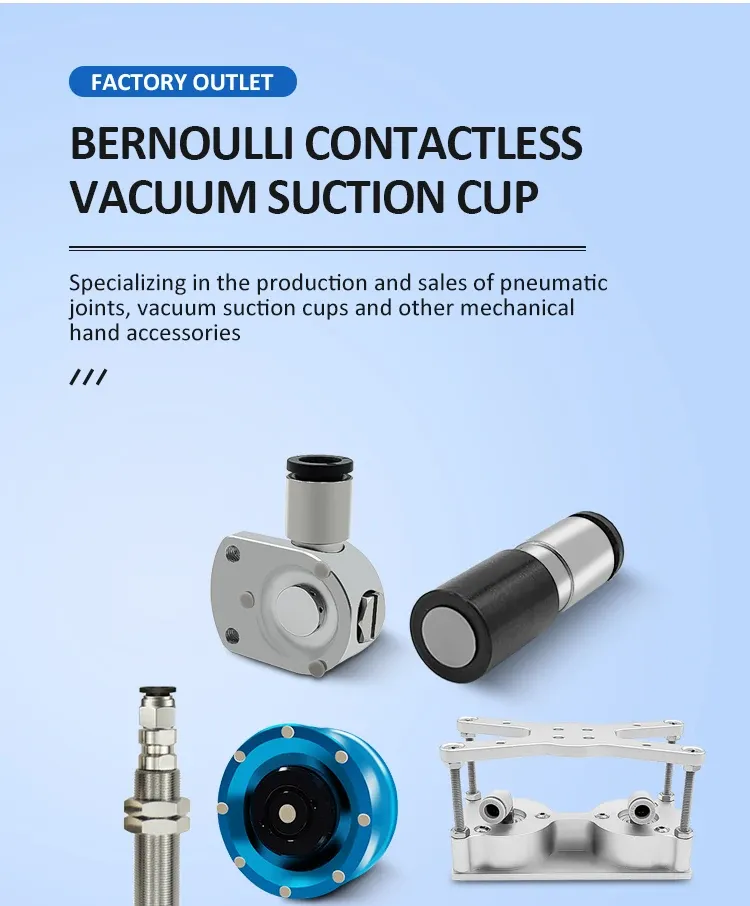

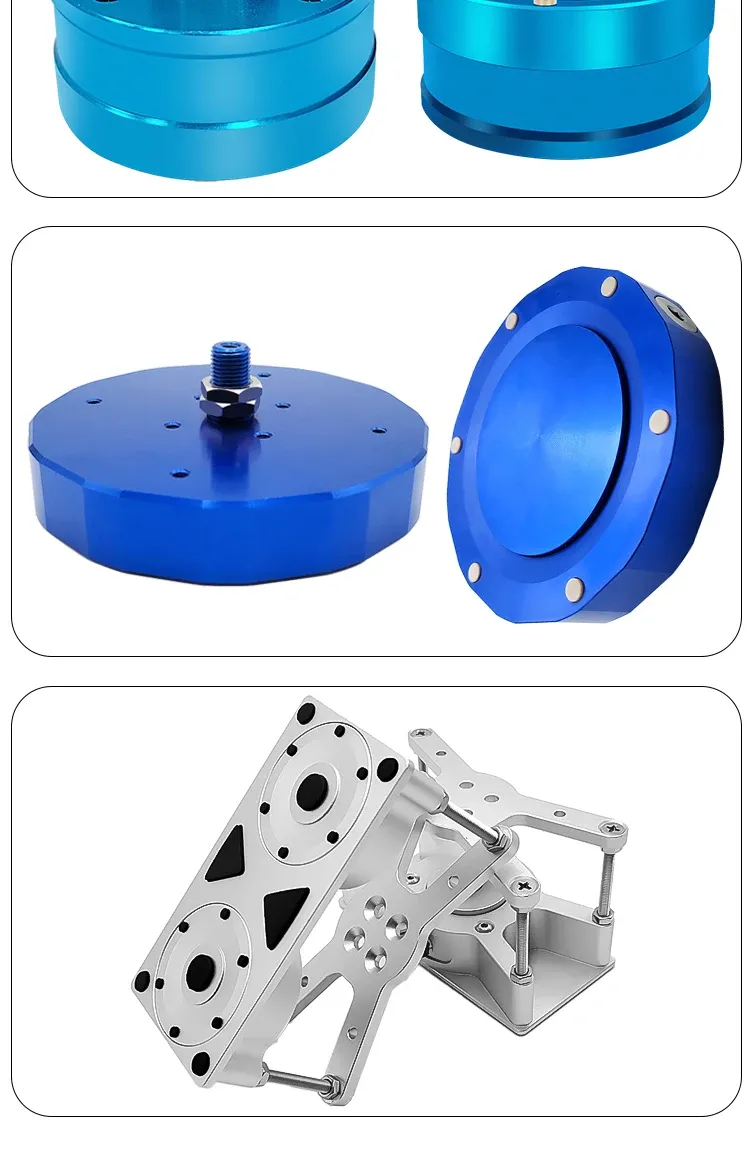

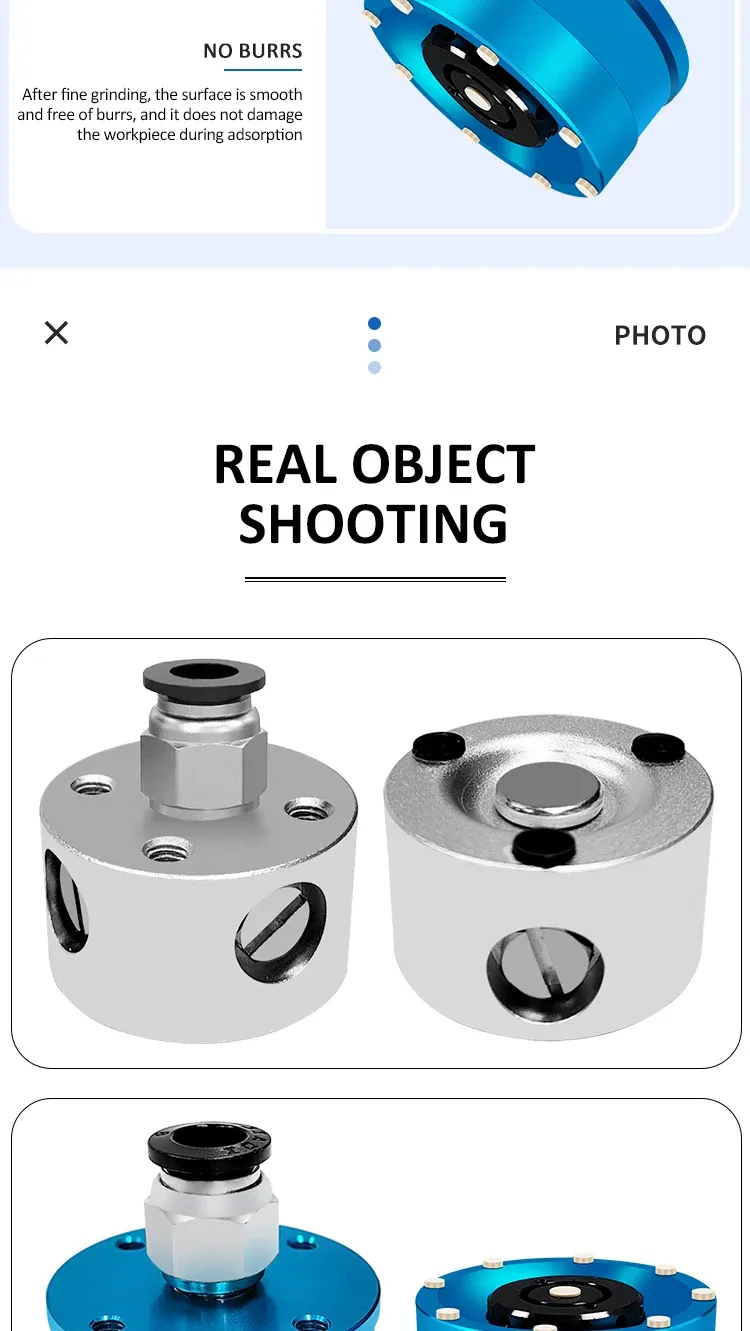

Bernoulli NF20-06-A-M5F NF40-06-A-18F NF60-06-A-18F metal non-contact vacuum suction cup, aluminum alloy

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

Non-Contact Suction Cups

Material

Aluminum

Product Specifications

20/30/40/60mm

For diameters 20-30mm

Height = 17mm, Air Inlet = M5, 4 Mounting Holes = M4

For diameter 60mm

Height = 20mm, Air Inlet = G1/8, 4 Mounting Holes = M4

Pipe Connection Size

M5*0.8

Fluid Used

Air

Operating Pressure

0.01-0.5 MPa

Guaranteed Pressure Resistance

0.75 MPa

Operating Temperature Range

-5~60 °C

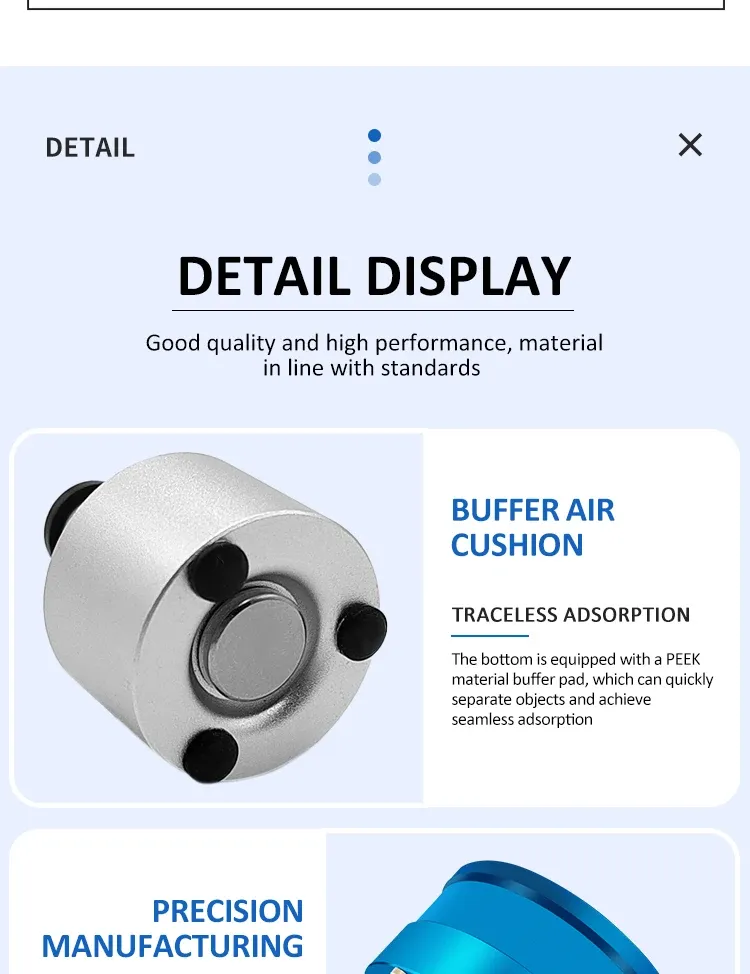

Contact Point Material

Silicone, PEEK

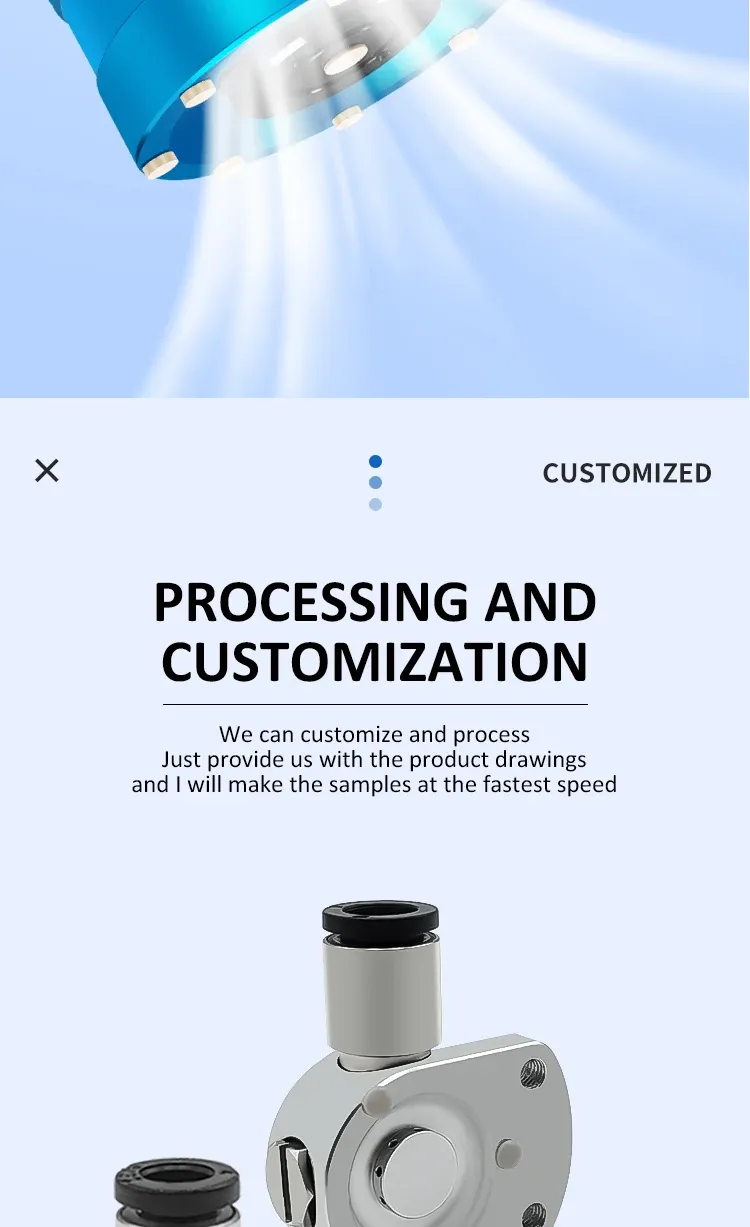

Customization Available

Supports non-standard customization

Description

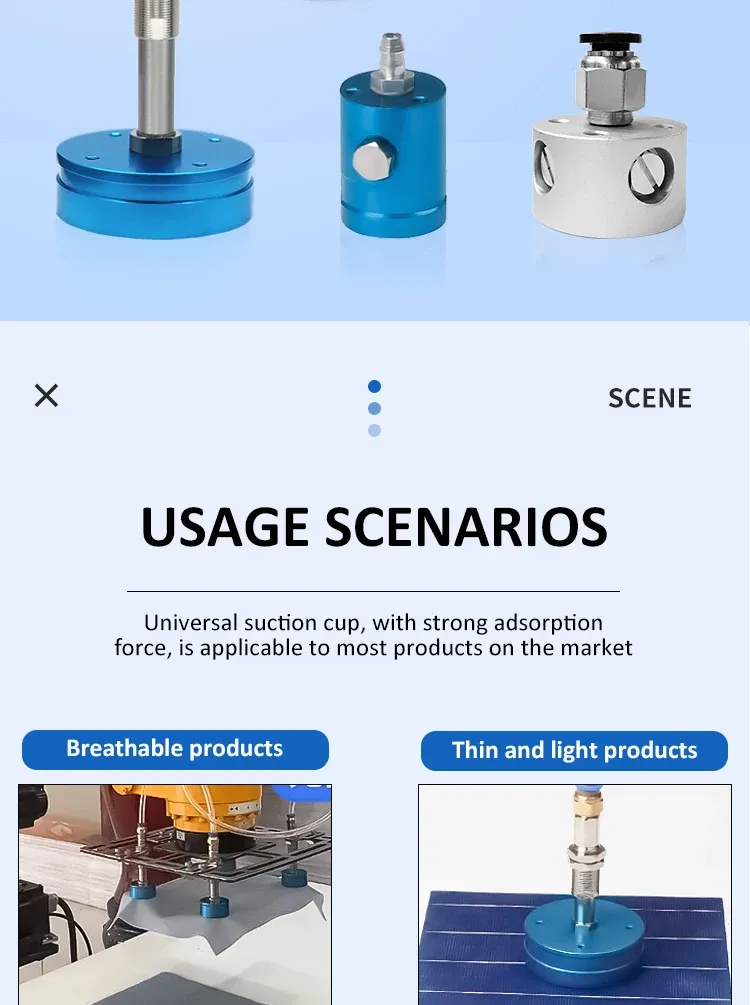

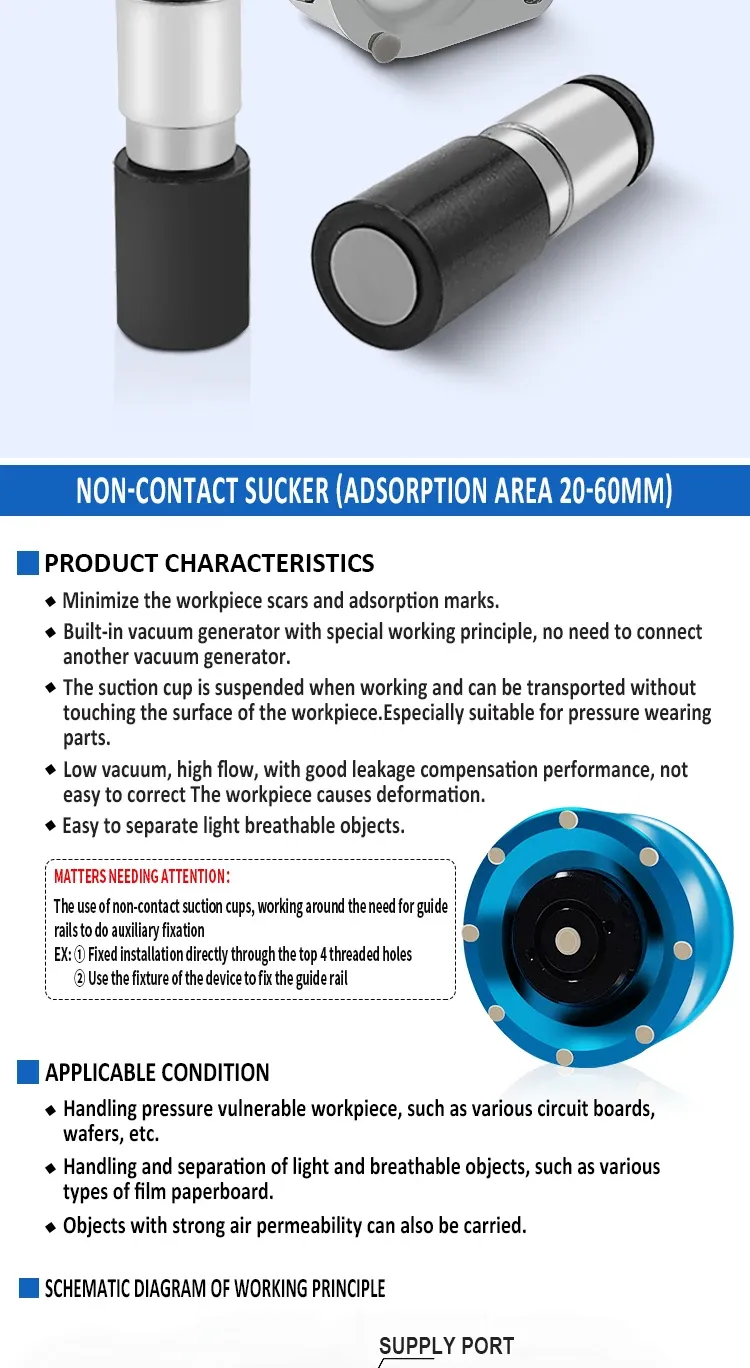

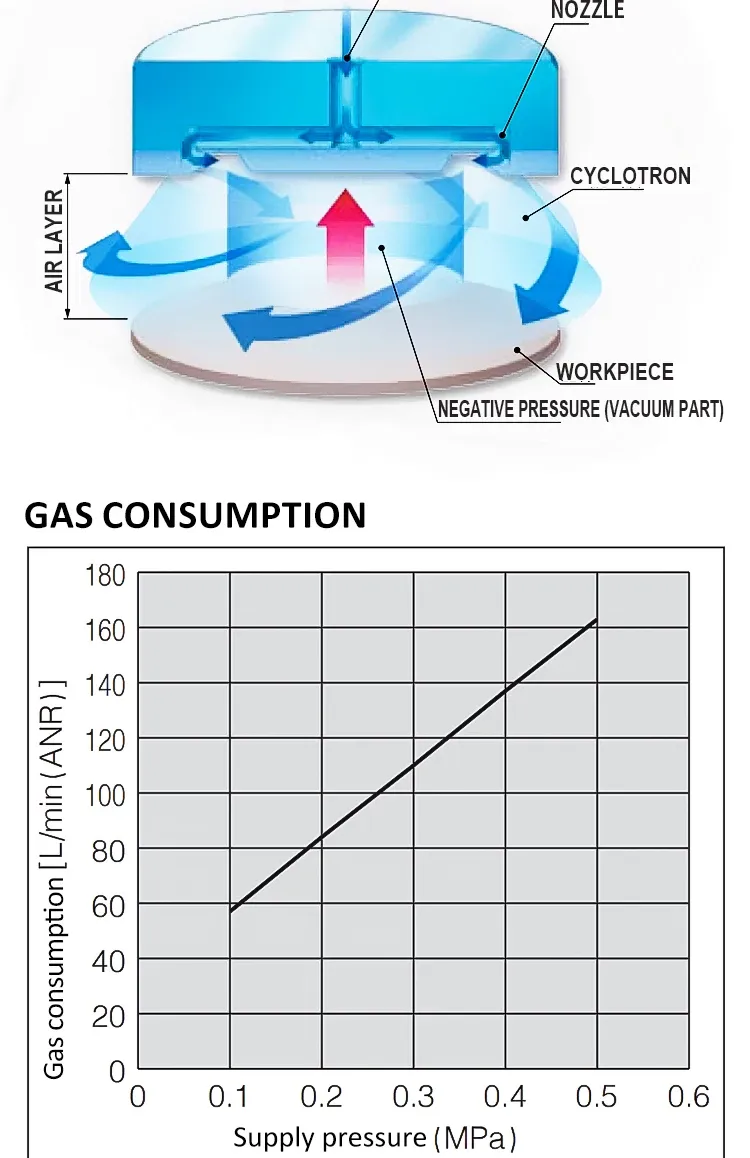

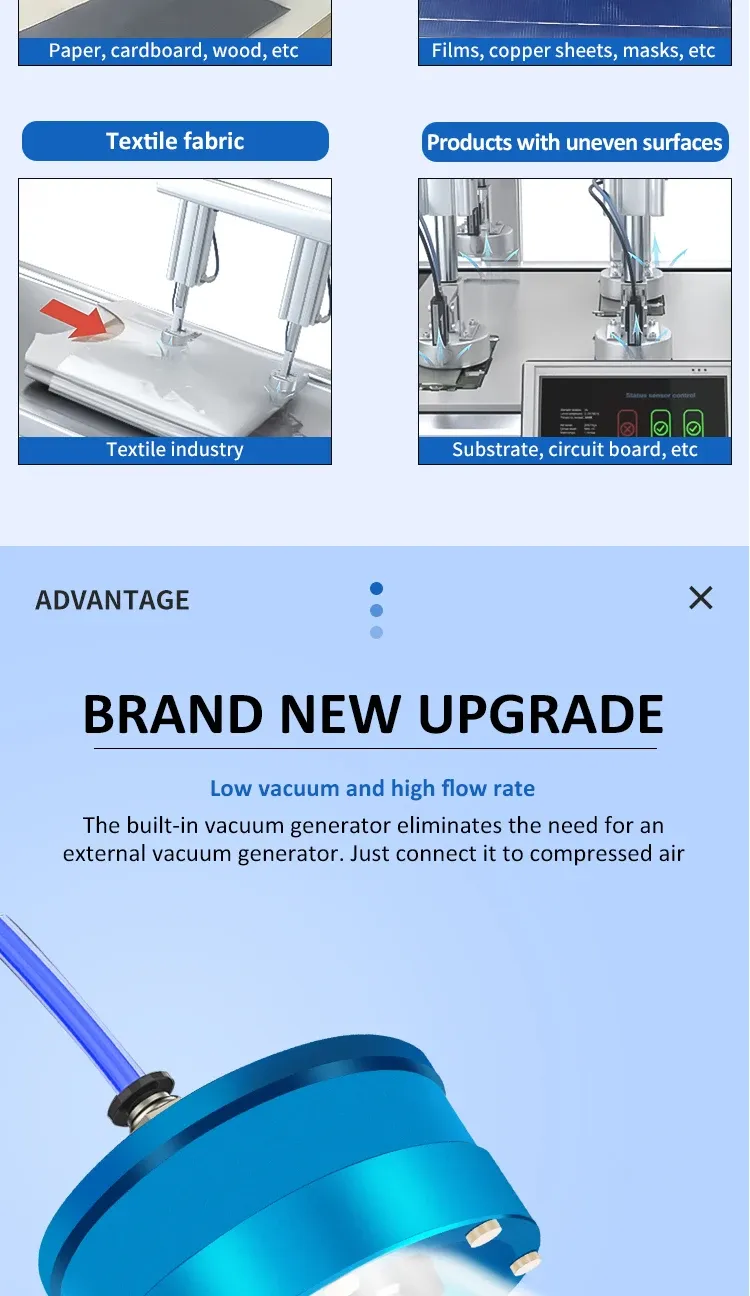

1. Zero-contact handling protects fragile parts. Works in a suspended state without touching the workpiece surface, minimizing scratches, suction marks and deformation. Ideal for pressure-sensitive items such as printed circuit boards, wafers, thin films and cardboard, eliminating the damage risks typical of traditional contact suction cups. 2. Built-in Bernoulli vacuum generator saves cost and space. Integrates a vacuum generator based on the Bernoulli principle; no external vacuum generator is required. Simply connect compressed air to start working, reducing equipment purchase costs and saving installation space in the workflow. 3. Excellent leak compensation for permeable objects. Features a low vacuum degree and a high flow rate, plus high air leak compensation performance. It can effectively handle even highly air-permeable objects (e.g. porous cardboard, non-woven materials) and separate thin lightweight materials without suction failure. 4. Stable performance with a wide working range Pressure adaptability: operates at 0.01-0.5 MPa (with a guaranteed pressure resistance of 0.75 MPa), compatible with most industrial compressed air systems. Temperature resistance: operates within -5 ~ 60 °C, suitable for various workshop environments without performance loss. 5. Multiple specifications for universal needs. Offers 4 diameter options (20/30/40/60 mm) with matching parameters: 20-30 mm models: height 17 mm, air intake M5, 4 mounting holes M4. 60 mm model: height 20 mm, air intake G1/8, mounting holes 4xM4. Standard M5x0.8 tube connection ensures easy pairing with existing industrial piping. 6. Durable material and customizable solutions The main body is made of aluminum, ensuring durability and corrosion resistance; the contacts use silicone and PEEK for flexibility and wear resistance. Supports non-standard customization (e.g. diameter, air intake size, mounting hole layout) to match your specific handling scenarios.
