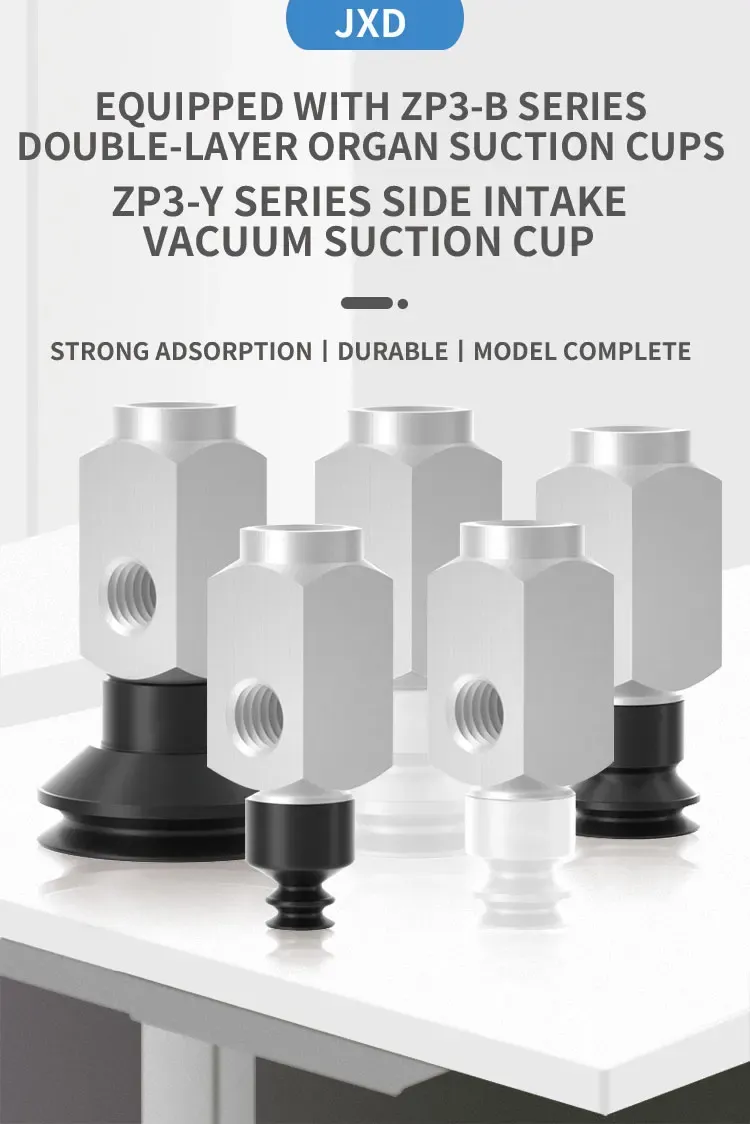

ZP3-Y04/06/08/10/13/16BN/BS-B5-B5 pneumatic vacuum suction cup

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

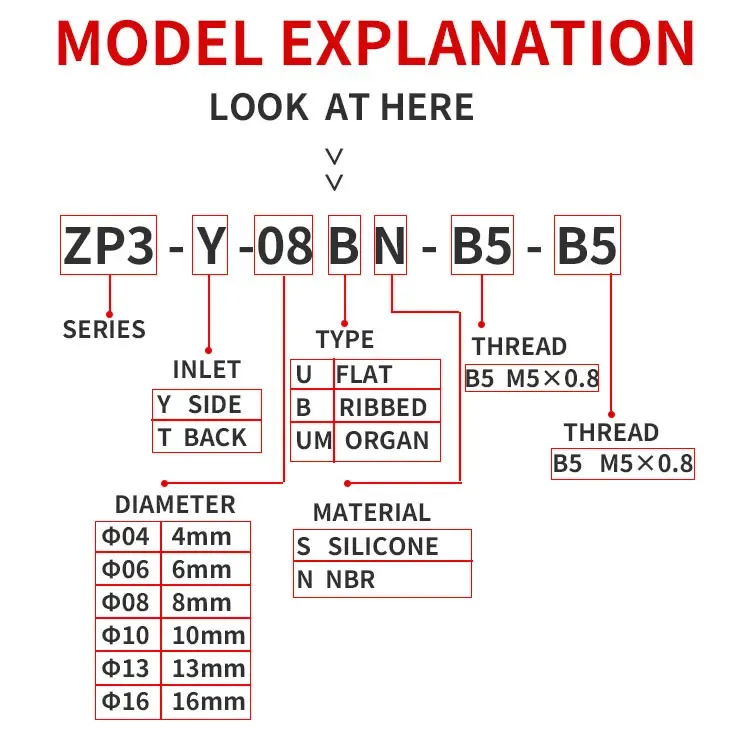

Product Name

ZP3-Y Series Vacuum Suction Cups

Material

Black Nitrile Rubber / White Silicone

Shape

U Flat Type, UM Grooved Flat Type, B Bellows Type

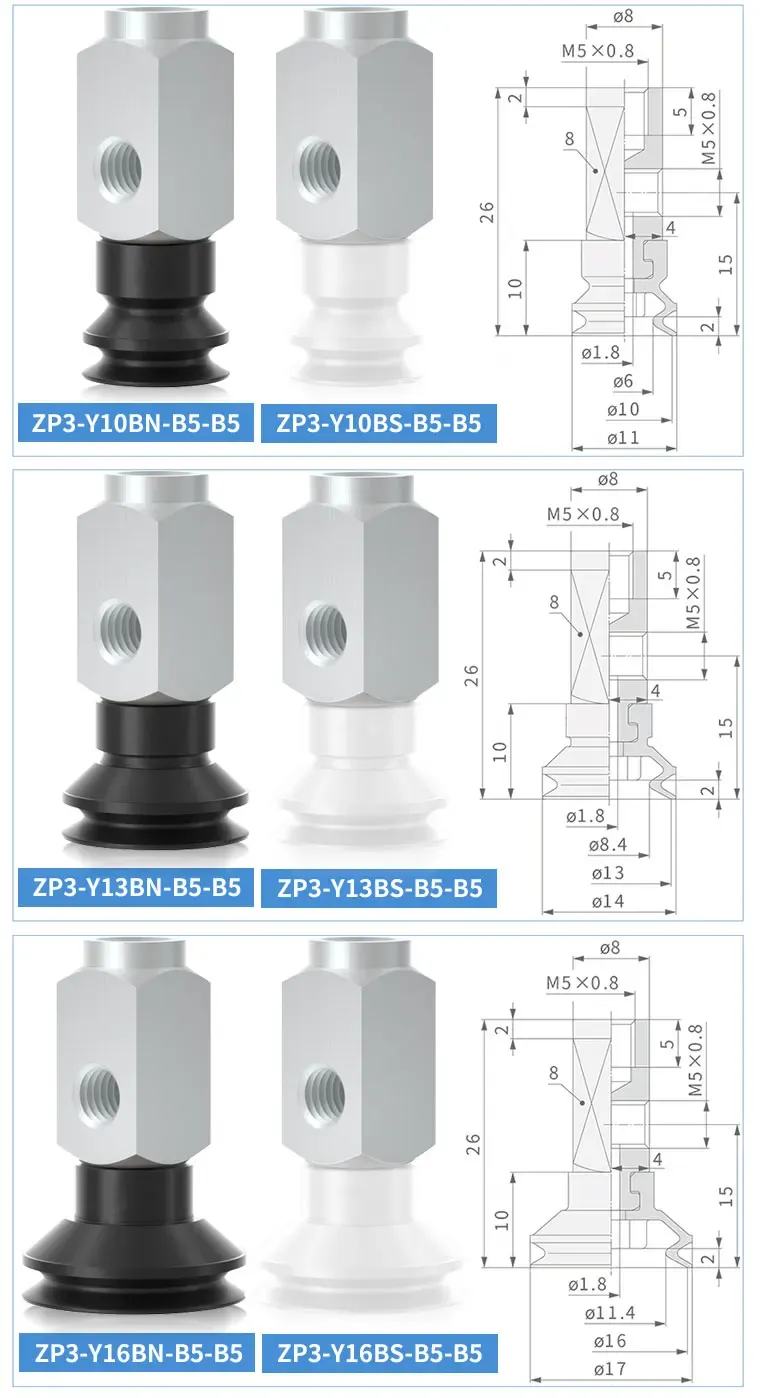

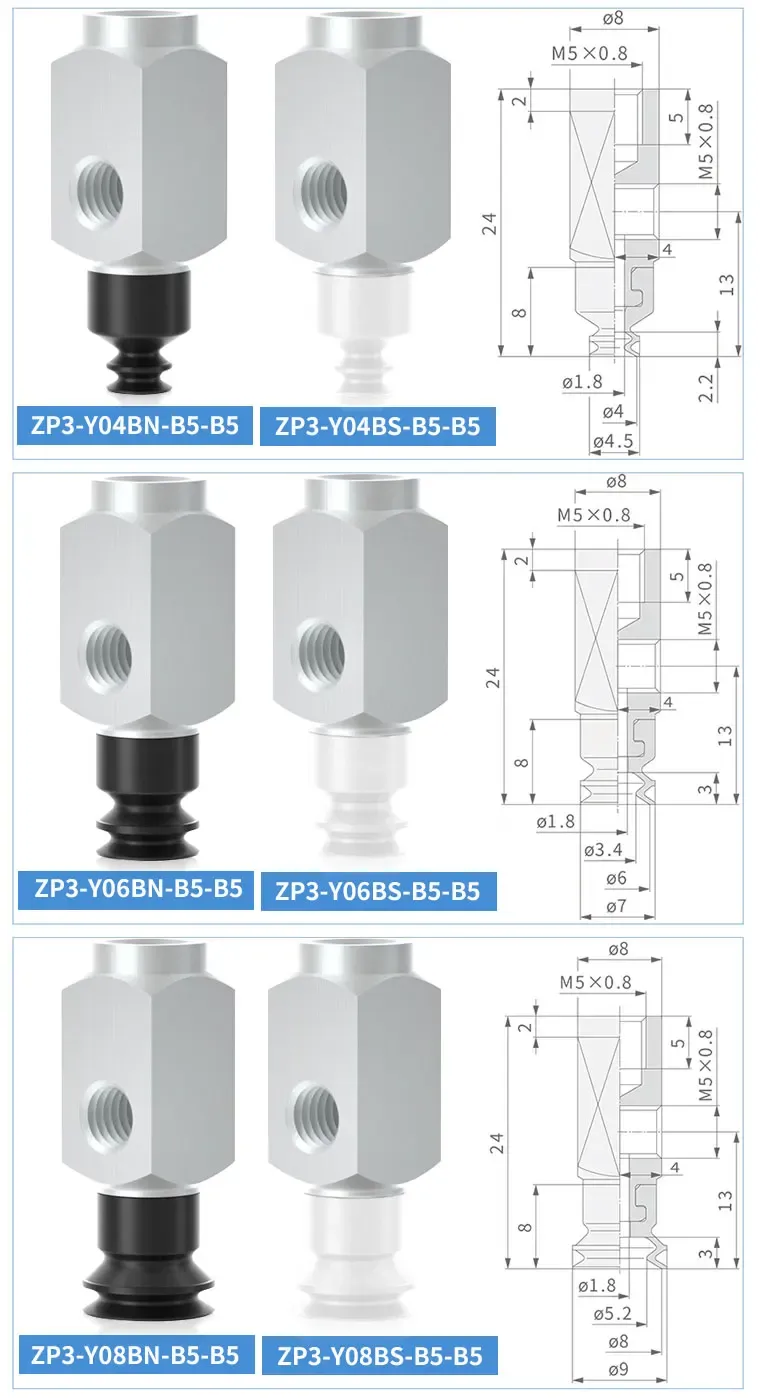

Cup Diameter

04/06/08/10/13/16mm

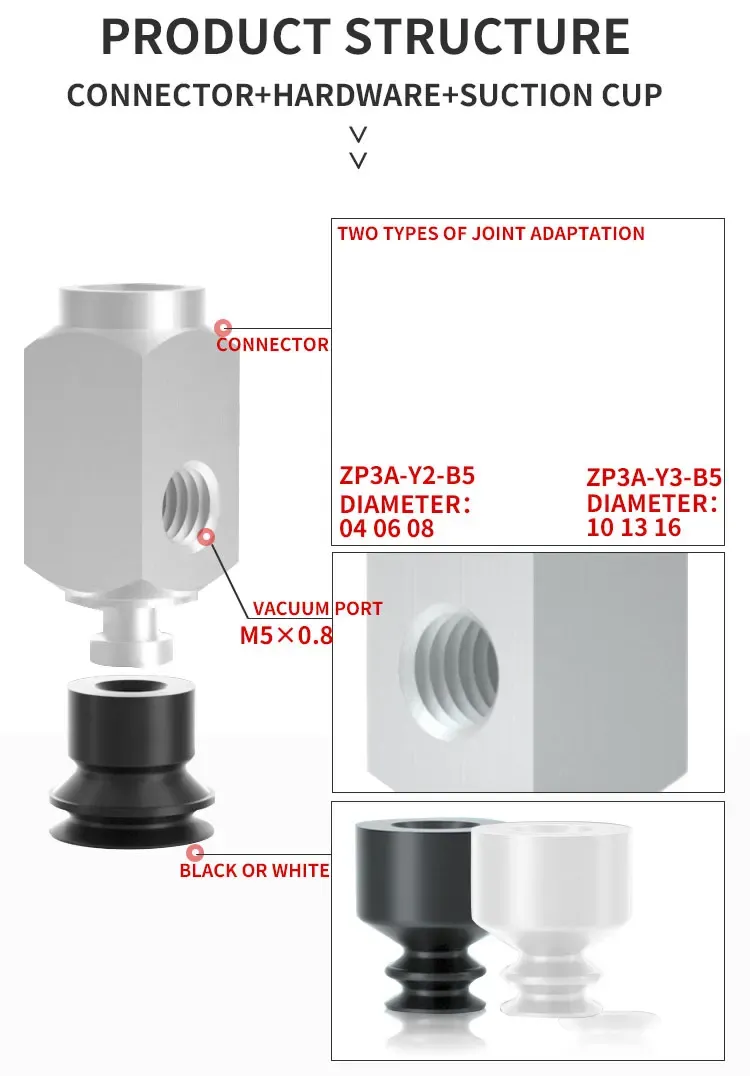

Air Inlet Method

Y Side Air Inlet, T Rear Air Inlet

Vacuum Thread

B5 (M5*0.8)

Mounting Thread

B5 (M5*0.8)

Customization

Non-standard customization is supported.

Description

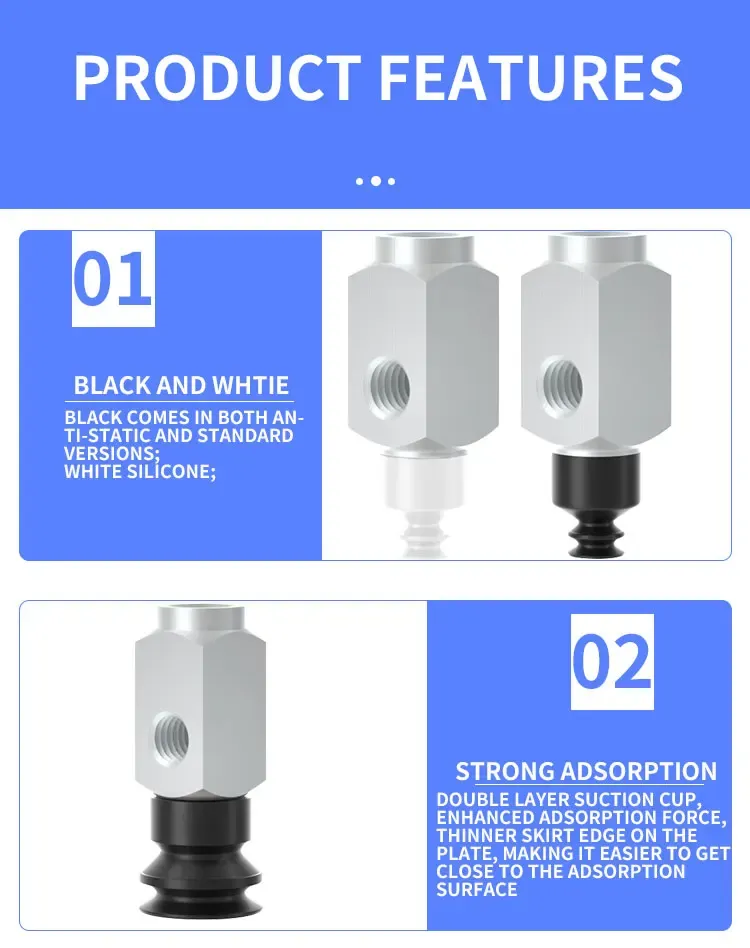

1. Dual air intake options for flexible installation Side air intake Y and rear air intake T: two intake configurations adapt to different equipment layouts and space constraints, eliminating restrictions when installing on automated production lines. Standardized threads: the vacuum and mounting threads have a B5 (M5*0.8) specification, ensuring quick and hassle-free integration with industrial robots, manipulators and standard automation equipment. 2. Triple-shape design for universal handling. U flat type: provides stable adsorption of flat workpieces with strong holding force. UM grooved flat type: improved anti-slip properties, ideal for slightly uneven surfaces or materials requiring a reliable grip. B bellows type: flexible deformation suits curved, irregular workpieces and tubes, solving the pain point of handling non-flat items in industrial scenarios. 3. Premium material and anti-static solution. Black nitrile rubber: excellent oil and water resistance, wear resistance, anti-static properties and strong adhesion - universal for general industrial sealing and suction, easy to machine. Imported white silicone: wide temperature resistance, chemically stable and environmentally friendly - ideal for pharmaceutical, food and high/low temperature industrial environments. Black anti-static version: the spark-free design prevents electrostatic discharge, is safely applicable in vacuum smelting, vacuum drying, chemical machinery, pharmaceuticals, light industry, the electronic vacuum industry and other static-sensitive fields. 4. Durable nickel-plated copper metal hardware The metal fittings are made of copper with nickel plating, which effectively resists oxidation, vulcanization, corrosion and wear, while increasing surface hardness, ensuring a long service life even in harsh industrial conditions and reducing maintenance costs. 5. Optimized size for various workpieces. The cup is available in diameters of 04/06/08/10/13/16 mm - the pads meet small and medium workpiece requirements, suitable for handling both compact components and larger tubes/uneven workpieces. 6. Wide automation adaptability Specialized in handling uneven surfaces and tubes, fully compatible with industrial robots, mechanized systems and various automated devices - universal for multi-section industrial material handling. 7. Non-standard customization support. Custom solutions (size, material, shape, air intake type) are offered to meet unique application requirements, ensuring a perfect match with specific production line configurations.
