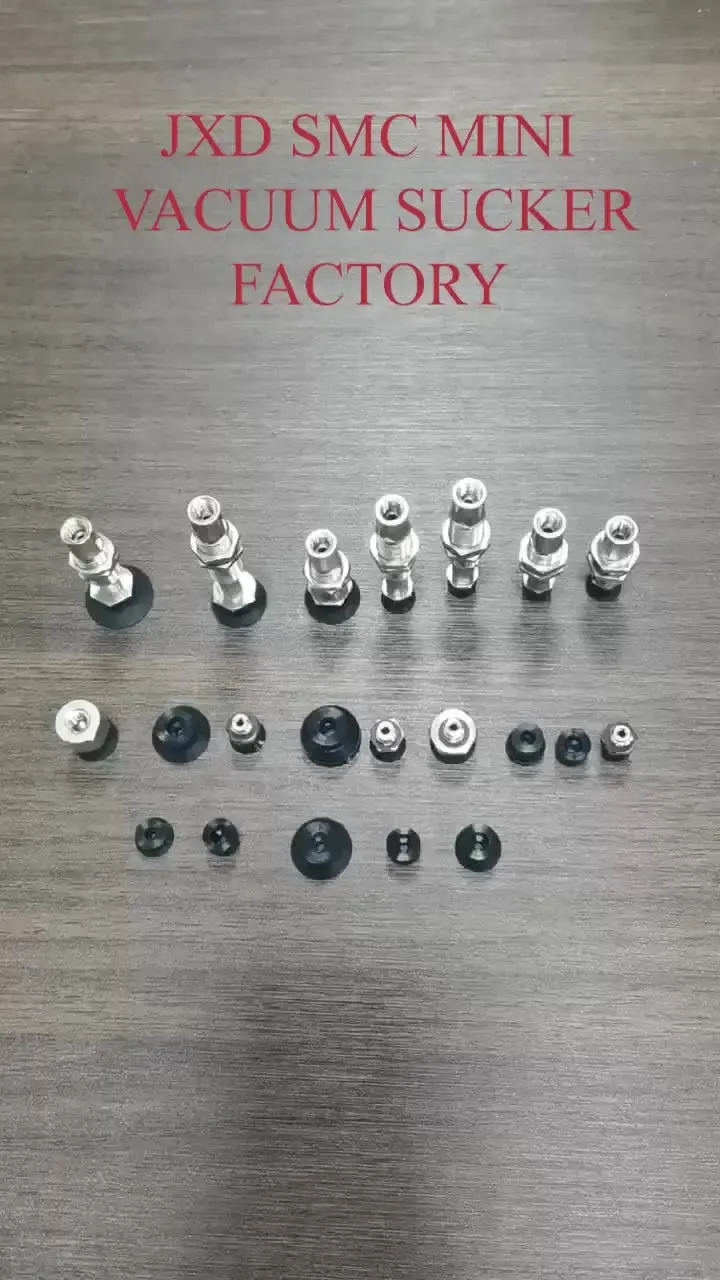

ZP3-T04/06/08/10/13/16U-A5/B5 Mini industrial pneumatic suction cup with ring robotic gripper

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

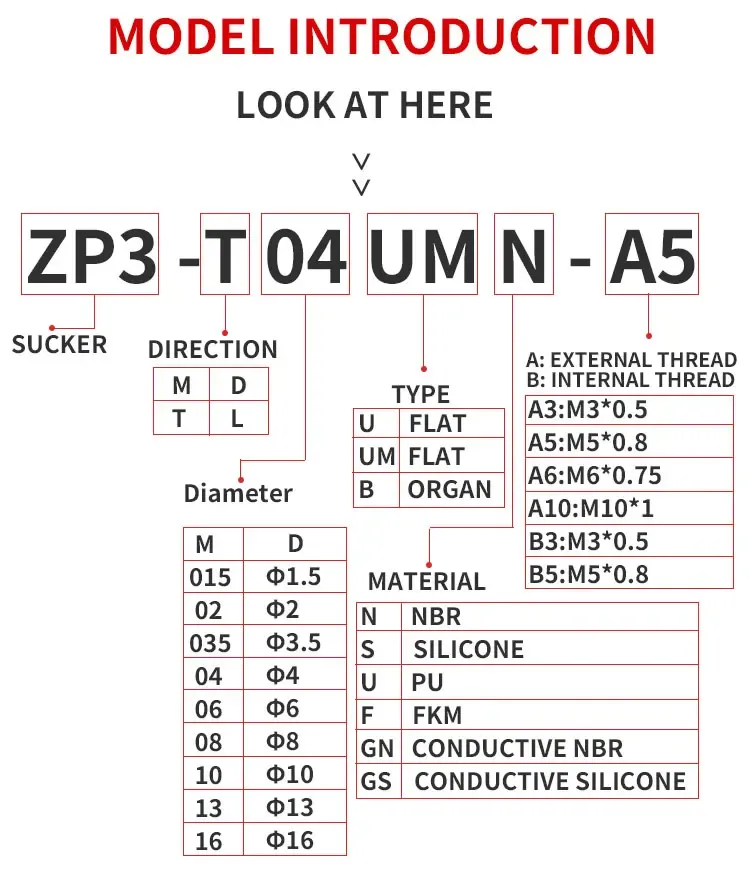

Product Name

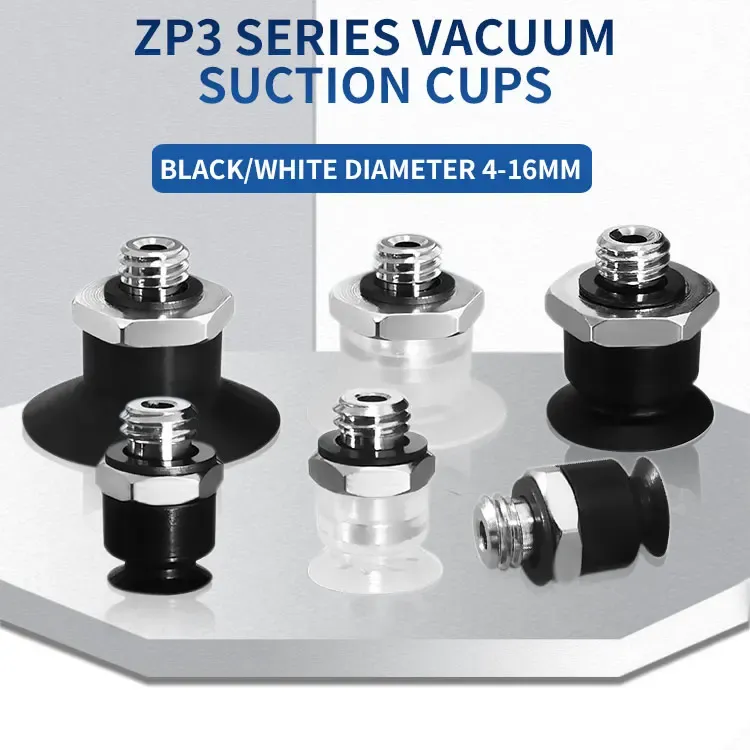

ZP3 Series Vacuum Suction Cups

Material

Black Nitrile Rubber / White Silicone

Shape

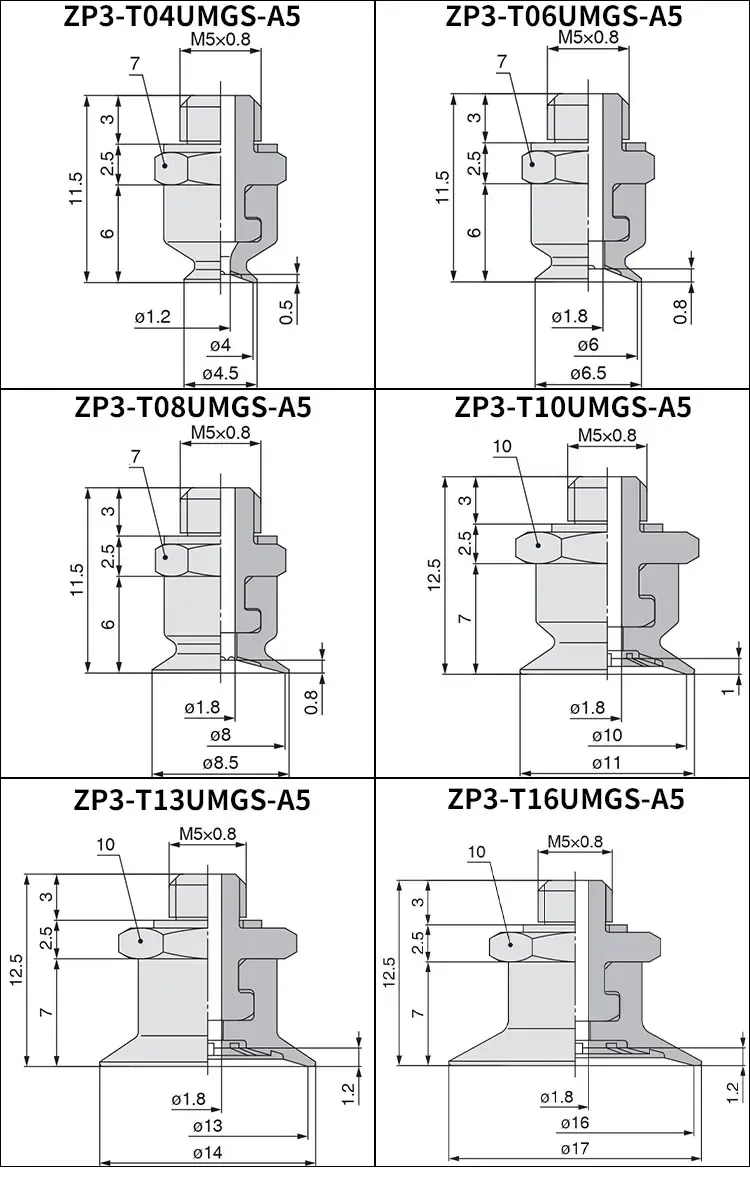

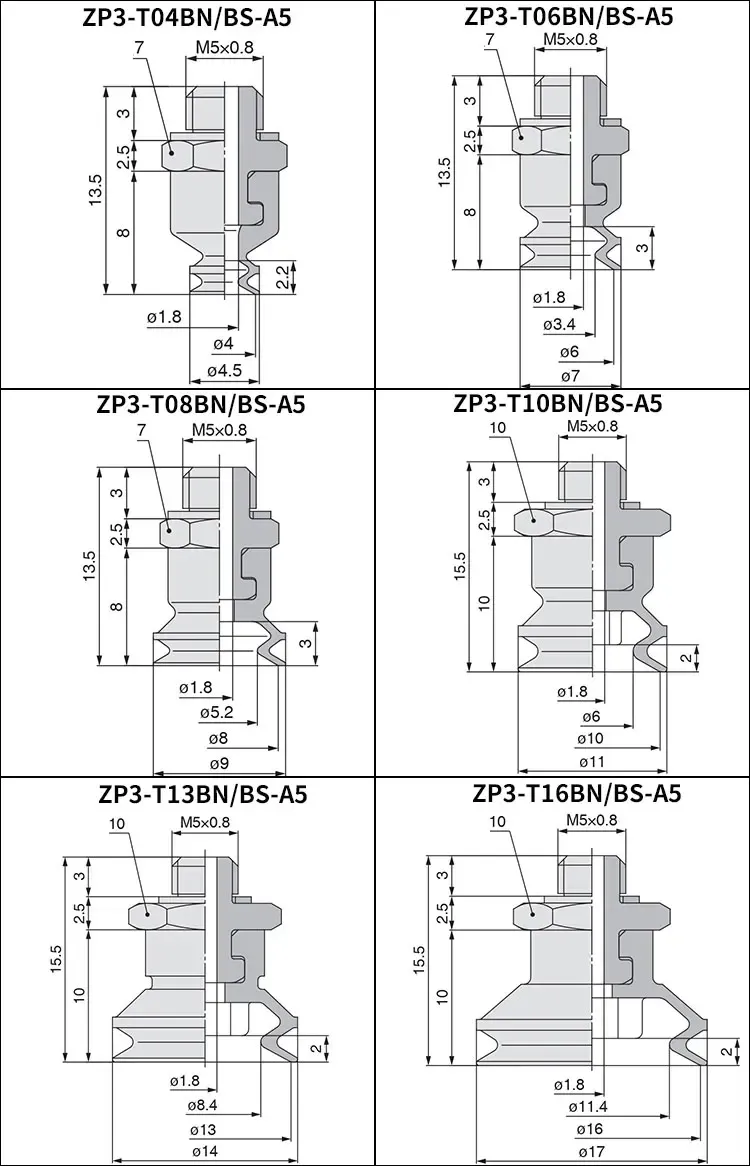

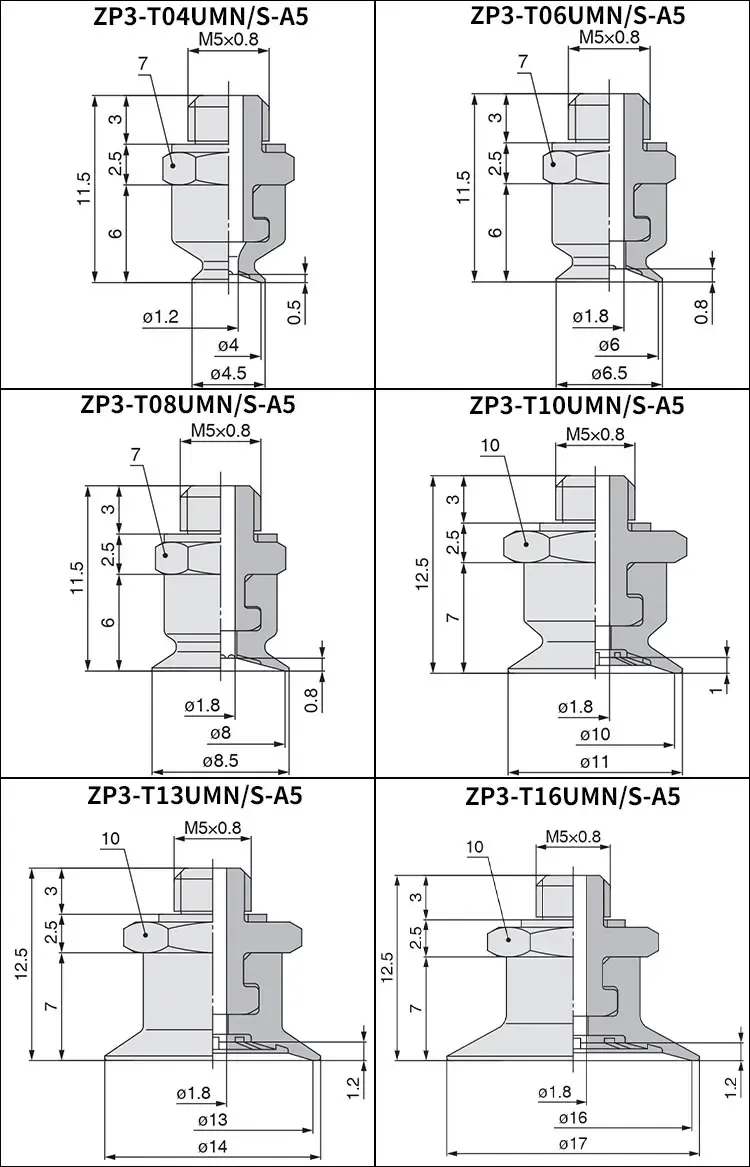

U Flat Type, UM Grooved Flat Type, B Bellows Type

Cup Diameter

015/02/035/04/06/08/10/13/16mm

Internal Threads

A3 (M3*0.5) A5 (M5*0.8) A6 (M6*0.75) A12 (M12*1) External Threads: B3 (M3*0.5) B5 (M5*0.8)

Rounded Fitting

H5 (M5*0.8)

Customization

Non-standard customization is supported.

Description

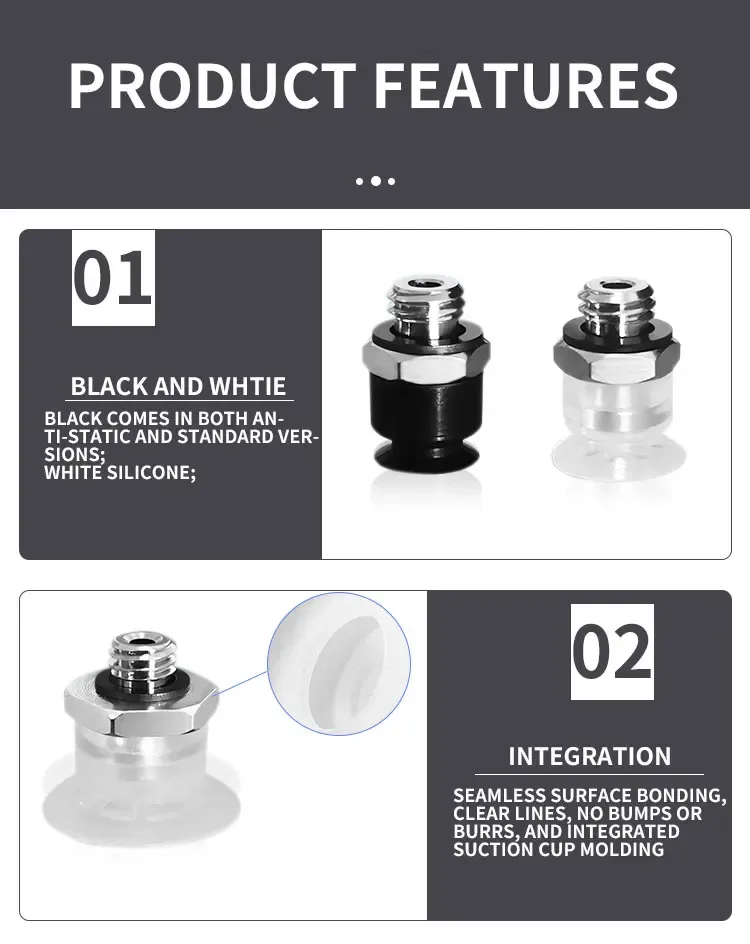

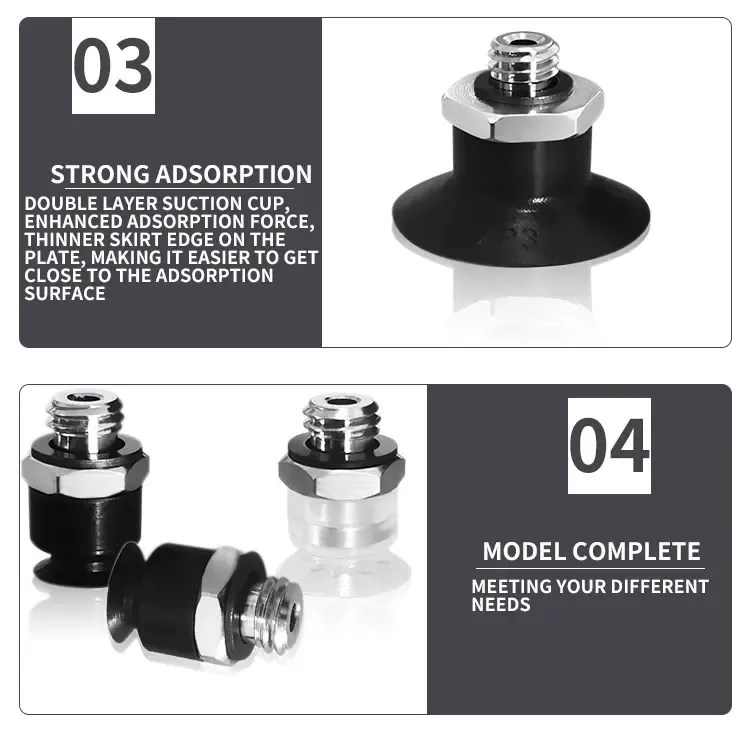

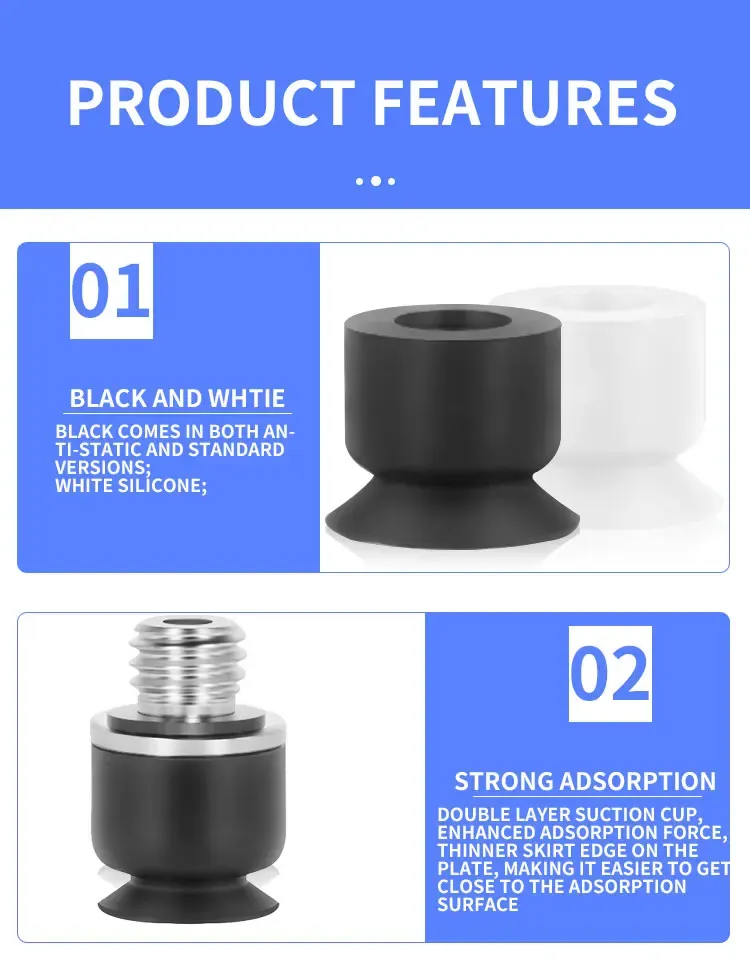

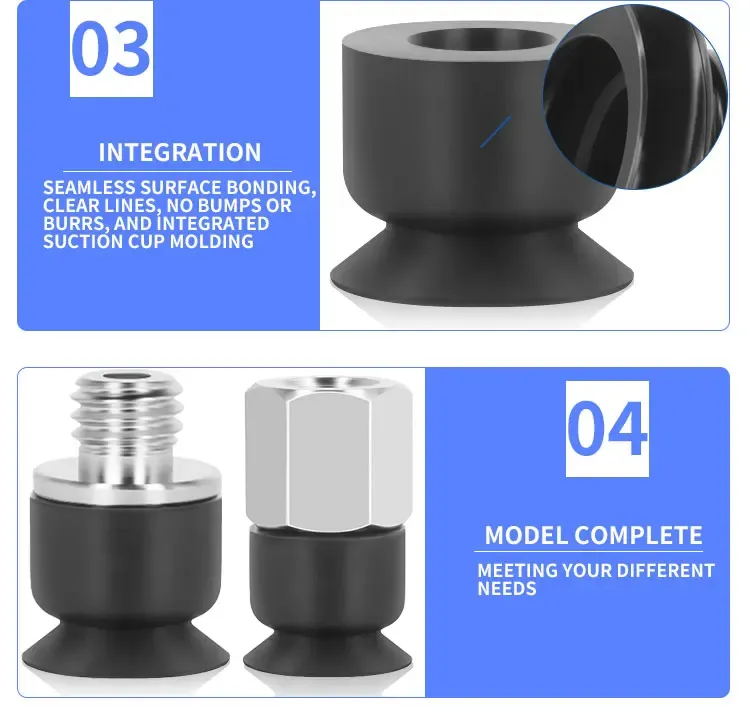

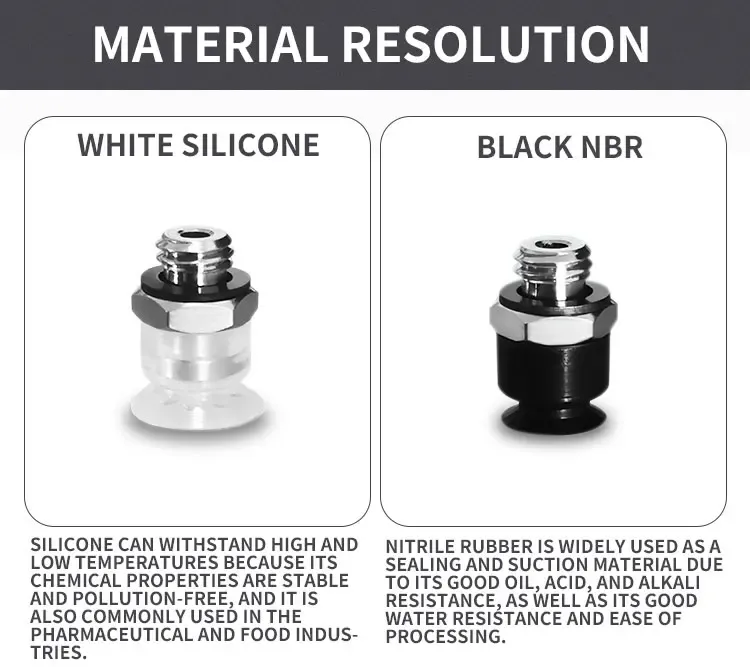

1. Three shape options for universal handling. U Flat type: ideal for flat workpieces with stable adsorption. UM grooved flat type: improved grip for slightly uneven surfaces or materials requiring anti-slip properties. B bellows type: flexible deformation suits curved, uneven workpieces and tubes, solving the pain point of handling irregularly shaped items. 2. Premium material and anti-static solution Black nitrile rubber: excellent oil/water resistance, wear resistance, anti-static properties and strong adhesion; versatile for general industrial sealing and suction, and easy to machine. Imported white silicone: wide temperature resistance, chemically stable and environmentally friendly; ideal for pharmaceuticals, food products and high/low temperature environments. Black anti-static version: spark-free design prevents electrostatic discharge, safely applicable in vacuum smelting, vacuum drying, chemical machinery, pharmaceuticals, light industry, the electronic vacuum industry and other static-sensitive fields. 3. Extensive size and thread/fitting compatibility. Multiple cup diameters: 015/02/035/04/06/08/10/13/16 mm meet micro and medium workpiece requirements. Rich thread options: Internal threads: A3 (M3*0.5), A5 (M5*0.8), A6 (M6*0.75), A12 (M12*1) External threads: B3 (M3*0.5), B5 (M5*0.8) Rounded fitting: H5 (M5*0.8); all standard threads ensure smooth integration with most industrial robots and automated equipment. 4. Durable nickel-plated copper hardware. The fittings are made of nickel-plated copper, which effectively resists oxidation, vulcanization, corrosion and wear, while increasing surface hardness, guaranteeing a long service life even in harsh industrial conditions. 5. Wide automation adaptability Specialized in handling uneven workpieces and tubes, fully compatible with industrial robots, mechanized systems and various automated devices; suitable for industrial material handling in various scenarios. 6. Non-standard customization support Custom solutions (size, material, shape, thread) are offered to meet unique application requirements, ensuring a perfect match with specific production lines.
