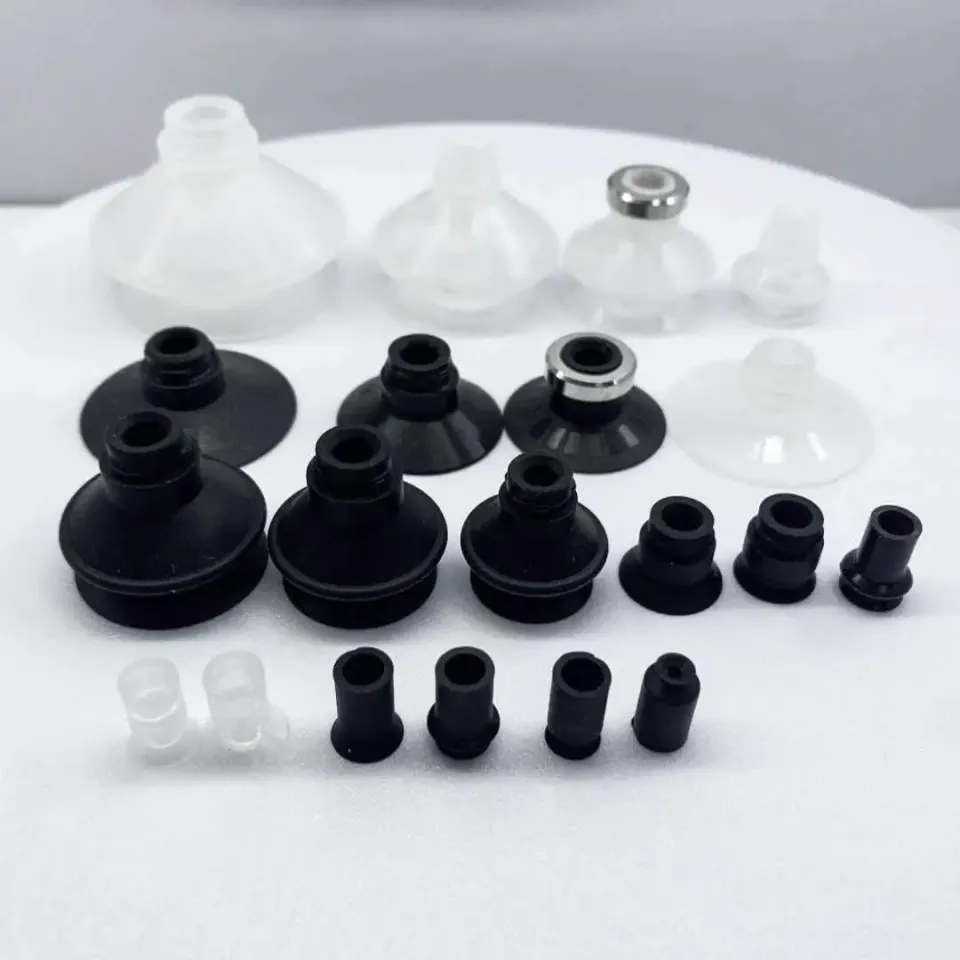

Mini vacuum suction cup ZP-06/08/10/13/16/20/25/32/40/50BN

Specifications

Brand name

No

Origin

China

Type

Actuator

Power type

Other

Unit of measurement

pcs

Quantity

1

Product Name

ZP Series Vacuum Suction Cup

Material

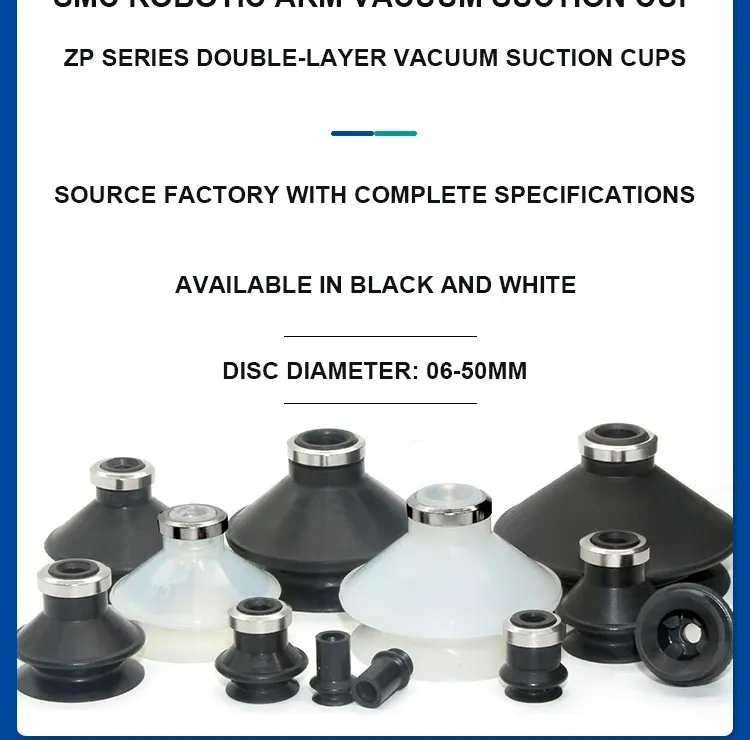

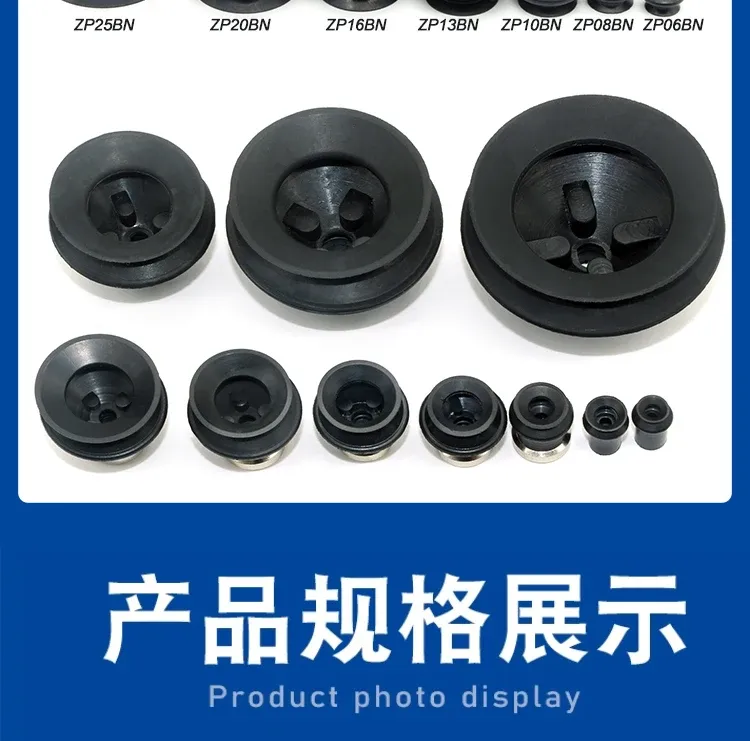

Black Nitrile Rubber / White Silicone

Mounting Hole

4-6mm

Shape

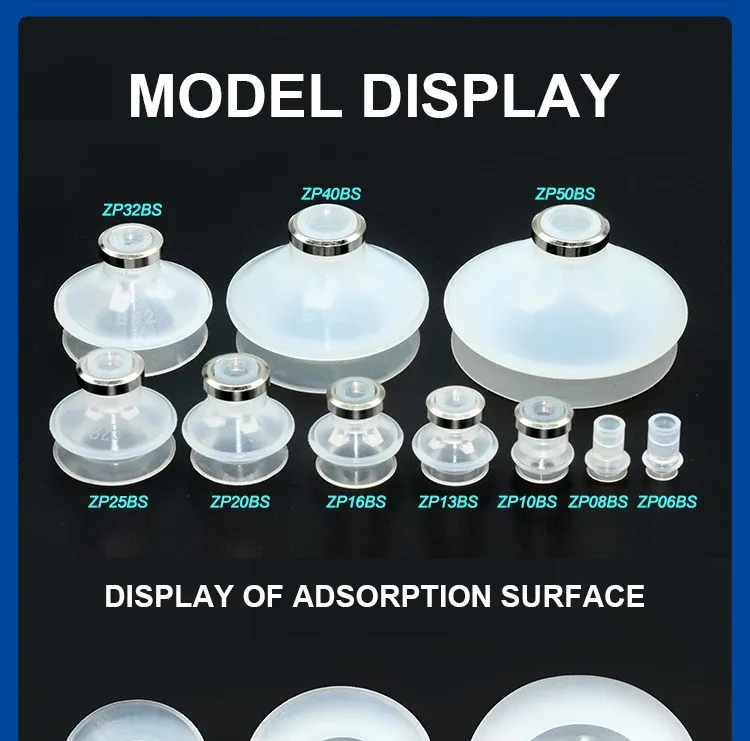

U Flat Type, B Bellows Type, C Flat Type with Ribs, D Deep Type

Cup Diameter

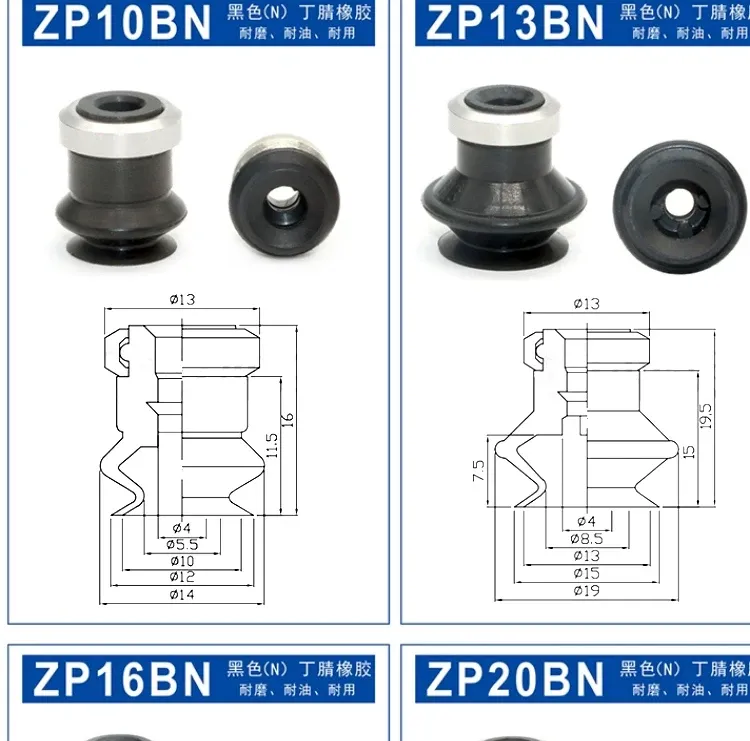

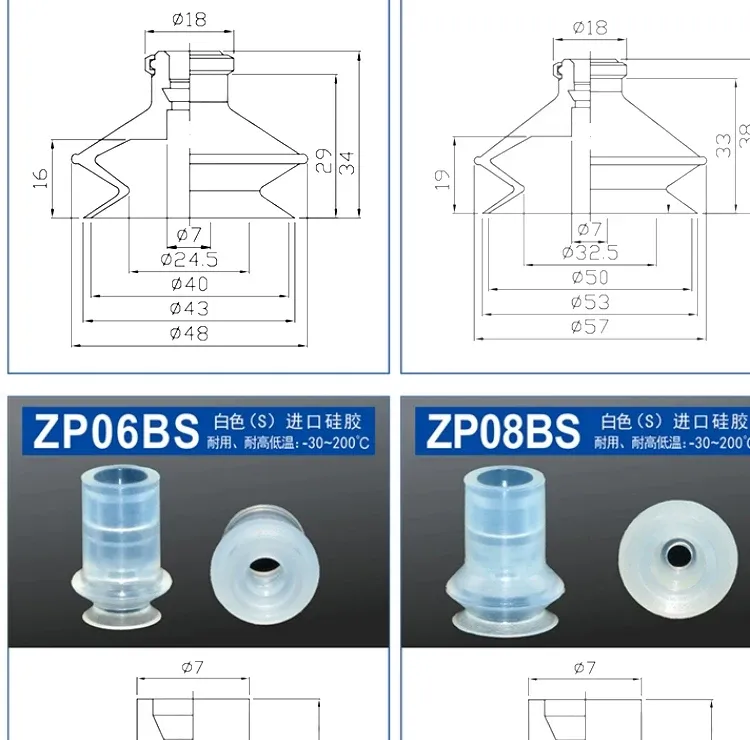

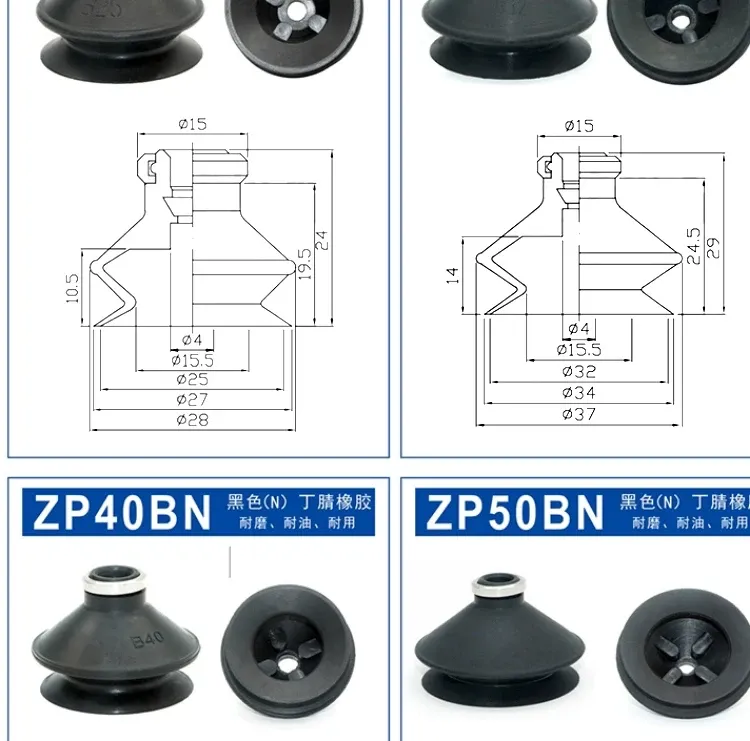

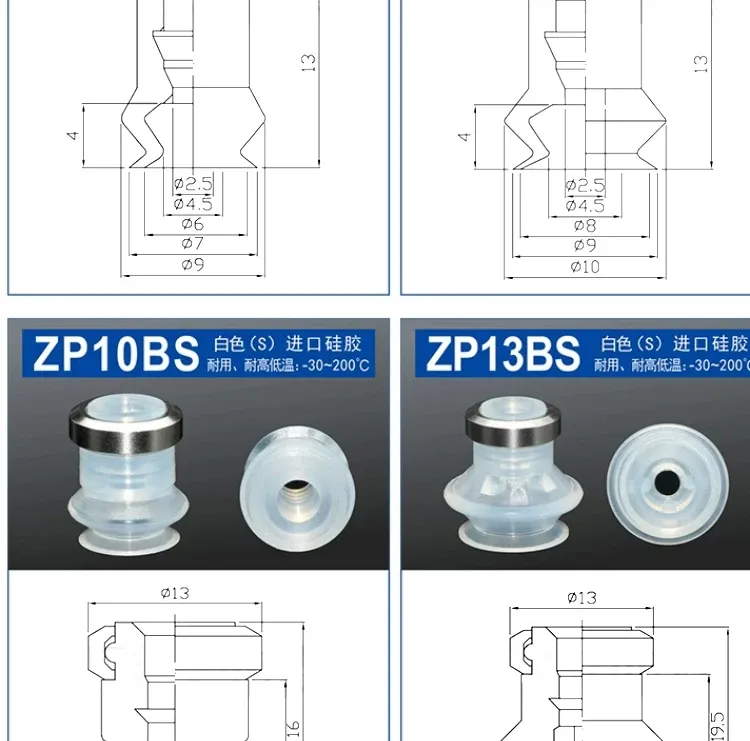

06/08/10/10/13/16/20/25/32/40/50mm

Application Scenarios

Suitable for handling small parts with flat suction surfaces, such as IC chips.

Customization Availability

Non-standard customization is supported

Description

1. Premium material options for universal needs Black nitrile rubber: exceptional oil resistance, wear resistance and anti-static properties combined with strong adhesion and reliable water resistance. Easy to machine, making it a universal choice for seals and suction cups in industry. Imported white silicone: wide temperature resistance (withstands both high and low temperatures) with stable chemical properties and no contamination. Ideal for medical, food and precision applications. Anti-static version: the spark-free design ensures safe use in vacuum smelting, vacuum drying, chemical machinery, pharmaceuticals, light industry, the electronic vacuum industry and other sensitive environments. 2. Multiple shapes and sizes for precise adaptation Shape choice: U flat type, B bellows type, C flat ribbed type, D deep type - adapted to different workpiece surfaces and handling requirements. Cup diameter range: 06/08/10/13/16/20/25/32/40/50 mm, covering small and medium flat-pad parts (e.g. IC chips, electronic components). Standard mounting hole: 4-6 mm for easy and reliable installation in automated systems. 3. Enhanced stability and damage-free handling Ribbed bottom design: minimizes tilting during transport, significantly improving operational stability and positioning accuracy. High-quality surface finish: burr-free with uniform texture and high tear strength, preventing scratches and damage to delicate workpieces. 4. Customization flexibility Supports non-standard customization to meet unique size, shape, material or performance requirements (e.g. specialized temperature resistance, improved adhesion). 5. Wide application versatility Ideal for handling small parts with flat surfaces, such as IC chips, electronic components, precision equipment and food/medical accessories; suitable for automation lines, assembly processes and precision manufacturing.
